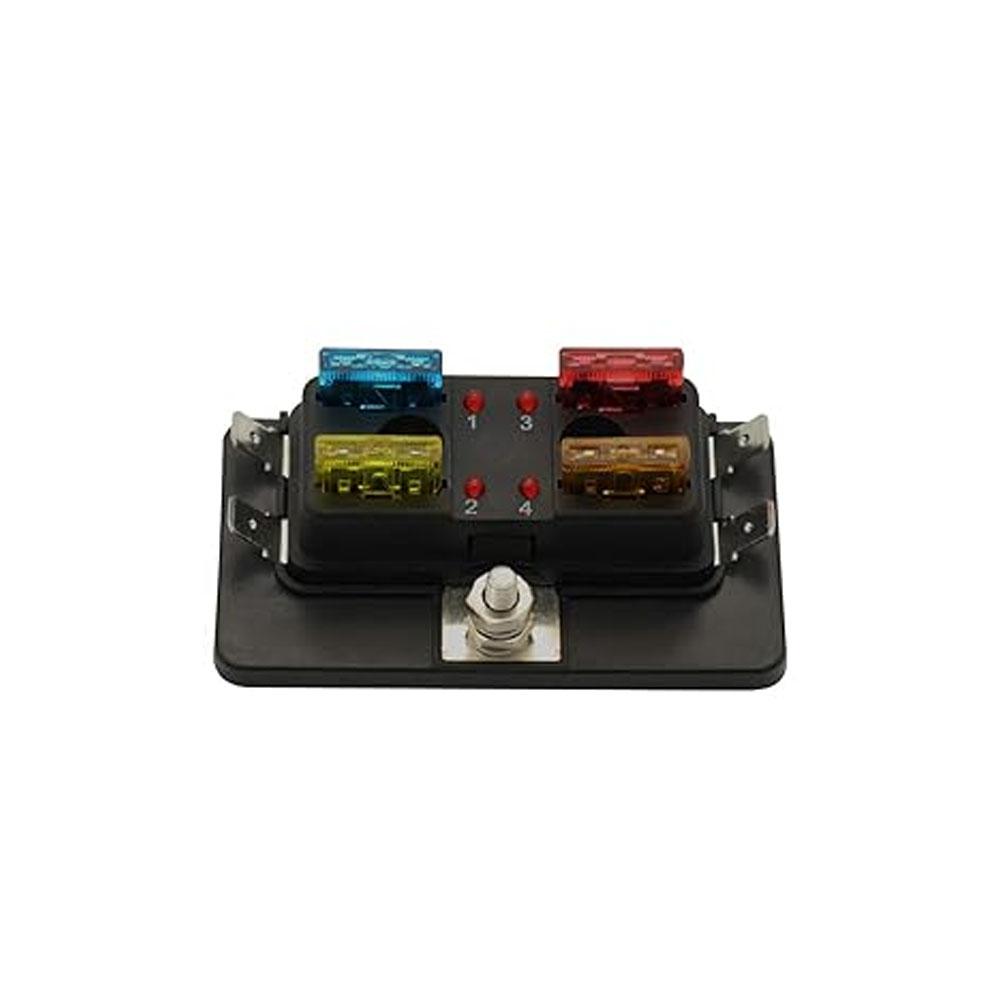

Waterproof 4 Way 12V 24V Blade Fuse Box Holder with LED Indicator for auto car boat.

Specifications:

1. Material:
   • Housing: High-quality, waterproof ABS plastic
   • Contacts: Corrosion-resistant tin-plated copper or brass
2. Dimensions:
   • Length: Approximately 90-120 mm (3.5-4.7 inches)
   • Width: Approximately 50-70 mm (2-2.8 inches)
   • Height: Approximately 30-50 mm (1.2-2 inches)
3. Voltage Compatibility:
   • 12V and 24V DC
4. Current Rating:
   • Max Current per Circuit: 30A
   • Total Capacity: 120A
5. Fuse Type:

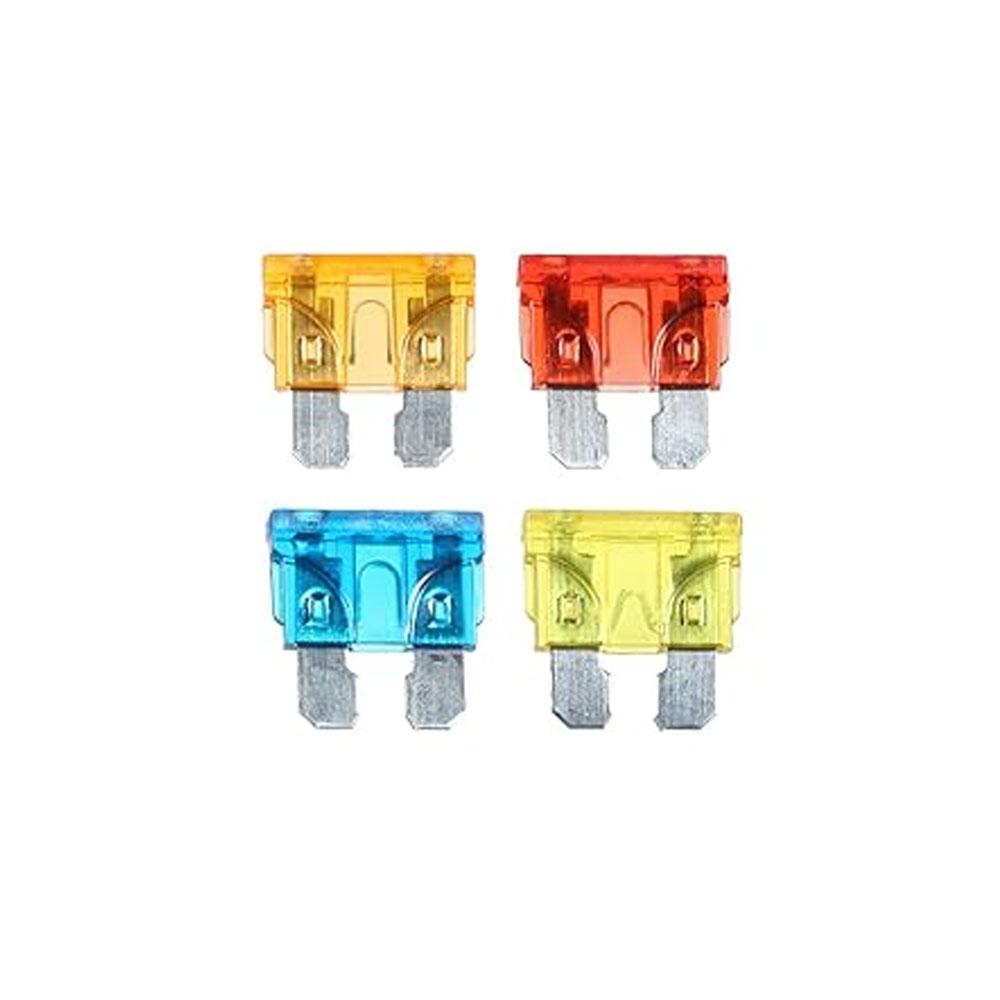

   • ATO (Automotive Technology Organization) standard blade fuses
   • Number of Fuse Slots: 4
6. Terminals:
   • Input Terminal: 1 main power input terminal
   • Output Terminals: 4 individual output terminals
7. Protection Cover:
   • Waterproof, snap-on or hinged clear/opaque plastic cover
8. LED Indicators:
   • LED indicators for each fuse slot to show blown fuse status
9. Mounting:
   • Surface mount with pre-drilled holes for screws
10. Environmental Resistance:
    • Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
    • Ingress Protection: IP67, ensuring complete dust tightness and protection against water immersion up to 1 meter
11. Additional Features:
    • Labeling area for identifying circuits
    • Compatible with 12 to 16 AWG wire gauges
    • Compact and waterproof design for use in cars, boats, and other vehicles requiring high moisture resistance.
