Ublox NEO 7M GPS With Compass for Pixhawk 2.4.6/2.4.8

Features :

  • Locate performance
  • These are Pre-configured, flashed with the correct settings, and tested. To make them Plug and Play.
  • Super Bright LED
  • Backplane with Standard Mk style mounting holes 45mm X 45mm
  • 38400 bps (Default) changed to 115200bps!
  • Output GGA, GSA and RMC frames
  • 1Hz (Default) changed to 5Hz!
  • Permanent Configuration Retention
  • compass on board
  • 6 pin connectors for EZ connect to MEGA BLACK
  • 4 pin connectors for only GPS use
  • 4 pin connectors for compass only use
  • Can use both 4 pin at once.
SKU: RDNA-21.6

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1,398.99 (Inc. GST)
1,185.59 (+18% GST Extra)

In stock

In stock

20 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Ublox Neo 7M GPS module that includes an HMC5883L digital compass.  The new Ublox NEO 7 series is a high sensitivity, low power GPS module that has 56 channels and outputs precise position updates at 10Hz.  This GPS module also comes with a moulded plastic case that keeps the module protected against the elements making it ideal for use on your aircraft or quadcopter.

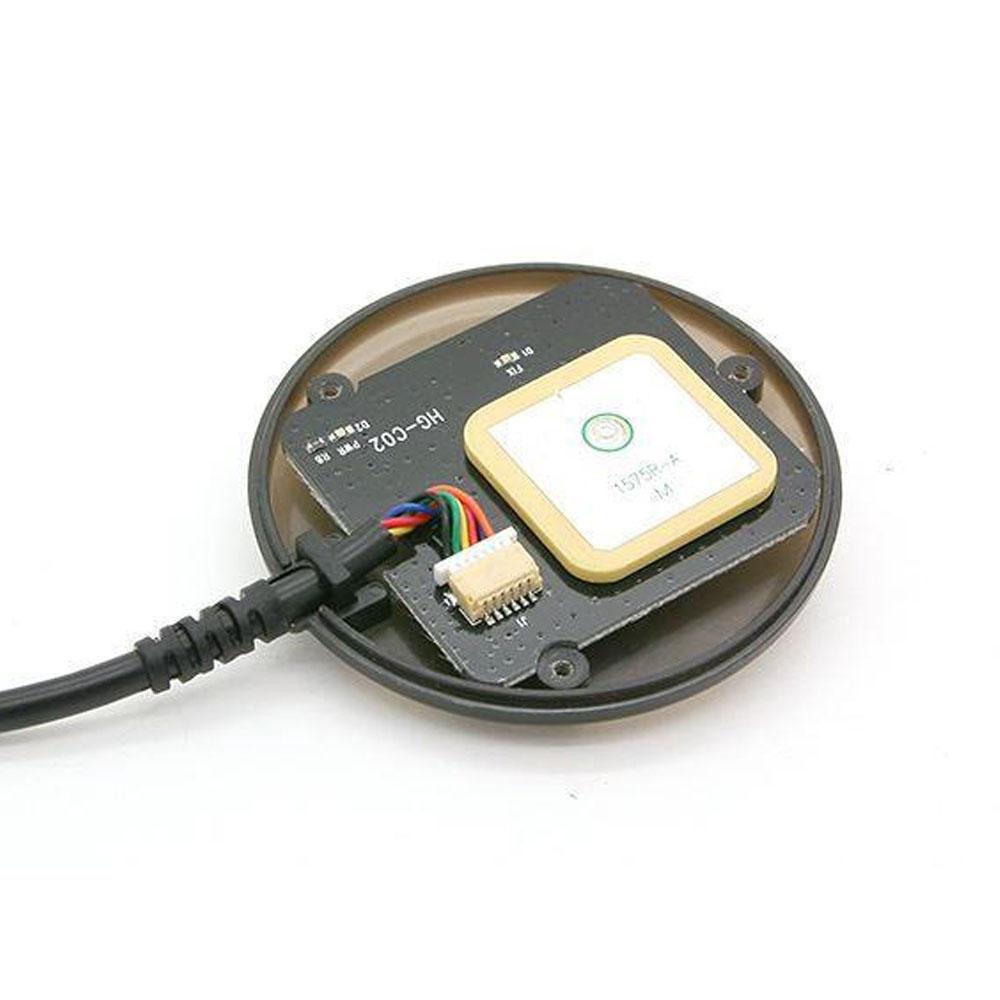

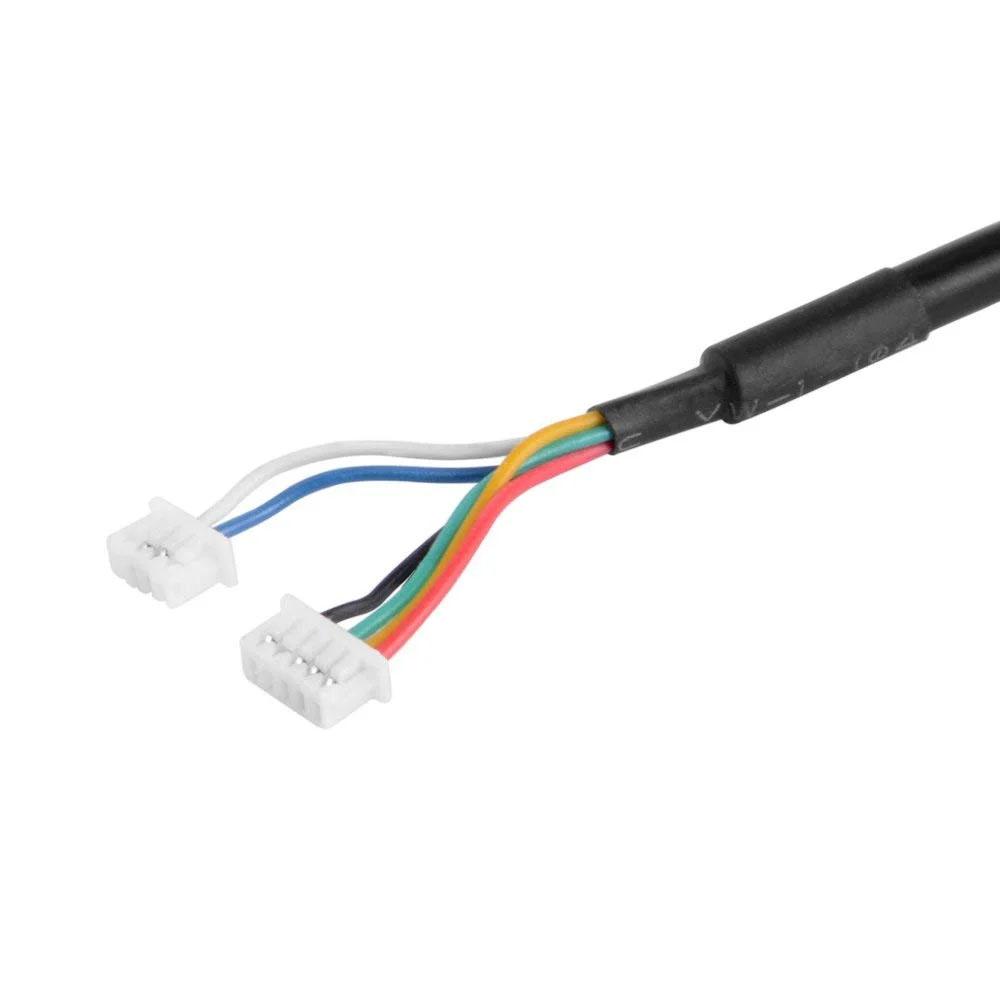

This Ublox Neo 7M GPS module uses an active circuitry ceramic patch antenna to provide excellent GPS signal which outperforms the older Ublox Neo 6 series modules. This Ublox Neo 7 module also includes a rechargeable backup battery to allow for HOT starts and also includes an I²C EEPROM to store the configuration settings.  Out of the box this GPS module is configured to run at 38400 Baud and is configured to run with APM/Pixhawk systems.  This GPS module includes two cables, a 6pin connector for the GPS module, and a 4 pin connector for the i2c compass.



Package Includes :

1 x Ublox Neo 7M GPS module.
