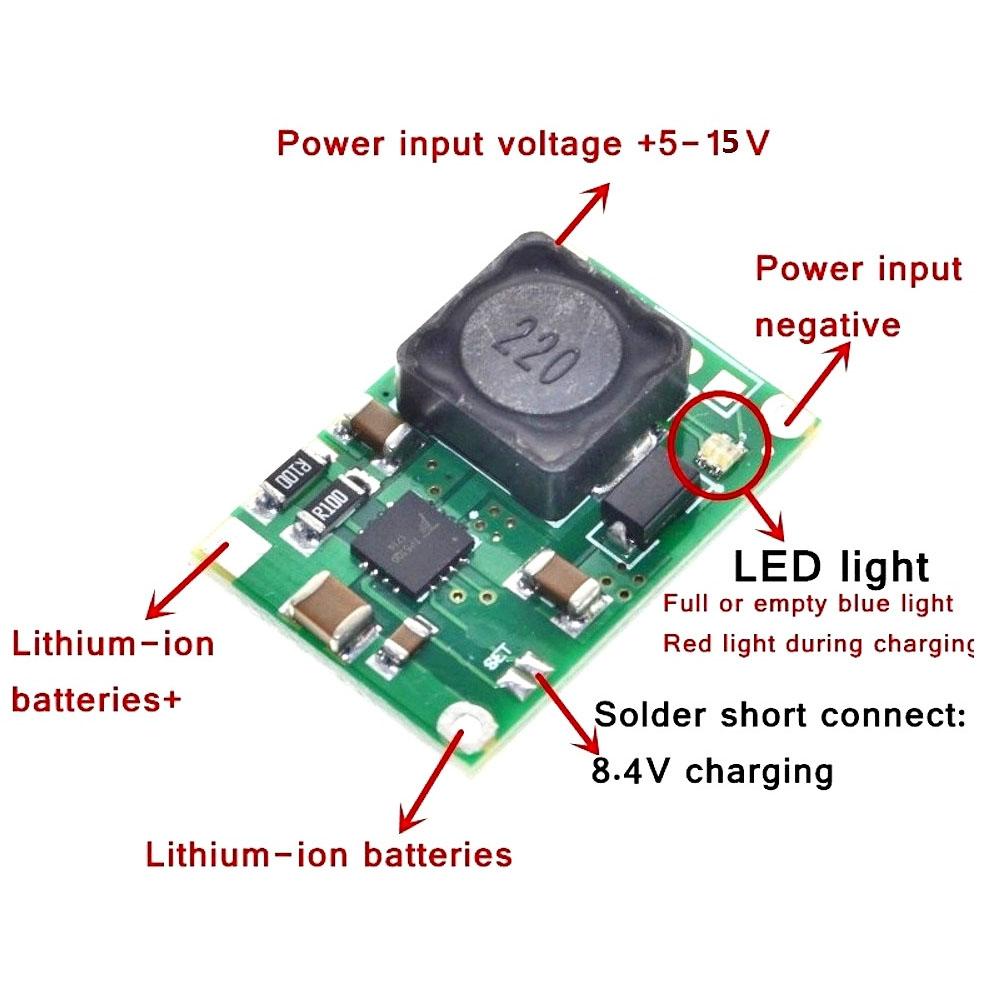

TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Lion Battery Compatible 2A Charging Board - Image 1

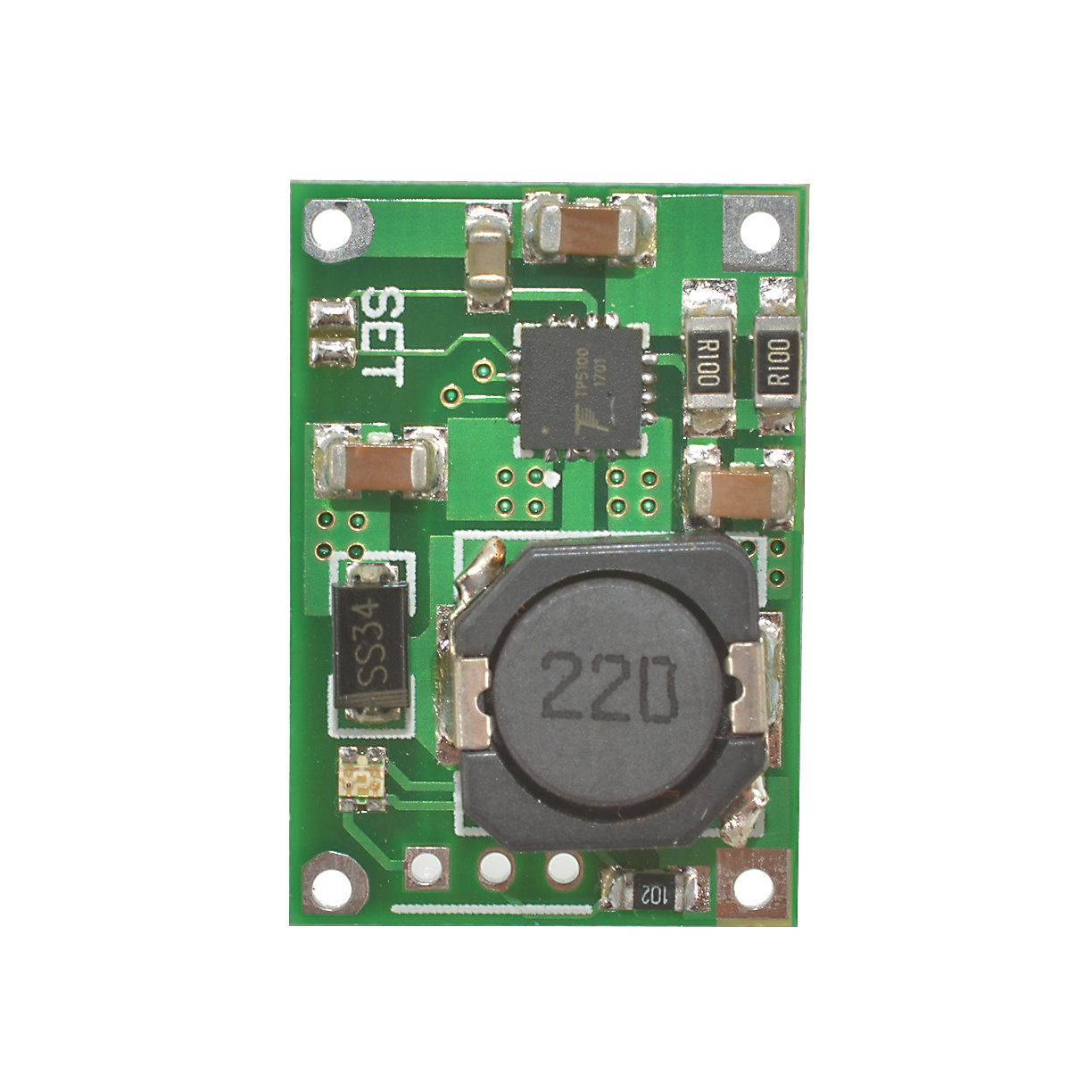

TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Lion Battery Compatible 2A Charging Board - Image 2

TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Lion Battery Compatible 2A Charging Board

Features:

Input voltage: 5-15V DC power supply.
Charge status: full and unloaded blue lights, charging red.
Double 8.4v / 4.2v lithium rechargeable single .
Programmable charge current. 0. 1A-2A .
Programmable steady pre-charge current 10% -100%.
Wide operating voltage, maximum reach I8V.
Red and green LED charge status indicator.
Chip temperature protection, overcurrent protection, under voltage protection.
Battery temperature protection, reverse battery shutdown, short circuit protection.
Switching frequency 400Khz, usable inductance 20uH and more.
PWR_ON Power battery for switching control.

SKU: RDNA-B370.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹62.67 (Inc. GST)
₹53.11 (+18% GST Extra)

In stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

17 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Lion Battery Compatible 2A Charging Board is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, under-voltage protection, over-temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.

TP5100 has 5V-15V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three-phases, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintains a smaller amount of heat.

Check Other Related Products:

Lithium ion Batteries

18650 BMS

PVC Sleeve/ Insulation Tape

Package Includes:

1 x TP5100 4.2v 8.4v Single Double Lithium Battery Charging Board.
