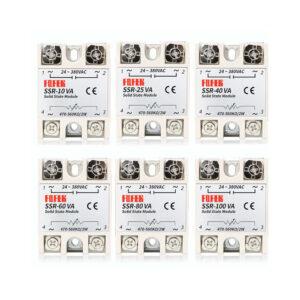

SSR-75VA 24-380V Solid State Voltage Regulator

Specification:

Dielectric Strength: Over 2.5kVA / 1 min
Trigger resistance: 470-560KΩ
Switching Voltage (VAC):24-380
Operating Temperature Range (C):-20 to 85
Material: ABS

SKU: RDNA-709.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹518.00 (Inc. GST)
₹438.98 (+18% GST Extra)

Only 2 left in stock

Compare

Add to wishlist

11 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This is an SSR-75VA Solid State Relay Module 470-560KΩ/24-380VAC 100VA. A solid-state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low-voltage signal which is isolated optically from the load.

The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load. In this particular SSR, the power output is controlled by the trigger angle of the triac with the variable resistor of 470-560KΩ. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Packing List:

1 x SSR-75VA 24-380V Solid State Voltage Regulator
