SSR-10DA Solid State Relay Module 3-32 VDC /24-380VAC 10A

Features :

  1. Long Service life and high Reliability
  2. Reduced Electromagnetic Interference
  3. Highly reliable, compact size designed to offer users maximum simplicity
  4. Trigger Voltage: 3-32VDC
  5. Switching Voltage: 24-380VAC@10A



SKU: RDNA-679.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

217.00 (Inc. GST)
183.90 (+18% GST Extra)

Only 1 left in stock

Only 1 left in stock

13 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

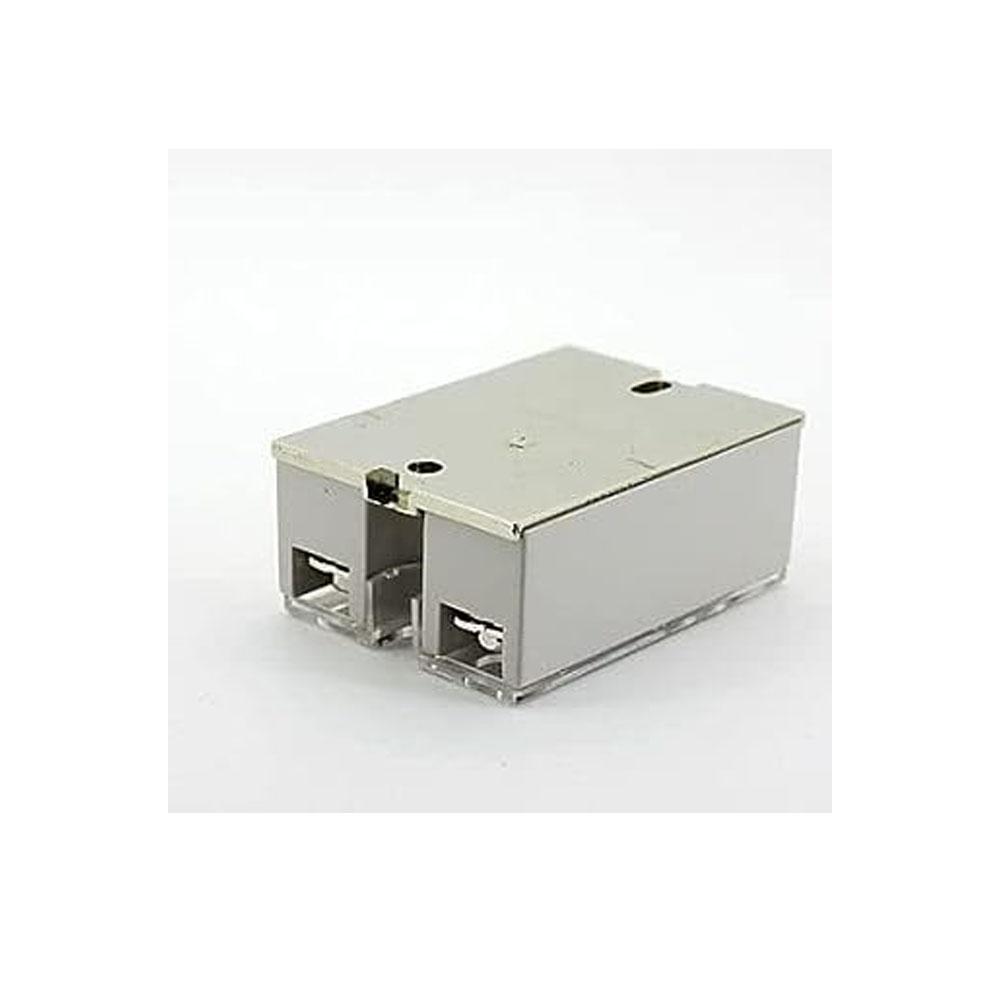

This is SSR-10DA Solid
State Relay Module 3-32 VDC
/24-380VAC 10A. A solid state relay (SSR) allows you to control high-current AC loads from lower voltage DC control circuitry. Solid state relays have several advantages over mechanical relays.

One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out.

This particular SSR can switch current loads of up to 10A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

Packing List:

1 x SSR-10DA Solid
State Relay Module 3-32 VDC
