SIMCOM A7670G Development Core Board LTE CAT1 4G Global-band A7670G 3

SIMCOM A7670G Development Core Board LTE CAT1 4G Global-band A7670G 1

Click to enlarge

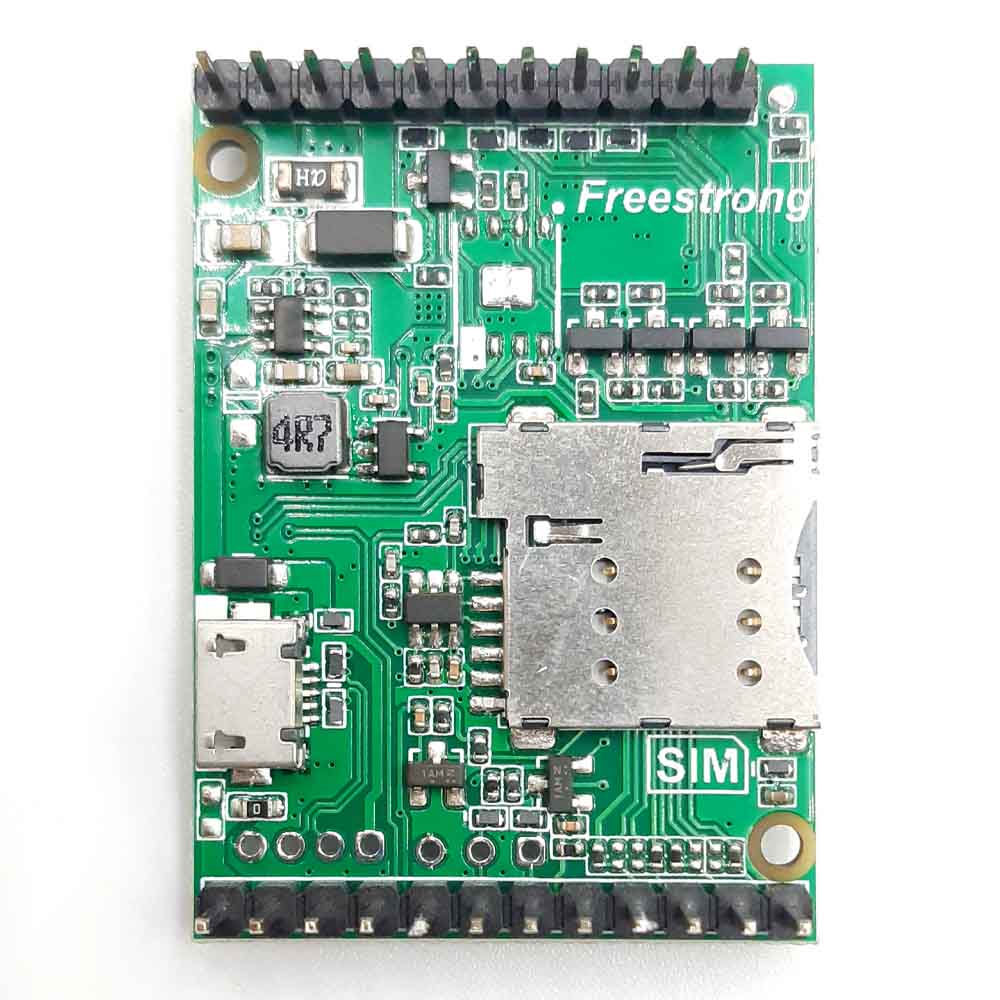

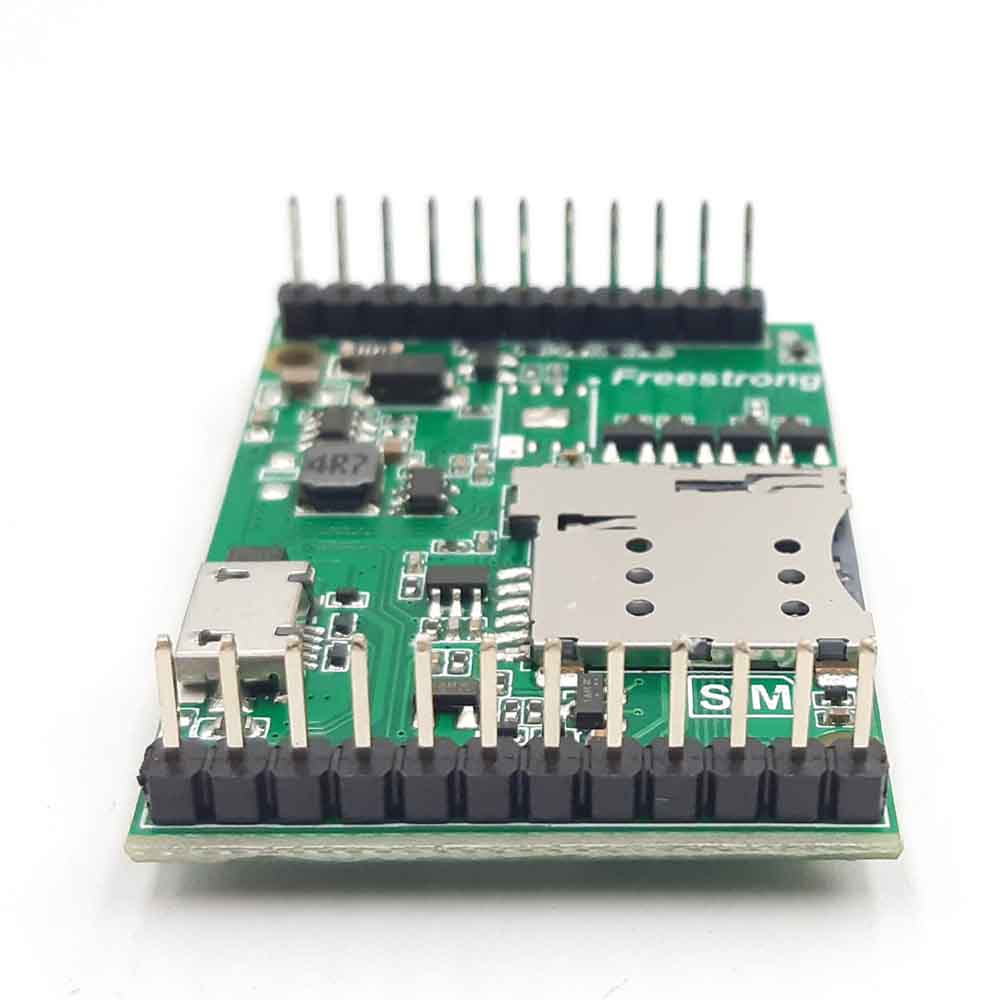

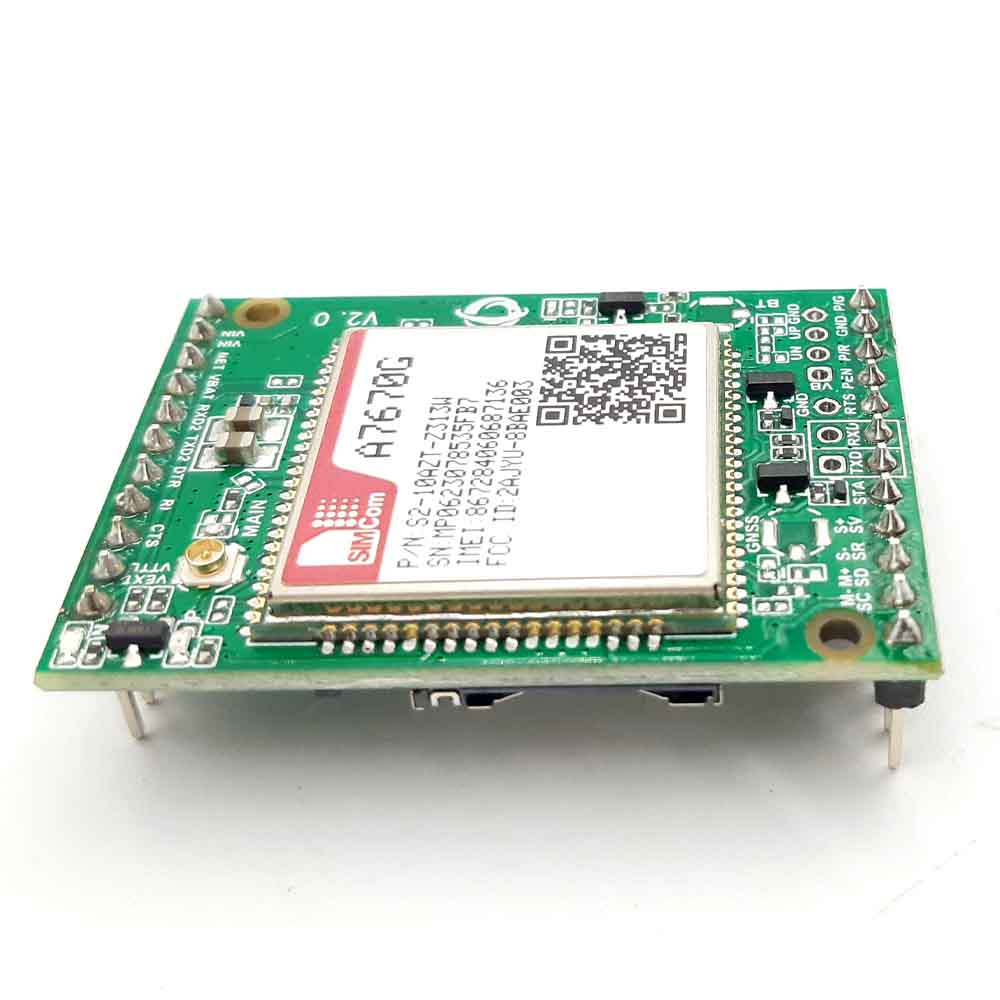

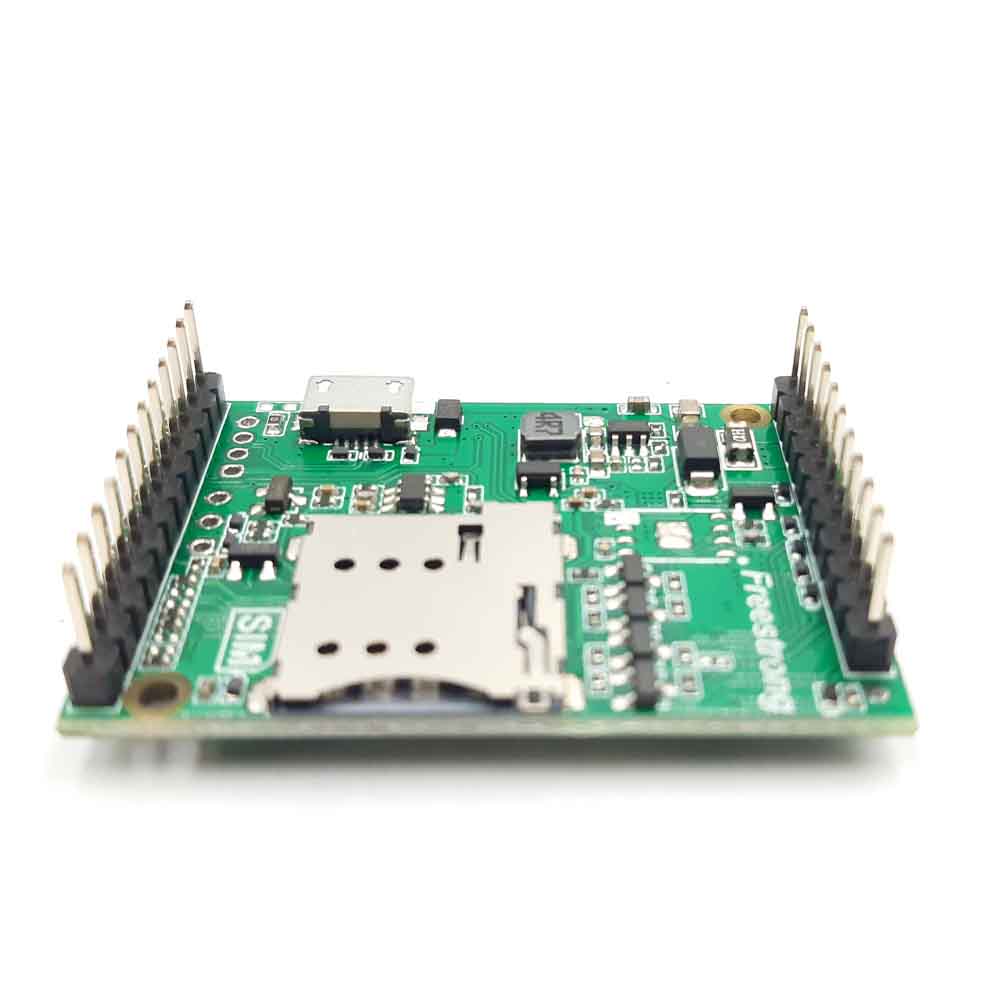

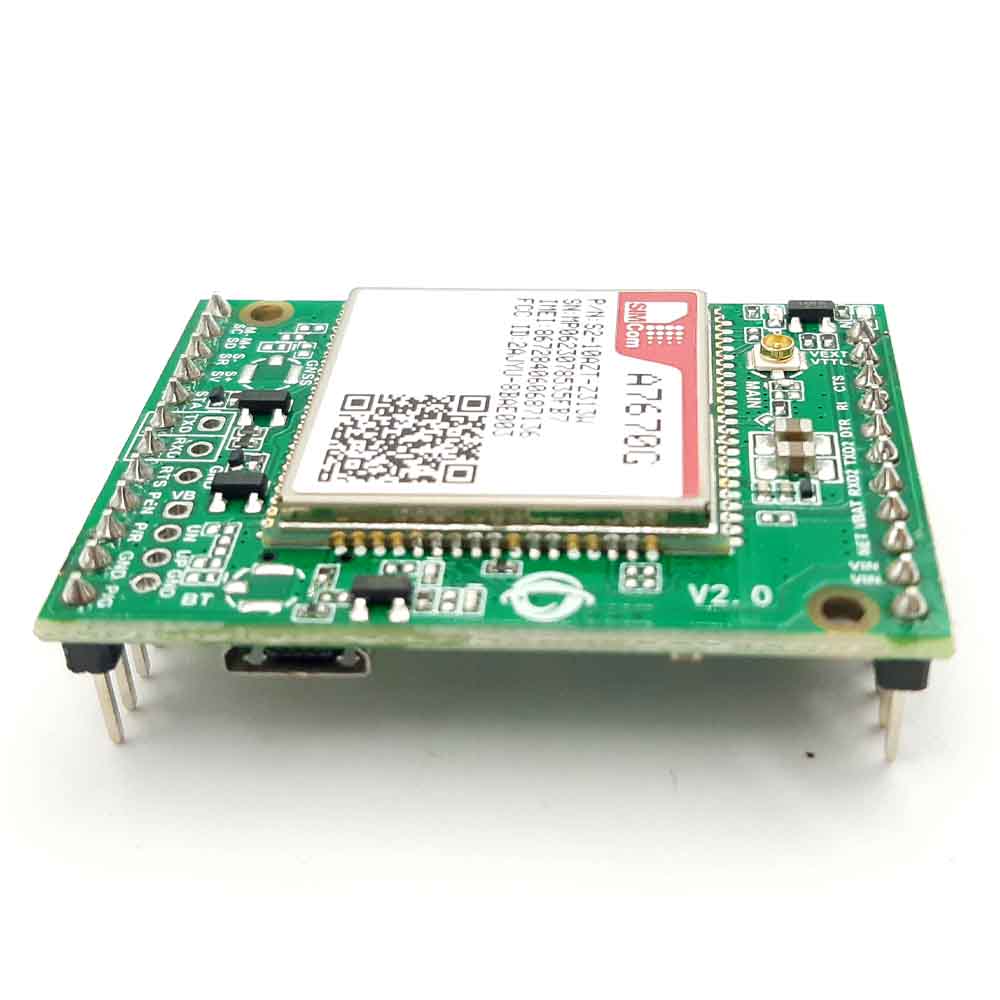

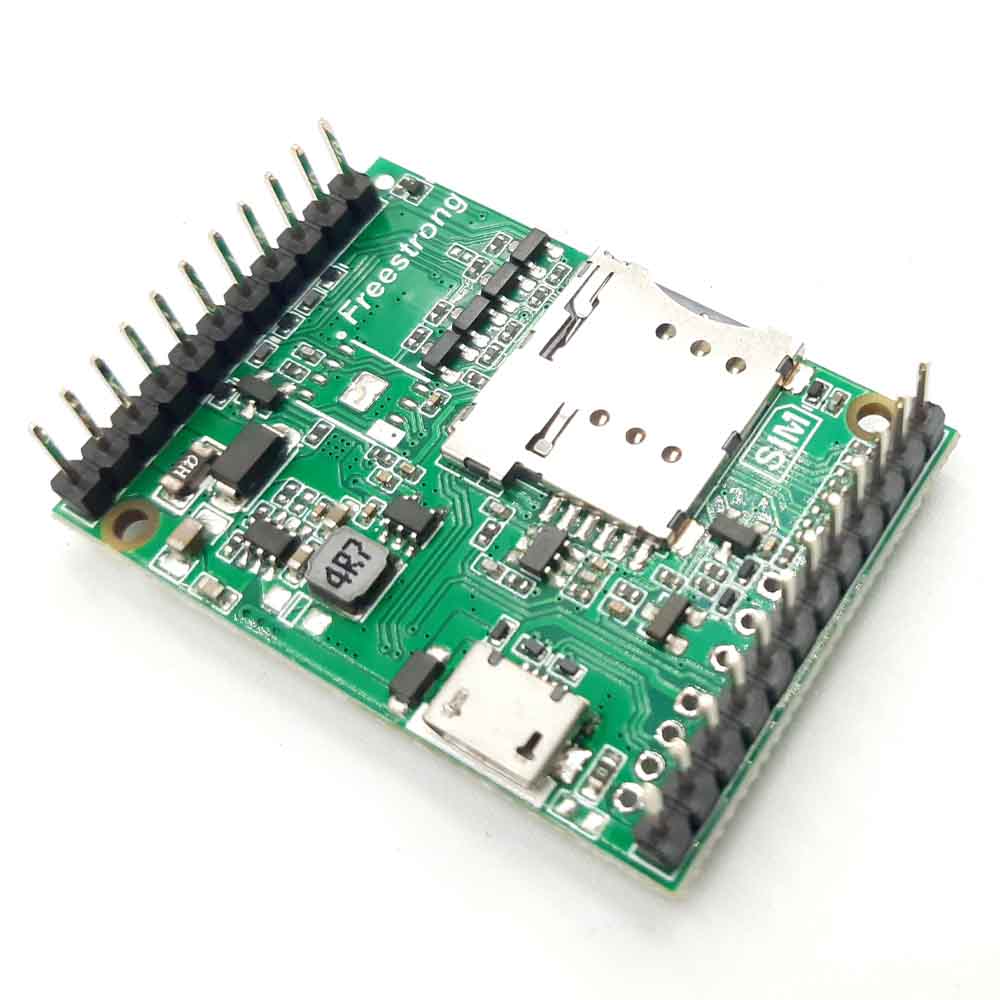

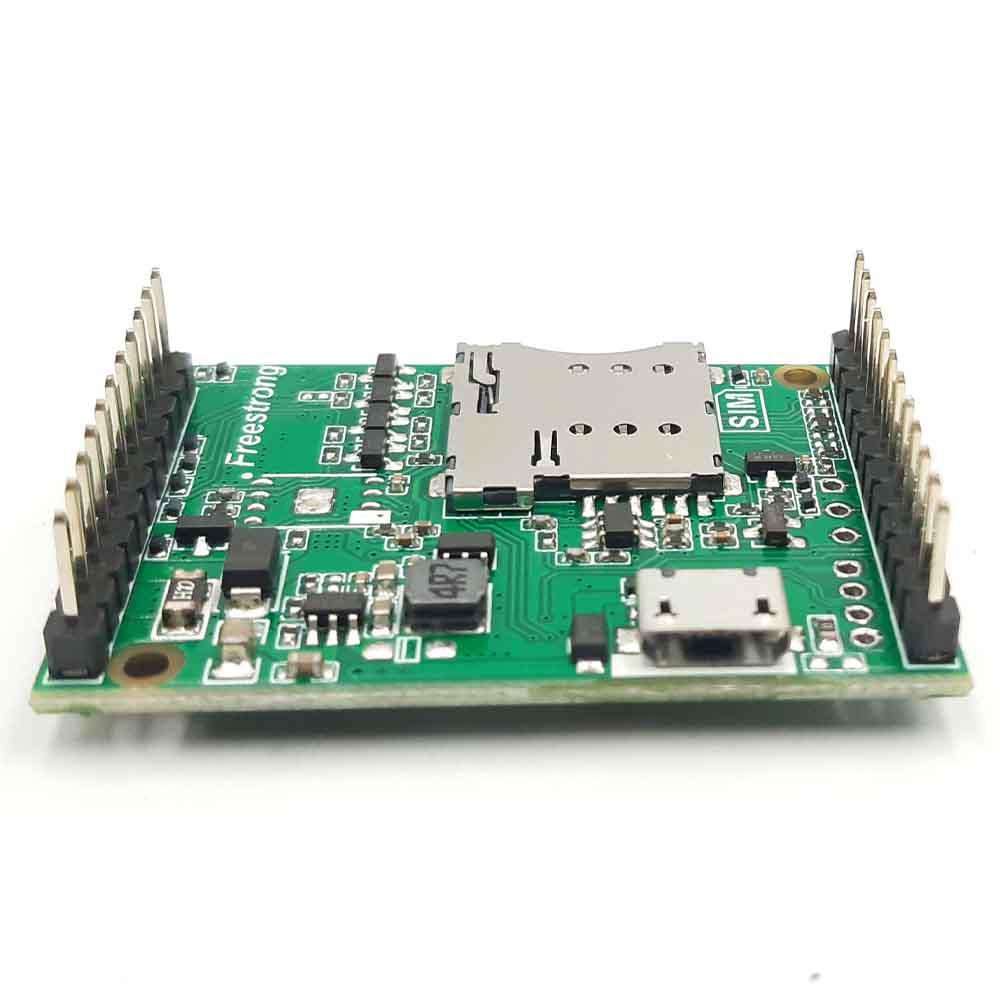

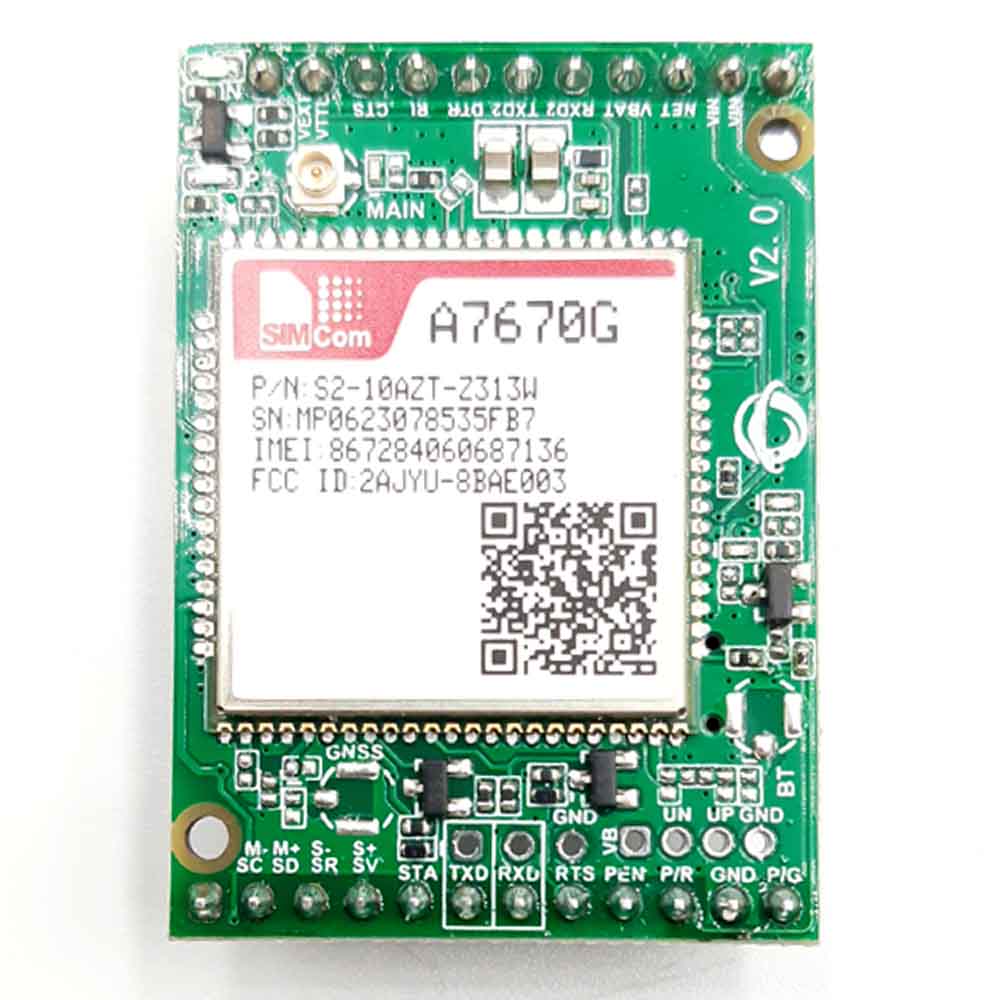

SIMCOM A7670G Development Core Board LTE CAT1 4G Global-band A7670G Module with Antenna

Specifications :

Product Name : LPWA Core Board
Model : CC-MCore-SIMA7670G

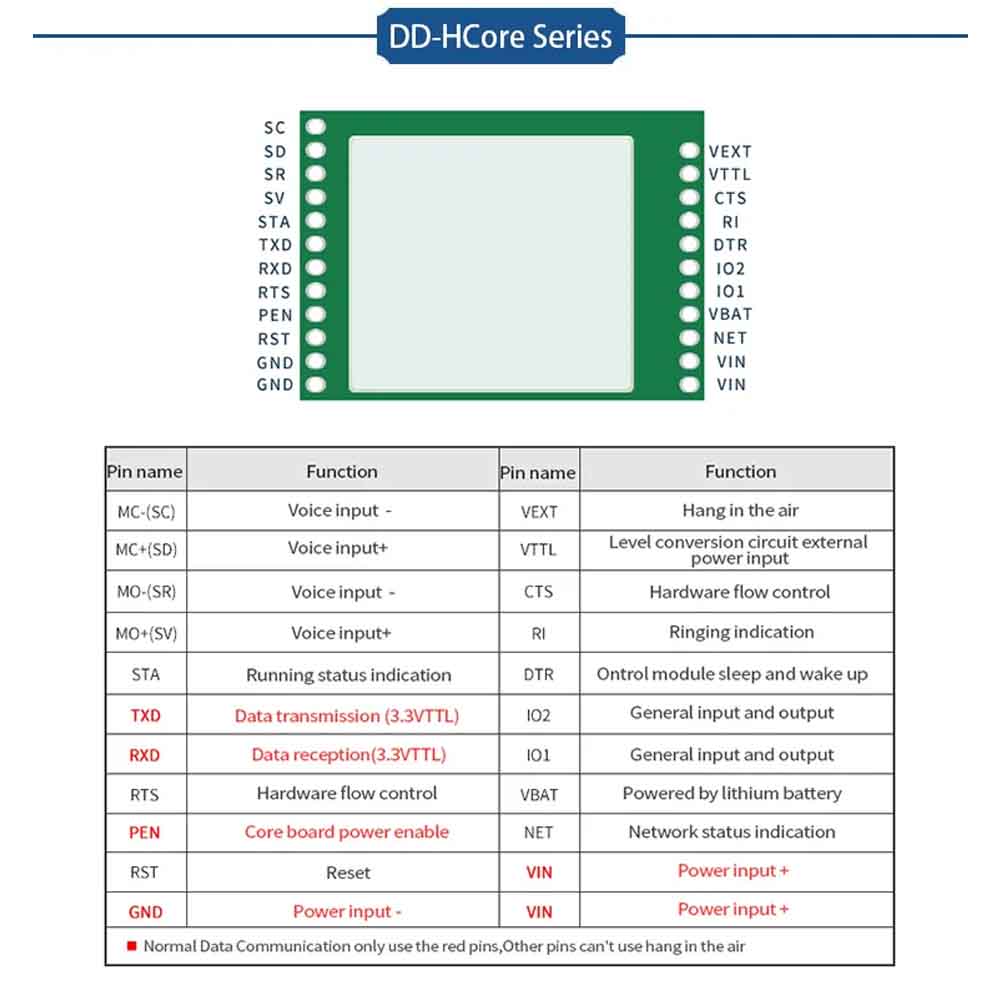

Package : 48PIN(2.54mm)
Power : 5-16V DC
UART : 3.3V TTL (Default)
Antenna interface : IPEX 1
SIM Card : MIRCO SIM
LED : Power/Network light
USB : Y
SIZE : 44.45*31.75*10.54 (Including pin height)
Operating temperature : -40°C-85°C
Network Band: Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B 26/B27/B28/B31/B66/B72/B85 Network Band
Cat-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B 28/B31/B66/B85
Network speed : Cat-M(Kbps) 589(DL)/1119(UL) Cat-NB(Kbps) 127(DL)/158.5 (UL) EGPRS(Kbps) 296(DL)/236.8(UL)
Network protocol : TCP/UDP/HTTP/HTTPS/FTP/ TLS/DTLS/PING/LWM2M/ COAP/MQTT
Function : LPWA+GSM+NBIOT+CAT-M+B31

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹1,593.00 (Inc. GST)
₹1,350.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

10 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The SIMCOM A7670G Development Core Board is a robust and versatile platform designed to facilitate the development and implementation of LTE CAT1 4G technology. At its core lies the A7670G module, a high-performance component equipped to operate seamlessly across global LTE bands.

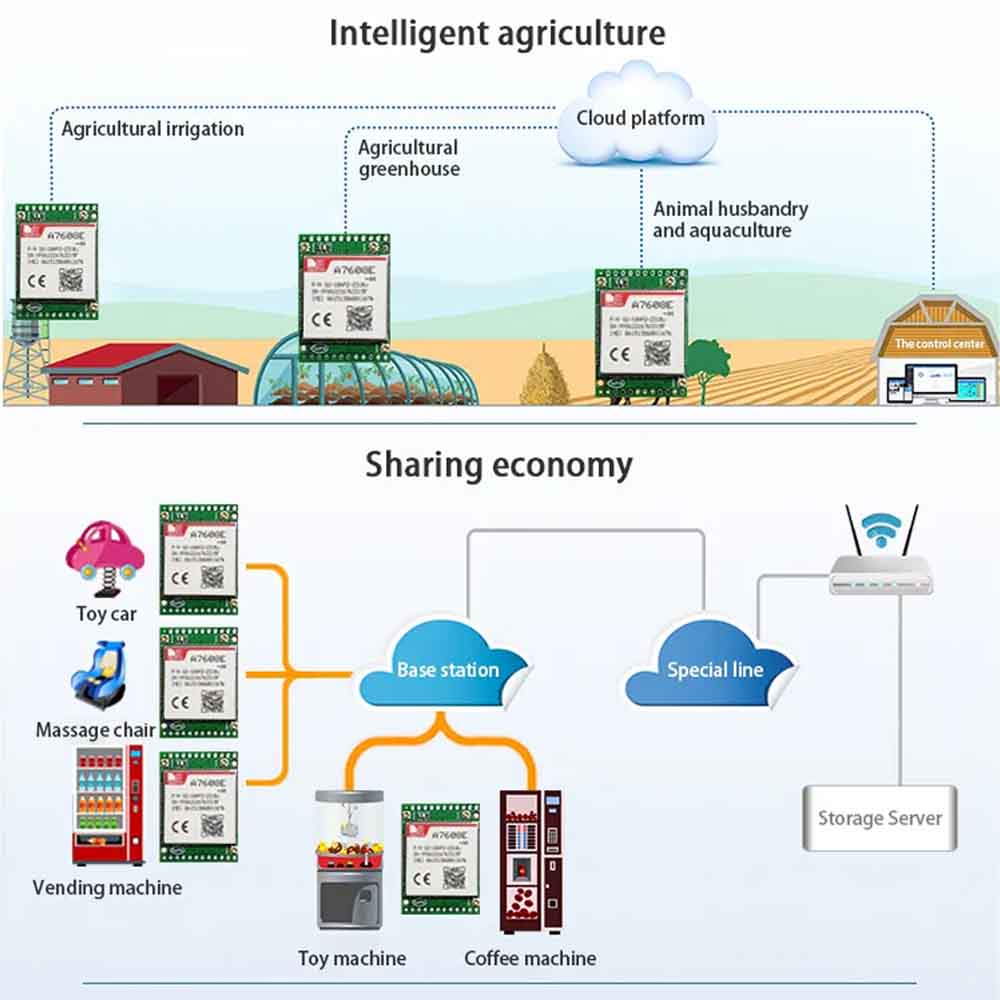

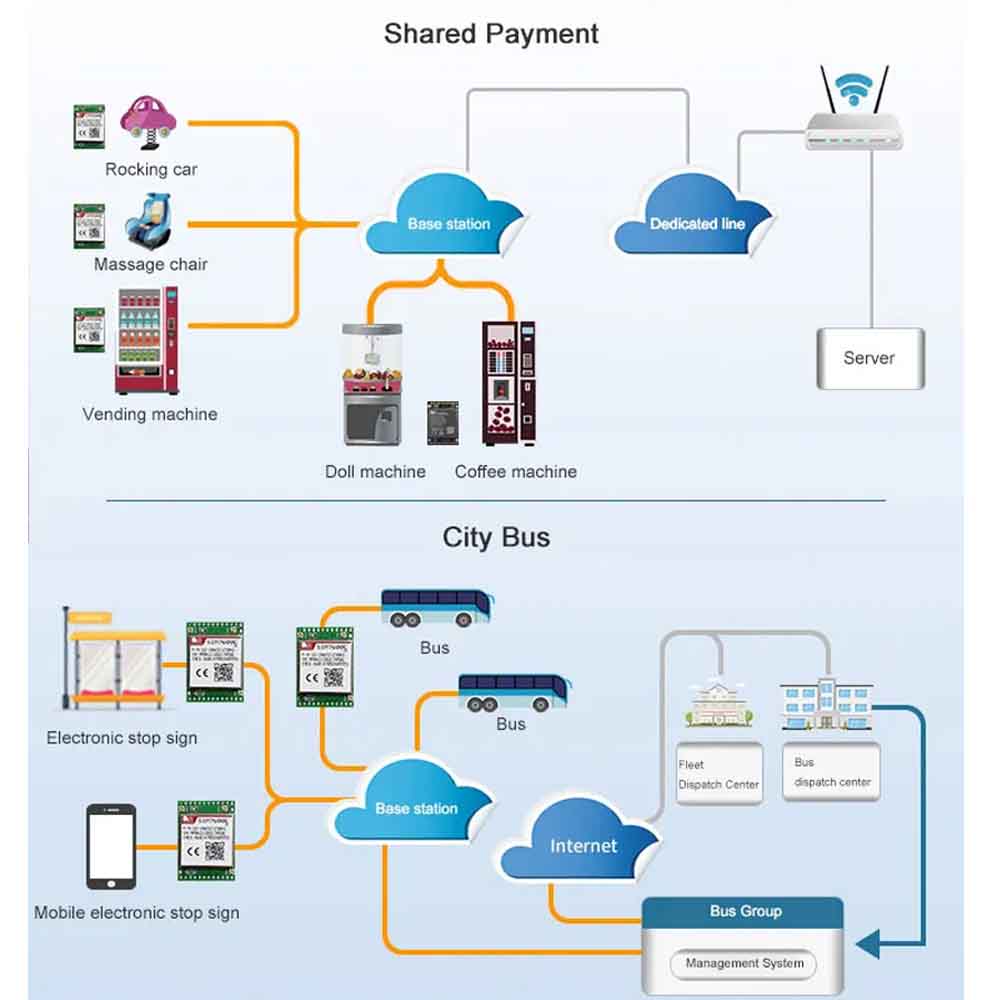

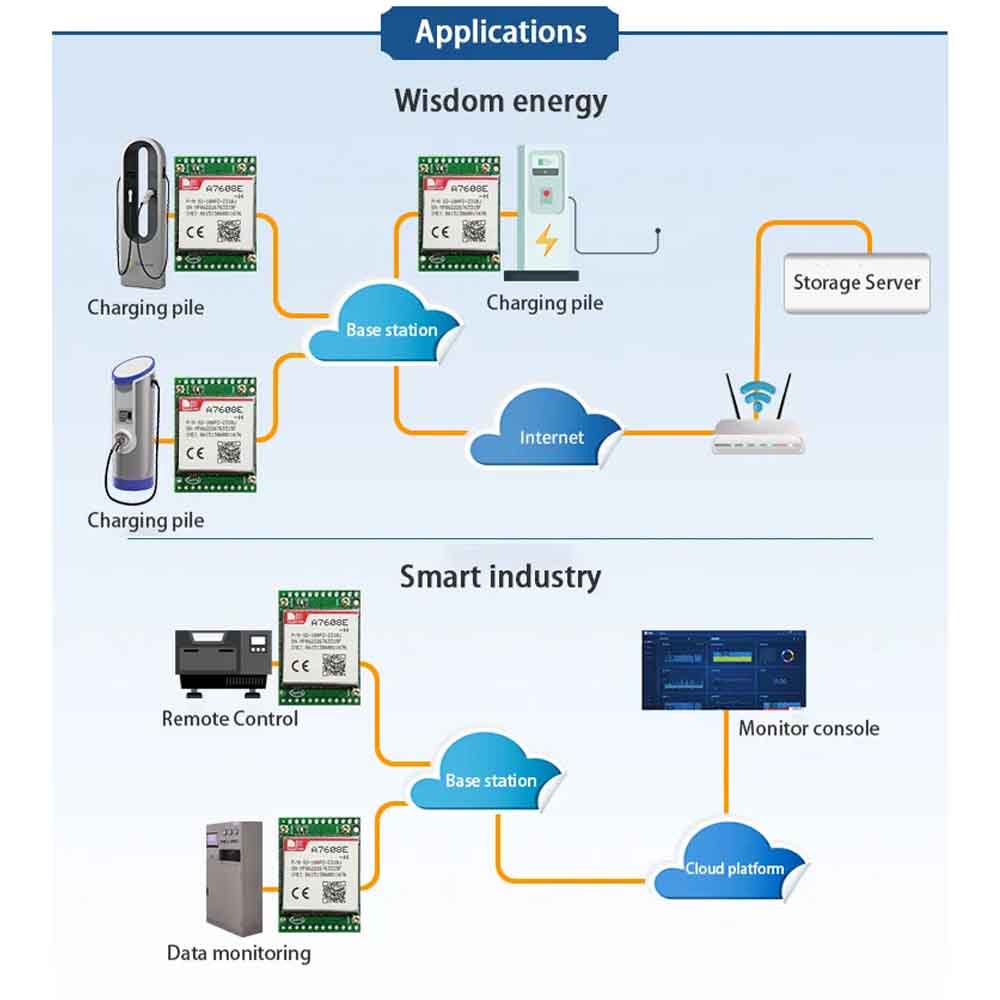

This development board boasts comprehensive support for LTE CAT1, enabling reliable and high-speed 4G connectivity. Its versatility extends to accommodating a wide range of applications, from Internet of Things (IoT) devices to industrial automation and beyond.

The A7670G module’s global-band compatibility ensures its adaptability to various regions worldwide, offering a broad spectrum of frequency bands for uninterrupted connectivity across diverse geographic locations.

Equipped with robust features and extensive compatibility, this development core board serves as an excellent foundation for developers and engineers aiming to create innovative solutions leveraging the power of LTE CAT1 4G technology.

Datasheet of SIMCOM A7670G

PACKAGE INCLUDES :
1PCS x SIMCOM A7670G Development

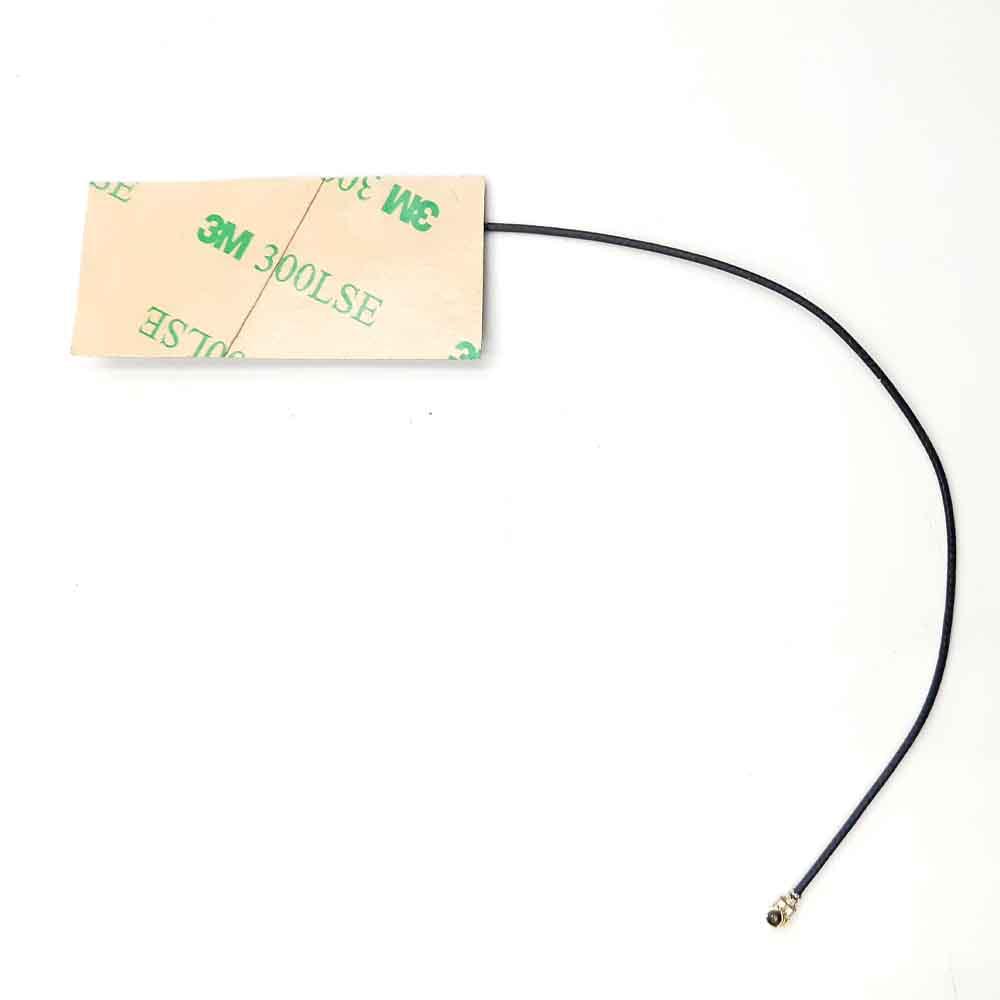

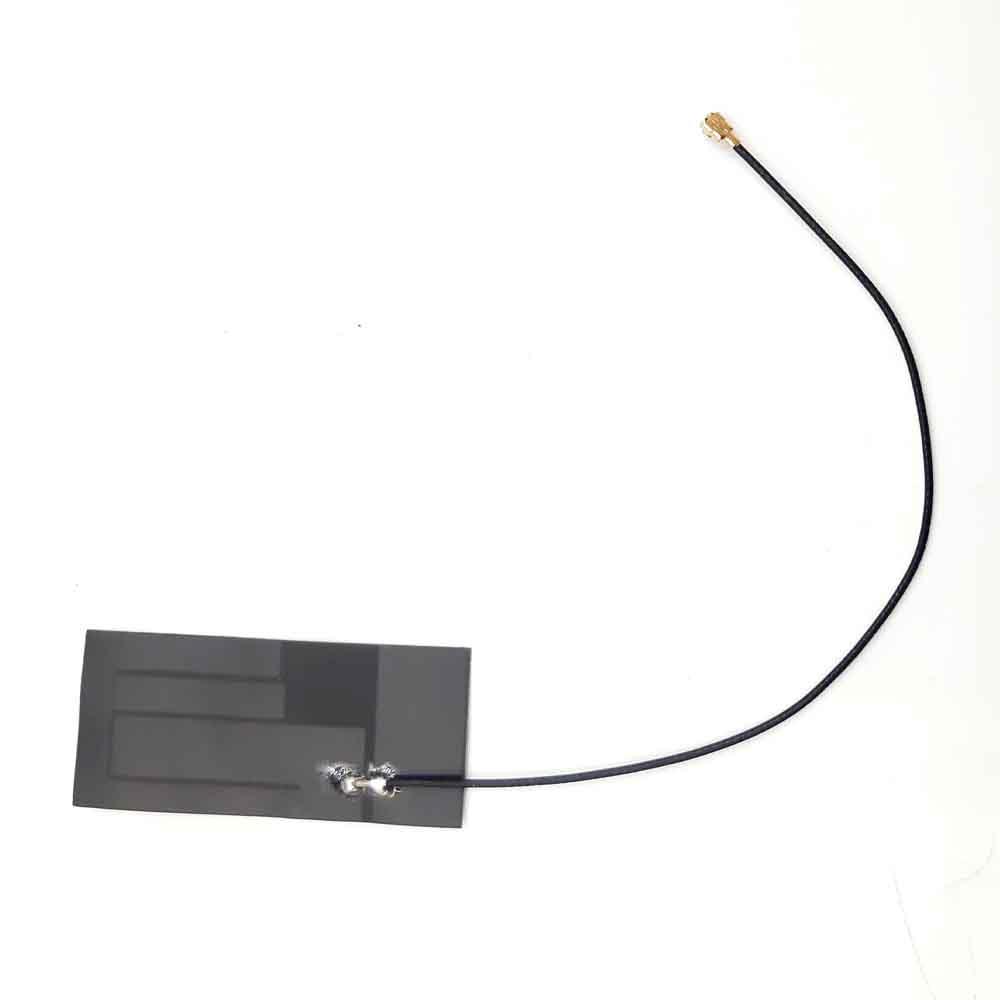

1PCS X GSM Antenna
