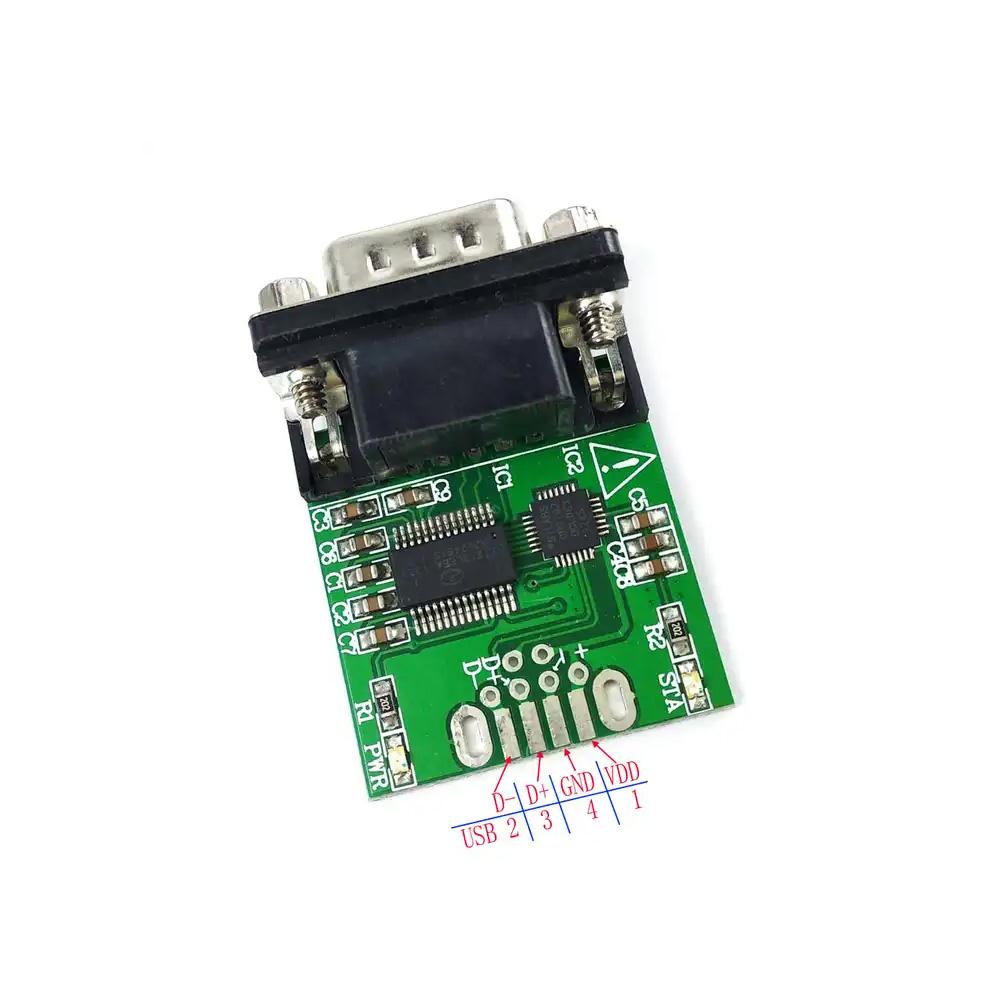

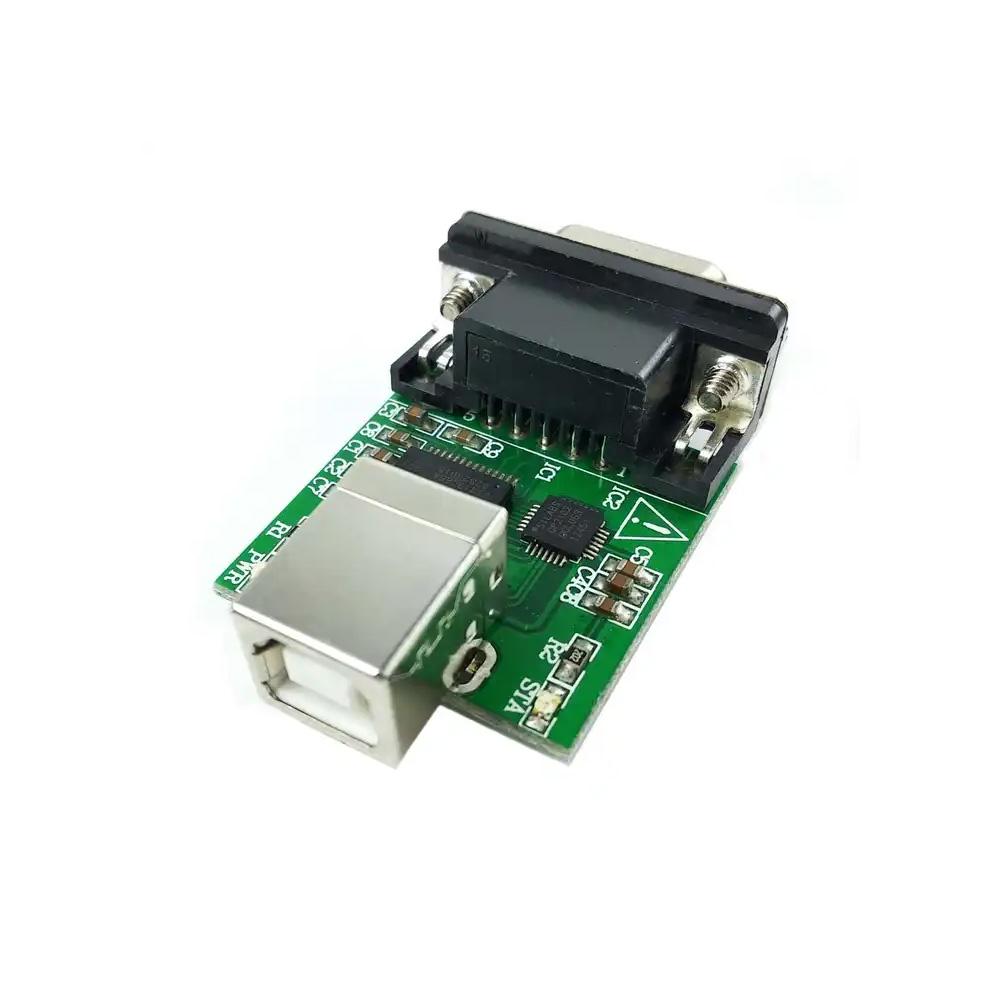

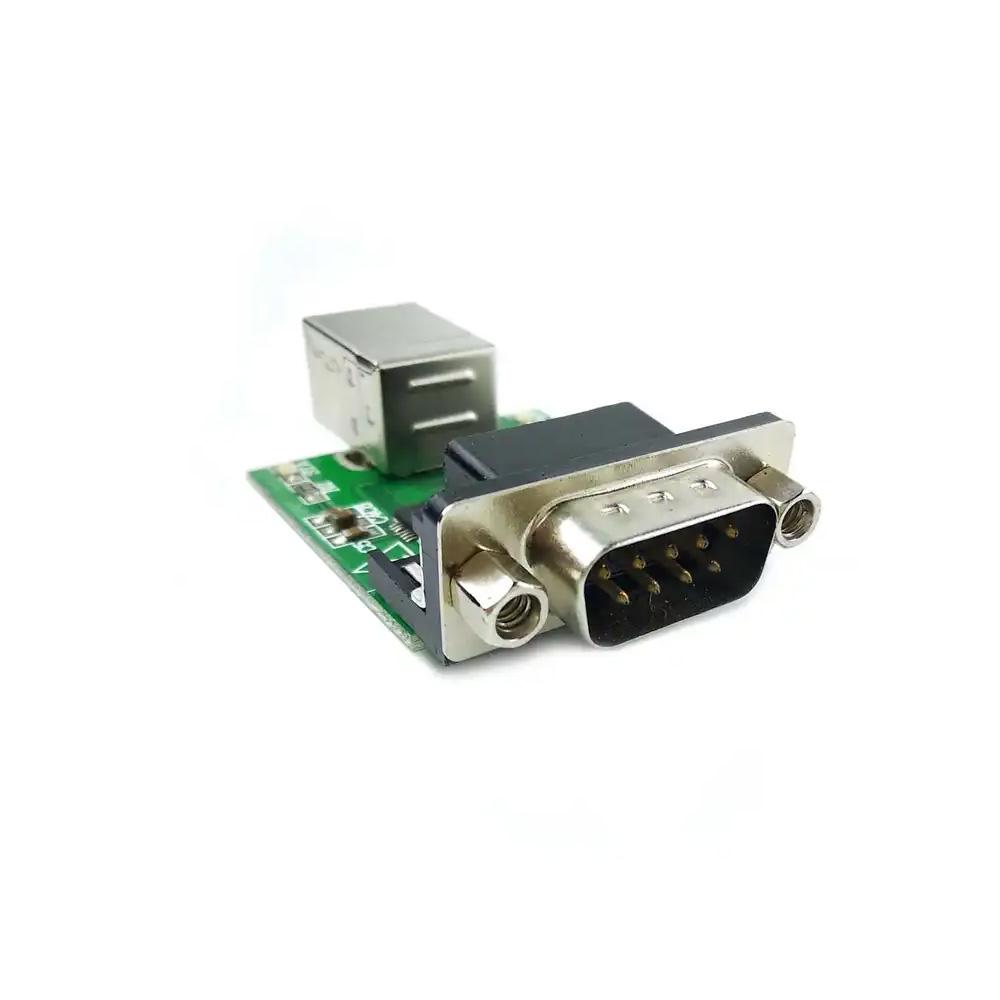

Silicon Labs CP210x USB To RS232 9Pin D-sub DB9 Serial Converter

Specifications:

CP2102 Based – Better and Faster than Cheap PL2303 based boards
USB specification 2.0 compliant with full-speed 12Mbps.
Supports all Windows (Above Win98), Mac OS (Above 9) & Linux (Above 2.x.x)
Baud rates: 300 bps to 1 Mbps.
Byte receives buffer: 640 byte transmit buffer.

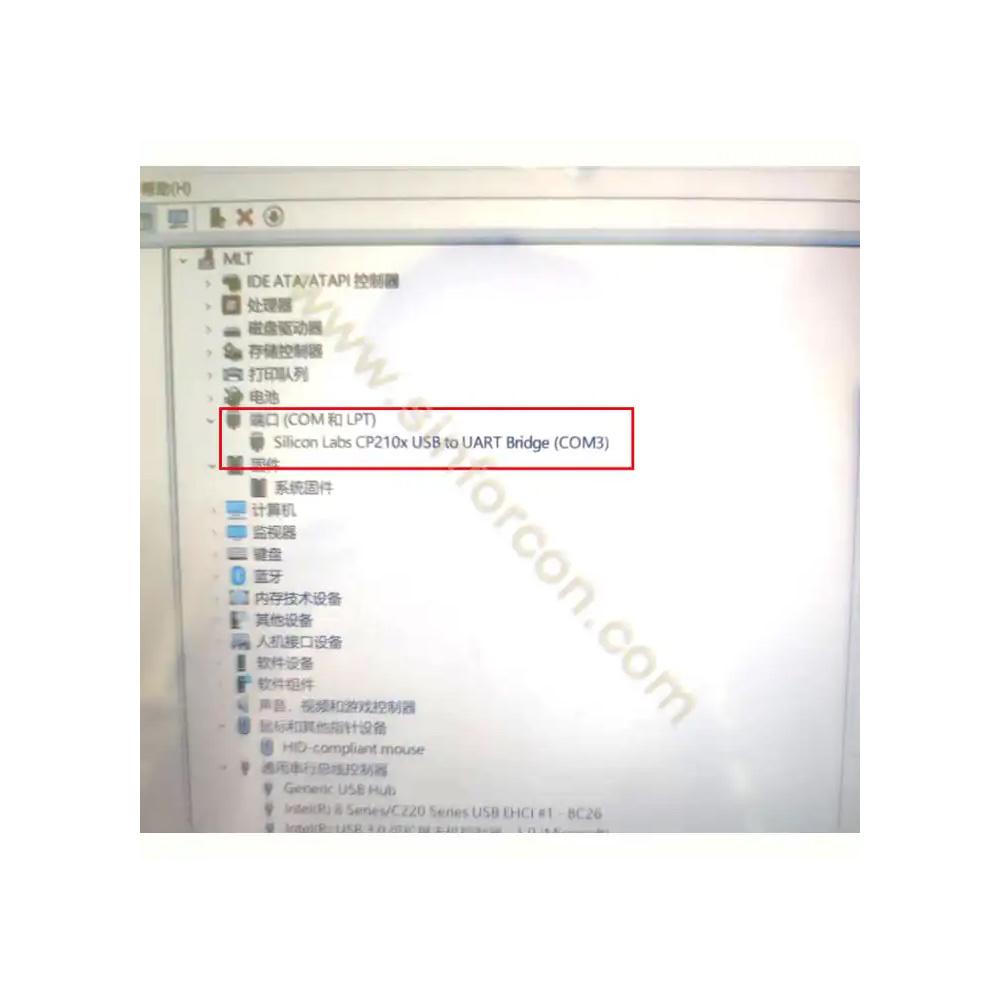

Create a virtual COM port and connect your old devices that use serial port communication
Compatible with both 3.3V & 5V levels
LED indication (ON only when the port is opened and being used, otherwise OFF)
Temperature Range: -40 to +85.

SKU: RDNA-C534.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹1,248.99 (Inc. GST)
₹1,058.47 (+18% GST Extra)

In stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

13 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

A USB to RS232 converter is a device used to bridge communication between a computer’s USB port and a device that uses a RS232 serial port. It allows devices using older RS232 serial connections to connect to modern computers that typically feature USB ports.

This converter translates the USB signals from the computer into signals compatible with RS232 serial ports, enabling data transfer between the two devices. It’s commonly used for connecting legacy equipment like printers, scanners, industrial machinery, or certain types of networking equipment to modern computers lacking native RS232 ports.

Applications:

Easily connect the computer with all Micro-controller Units (MCU) (Supports 3.3V & 5V)
All kinds of satellites set-top box upgrade
Router, HDD, ADSL, broadband modem firmware upgrade or cracked upgrade
Cellphone, XBOX360, GPS serial communication, vehicle inspection and test, DVD flash, etc
Burn writes STC MCU, NXP MCU, Renesas MCU, NEC MCU, etc
Simple UART communication, used in UART debugging tools like putty, hyper terminal, etc
USB signal can be transferred to both RS232 & TTL signals, may be used by electronic enthusiasts

Datasheet of MAX232

Package Include:

1 x Silicon Labs CP210x USB To RS232 9Pin D-sub DB9 Converter
