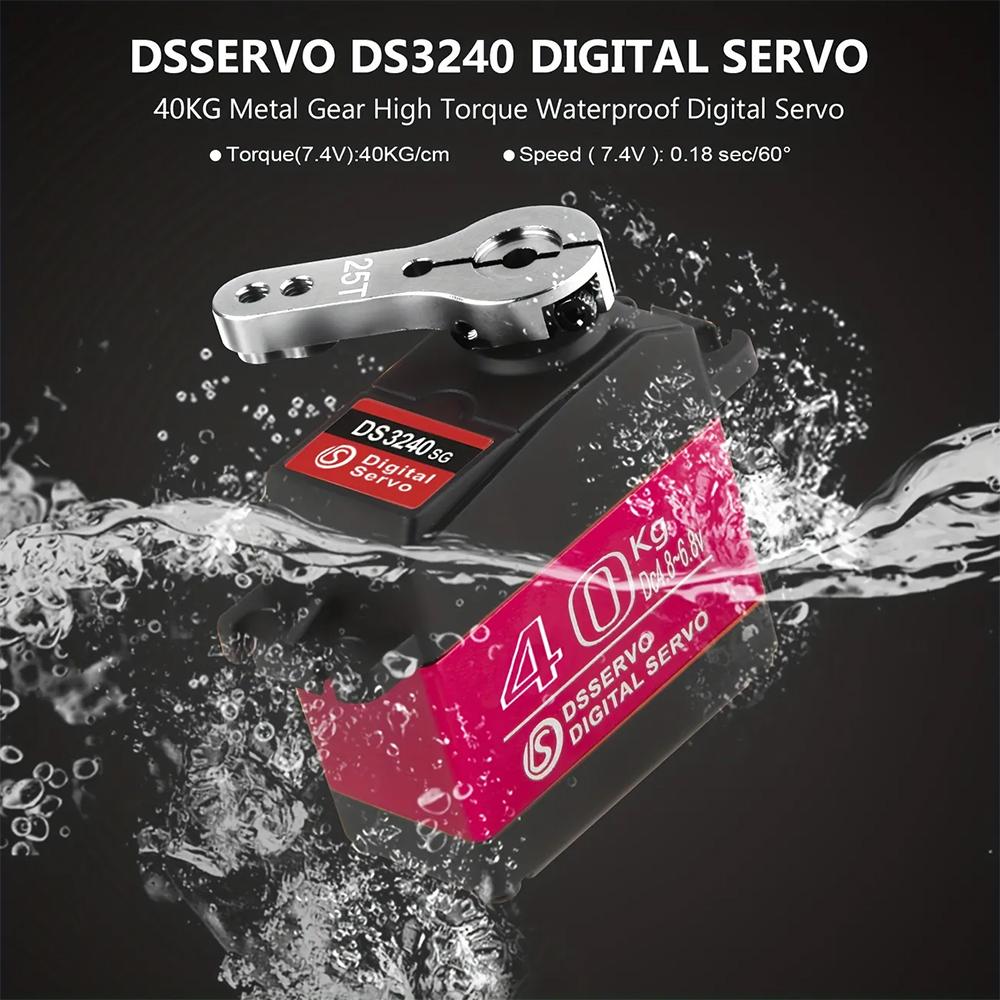

Servo 40KG DS3240MG 180Degree Metal Gear Digital Servo Motor Arduino High Torque

Specifications:

Model: DS3240 40KG.
Deliver upto 40kgs of torque @ 6.8V
Operating Voltage: 4.8 ~ 6.8V DC
CNC aluminum middle Shell for IP66 Protection from Water & Dust
Dual ball bearings for smooth operation and long life
High-performance digital standard servo offers higher accuracy compared to standard servos
High-precision metal gears with hard anodizing for high-torque applications
Torque Digital Servo Stall Torque (5V): 39.5 kg/cm (263.8oz/in)
Stall Torque (6.8V): 34.5kg/cm (298.5 oz/in)
Speed : 0.2 sec/60°(5V) / 0.17 sec/60°(6.8V)
Signal Dead Band: 3μs
Weight: 58g±2g
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working frequency: 1520μs / 333hz

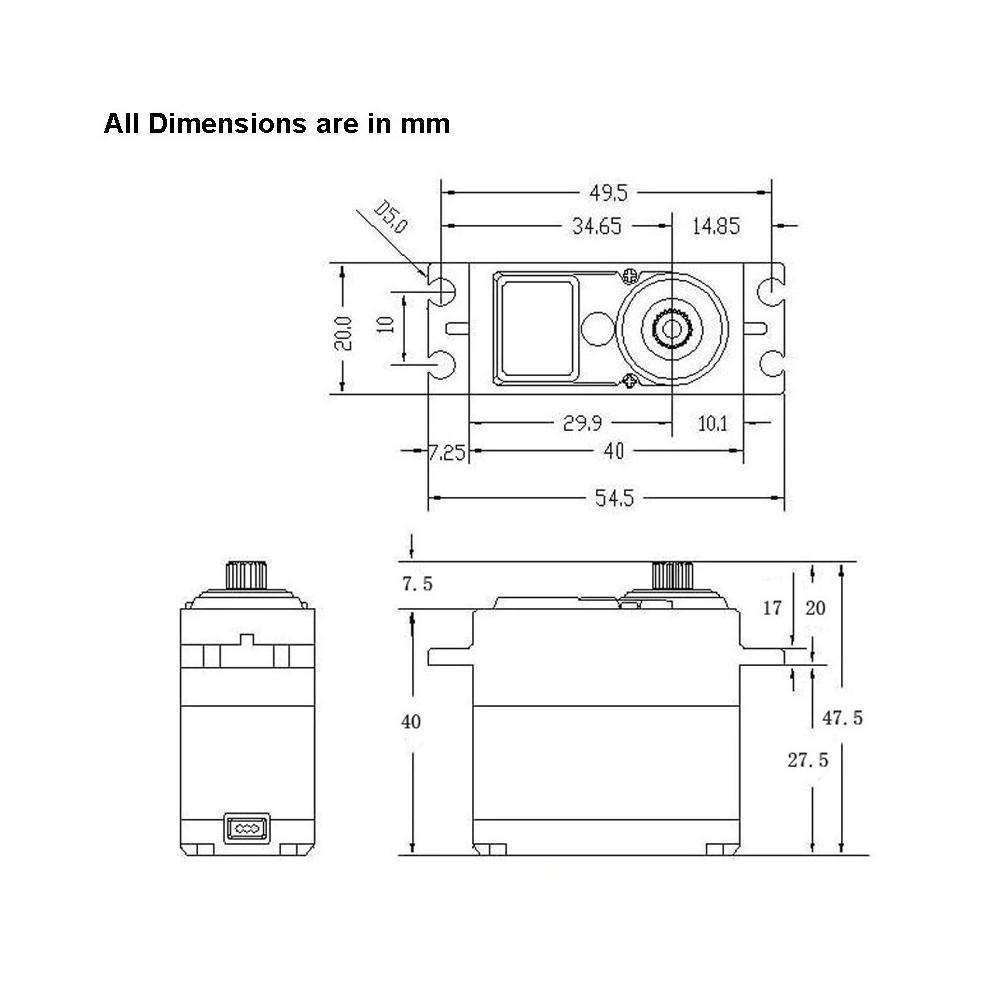

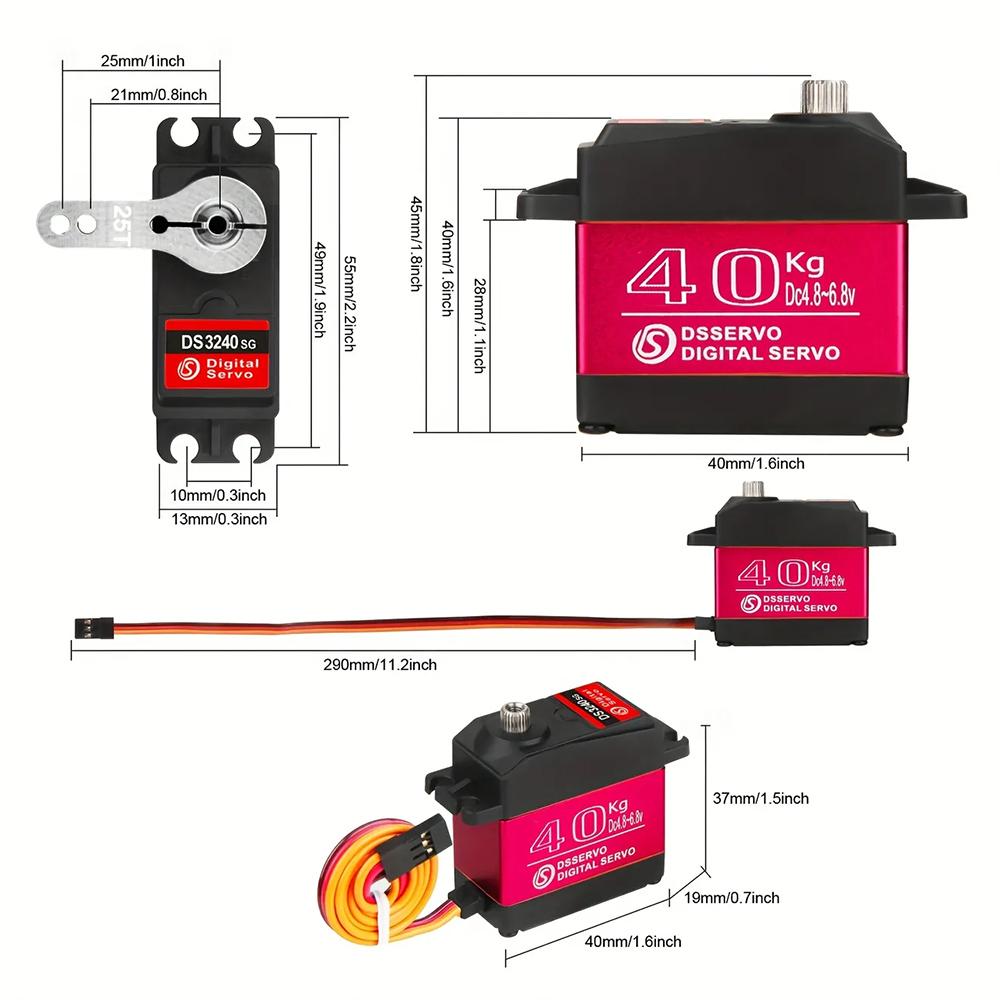

Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
Command signal: Pulse width modification

SKU: RDNA-A92

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹1,250.00 (Inc. GST)
₹1,059.32 (+18% GST Extra)

Out of stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

17 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Servo Motors are great for applications where output positional control is required. These servos rotate between 0 and 180 degrees only. The shaft can be moved to any required angle using PPM signal. Servo motors are the easiest to use motors as they do not require external motor drivers, feedback sensors, etc. Just connect it to your microcontroller to a Digital IO pin and you can start controlling the servo motor.
The DS3240 is a high quality servo motor and generates torque upto 40kgs. Suitable for high torque applications like Robot Arms, Grippers, Controlling Flaps in RC Planes, Steering Control in RC Cars, or as a generic mechanical actuator. The Improved DS3240 Model comes with a higher torque and speed compared to the generic DS3240. These servos come with metal gear and waterproof construction. They are IP66 rated for water and dust protection.

Datasheet of Servo 40KG DS3240MG 180Degree Metal Gear Digital Servo Motor Arduino High Torque

Packing List:

1 x Digital Servo DS3240
1 x 25T Adjustable metal servo arm
1 x Accessories
