Servo 25KG RDS3225 270Deg Metal Gear Digital Servo Motor Arduino High Torque

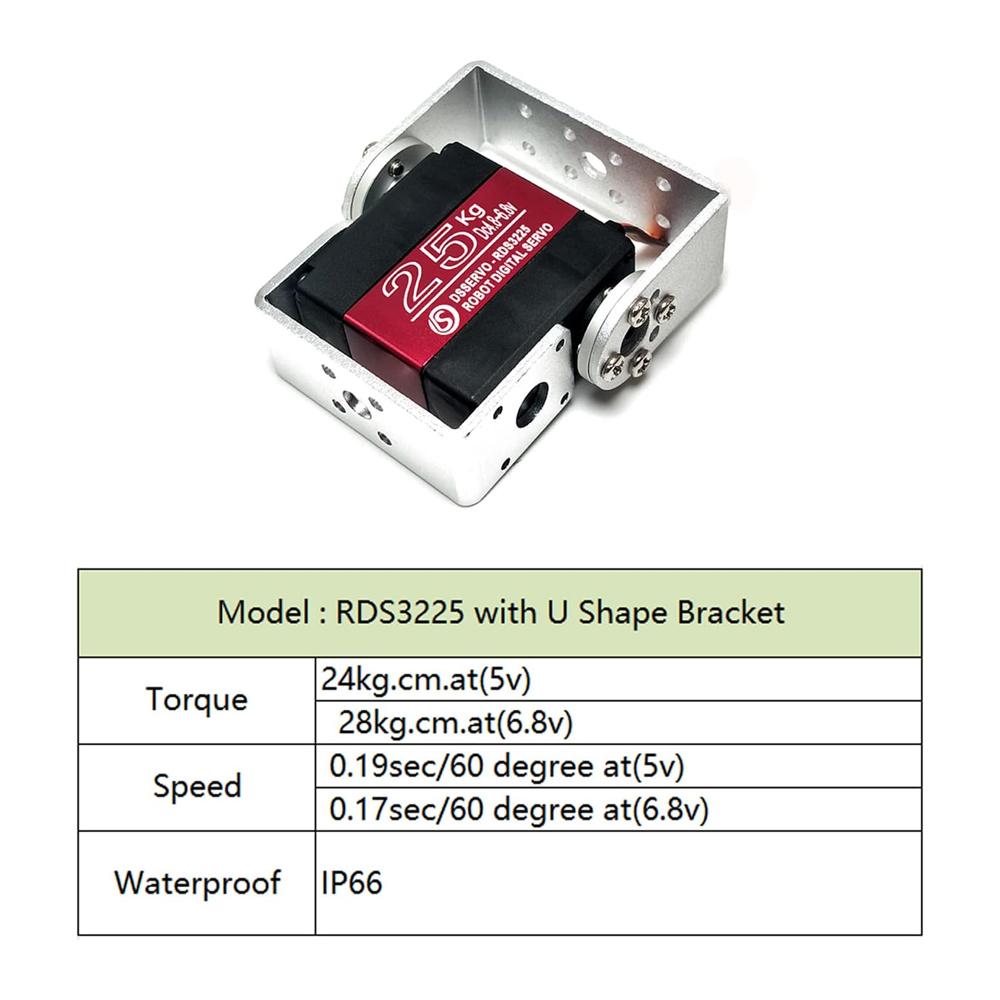

Specifications:

Operating Voltage: 4.8 ~ 6.8 DC Volts
Torque:
- 24kg.cm.at(5v)
- 28kg.cm.at(6.8v)
Speed: 0.19sec/60 degree at(5v) ; 0.17sec/60 degree at(6.8v) .
Dead band: 3μs
Working frequency: 1520μs / 333hz

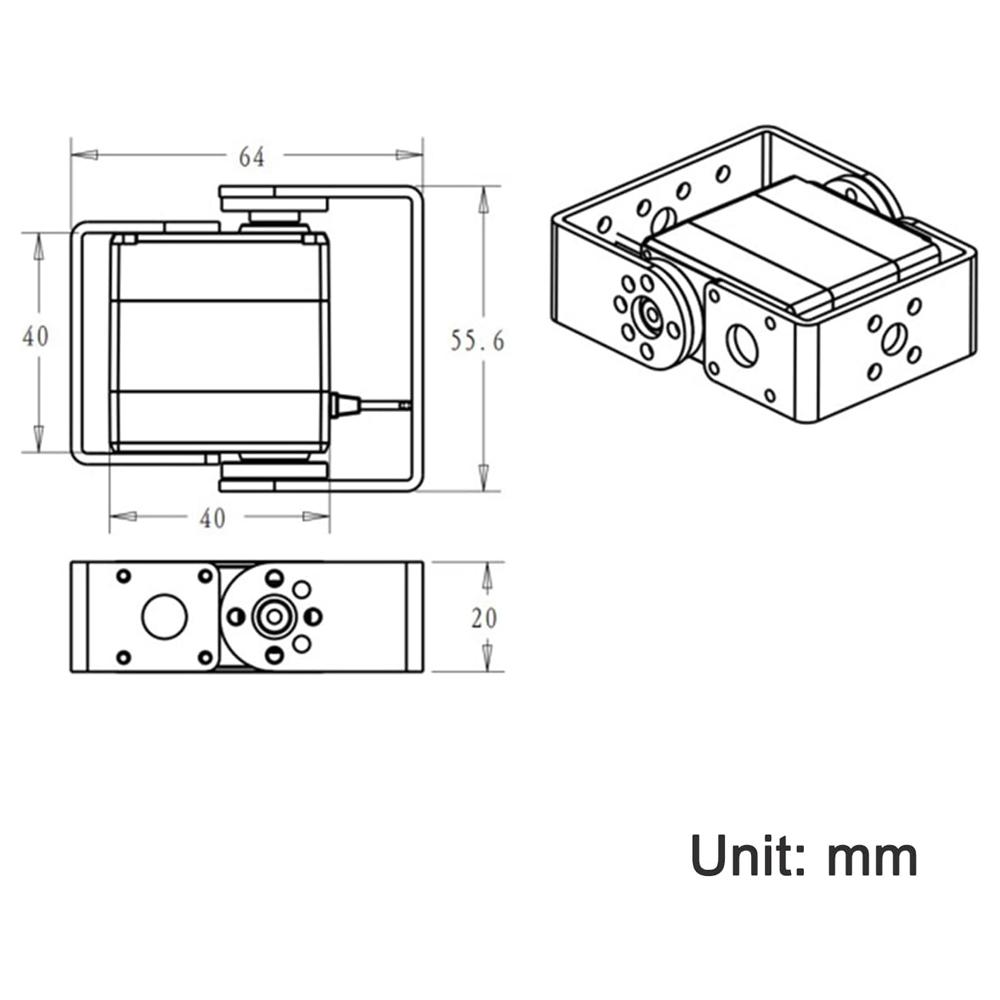

Size:
- 40*20*40.5(servo)
- 64*55.6*20(Assembly the metal brackets size)
Waterproof： IP66
Weight:60g

SKU: RDNA-680.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹1,325.14 (Inc. GST)
₹1,123.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

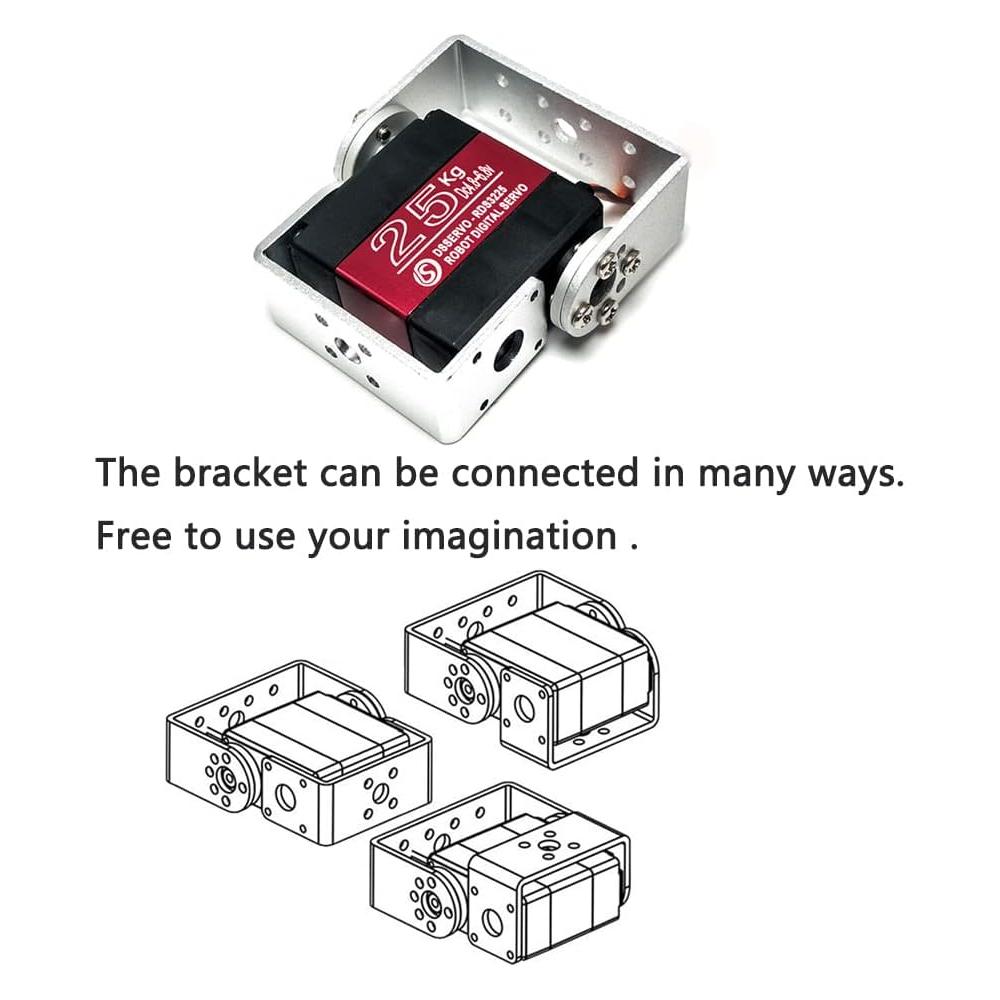

The RDS3225 Digital Servo 25KG Dual Shaft 270 Degree With Metal Bracket Water Resistant and features high torque, metal gear, fast heat dissipation, sensitivity, and responsiveness. With high quality and performance, it is tailored for RC hobbyists to provide different experiences and delight.

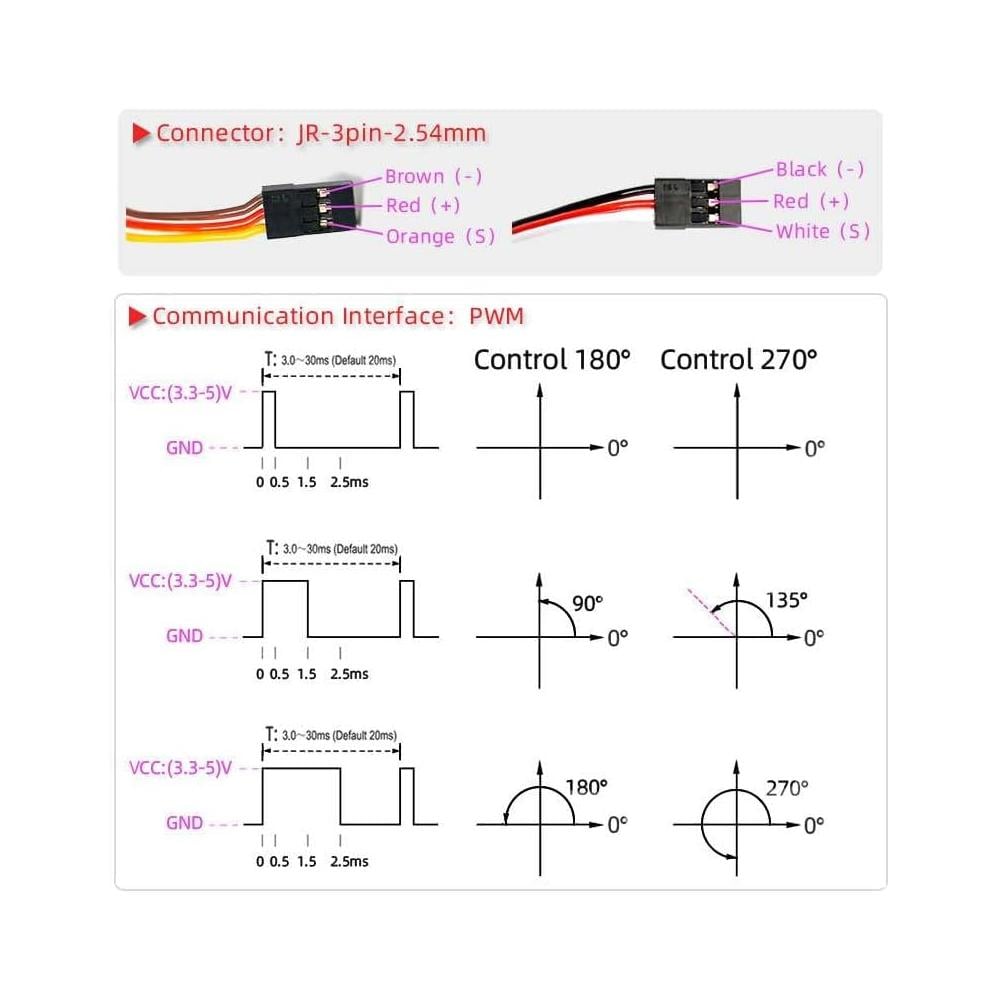

Servo Motors are great for applications where output positional control is required. These servos rotate 270° degrees only. The shaft can be moved to any required angle using a PWM signal. Servo motors are the easiest-to-use motors as they do not require external motor drivers, feedback sensors, etc. Just connect it to your microcontroller to a Digital IO pin and you can start controlling the servo motor.

High-precision metal gears with hard anodizing CNC aluminum middle Shell waterproof rubber seals screws.

Features:
