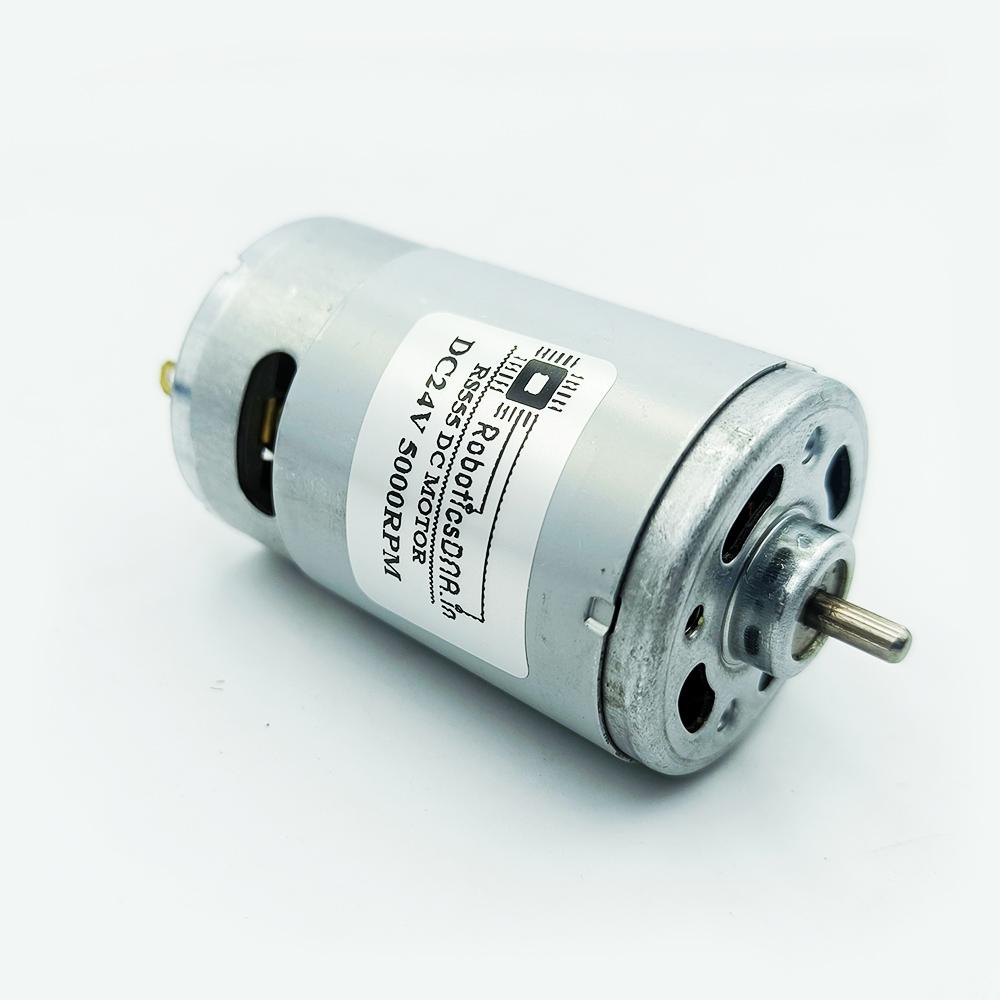

RS555 5000RPM 24V Dc Motor

This RS555 motor is one of the popular motors and is used commonly in various applications like printers, toys, some industrial gadgets, and PCB drilling machine-like things. This is the Brushed DC Motor. This motor will mount to any of the manufacturer’s stock P60 gearboxes. It has a round shaft connector. Its operating voltage is 5V-24V and this motor is 68.5% efficient. Great for the rusty or damaged DC motor on the machine. Comes with a magnetic shield (as shown in the image) To run this motor, you would need a 24 Volt DC Power supply. The Amperage rating on it should be 2 Amp or above. Alternatively, you can also directly connect it to a 24 Volt Battery. Perfect for various DIY applications Like a Drill machine, Water pump, etc. The main application of this motor is to build low RPM; high torque DC motors which are achieved by including gear-box reduction. We can decrease a base motor RPM from 5000 to 1 by just arranging an extra gearbox.

Appliances

• Electric curtain, Integrated cooker, Coffee maker, Intelligent closestool, Sweeping robot, Dish-washing Machine, Cooker hood, Electric lock.
• Hair Care: Hair Curler, Massager, Electric Hair Clipper.
• Office Equipment: Shredder, Printer, Projector, Counting Machine.
• Medical Equipment: Massager Chair, Electric trolley, Medical pump, Electric bed, Ventilator, Electric wheelchair.
• Industrial Equipment: Water valve, Electrical valve, Gas valve, Air switch, Automatic door, Automatic
  lubrication equipment.
• Business Equipment: Vending Machines, Parking locks, ATM machines, stage lights.
• Intelligent Robot: Mechanical Arm, UAV(Unmanned Aerial Vehicle), Se

Packing List:

1 x RS555 5000RPM 24V Dc Motor
