RS485 Board (5V)

Specifications:

  • SP485 onboard
  • MAX485 onboard
  • Power Supply: 5V
SKU: RDNA-G3.14

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

329.22 (Inc. GST)
279.00 (+18% GST Extra)

In stock

In stock

12 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

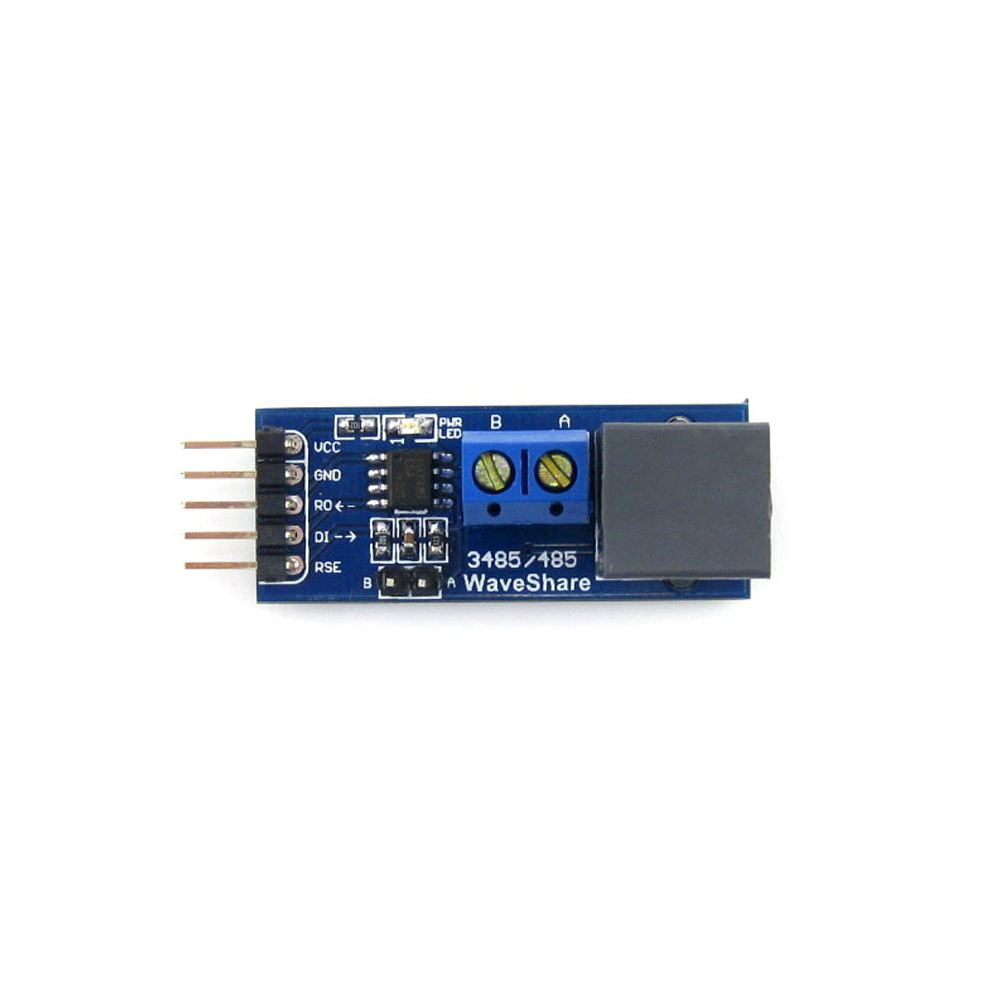

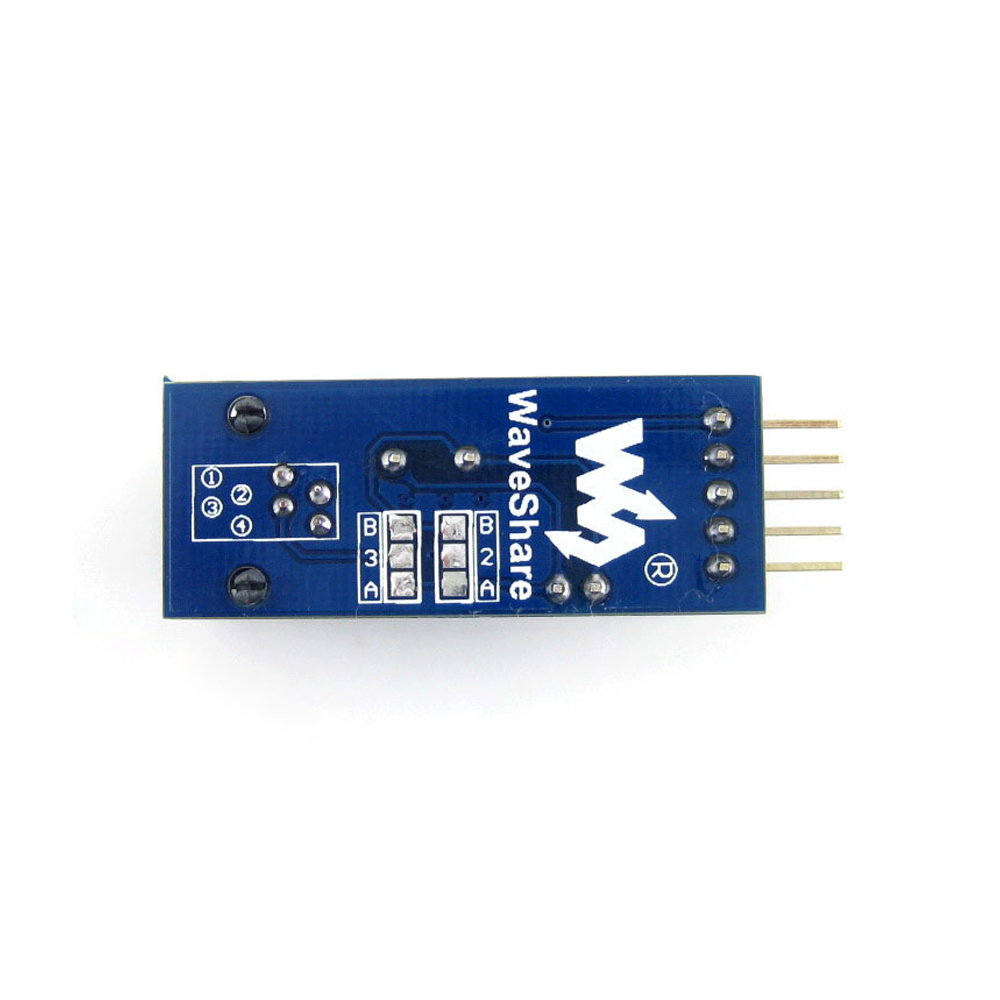

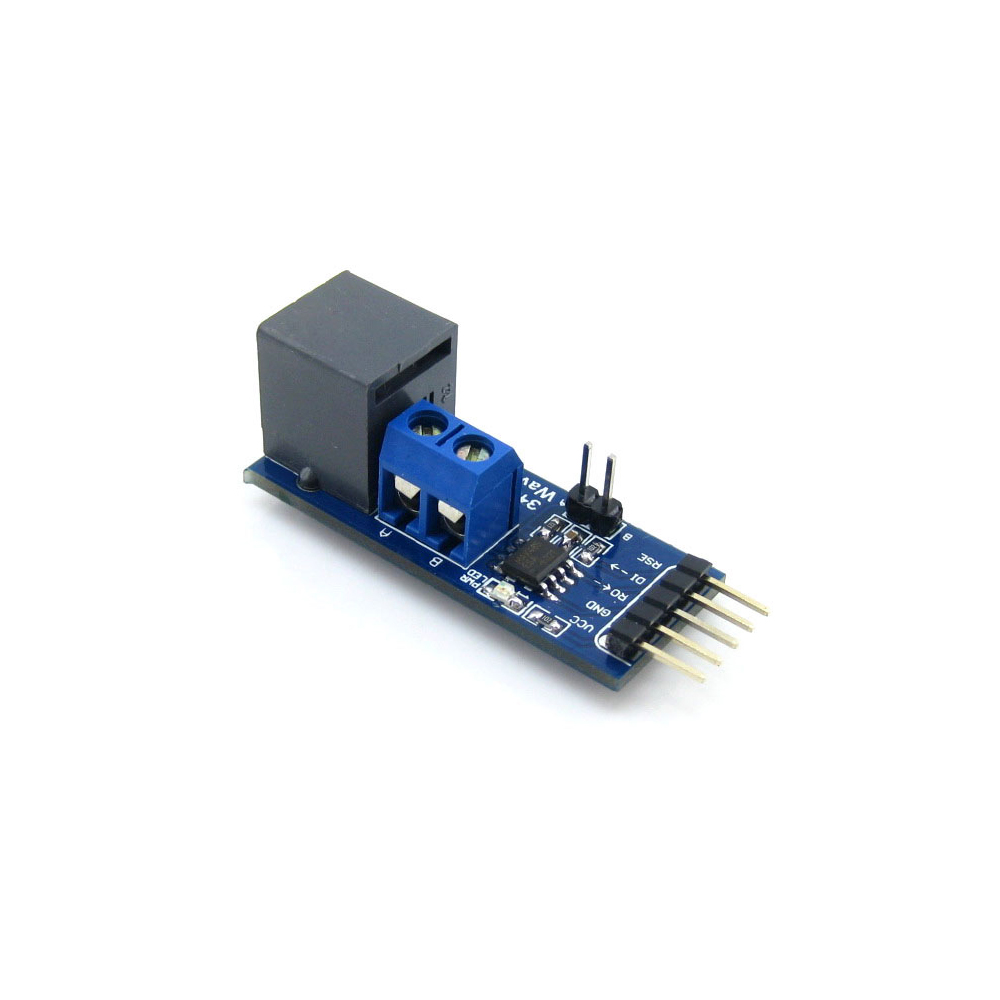

The RS485 Board (5V) is an accessory board used for adding the RS485 transceiver to your application board. The RS485 Board (5V) features an SP485/MAX485 onboard and integrates pin headers and connectors to support multiple communication interfaces. It is designed to use 5V power supply. SP485/MAX485, control interface, communication interfaces.

Pinouts:

  • VCC: MCU power supply VCC
  • GND: MCU power supply GND
  • RO: Data Receiver Output, TTL level, connected to RX of MCU
  • DI: Data Driver Input, TTL level, connected to TX of MCU
  • RSE: Active HIGH for Driver Input Enable; Active LOW for Receiver Output Enable. It can be controlled by a common IO interface.
  • A: Driver Output/Receiver Input. Non-inverting
  • B: Driver Output/Receiver Input. Inverting

Packing List:

1 x RS485 Board (5V)
