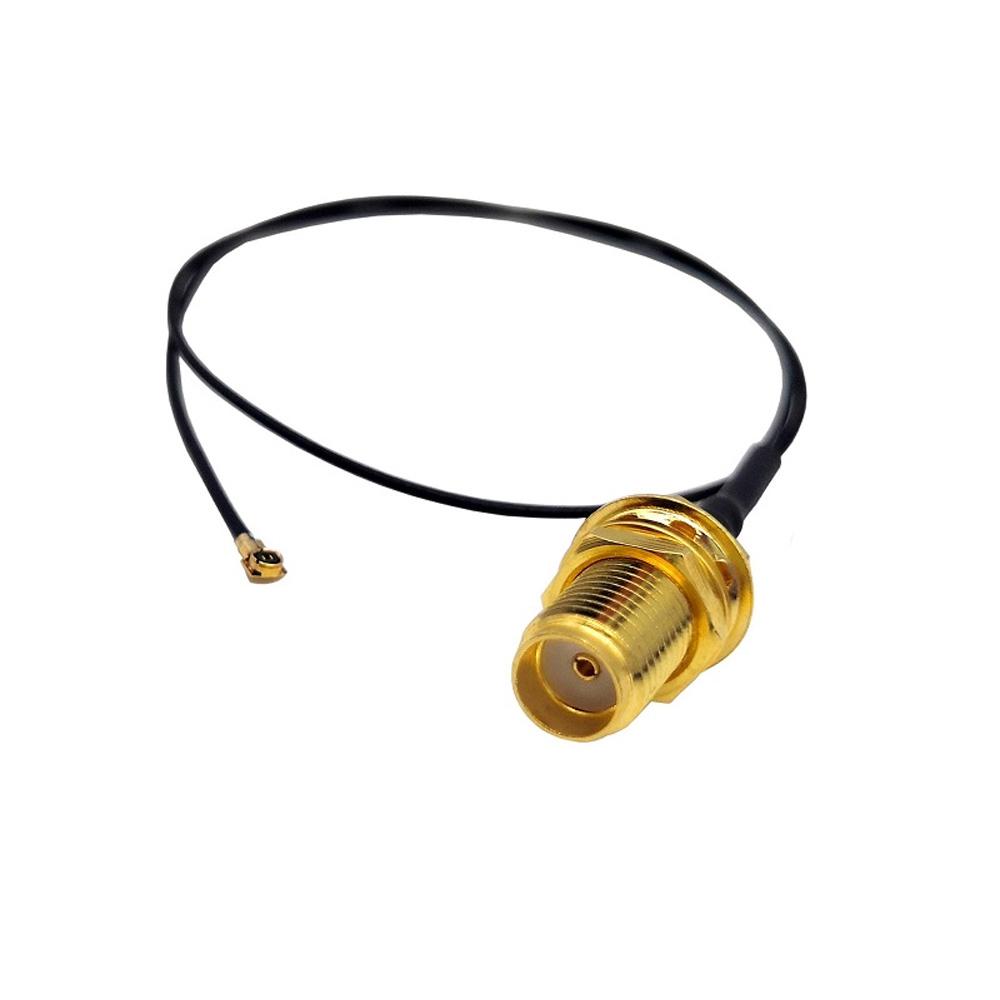

RP-SMA Female to IPEX1 Connector Cable Thread 13mm RG1.13 – 50cm

RP-SMA stands for “reverse polarity” (sometimes also referred to as reverse SMA or for short “R-SMA”). It is designed to prevent the unauthorized connection of an external antenna to increase the range. In an RP-SMA connector, the gender has been changed. The RP-SMA male is also the connector with inside threads, but it has the metal sleeve as an inner conductor. The RP-SMA female socket has a barrel with external threads and a centre pin.

When they are plugged, the two are indistinguishable and the signal quality is the same. Although an RPSMA plug fits mechanically into an SMA socket, it does not fit electronically. Such a connection is therefore not functional.

IPEX Connectors used for 5G, 4G, 3G, 2G, LPWA, GNSS, WiFi, LoRa Wireless Modules. They can be used inside smartphones, laptops and embedded systems in order to connect the Wi-Fi antenna to a Mini PCI, Mini PCIe or M.2 WiFi card.

Packing List:

1 x RP SMA Female to IPEX1 Connector Cable Thread 13mm RG1.13 – 100cm
