DC-DC 400W 15A Boost Converter Step-up Module Constant Current Power Supply Module

Specification

  • Input Voltage (V): 8.5 – 50V
  • Output Voltage(V): 10 – 60 V
  • Max. Input Current (A): 15
  • Max. Output Current (A): 12
  • Quiescent Current (mA): 10
  • Constant Current Range (A): 0.2 to 12
  • Operating Temperature: -40° to 85°
SKU: RDNA-G1.43

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

300.00 (Inc. GST)
254.24 (+18% GST Extra)

In stock

In stock

20 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

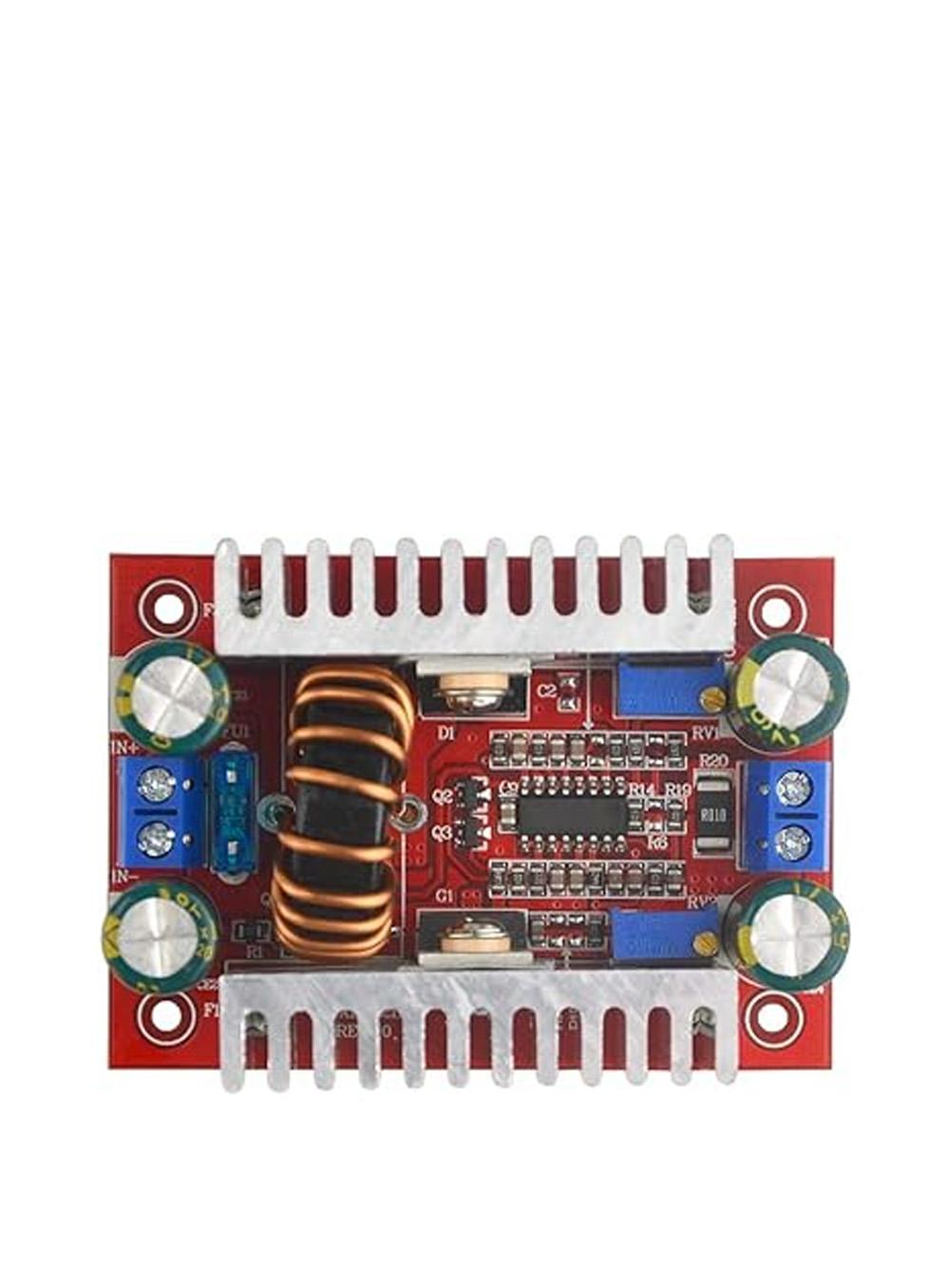

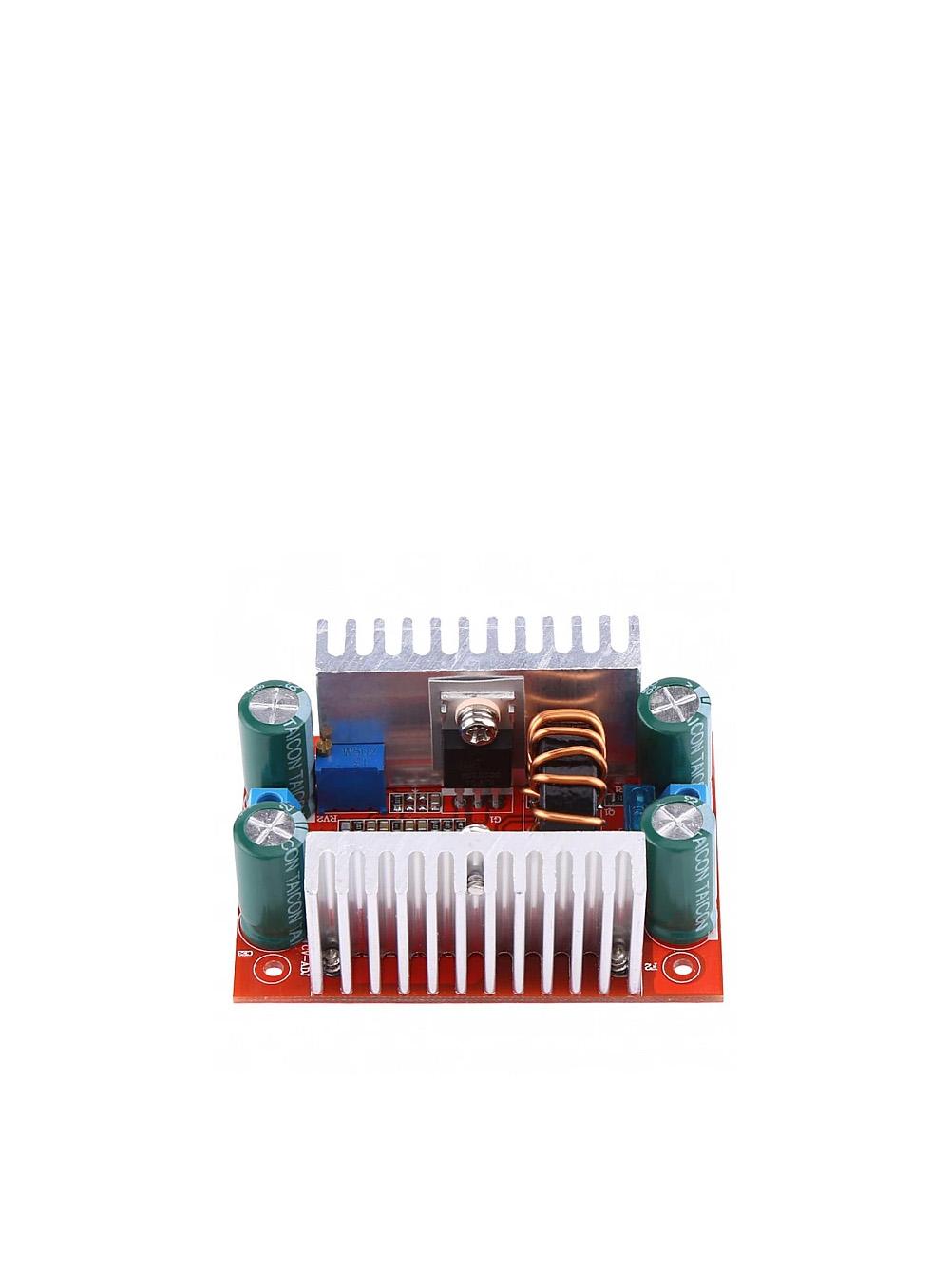

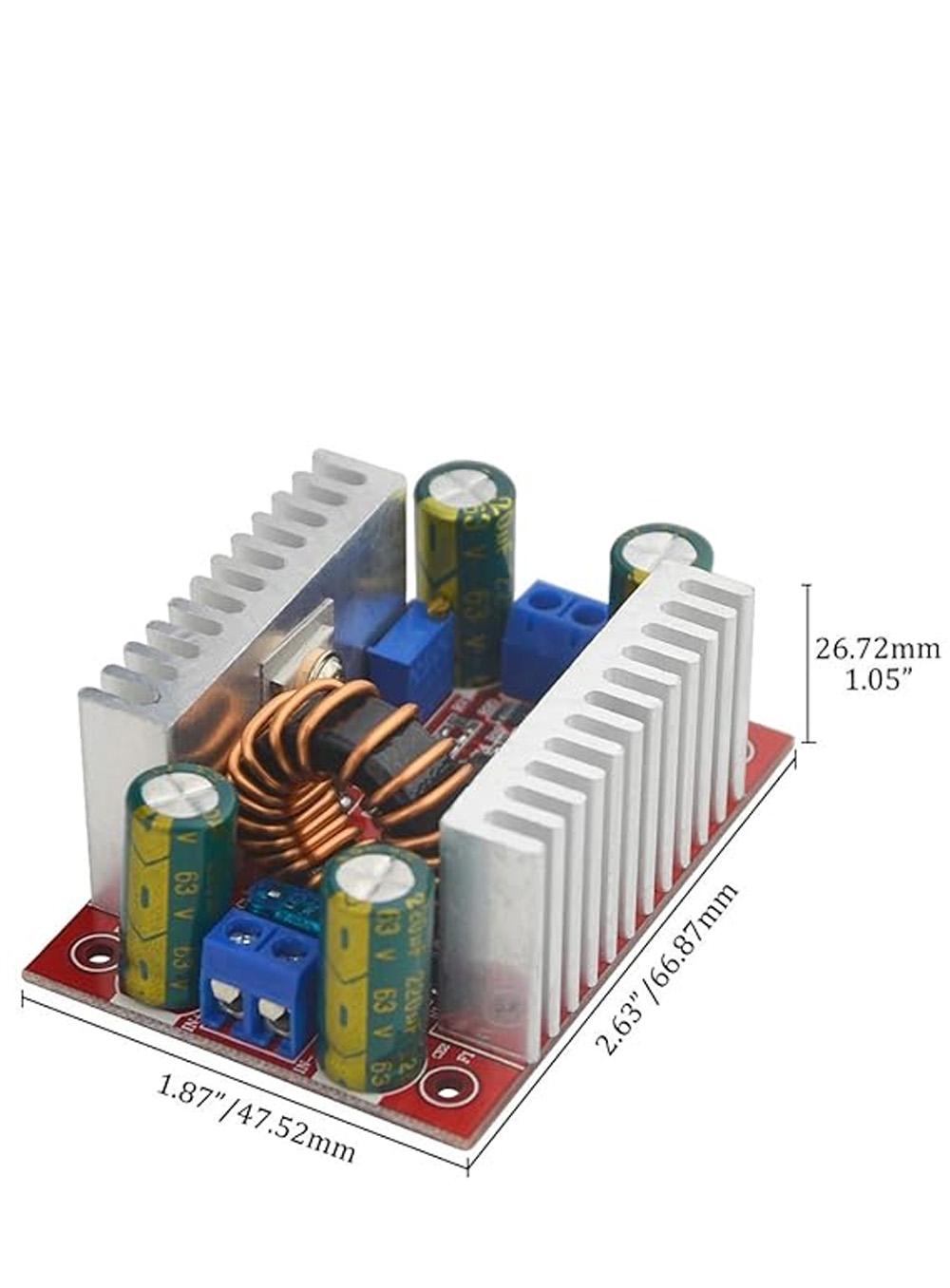

This is a great 400W DC to DC step-up power supply module for electric equipment, digital products, laptop, etc. Input and output are designed with screw terminals for convenient wire connection and disconnection. High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference. There are 2 heat sinks that would ensure a better heat dissipation. It can also be used as a driver for high power LED lights or voltage regulator for solar panels.

This converter can take an input voltage of anywhere from DC 8.5V-50V which can then be regulated to an output voltage between 10-60V continuously adjustable. With a wide input voltage range from 8.5V-50V, the Step-up converter can accurately adjust the output voltage and current.

The Boost module has 2 heat sinks that could enhance heat dissipation. Wiring is convenient with these large current 15A screw terminals.

Features:

  • Input and output are designed with screw terminals for convenient wire connection and disconnection.
  • High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference.
  • There are 2 heat sinks that would ensure a better heat dissipation.
  • It can also be used as a driver for high power LED lights or voltage regulator for solar panels. Applications:
    •  DIY a power supply, 12V input, and output  12-50V adjustable.
    •  The power supply for your electronic device, according to your system can set the output voltage value.
    •  As the car power supply for your laptop, PDA, or a variety of digital products supply.
    •  DIY a mobile notebook power supply: 12V coupled with a high-capacity lithium battery pack.
    •  Driving high-power LED lights.

Package Includes :

  • 1 x DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver
