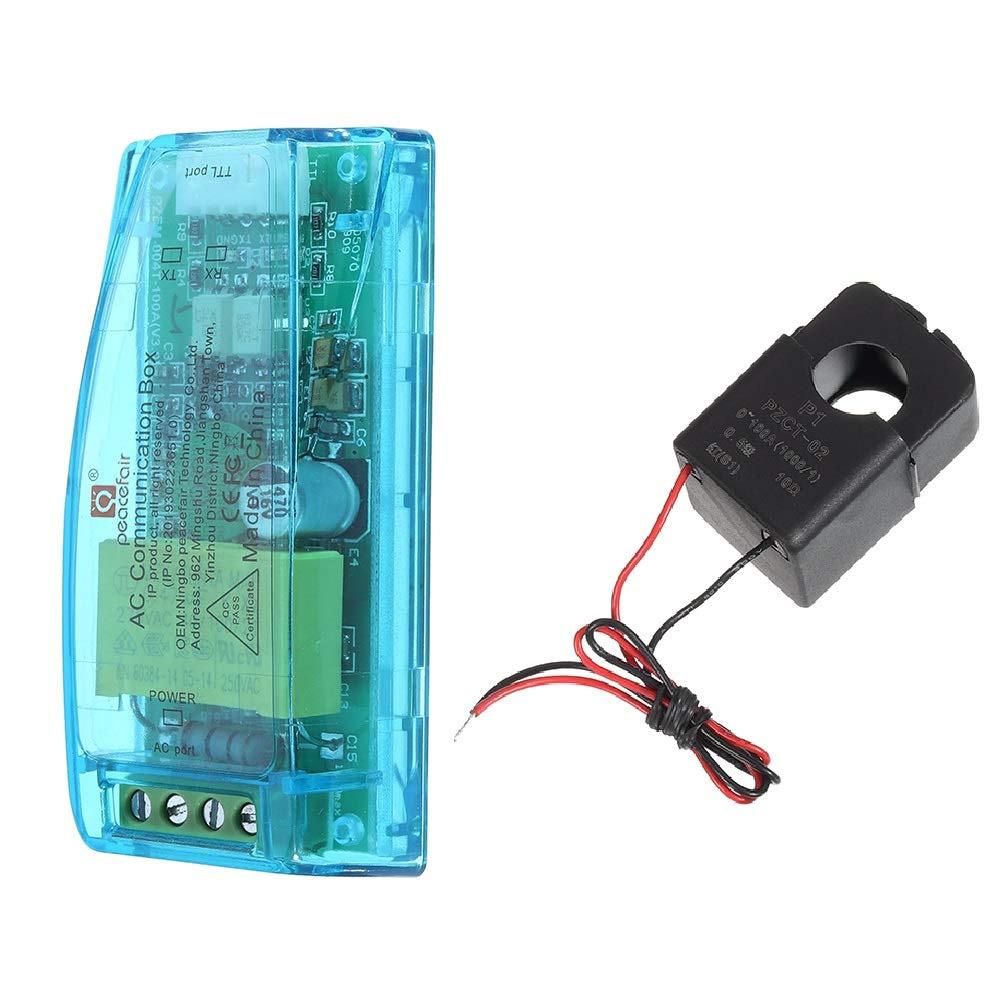

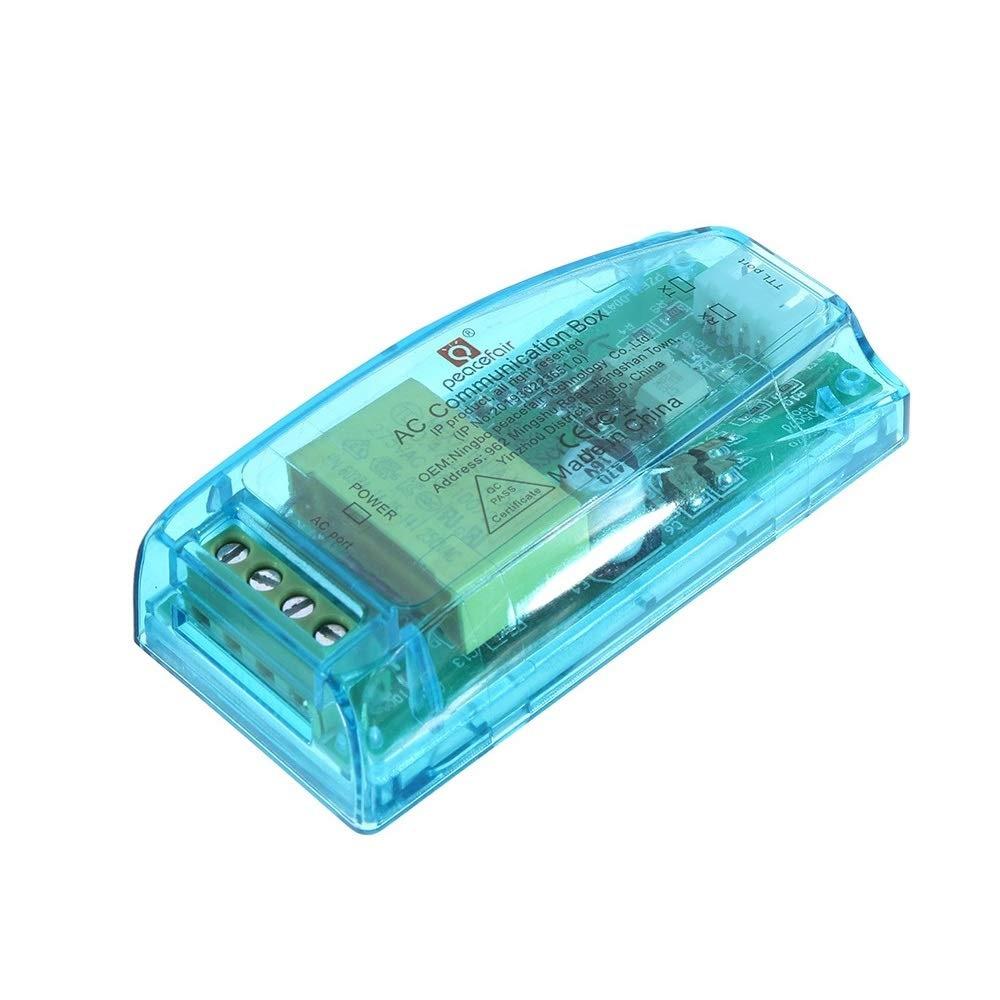

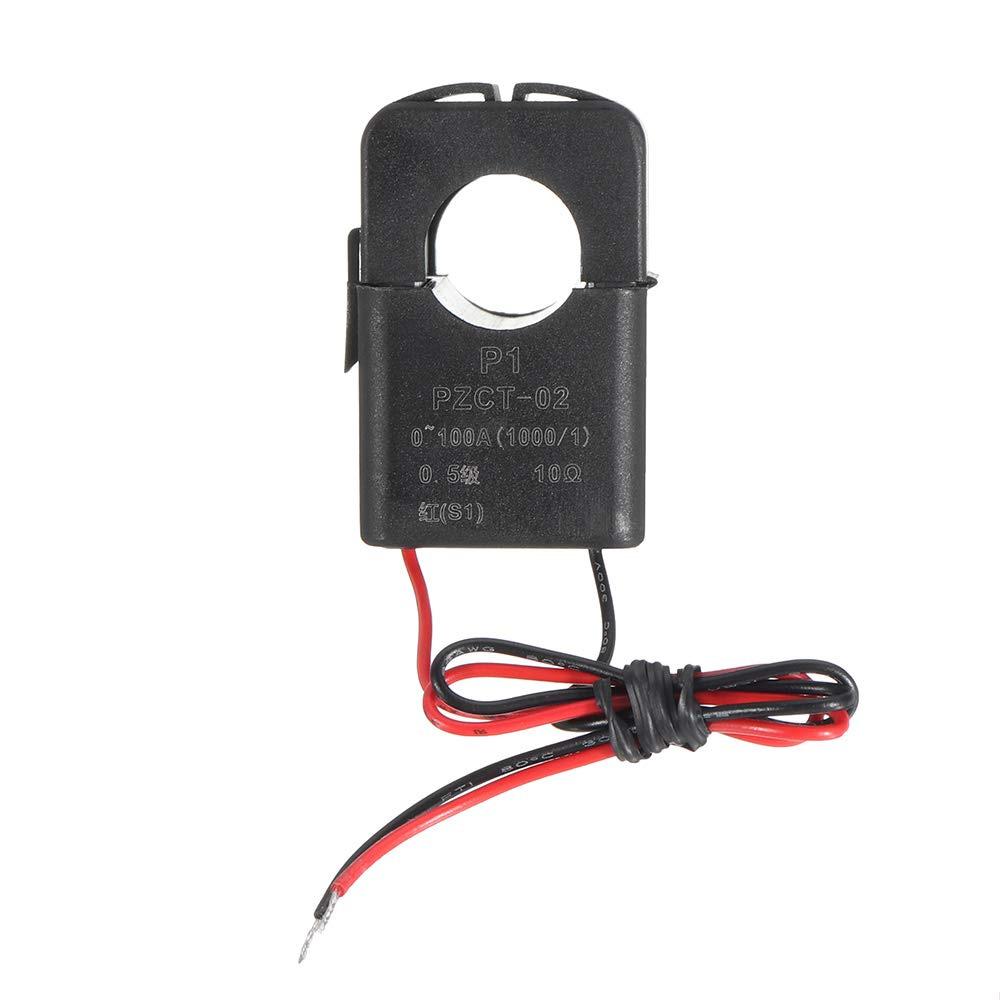

PZEM-004T TTL Serial Communication of AC Voltage Current Power Data acquisition Module with Open CT

Specifications:

  1. Brand: Peacefair
  2. Model: PZEM-004T
  3. Operating Voltage: 80-260VAC
  4. Test Voltage: 80-260VAC
  5. Rated Current: 100A
  6. Rated power: 100A / 22000W
  7. Operating frequency: 45-65Hz
  8. Measurement accuracy: 1.0
SKU: RDNA-A5.61

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

1,462.02 (Inc. GST)
1,239.00 (+18% GST Extra)

In stock

In stock

11 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This module features a TTL serial data communication interface, you can read and set the relevant parameters via the serial port; but if you want to communicate with a device which has USB or RS232 (such as a computer), you need to be equipped with different TTL pinboard (USB communication needs to be equipped with TTL to USB pinboard; RS232 communication needs to be equipped with TTL to RS232 pinboard).

Features:
-Made of high quality electronic components, it is solid, durable and good performance, long service    life.
-It can set active power threshold, and it will alarm when the measured active power exceeds the threshold.
-With reset energy, which can be used to reset software.
-Its communication interface is RS485.
-High precision, fast response and stable communication.
-Comes with a shell to protect the module.
-Communication module only, other accessories demo in the picture is not included!

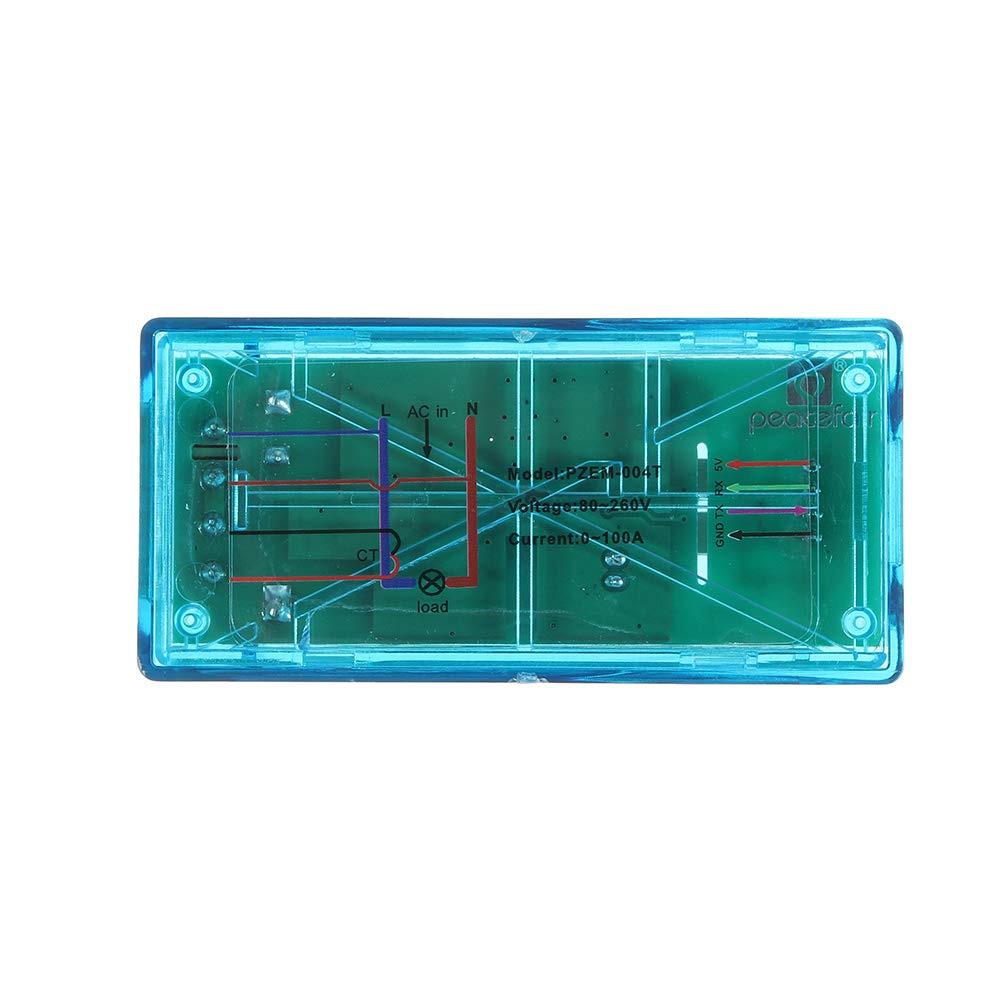

The Peacefair PZEM-004T features a built-in button on the panel, used to make the electricity clear function.

Package Includes :

1 x PZEM-004T 3.0 Version Communication Module TTL Modbus-RTU AC Single Phase 100A
