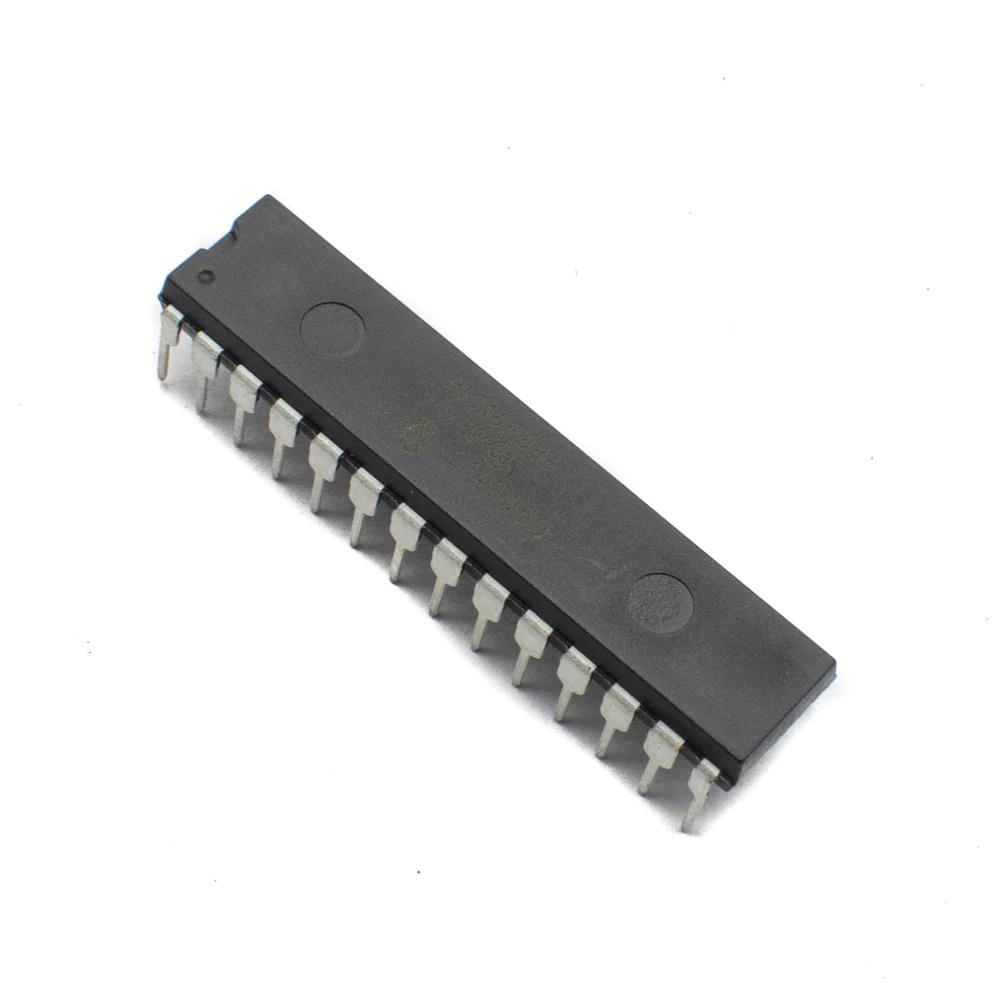

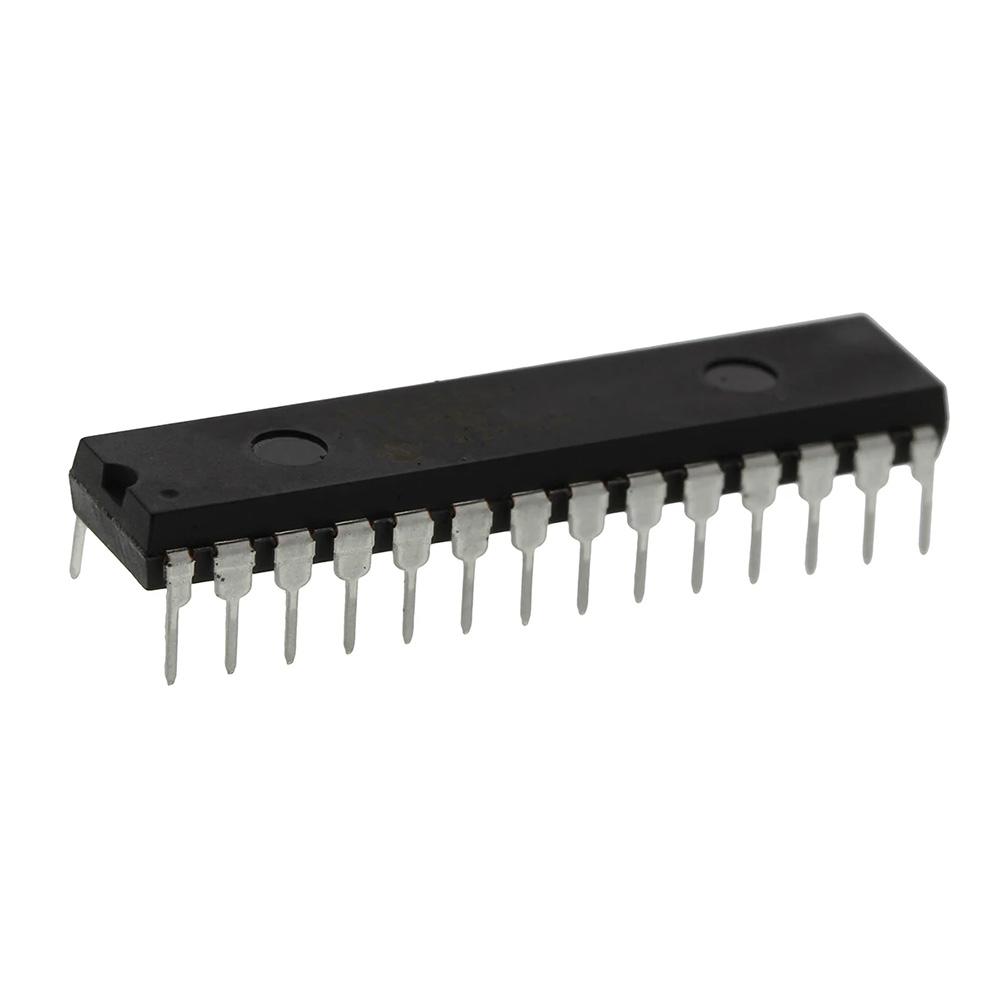

PIC16F886 Microcontroller IC

Specifications:

CPU: 8-bit
Total pins: 28
Programmable pins: 24
Communication Interface:
- SPI Serial Interface(7,14,15,16 PINS) [Can be used for programming this controller]
- UART Interface(17,18 PINS) [Can be used for programming this controller]
- Two-wire Serial Interface or I2C(14,15 PINS) [Can be used to connect sensors and LCDs]
- ICSP or In-Circuit Serial Programming Interface (27,28 Pins) [Can be used for programming this controller]
ADC Feature: 11channels of 10-bit resolution
Timer Feature: One 8-bit counter, Two 16-bit counter
Analog Comparators: 2
PWM channels: 4
External Oscillator: Up to 20MHz
Internal Oscillator: 31KHz-8MHz Internal R-C Oscillator featured with:
- Factory calibrated to ±1%
- Software selectable frequency range of 8 MHz to 31 kHz
- Software tunable
- Crystal fail detect for critical applications
- Clock mode switching during operation for power savings
Program memory / Flash memory: 16Kbytes[100000 write/erase cycles]
CPU Speed: 1MIPS @ 1MHz
RAM: 368Bytes
EEPROM: 256Bytes
Watchdog Timer: Programmable Watchdog Timer with separate on-chip oscillator
Power Save Modes: Available
Operating Voltage: 2.0V to 5.5V
Maximum current to any I/O pin: IN :25mA | OUT : 25mA
Operating Temperature: -40°C to +125°C

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹182.90 (Inc. GST)
₹155.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

17 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

PIC16F886 is a microcontroller good for experimenting and developing applications because it has high flash memory rewrite cycle. Also there are a lot of tutorials and support available online. The controller has 16KBytes flash memory which is enough for many applications. Along with 24 programmable Input/output pins which are developed to handle 20mA current (direct LED driving capability) the system can interface many peripherals easily. With Watchdog timer to reset under error automatically the controller can be used to develop applications of permanent installation.

Applications
