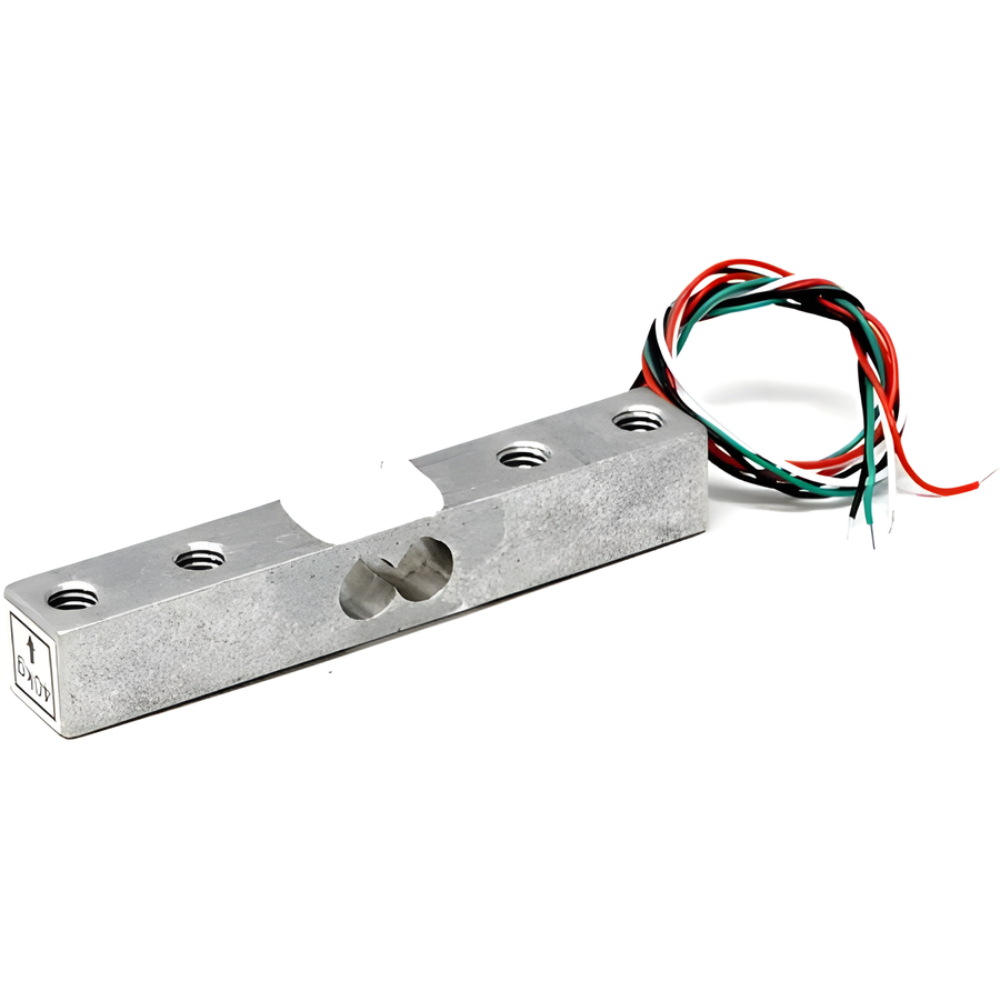

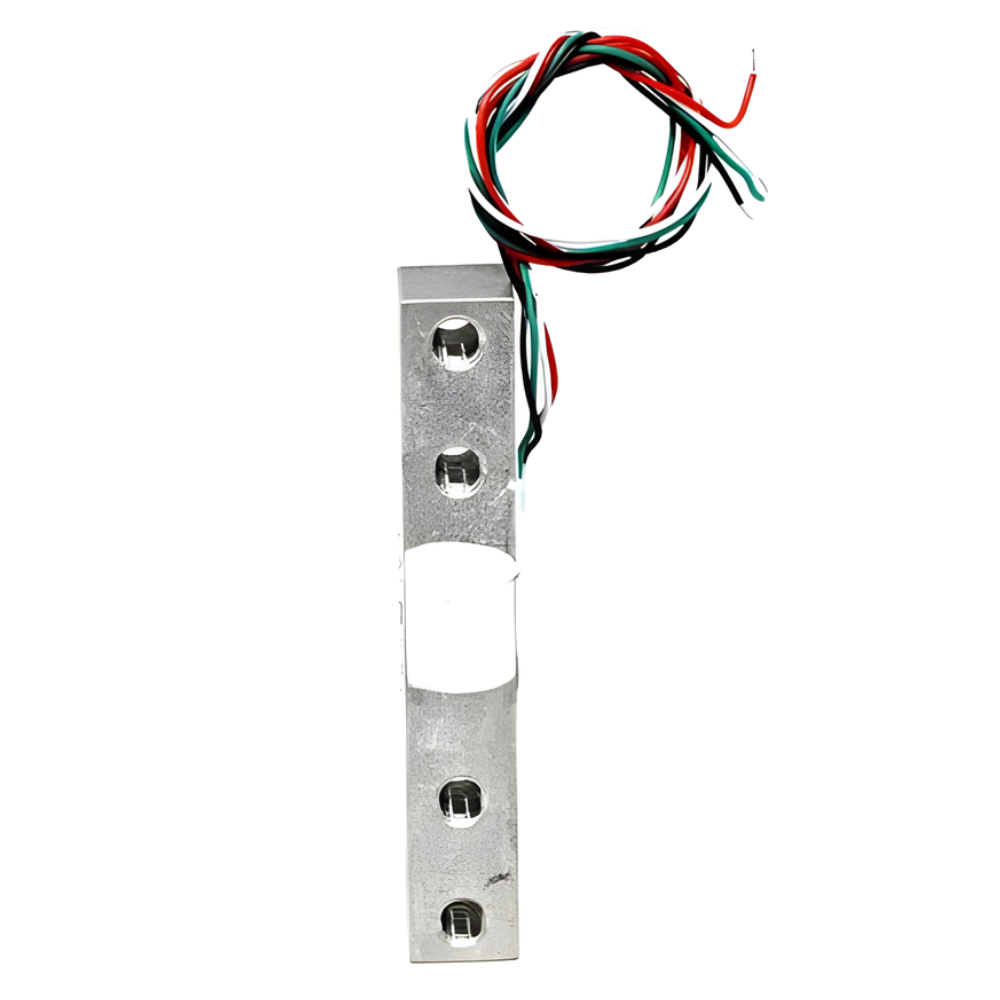

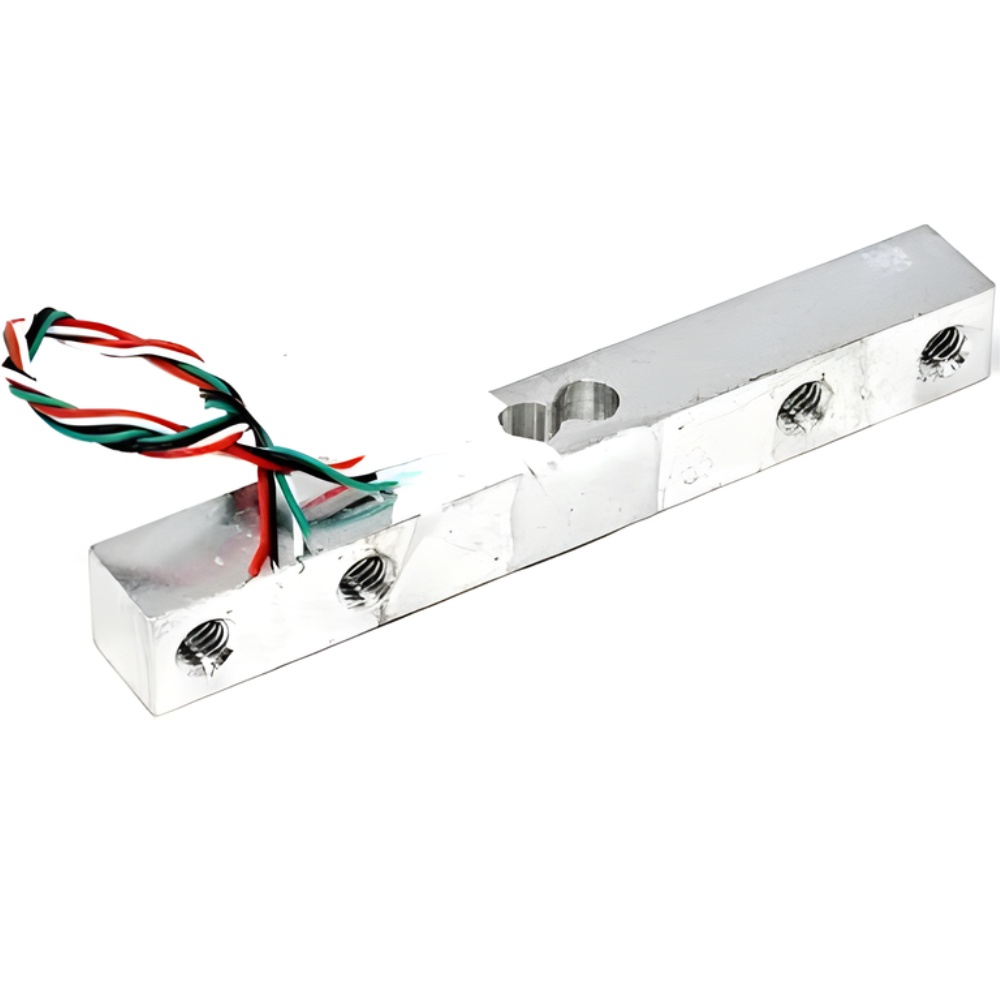

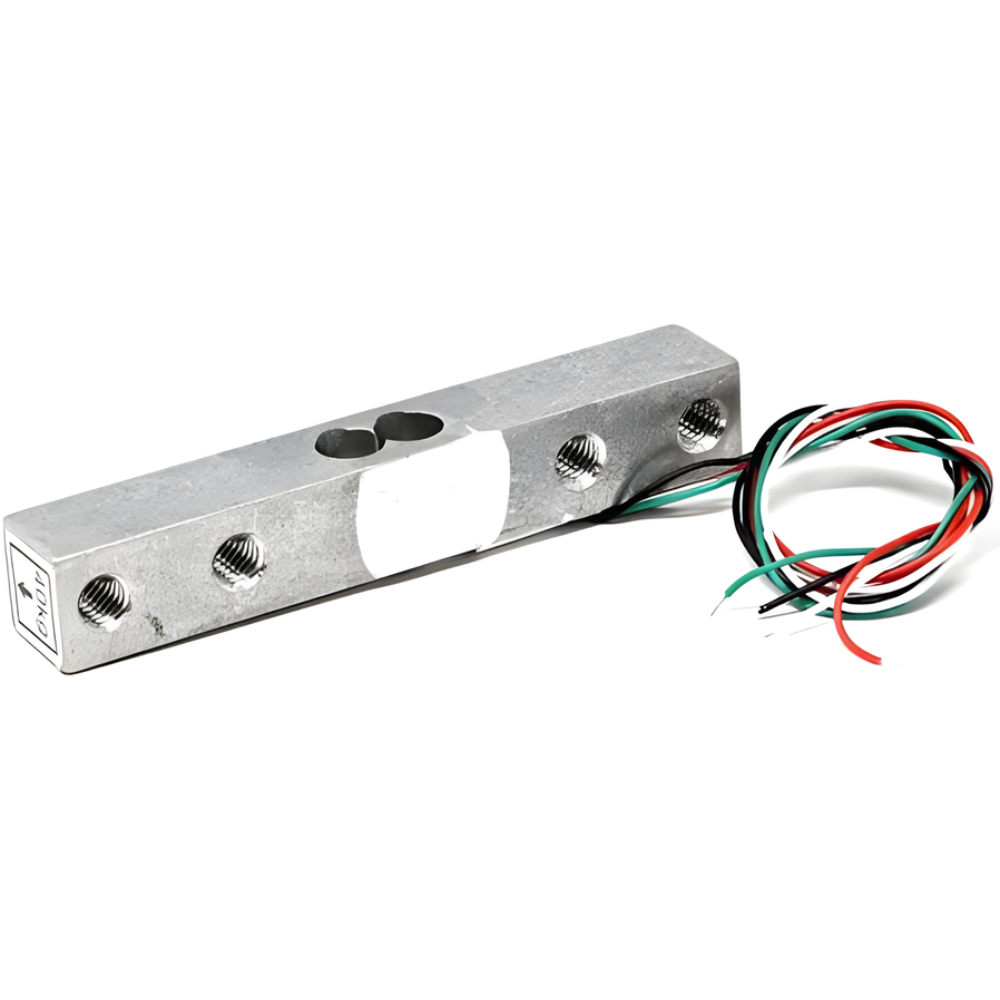

Phaeton Load Cell Sensor-CZL-611P 40 KG Weighing aluminum alloy

Specifications:

Model: CZL-611P
Rated Capacity: 40 kg
Material: Aluminium alloy (anodized surface)
Output Sensitivity: 1.0 ± 0.1 mV/V
Recommended Excitation Voltage: 5 V – 12 V DC
Input Resistance: ≈1000 Ω ± 10 Ω
Output Resistance: ≈1000 Ω ± 10 Ω
Dimensions (Approx): 100 × 12.7 × 12.7 mm
Wiring Color Code:
- Red – Excitation +
- Green – Excitation –
- Black – Signal +
- White – Signal –
Safe Overload: 150 % of rated capacity
Ultimate Overload: 200 % of rated capacity
Temperature Compensated Range: 0 °C – 60 °C
Operating Temperature Range: –10 °C to +80 °C
Temperature Effect on Output: < ±0.0015 % F.S/°C
Protection Class: IP65 (typical for similar models)
Type: Single-point beam load cell
Applications: Weighing scales, automation, packaging, DIY measurement systems
