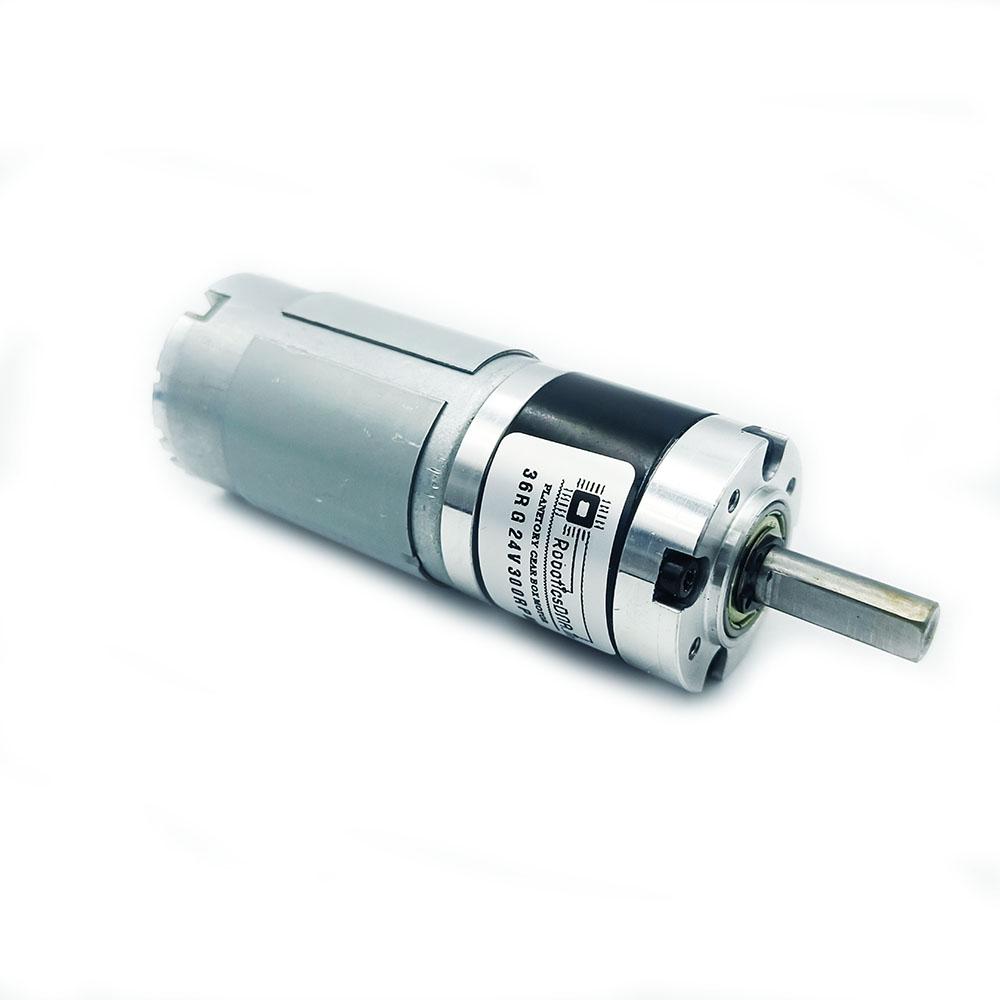

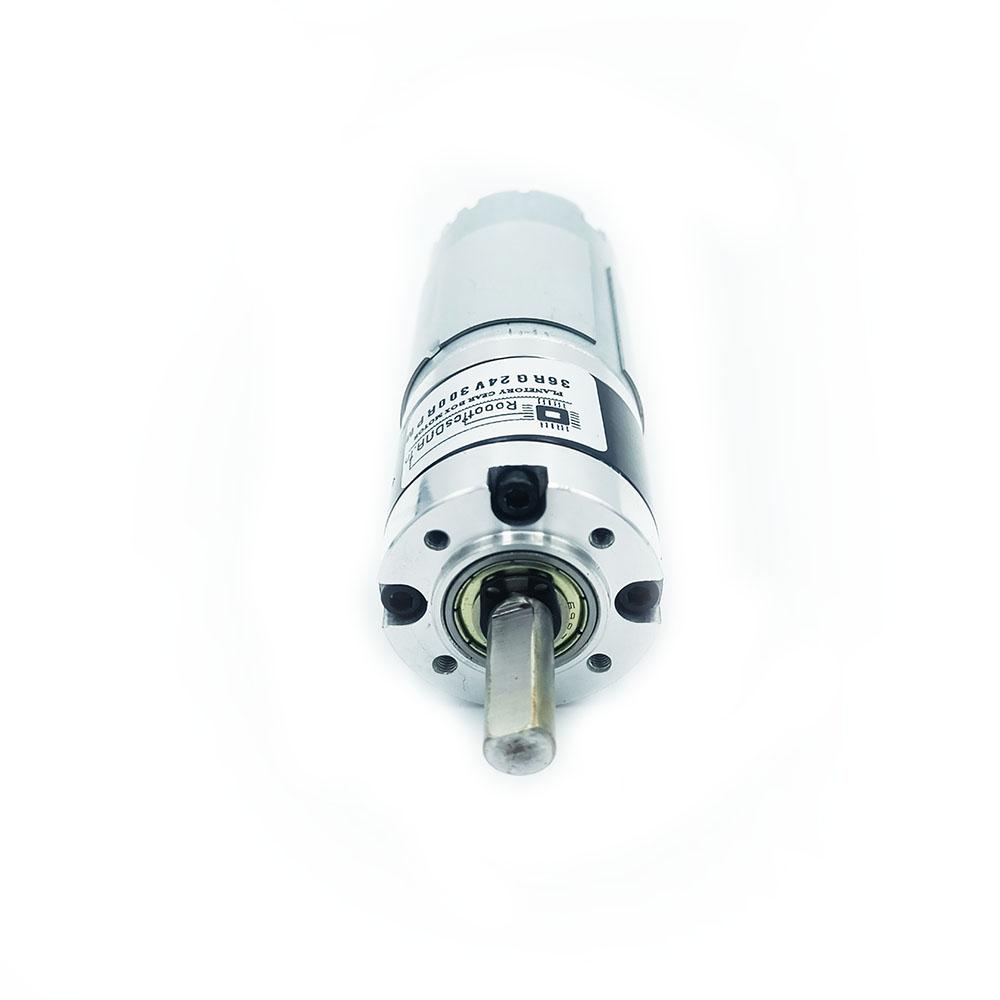

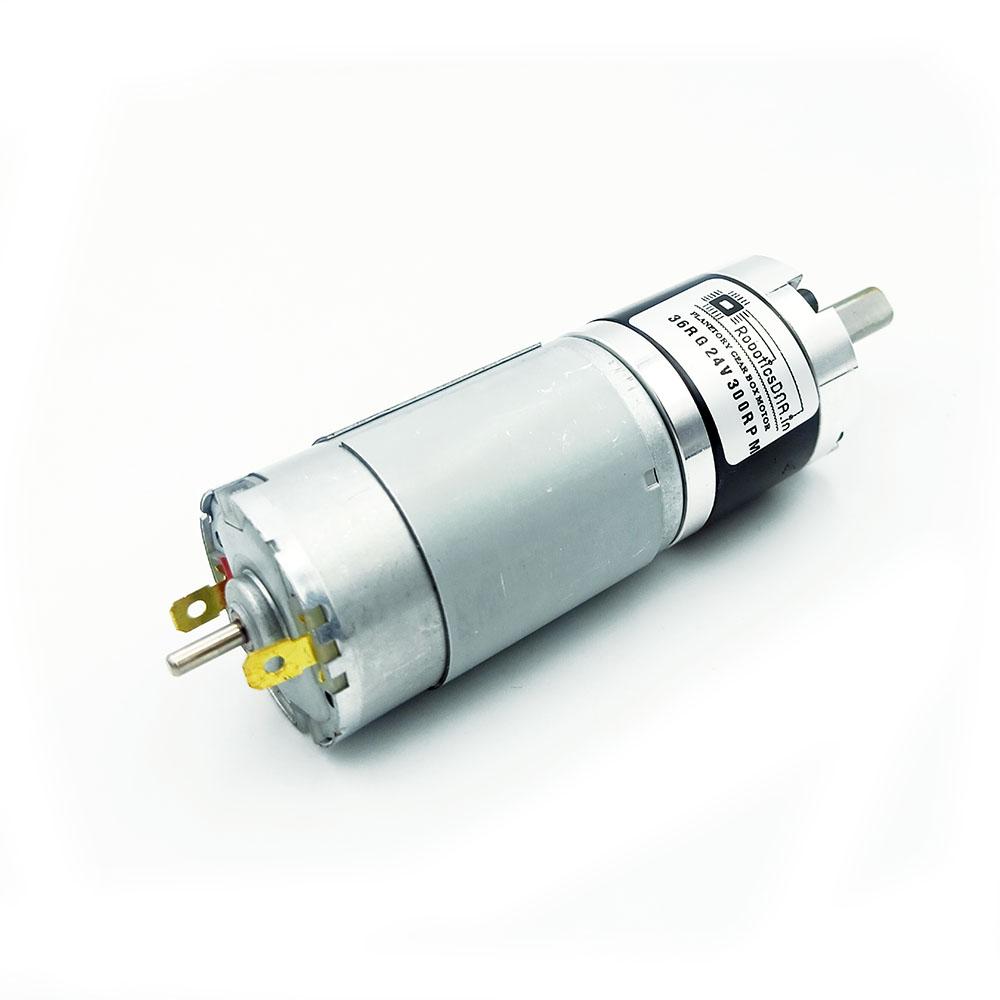

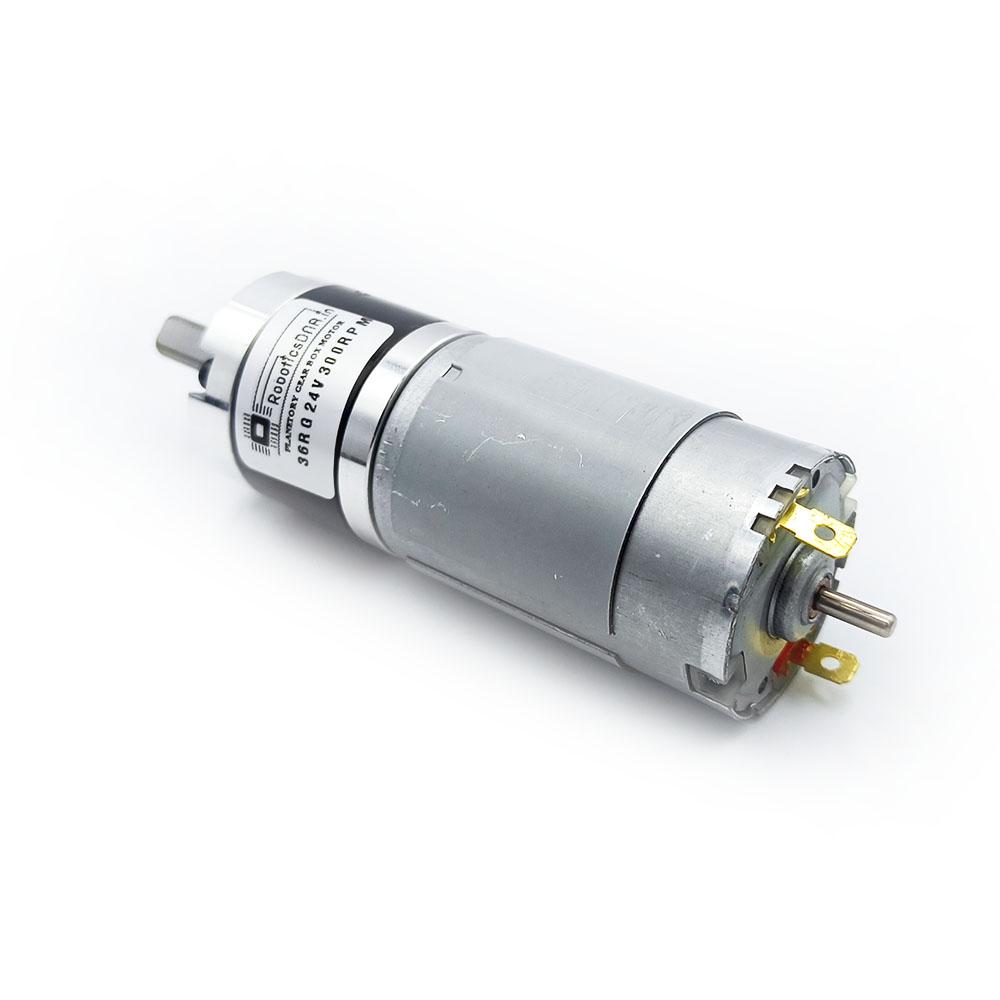

PGM36D555 24V 300 RPM 36mm Dia 3.5Kgcm Planetary Gear Motor Encoder Attachable

Specifications:

Power: 14W
Gearbox & Motor Dia: 36mm
Base Motor RPM: 7000 Rpm
Gear Breaking Torque: 35 Kg.cm (ie 5Nm)
Backlash: ≤2º
Bearing Used: Ball bearing
Gearbox Material: Zink Alloy
Weight: 350 Grams Approx
Encoder can buy and attach later

* Product Images are shown for illustrative purposes only and may differ from actual product.

SKU: RDNA-569.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹1,473.82 (Inc. GST)
₹1,249.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

12 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Planetary gears are often used when space and weight are an issue, but a large amount of speed reduction and torque are needed. This requirement applies to a variety of industries, including tractors and construction equipment where a large amount of torque is needed to drive the wheels. Planetary Gear Motor offers several advantages over other types of gearboxes, including higher power density, compact size, and lightweight. The power density of planetary gearboxes is high because the load is shared by multiple planet gears, which allows for more efficient energy transfer.

1. DC motor 2. Gear ring 3. Planetary gear carrier 4. Planet Gear 5. Sun gear 6. Spacer 7. Output shaft 8. Ball bearing 9. Front cover 10. Clamp spring 11. Fixing screw

Packing List:

1 x PGM36D555 24V 300RPM 36mm Dia Planetary Gear Motor
