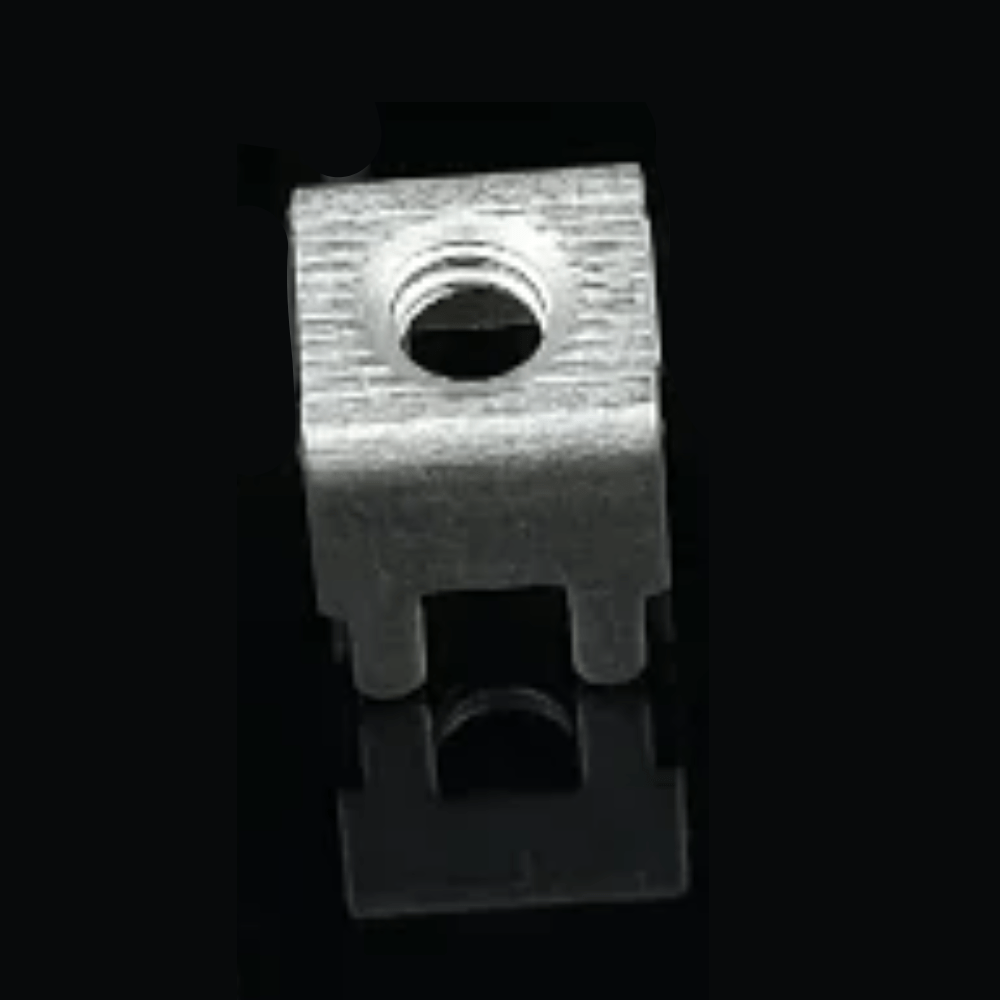

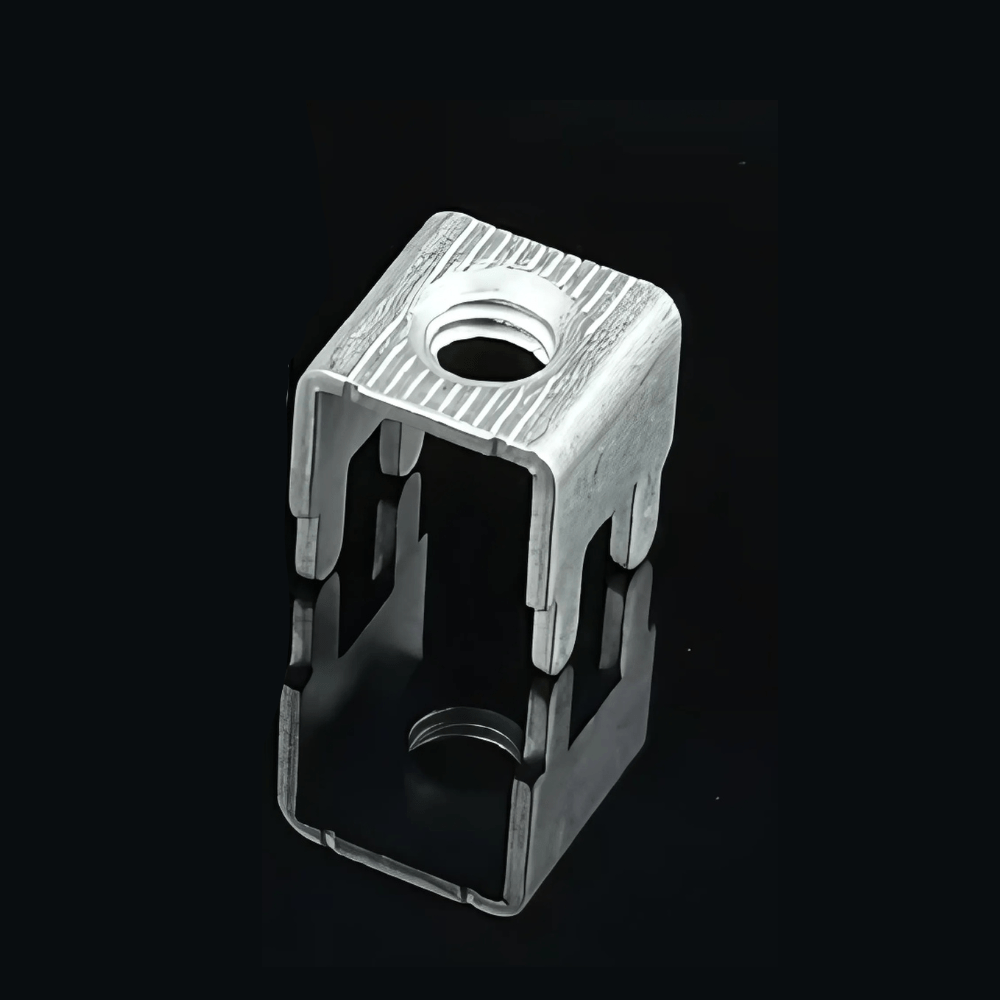

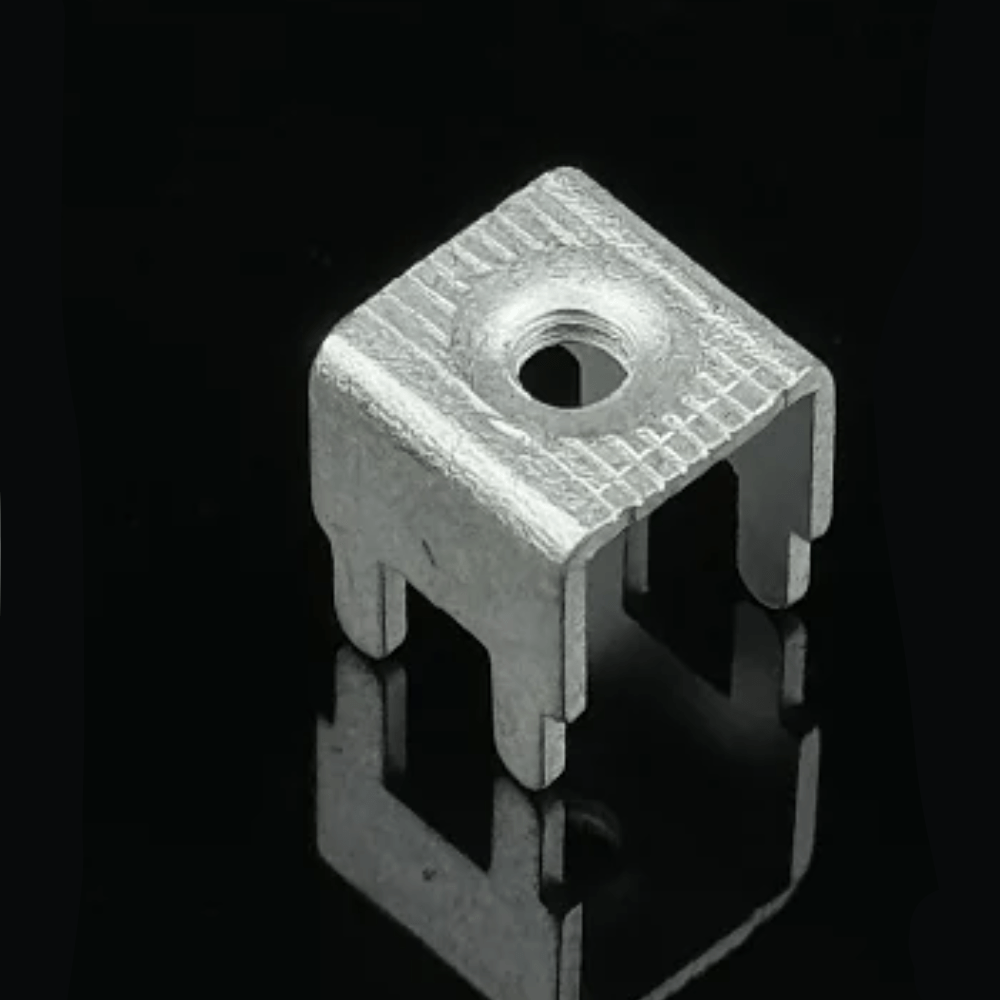

PCB-1 M3 65A Solder Terminal Circuit Board Wiring Terminal Four-pin Connector Circuit Board Fixing Seat (Pack of 5)

The Screw Terminal PCB Soldering Mount is a reliable and durable wiring terminal designed to be mounted directly onto printed circuit boards (PCBs) via through-hole soldering. This terminal provides a secure, removable wire connection using a mechanical screw clamp, making it ideal for applications that require easy field wiring, testing, or component replacement.

Key Features:

1. Mounting Type:
   1. Through-hole soldering directly to PCB for robust mechanical and electrical connection.
2. Connection Method:
   1. Screw clamp mechanism allows solid and stranded wires to be easily connected and removed without soldering the wire itself.
3. Material & Finish:
   1. Housing: Flame-retardant thermoplastic
   2. Terminals: High-conductivity brass or phosphor bronze with tin or nickel plating for enhanced conductivity and corrosion resistance
4. Pole Configuration:
   1. Available in single blocks
5. Screw Type:
   1. Steel or stainless-steel M3 screws

Applications:

1. Industrial control equipment
2. Power supply units
3. Audio and speaker connections
4. Home automation modules
5. LED drivers and lighting systems
6. Sensor and relay interface boards

Package Includes:

5 x M3 Screw Terminal PCB Soldering Mount On Circuit Board Wiring Terminal
