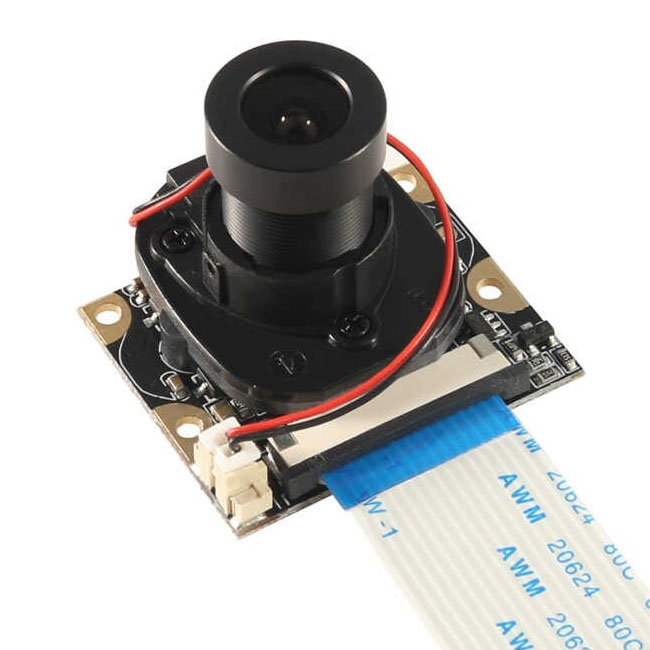

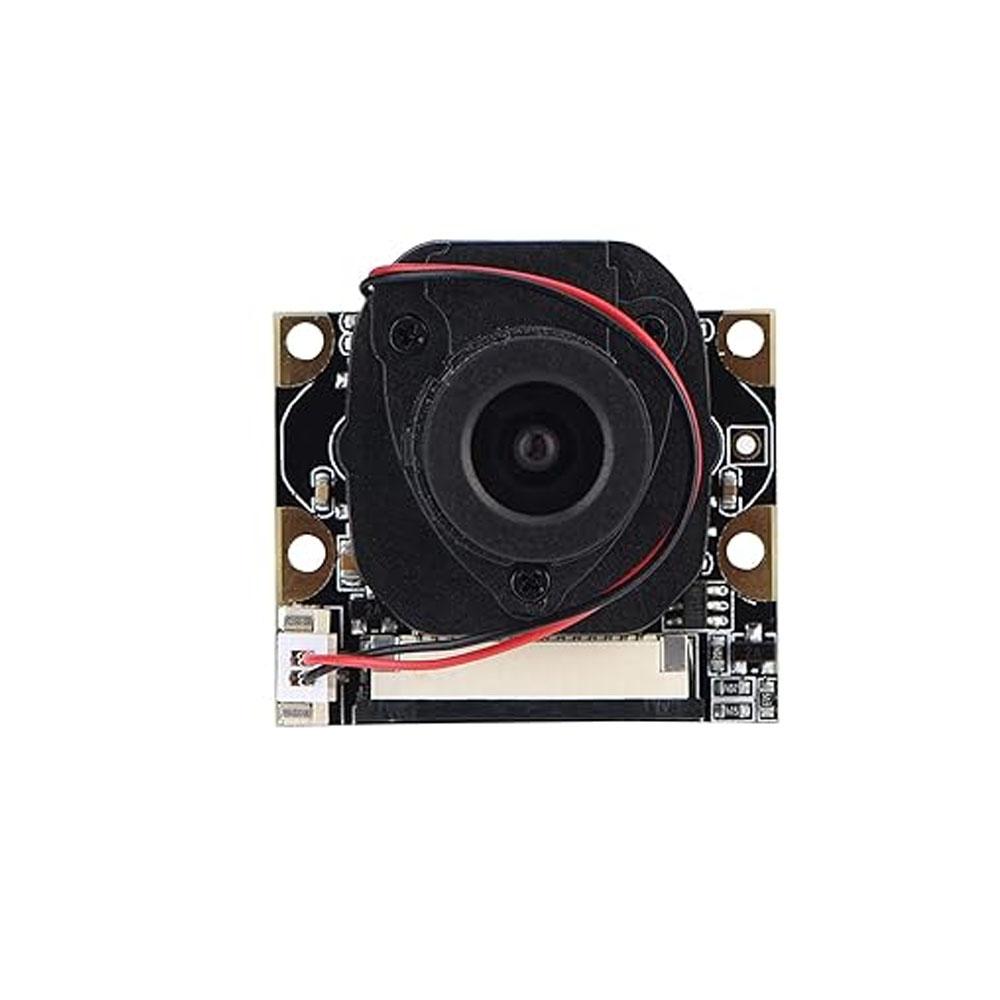

OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode

The OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3 and 4 with Manual Day Night Mode Switching is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the small sockets on the board upper surface. This uses the dedicated Raspberry Pis onboard CSI interface, designed especially for interfacing to cameras.

The camera supports night vision. It is compatible with all revisions of the Pi. Powered with a 5-megapixel OV5647 sensor, its best resolution is 1080p.

The Externally attachable IR LED that helps the night vision function. The Mounting Holes Provides 3.3V power output Supports connecting infrared LED and/or fill flash LED. An adjustable resistor is provided on it to control the ambient light threshold of toggling the infrared LED when ambient light is lower than the threshold value, the infrared LED is on, vice versa. Onboard screw holes are used for both attachment and power supply.

It connects to Raspberry Pi by way of a short ribbon cable. The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p 30, 720p 60 and 640x480p 60/90 video.

The camera is supported in the latest version of Raspbian, Raspberry Pis preferred operating system

You may also like :

Raspberry PI

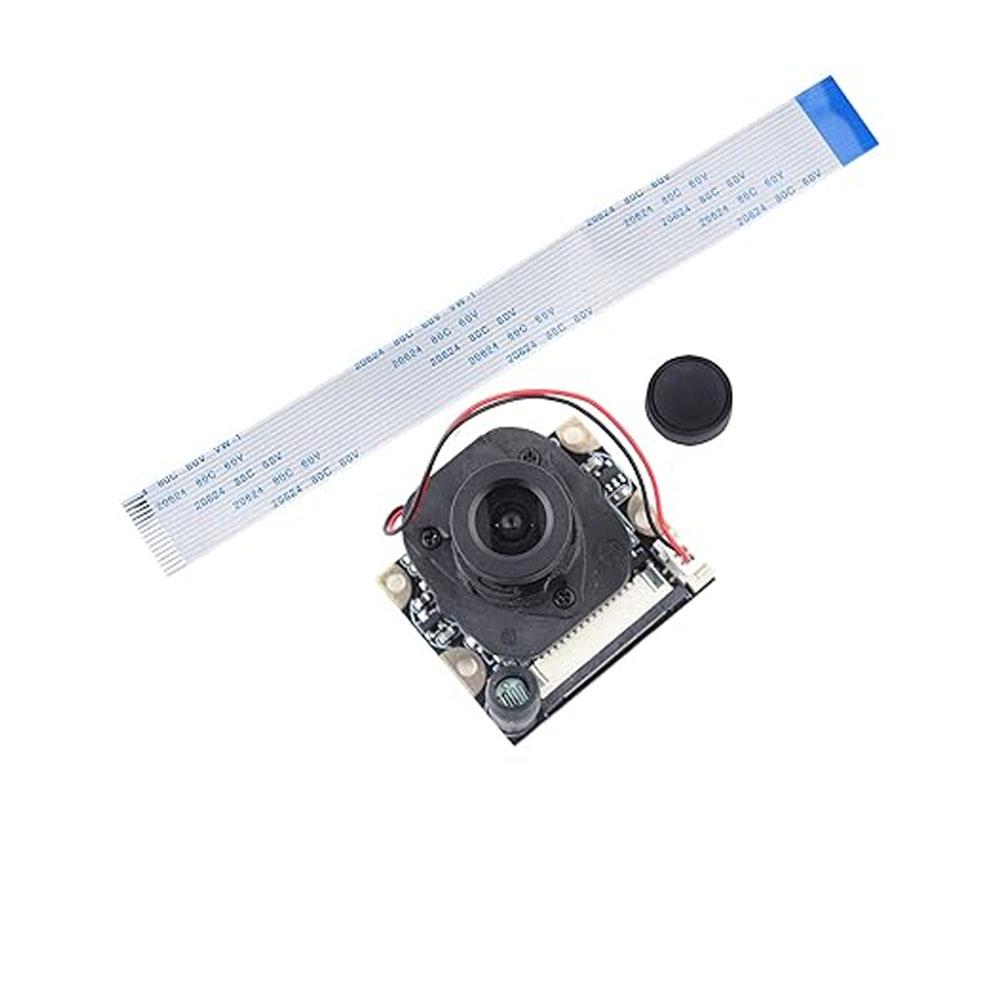

Package Includes:

1 xOV5647 5MP 1080P IR-Cut Camera

1 x 15-pin FFC Ribbon cable Strip (opposite sides contact)

Note: Externally Attachable IR LEDs are not Included in Package.
