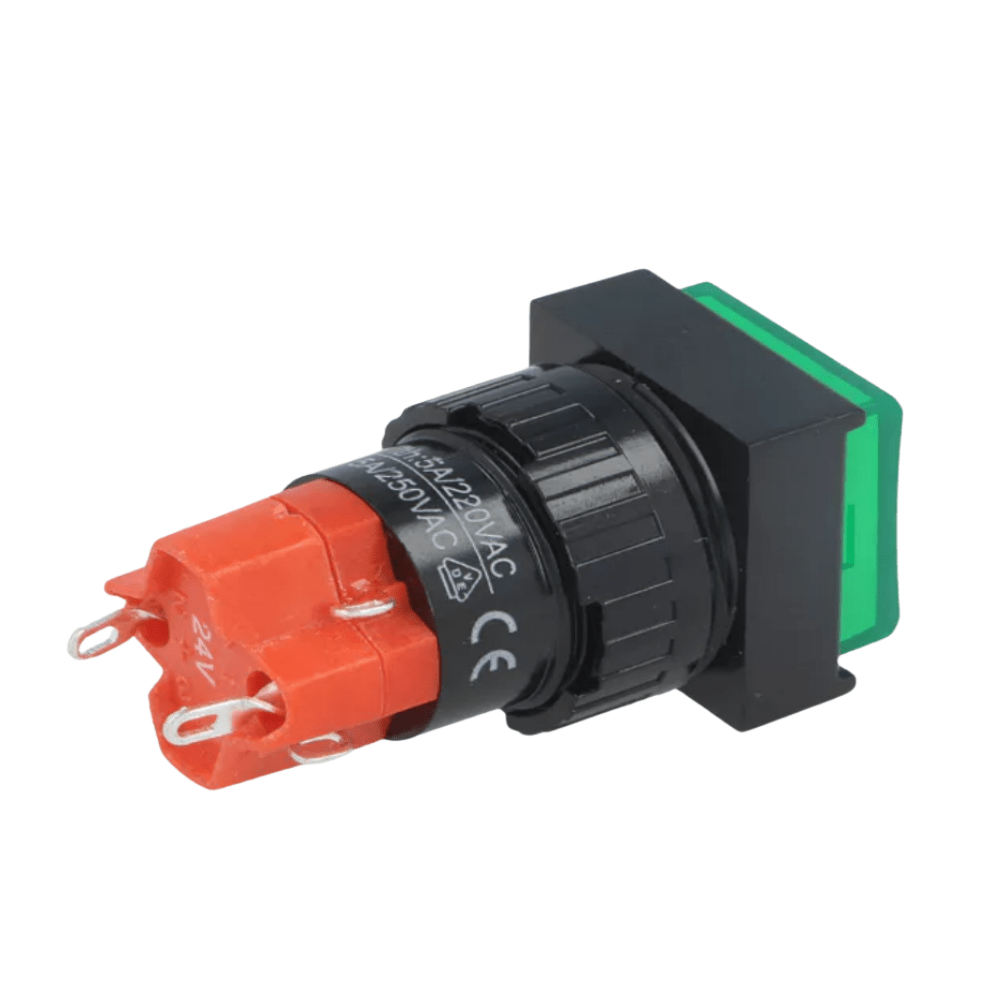

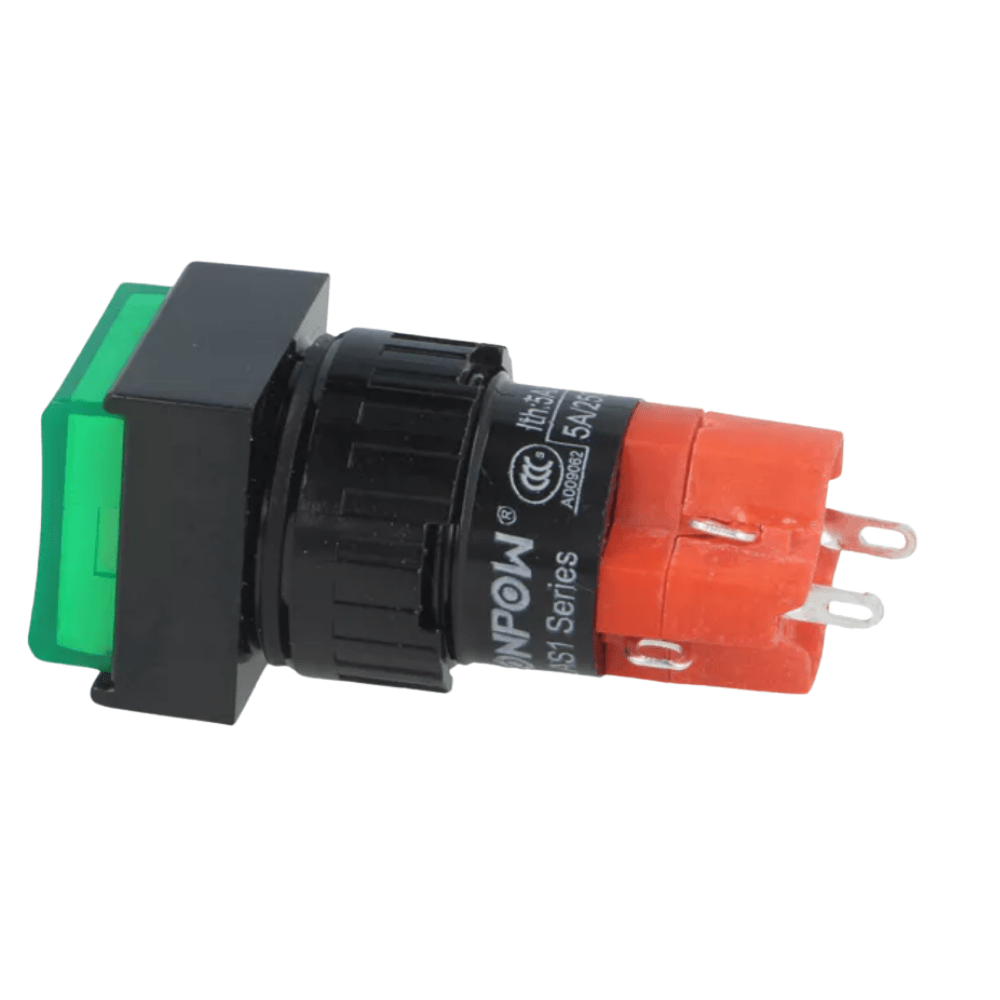

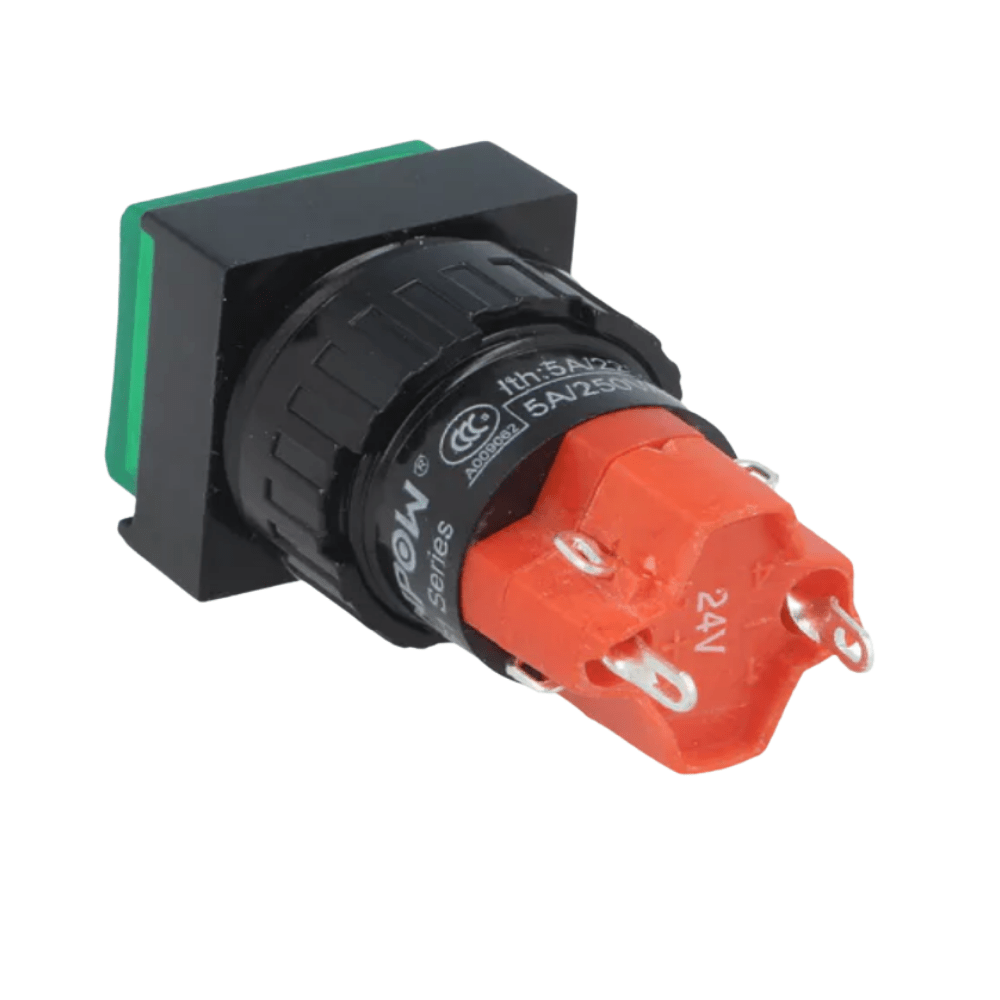

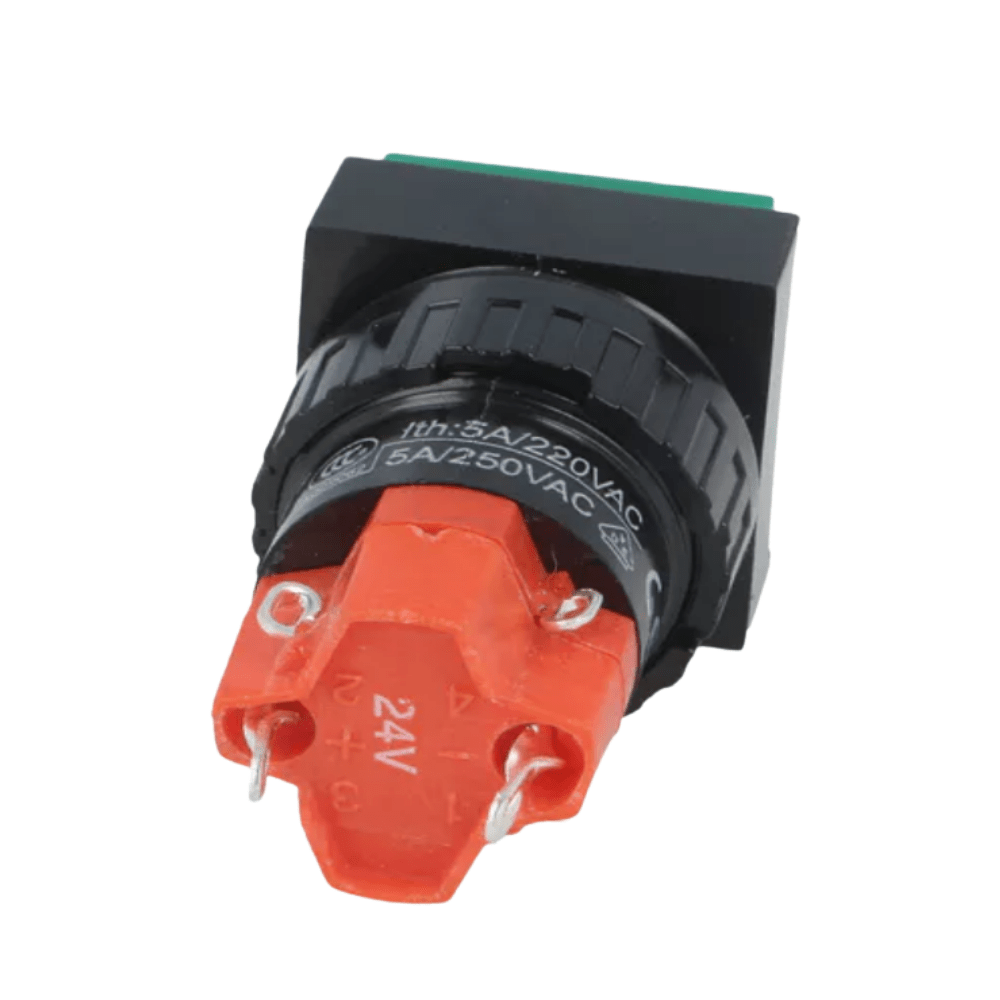

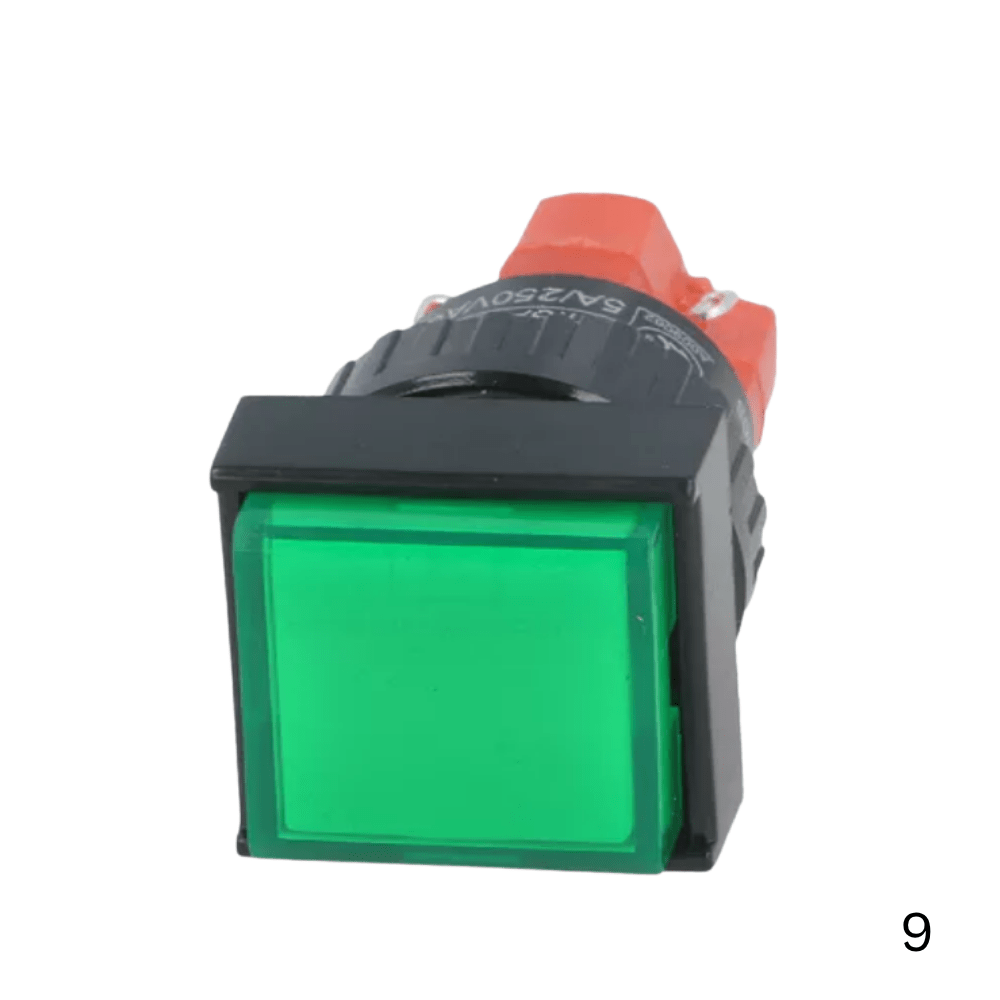

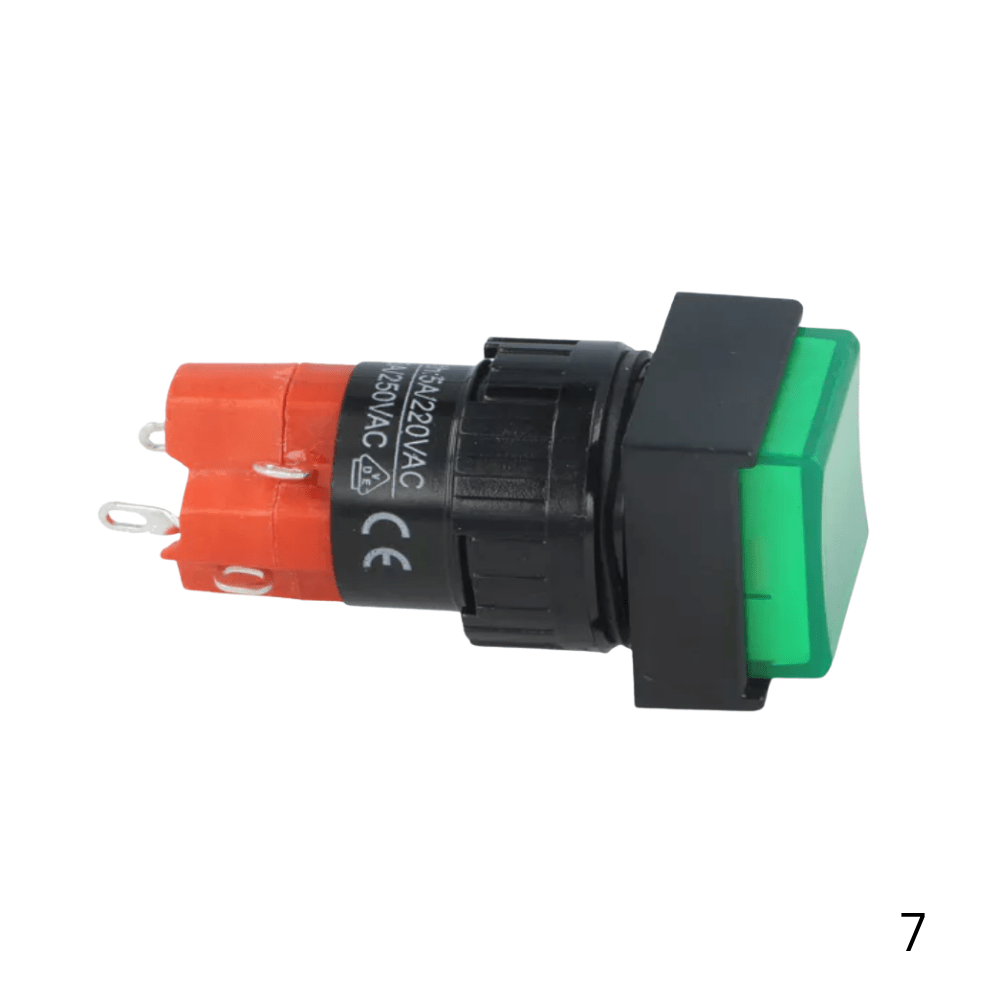

ONPOW 16mm Square Green PUSH ON PUSH OFF Button Switch

Specifications:

Part number: LAS1F-11/LED color/LED voltage
Diameter: 16mm
Contact configuration: 1NO 1NC
Operation type: Latching (Z) illuminate
LED color: Green
LED voltage: 12V
Front shape: Square
Approval:CE, CCC, UL, VDE, ROHS, REECH

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹413.00 (Inc. GST)
₹350.00 (+18% GST Extra)

Out of stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The ONPOW 16mm Square Green Push-On Push-Off Button Switch is a compact and reliable switch designed for various electronic and electrical applications. Its 16mm square size makes it suitable for panels and control boxes where space is limited. The switch features a push-on, push-off operation, allowing users to easily toggle the circuit on or off with a simple press. The green color typically indicates a “start,” “go,” or “on” status, making it ideal for control panels, machinery, and automation systems. Constructed with durable materials, it ensures longevity and consistent performance, and its easy installation makes it a popular choice for both hobbyists and professionals seeking a straightforward on/off control solution.

Switch Ratings

Thermal Current lth		5A
Rated Voltage		24V	125V(110V)	250V(220V)
Direct Current		2A	0.2A	0.1A
Alternating current	P.F=1		5A	3A
Alternating current	P.F=0.7		3A	2A

Lamp ratings

Lamp type	AC LED Lamp(Standard)				Neon Lamp
Rated voltage	AC/DC 6V	AC/DC 12V		AC/DC 24V	AC/DC 110V	AC/DC 220V
	AC/DC 110V		AC/DC 220V
Covers color	Red,Green,Yellow,Orange,Blue,White				Red,Green
Life	About 40,000 hours				About 20,000 hours

Note:the lamp contains a current-limiting resistor inside and doesn’t need external connection.
DC LED lamp,dual-color LED lamp and other voltages can be customized.

Specifications:

Operating Temperature				-25ºC~+55ºC(no freezing)
Operating Humidity				48~85%RH(no condensation)
Contact Material				-sliver -sliver alloy -gold-clad sliver, Clad ding thickness is 3μm
Contact Pressure				About 0.3N(about 30g)
Contact Resistance				≤50mΩ
Insulation Resistance				≥100mΩ
Rated Insulation Voltage				250V,AC/DC
Dielectric strength	Between contact and lamp terminals:			2000V,AC 50Hz,1min
	Between terminal of the same pole:			1000V,AC 50Hz,1min
	Between terminal of the different pole:			2000V,AC 50Hz,1min
Vibration Rasistance				50Hz,amplitude 1.2mmP-P
Shock Rasistance				≥10g
Life		Mechnical	Momentary Type	1,000,000times
			Alternate,Selector and Key-lock Type	500,000times
		Electrical		50, 000times
Terminal				Diameter of welded wire:2*0.8mm max Area of copper wire:0.75mm²
Solder Heat Resistance				230ºC(no more than 3 second)
Operating Force				200gf~500gf(According to the quantity of switch units)
Operating Travel				≈3mm(pushbutton)
