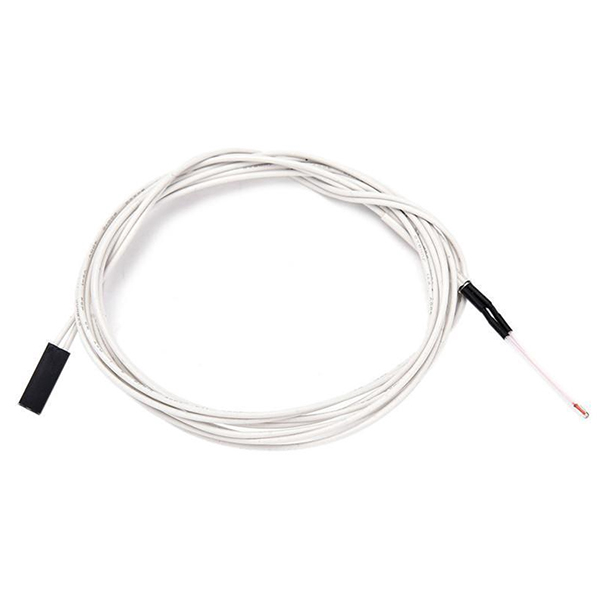

NTC B3950 100K Thermistors 1% with 1000mm Cable and 2 pin 2.54mm Terminal

Specifications:

3D printer thermistors, temperature sensors.
NTC Thin Film Thermistor Cable
Impedance: 100KΩ
Accuracy: ±1%
Outer diameter: 1.05mm
Temp Range: 200 degrees / 300V
Material: Teflon wire conductors
Cable length: 1M
Main color: White
with socket.

SKU: RDNA-E335.3

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹44.01 (Inc. GST)
₹37.29 (+18% GST Extra)

In stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

17 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

No need to change the firmware program to directly replace the original thermal resistor

Thermistor temperature measurement is stable. The temperature measurement of the upgraded HT-NTC100K can be up to 320 degrees, can effectively replace the K-type thermocouple. It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and result in temperature fluctuation that can affect the printing quality.

The improvements compared to the other temperature resistance in the market.

1. Upgrade from the original ordinary temperature probe directly exposed temperature measurement to resistance package temperature measurement. Temperature measurement head cylinder diameter 3mm, length 15mm, can be used with the heating block that support the thermocouple.

2. The temperature measurement range is increased from -50 ℃~ +250℃ to -50 ℃ ~ +320 ℃. It helps a lot to print high-temperature filament, can replace the original K-type thermocouple temperature. If need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended.

3. The new version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel, with the internal temperature package to ensure the maximum service life with precision temperature measurement.

4. HT-NTC100K thermistor adopts white high-temperature cord, can bear higher temperature. And for customers’ convenience, the wires adopts line connection, the customer can tear the wires depends on their application. The high temperature line is double thicker than others in the market, not easy to break off.

5. Supports the customization of different specifications, including the temperature head cylinder size, length of the wires (MOQ is 100 sets).

6. Can be used with the new version of the heater (the new heater can heat up to 350 degrees).
