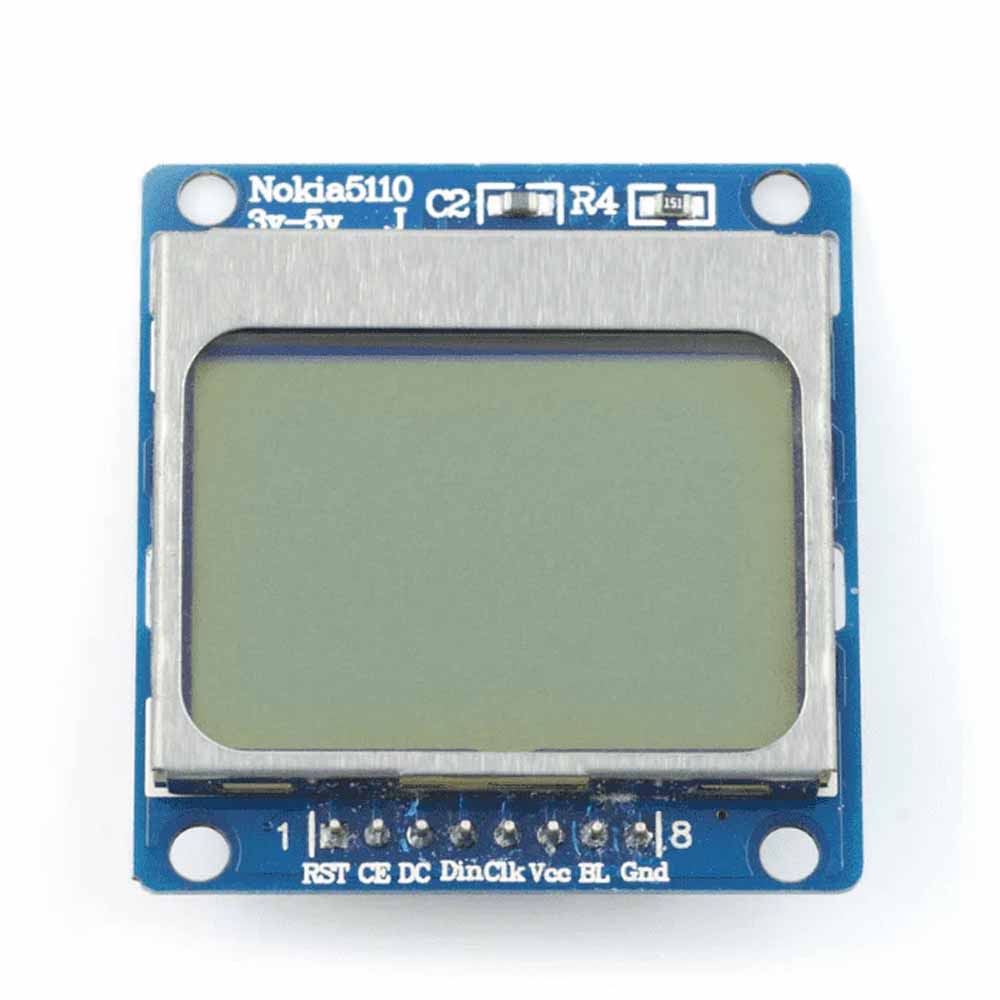

Nokia 5110 LCD Display Module-Blue

 This is Nokia Screen
All necessary functions for the display are provided in a single chip, including on-chip generation of LCD supply and bias voltages, resulting in a minimum of external components and low power consumption
This screen support different types of MCU, such as the Arduino, AVR, SPI, MCS51, and so on
This transfer rate up to 4Mbps, can full speed write display data without waiting time
Low power supply, the working current in a normal situation is lower than 200µA and has the power-down mode.
The PCD8544 interfaces to microcontrollers through a serial bus interface.
Your screen may or may not have a diode on the PCB. It does not affect performance and will vary depending on our shipment.

NOKIA SCREEN
This is The Nokia screen, which is a basic graphic LCD screen for lots of applications. It was originally intended for as a cell phone screen. This one is mounted on an easy to solder PCB. It uses the PCD8544 controller, which is the same used in the Nokia 3310 LCD. The PCD8544 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 48 rows and 84 columns.
Though it’s an industrial module, this LCD display is extremely easy to use. The Nokia 5110 is a basic graphic LCD screen for lots of applications. It was originally intended for as a cell phone screen.
This Nokia 5110 LCD Display Module is mounted on an easy to solder PCB. The Nokia 5110 LCD Module uses a Philips PCD8544 LCD driver, which is designed for mobile phones.
Nokia 5110 LCD Display Module is a low-cost monochrome LCD module comprised of 84 X 48 pixels that can be used to display rich graphics and text content. This module is a revision that accepts 3-5V input. So no extra level shifter is needed.
It uses the PCD8544 controller, which is the same used in the Nokia 3310 LCD. The PCD8544 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 48 rows and 84 columns. All necessary functions for the display are provided in a single chip, including on-chip generation of LCD supply and bias voltages, resulting in a minimum of external components and low power consumption. The PCD8544 interfaces to microcontrollers through a serial bus interface.

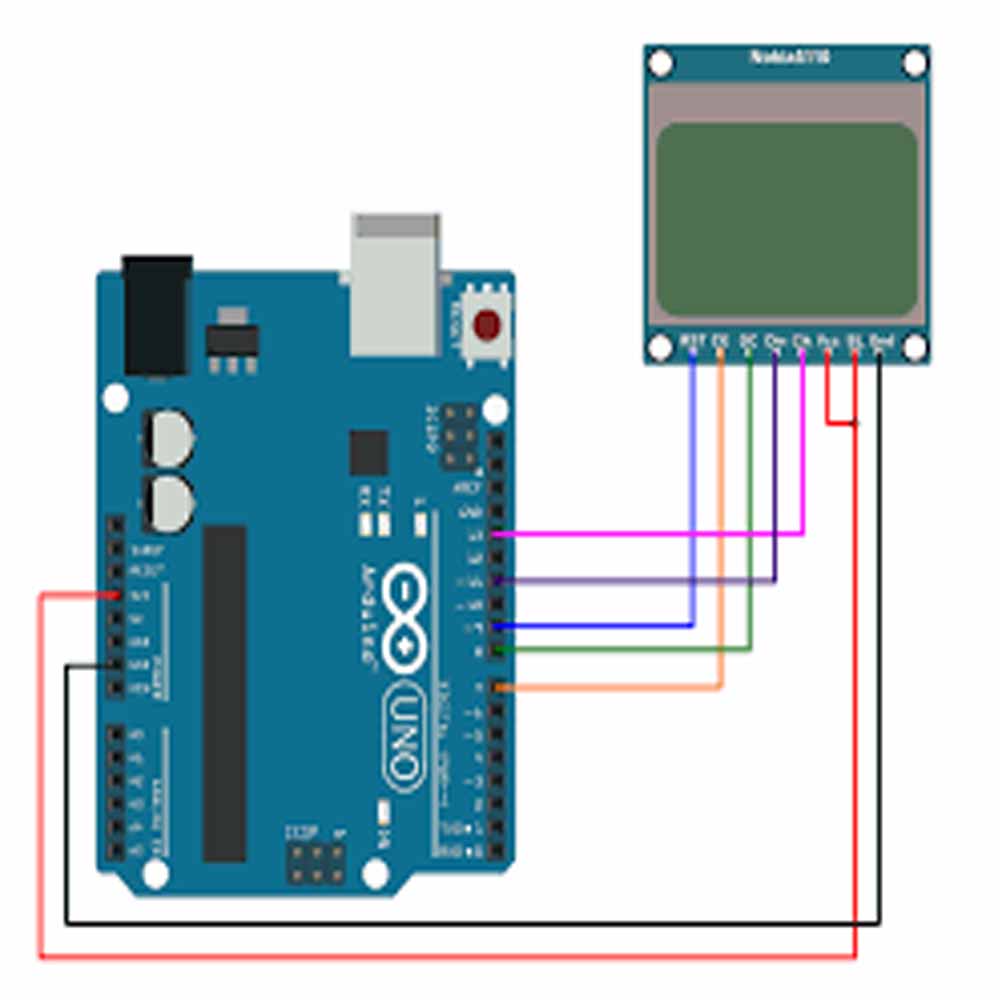

If you want to use this Nokia screen for your Arduino projects for that you will need a few handy components like breadboard, jumper wires and batteries or power supply.

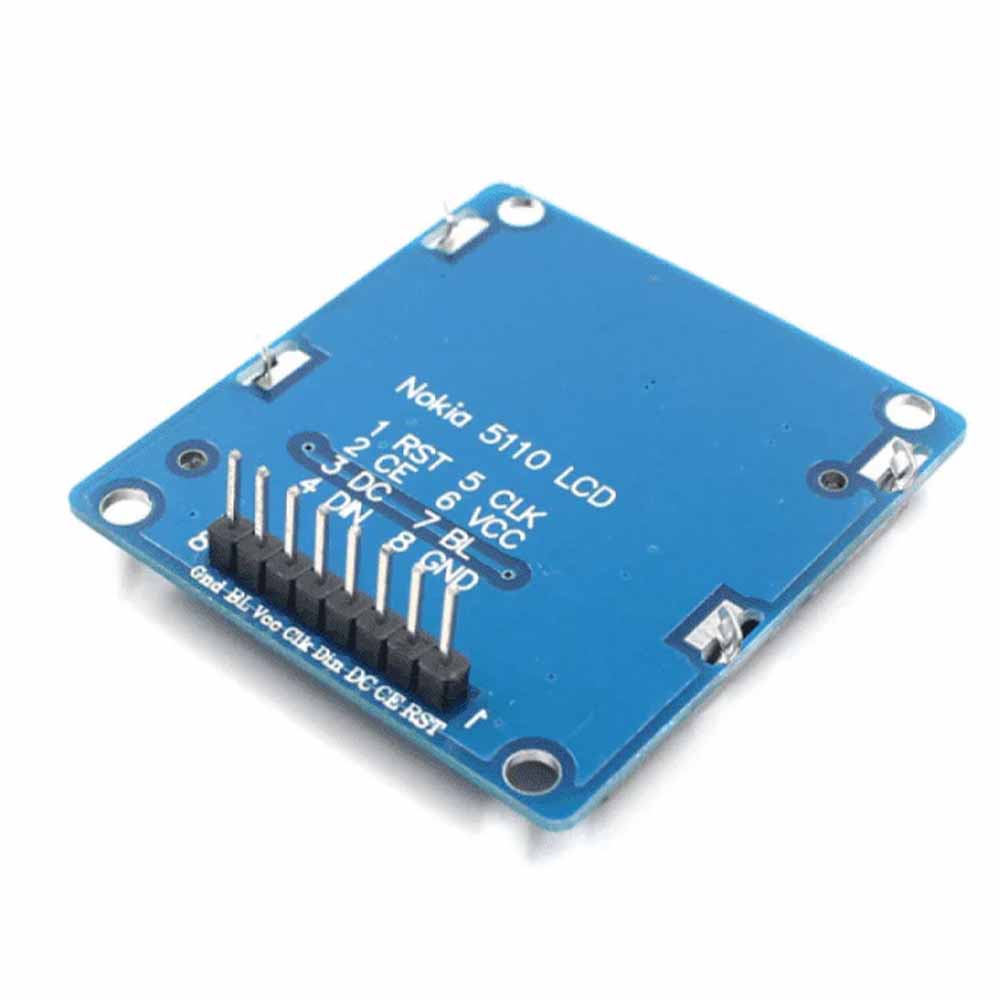

PIN CONFIGURATION:

1. RST          reset
2. CE            chip selection
3. DC            data/commands choice
4. DIN          serial data line
5. CLK          serial Clock Speed.
6. VCC          3.3V
7. LIGHT     backlight control terminal
8. GND        power negative

You may also looking :

1 . Arduino UNO R3 (With Logo)

2 . Cable for Arduino UNO/MEGA (USB A to B)-30cm

Package Include :

1 x Nokia Screen
