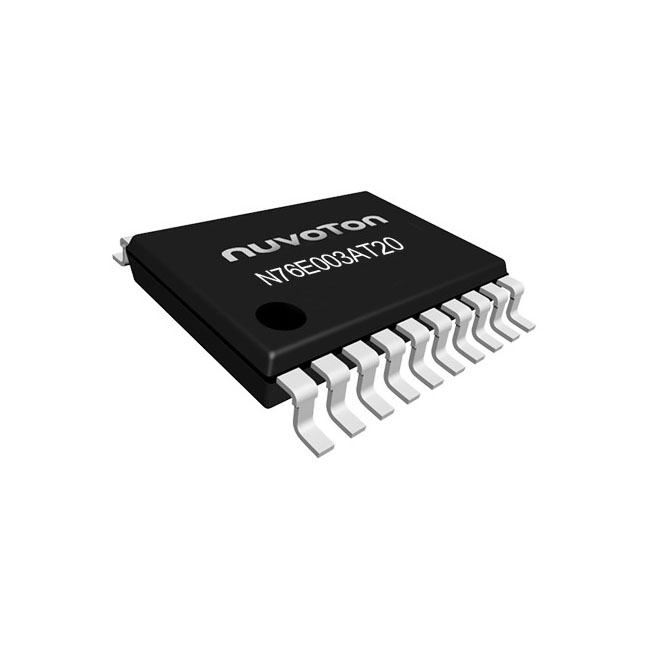

N76E003AT20 IC-2Pcs

Name: N76E003AT20 IC-2Pcs
SKU: RDNA-36.2
Availability: InStock

Overview:

The N76E003 provides up to 18 I/O pins under 20 pin package and rich peripherals including two UARTs, SPI, I²C, 6-ch PWM output, wake-up function, and Brown-out detector. The competitive features include a high precision <2% deviation 16 MHz Internal RC oscillator, and a high-resolution 12-bit 8 channel ADC.

SKU: RDNA-36.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹403.99.Current price is: ₹384.00. (Inc. GST)
₹325.42 (+18% GST Extra)

In stock (can be backordered)

0 days 00 hr 00 min 00 sc

In stock (can be backordered)

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

17 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

N76E003 – a 1T-8051 based series MCU, offers 18 KB Flash ROM, configurable Data Flash and 1 KB SRAM . It supports wide operating voltage of 2.4V to 5.5V , temperature range of – 40 ℃ to 105 ℃ , and high noise immunity of 7 kV ESD and 4 kV EFT.

The N76E003 provides up to 18 I/O pins under 20 pin package and rich peripherals including two UART s, SPI , I²C , 6-ch PWM output, wake-up function, and Brown-out detector. The competitive features includes a high precision <2 % deviation 16 MHz Internal RC oscillator, and a high resolution 12-bit 8 channel ADC . N76E003 supports small form factor packages TSSOP20 ( 4mm x 6.5mm ) and QFN20 ( 3mm x 3mm ) for easy board design.

Target Application:
Access Control System, Thermostat, Bluetooth Speaker, Electric Meter, Data Collector, Battery charger, Beauty Equipment, Small Home Appliance, etc.

Key Features:

•	Core
	–	1T 8051 processor
	–	Max frequency up to16 MHz
	–	Wide operating voltage: 2.4V to 5.5V
	–	Temperature range: – 40 ℃ to 105 ℃

•	Memory
	–	18 KB of Flash memory
	–	1 KB of SRAM
	–	Supports configurable Data Flash
	–	Supports program update by: ISP ( In-System Programming ) ICP ( In-Circuit Programming ) IAP ( In-Application Programming )

•	PWM
	–	Up to 6-ch PWM
	–	Programmable dead-zone generator

•	ADC
	–	12-bit 8-ch ADC
	–	Runs up to 500 kSPS

•	Connectivity
	–	Two UART s up to 115200 bps
	–	One SPI up to 8 MHz
	–	One I²C up to 400 kHz

•	Clock Control
	–	2 % deviation16 MHz Internal RC oscillator
	–	10 kHz Internal RC oscillator
