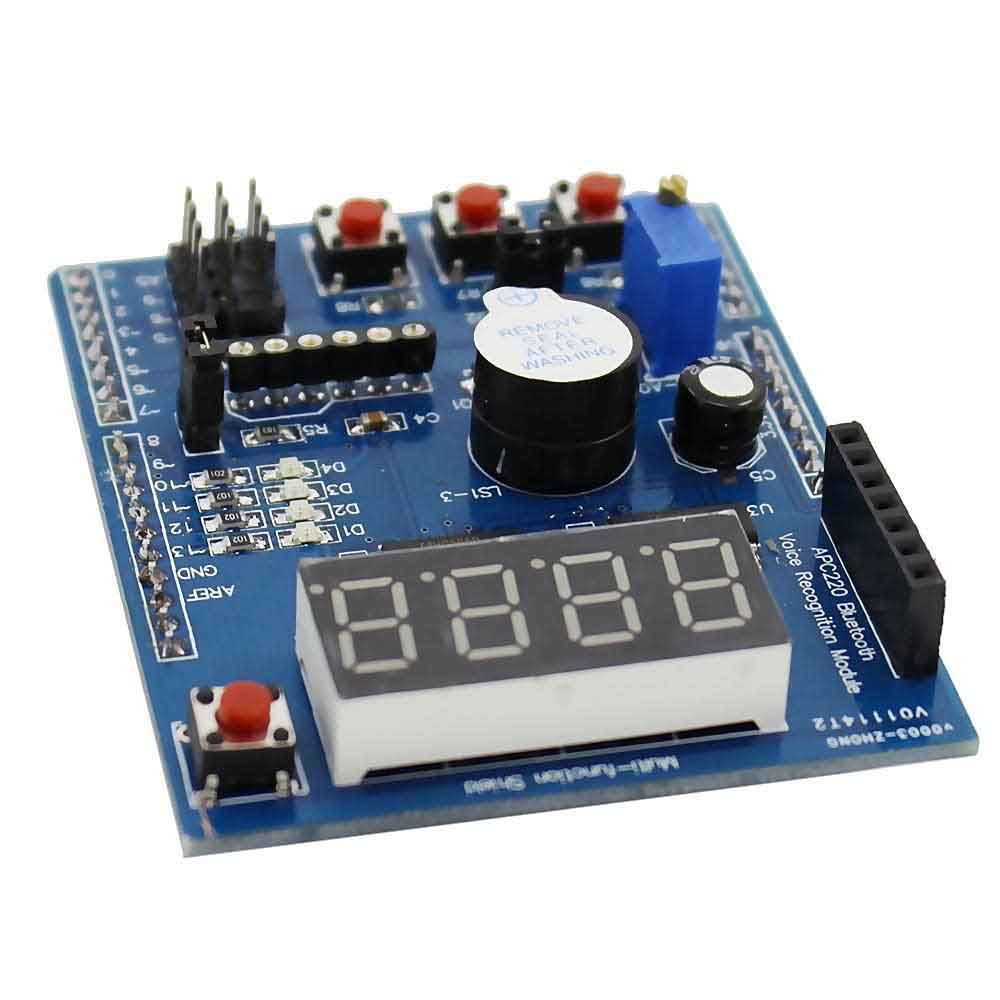

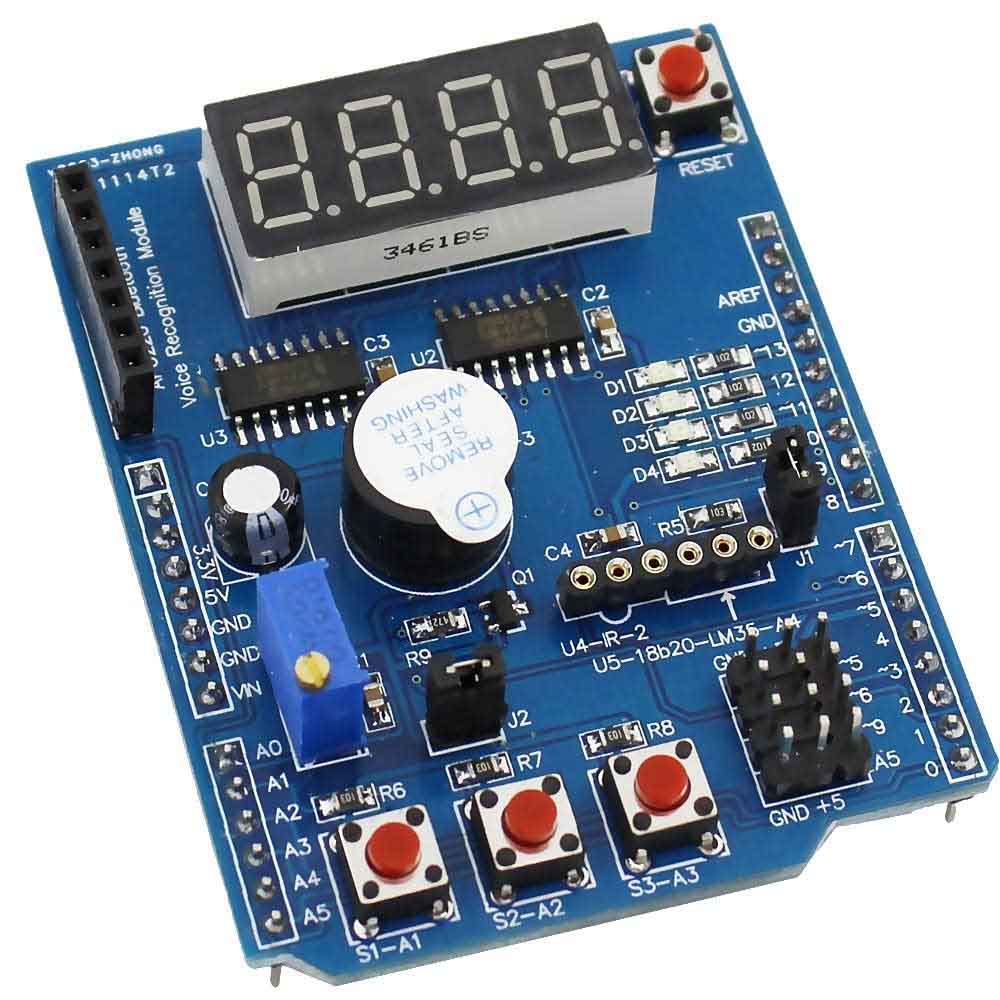

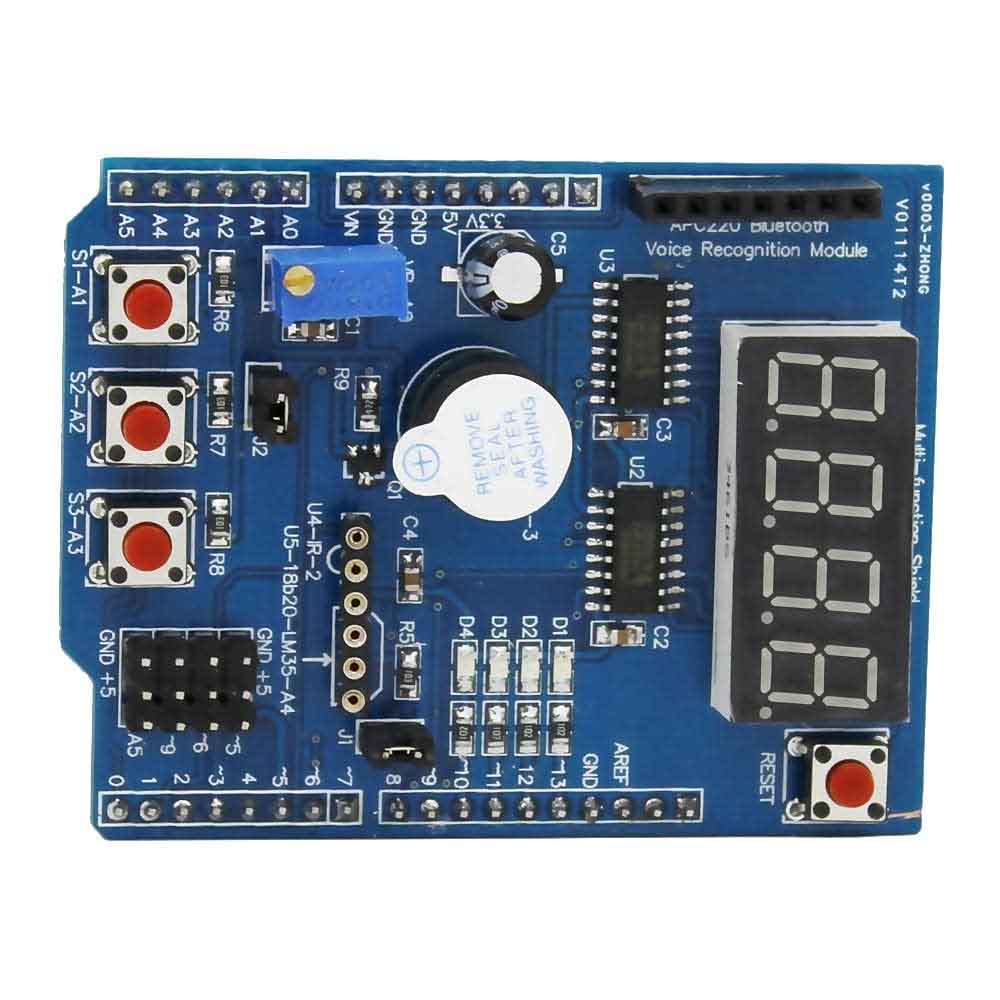

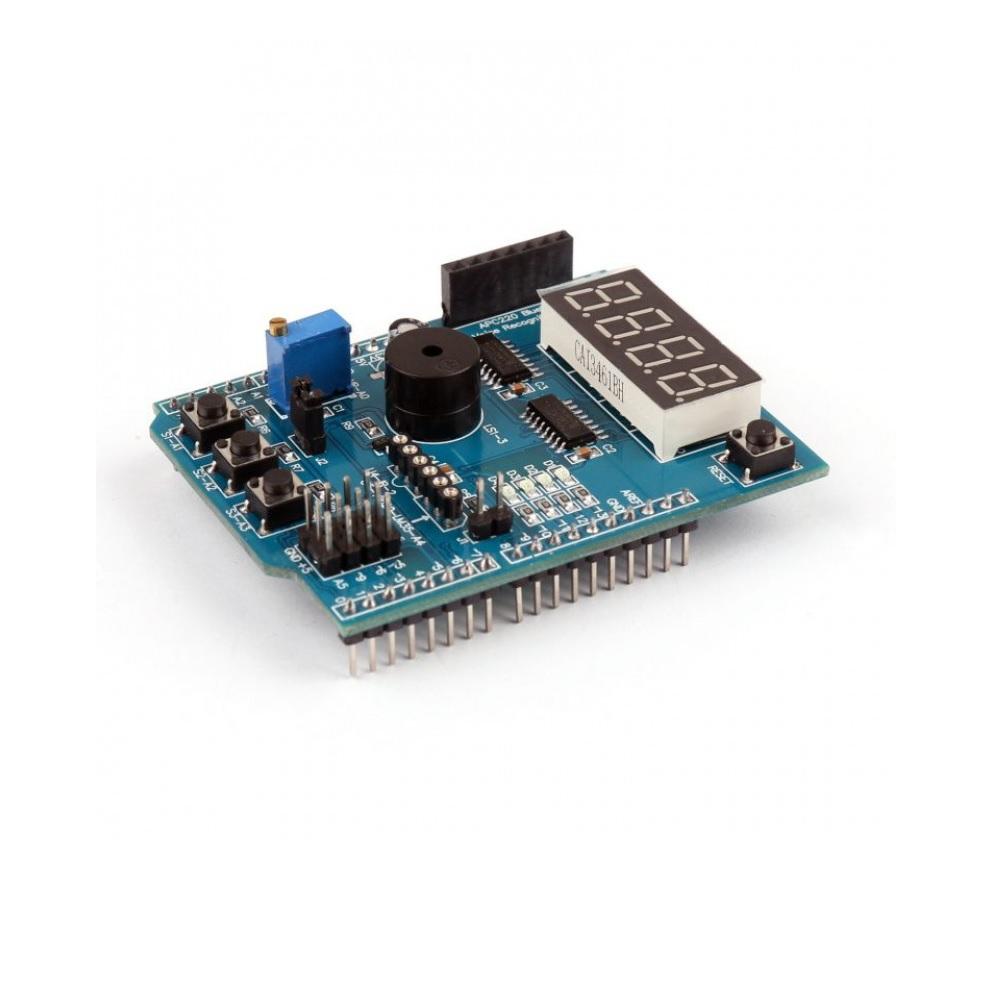

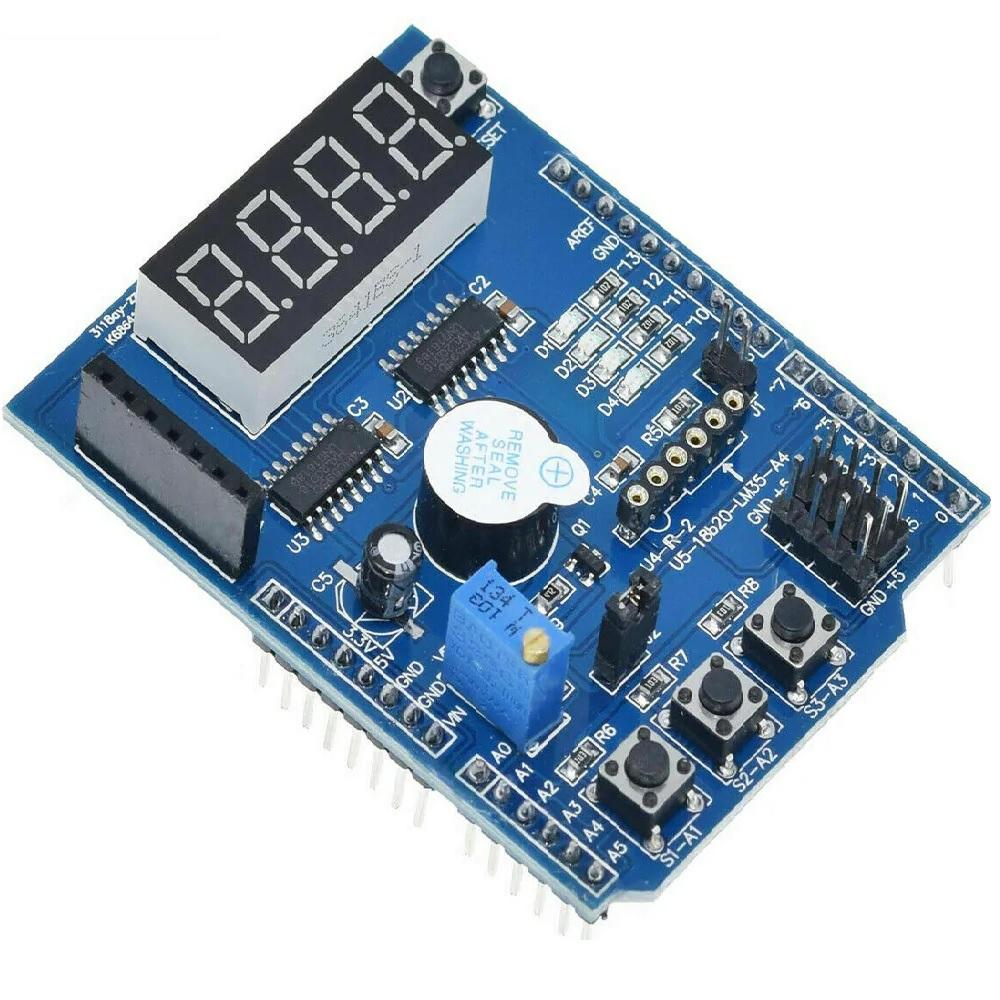

Multifunction Shield For Arduino Uno / Leonardo

Specifications:

• Works with standard (dual 5/3.3V) and 3.3V-only (for example, Pro Arduino) boards.
• Complies with USB Specification Revision 2.0 (Full-Speed 12Mbps Peripheral, Full-/Low-Speed 12Mbps/1.5Mbps Host)
• Compatible with Mass storage devices, such as USB sticks, memory card readers, external hard drives (FAT32 Type File System – Mega Arduino only).

The following device classes are currently supported by the shield:

•  HID devices, such as keyboards, mice, joysticks, etc.
•  game controllers – Sony PS3, Nintendo Wii, Xbox360
•  USB to serial converters – FTDI, PL-2303, ACM, as well as certain cell phones and GPS receivers
•  ADK-capable Android phones and tables
•  Digital cameras – Canon EOS, Powershot, Nikon DSLRs and P&S, as well as generic PTP
•  Mass storage devices, such as USB sticks, memory card readers, external hard drives
• Bluetooth dongles.

Specifications:

1. New L293D motor shield, the input voltage DC4.5-25V
2. 600mA output current capability per channel
3. 1.2A peak output current(non-repetitive) per channel
4. Enable facility
5. Overtemperature protection
6. Logical “0” input voltage up to 1.5V(High noise immunity)

Specifications:

1. Arduino terminal to provide the IO, port connection.
2. 3.81 posts quality, reliable, convenient, durable.
3. Combined with the Proto Shield, the middle can be used as a prototype expansion board.
4. Double-sided PCB Prototyping extended area vias connecting the front sides can be welded components.
5. The middle section can be placed small bread plate, convenient test extend

Specifications:

1. Compatible with Arduino NANO
2. All digital and analog pins breakout
3. Compact size.
4. Leads all pins out, convenient for wiring and doing experiments.
5. Dimensions: 53 x 36 x 12 (LxWxH) mm.
6. Weight: 22 gm.
