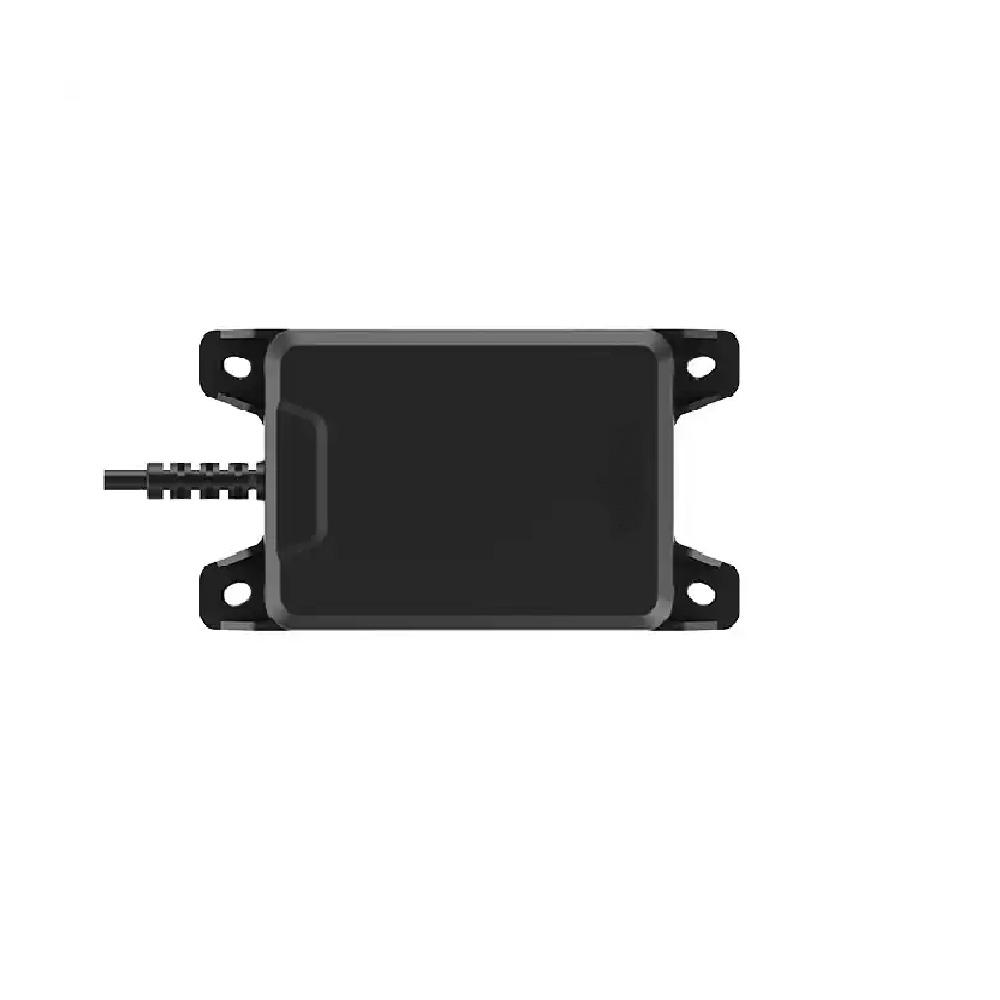

MR72 77GHZ Collision Avoidance Radar (UART)

The MR72 is a 77GHz millimetre wave radar developed by Nanoradar GmbH, a German company that specializes in high-performance radar technology. This radar is designed specifically for use in unmanned aerial vehicles (UAVs), also known as drones, to provide accurate and reliable obstacle detection and avoidance capabilities. The MR72-UAV operates in the millimetre wave frequency range, which allows it to provide high resolution and accuracy in detecting small obstacles such as tree branches, power lines, and other aerial hazards. It has a detection range of up to 200 meters and a detection angle of 120 degrees, providing comprehensive coverage for the UAV. The radar is equipped with advanced signal processing algorithms that enable it to filter out noise and interference, while still maintaining high sensitivity to small targets. It also has a compact and lightweight design, weighing only 70 grams, which makes it ideal for use in small UAVs. Overall, the MR72-UAV 77GHz millimetre wave radar by Nanoradar is a cutting-edge technology that provides critical obstacle detection and avoidance capabilities for UAVs, helping to improve safety and reliability in aerial operations.

New Application Scenarios:

• Unmanned agriculture
• Electricity inspection
• Surveying and mapping
• Oil and gas infrastructure inspection
• Highway and Railway Infrastructure Inspection
• Logistics
• Fire fighting
• Police security

Features:

1. Long detection distance: up to 90 meters

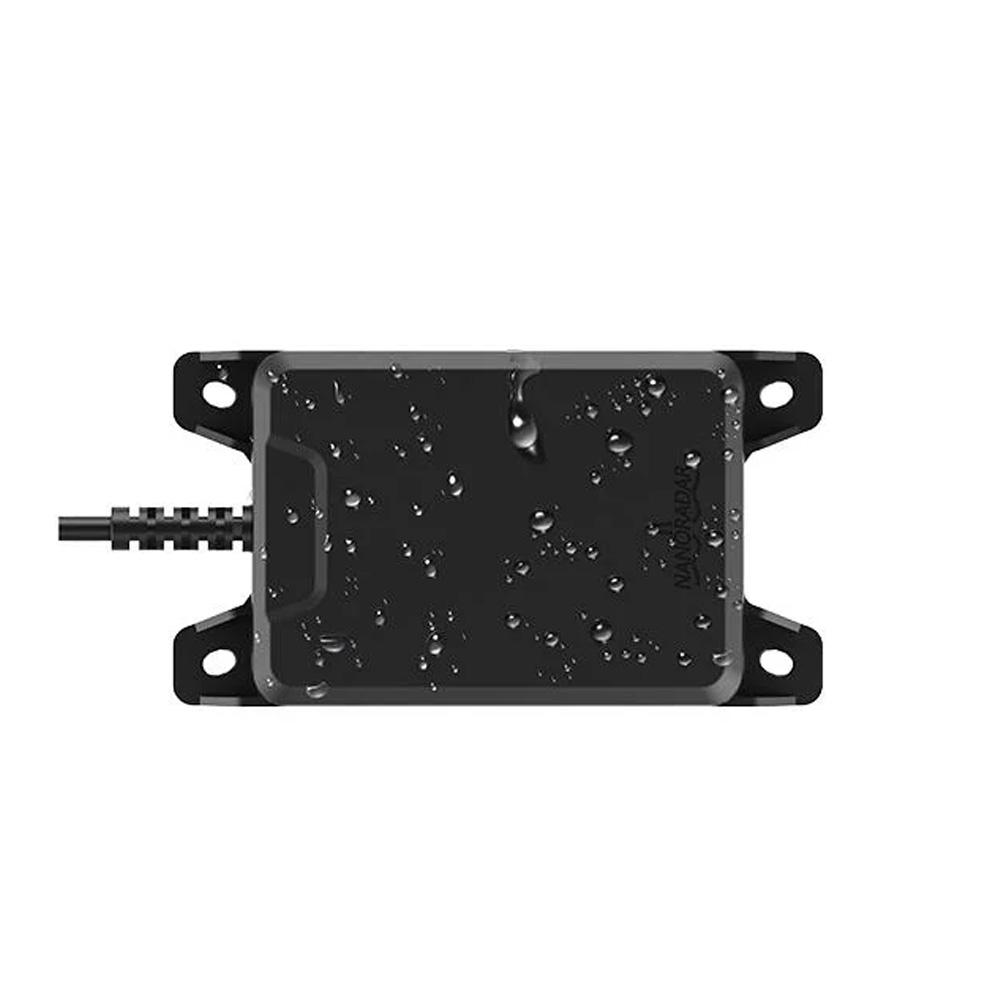

2. Strong anti-interference ability: not affected by light, weather, environmental noise, and electromagnetic interference from drone
3. Smaller size: Compared with 24GHz MMW radar, it is smaller and has wider applicability;
4. High detection accuracy: Compared with 24GHz radar, 77GHz MMW radar has High-precision and a better ability to identify obstacles

Specifications:

Note: This product is based on the UART interface.

Datasheet Click Here

User Manual Click Here

Packing List:

1 x MR72 77GHZ Collision Avoidance Radar System (UART)
