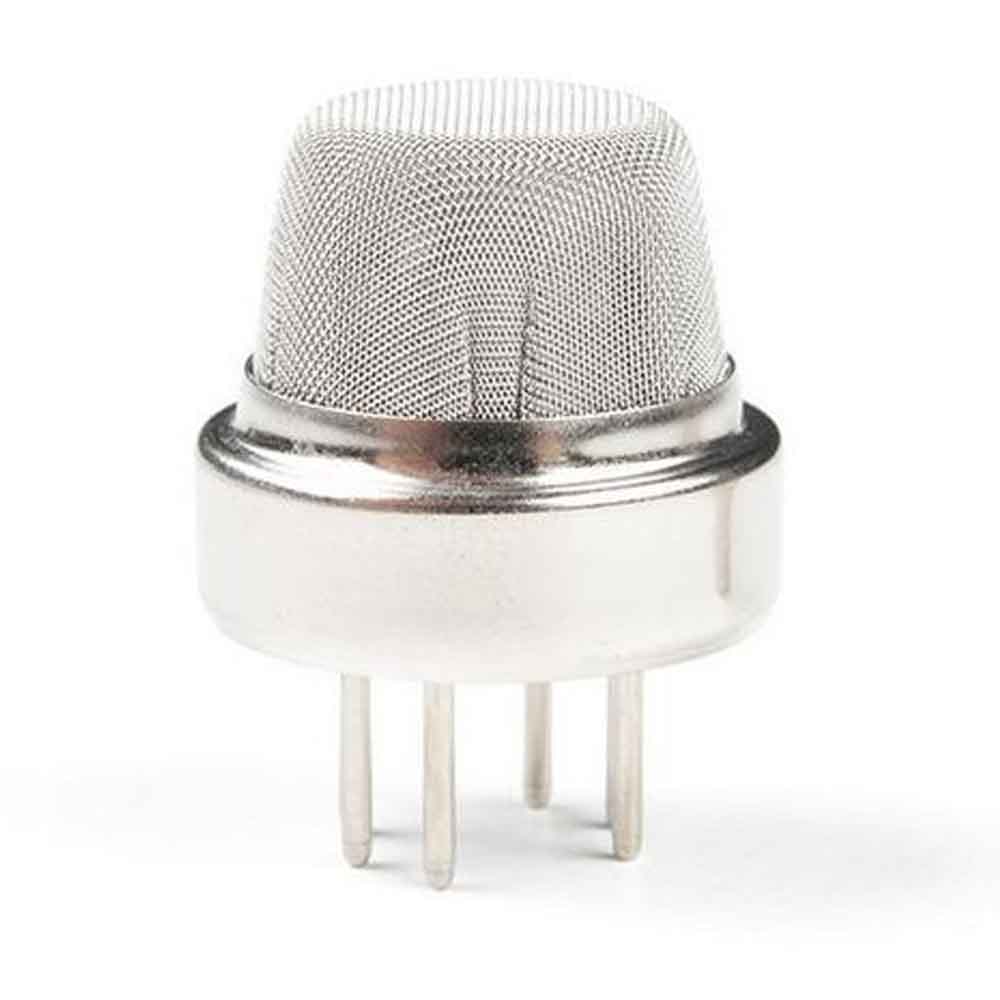

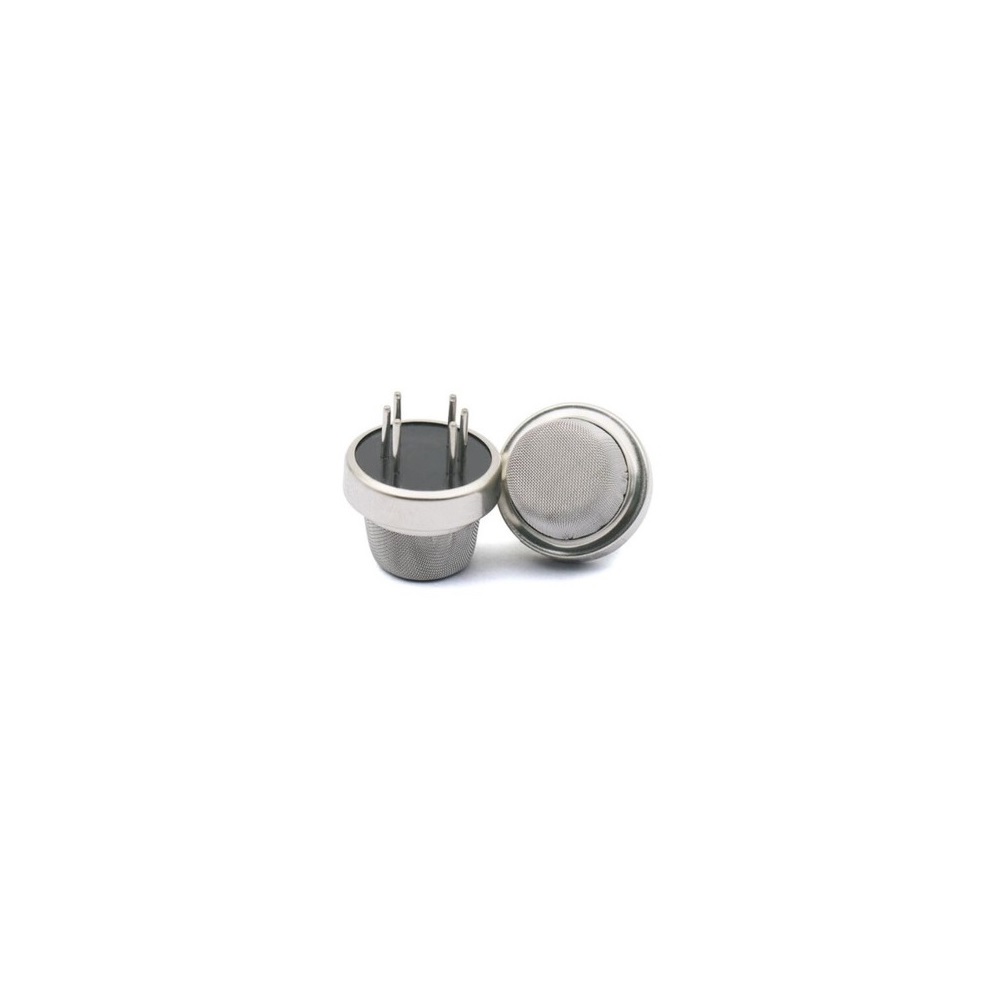

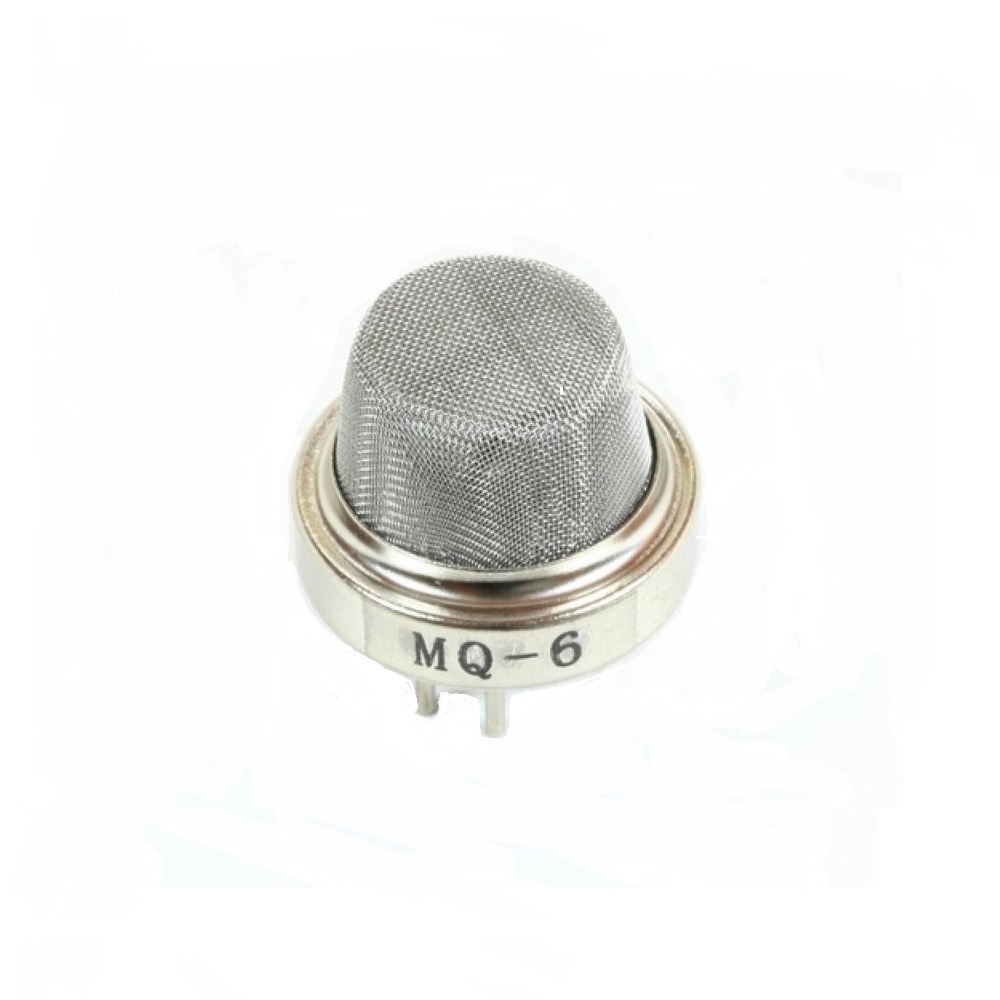

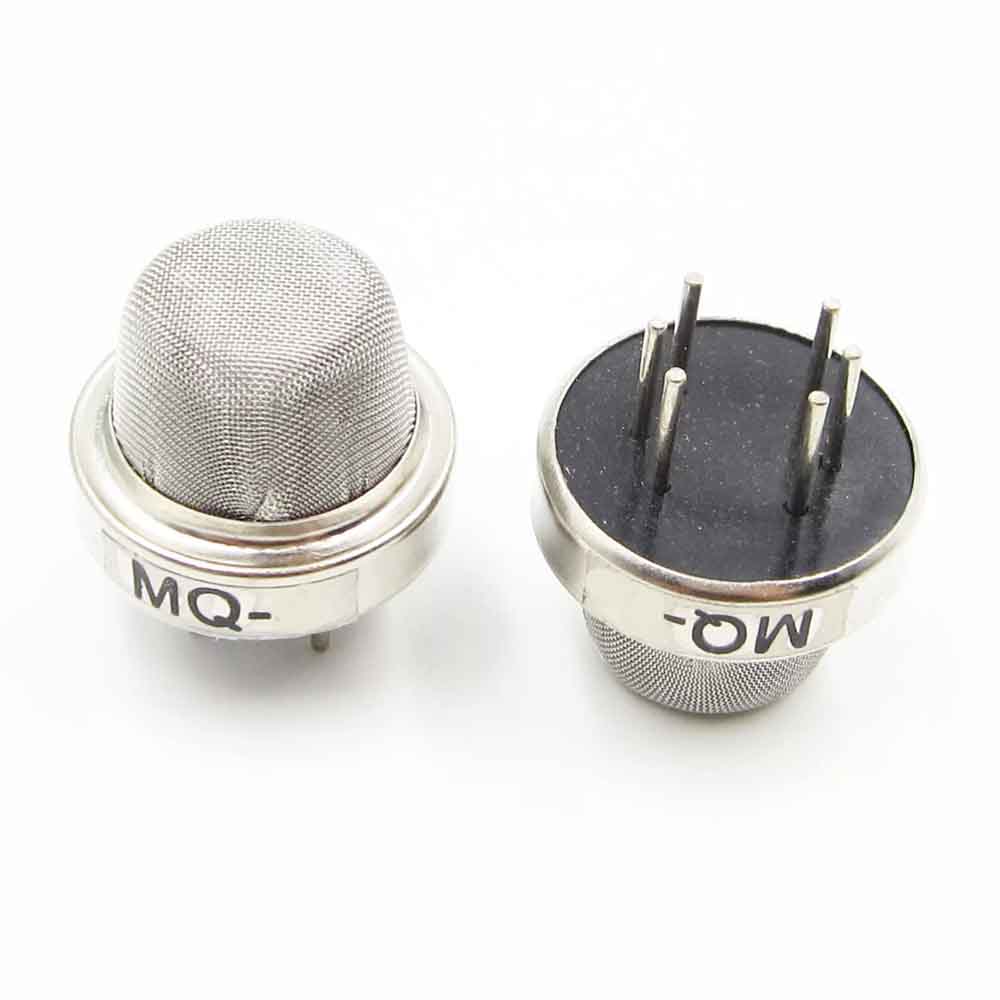

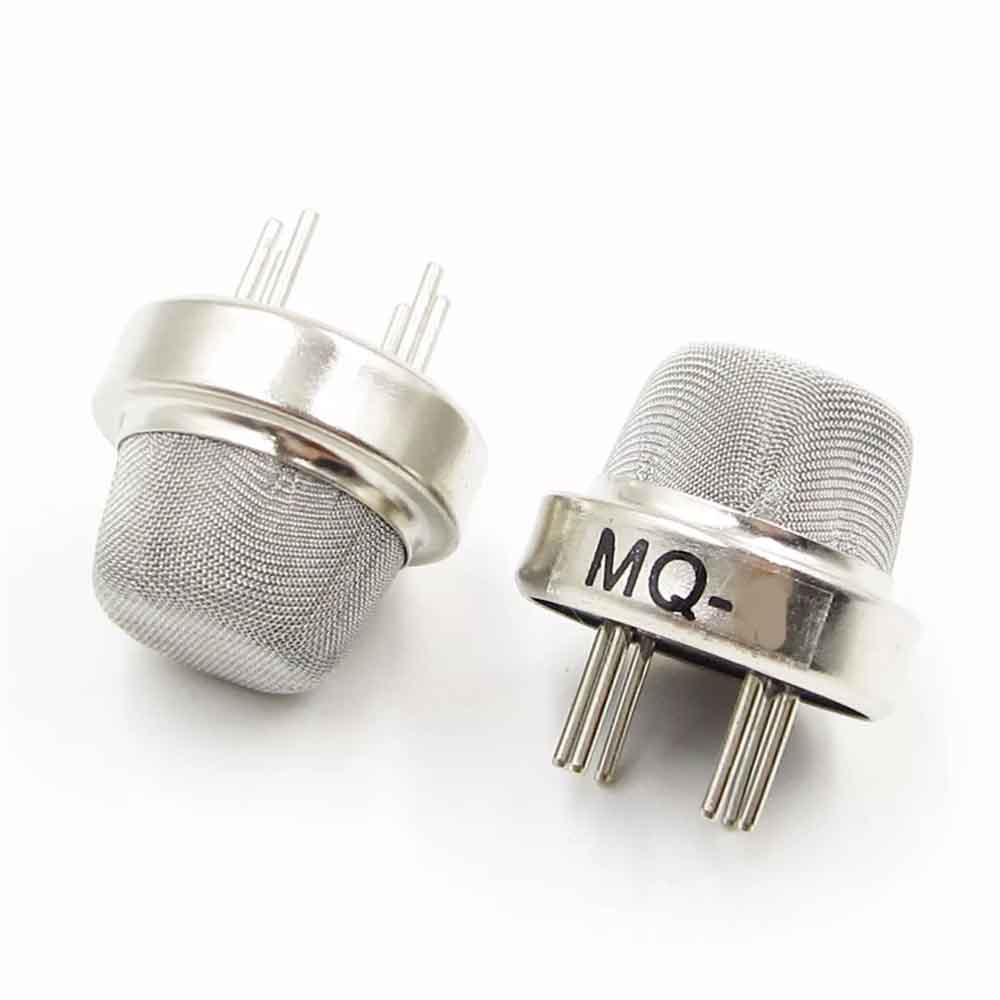

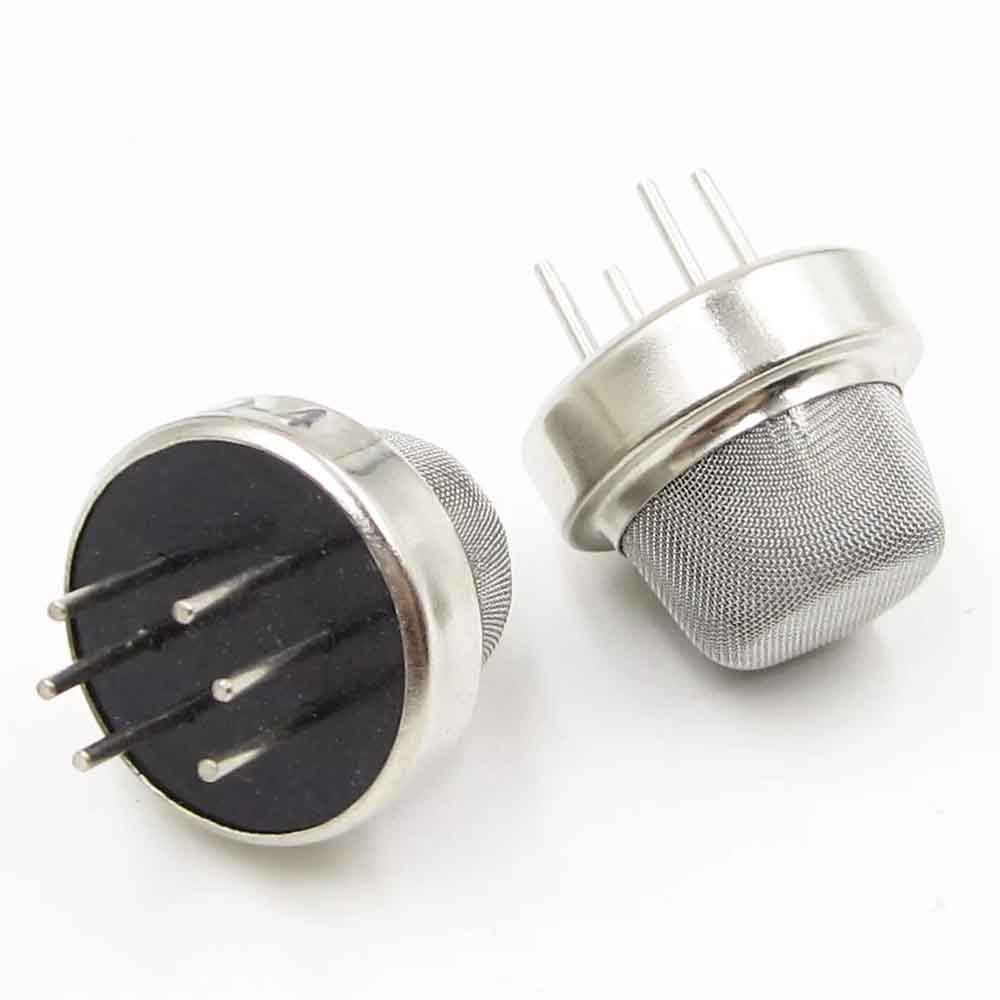

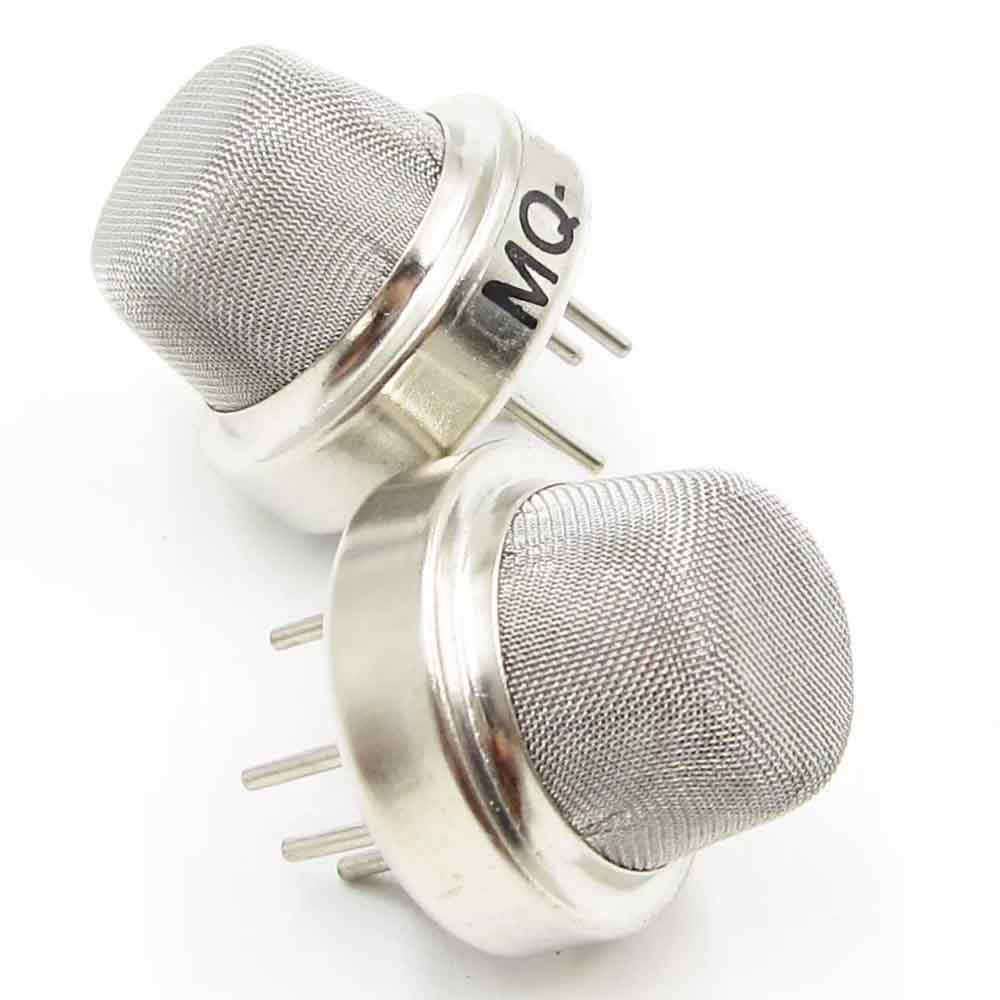

MQ-6 – LPG Propane Gas Sensor

The MQ-6 LPG – Isobutane – Propane Gas Sensor is a semiconductor gas sensor that detects the presence of LPG, Isobutane, and Propane gas at concentrations from 100 ppm to 10,000 ppm, a range suitable for detecting gas leaks. The sensor’s simple analog voltage interface requires only one analog input pin from your microcontroller. The MQ-6 LPG – Isobutane – Propane Gas Sensor detects the concentration of gas in the air and outputs its reading as an analog voltage. The sensor can operate at temperatures from -10 to 50°C and consumes less than 150 mA at 5V. Tags, MQ-6 LPG & Propane Gas Sensor, MQ-6 GAS Sensor, MQ6 GAS Sensor, MQ-6 LPG Gas Sensor.

Features:

• The operating Voltage is +5V
• Can be used to detect LPG or Butane gas
• Analog output voltage: 0V to 5V
• Digital Output Voltage: 0V or 5V (TTL Logic)
• Preheat duration 20 seconds
• Can be used as a Digital or analog sensor
• The Sensitivity of the Digital pin can be varied using the potentiometer

Features/Specs

• Model No: MQ-6
• Sensor Type: Semiconductor
• Standard Encapsulation: Bakelite (Black Bakelite)
• Detection Gas: Isobutane, Butane, LPG
• Concentration: 300-10000ppm
• Circuit voltage: 5V±0.1
• Heating voltage: 5V±0.1
• Load resistance: 20KΩ
• Heater resistance: 33Ω±5%
• Heating consumption: less than 750mw
• Operating Temperature: -10℃-50℃

Applications:

• Detect or measure Gases like LPG, and butane
• Air quality monitor
• Gas leak alarm
• Safety standard maintenance
• Maintaining environment standards in hospitals

Datasheet: MQ-6 – LPG Propane Gas Sensor

Package Includes:

• 1 x MQ-6 – LPG Propane Gas Sensor
