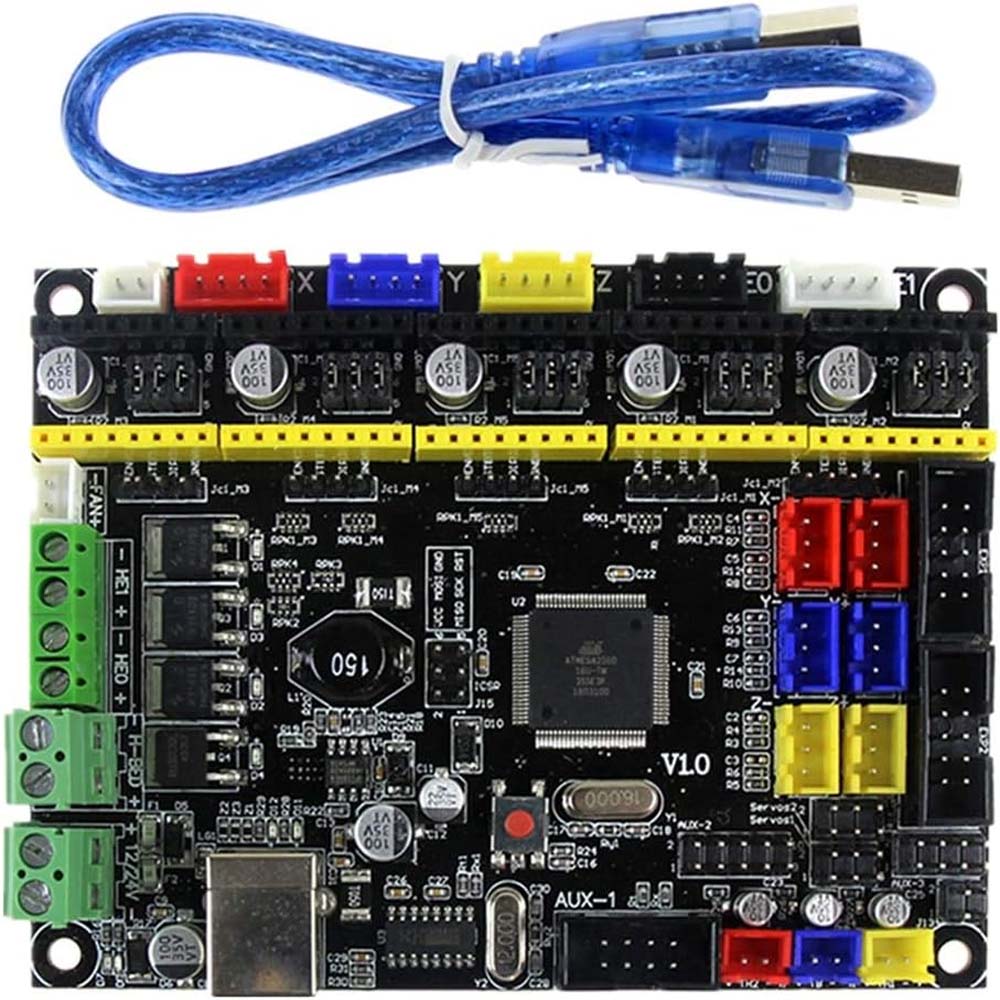

MKS Gen-L V1.0 compatible for Ramps1.4/Mega2560 R3 support a4988/DRV8825/TMC2100/LV8729

Specifications:-

2560 and Ramps 1.4 are integrated into the board
Support 12V-24V power input
Arduino MEGA compatible Atmega2560 and FT232 processors compatible with all RAMPS class firmware
Easy DISPLAY + SD-CARD connector, RepRapDiscount SmartController compatible pin header on board
Easy connect MKS TFT to AUX-1
3x temperature ADC connectors for thermistors
Up 5 motor driver with A4982
4x PWM enable mosfet outputs voltage selector switch for MainPower. (Bed, Extruder0, Extruder1, Fans)
4 layers PCB, optimize heat dissipation.

SKU: RDNA-102.3

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹2,400.12 (Inc. GST)
₹2,034.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

11 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The integrated mainboard driver MKS-GEN L V1.0 for 3D printer has been developed by Makerbase to optimize existing problems on the open-source controller board such as Ramps 1.4. This product offers more flexible options for users.

MKS BASE-L is a feature-rich all-in-one electronics solution for Reprap and other CNC devices. it features an onboard ATmega2560. Its five motor outputs are powered by A4982 stepper drivers. the board can use the same firmware like Ramps1.4. MKS BASE-L is designed to be flexible in user power source availability, enabling any power supply from 12 V-24 V.

MKS BASE-L is suitable for 3D printer manufacturers on batch production and is used as the main control board. Compared to the Ramps1.4, it adds E1 heating output.
