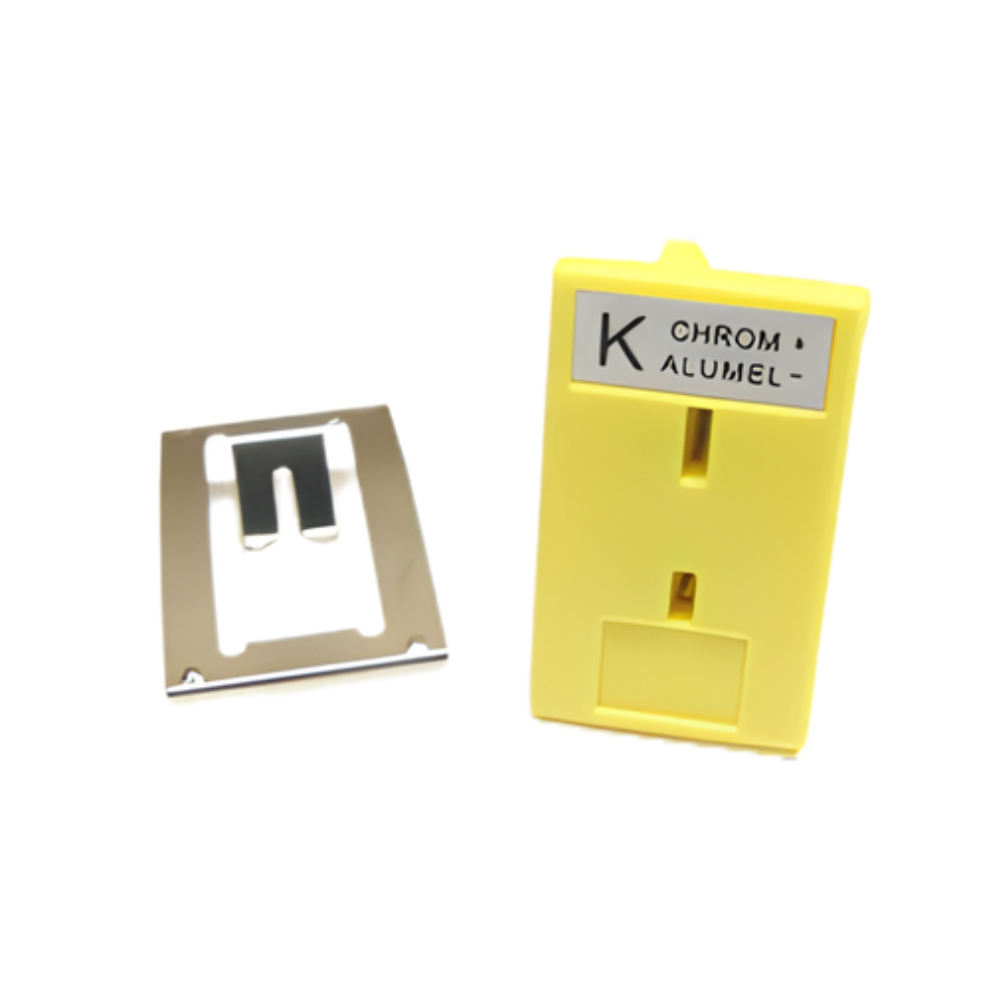

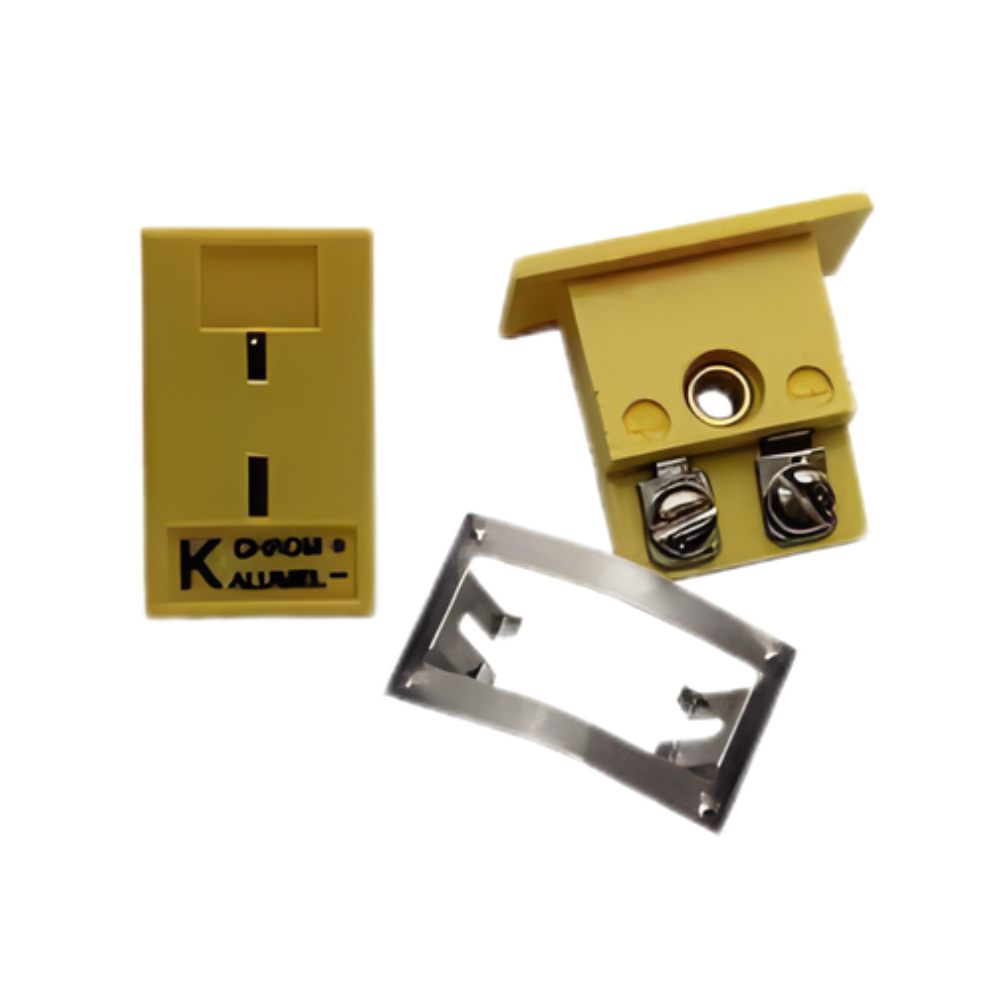

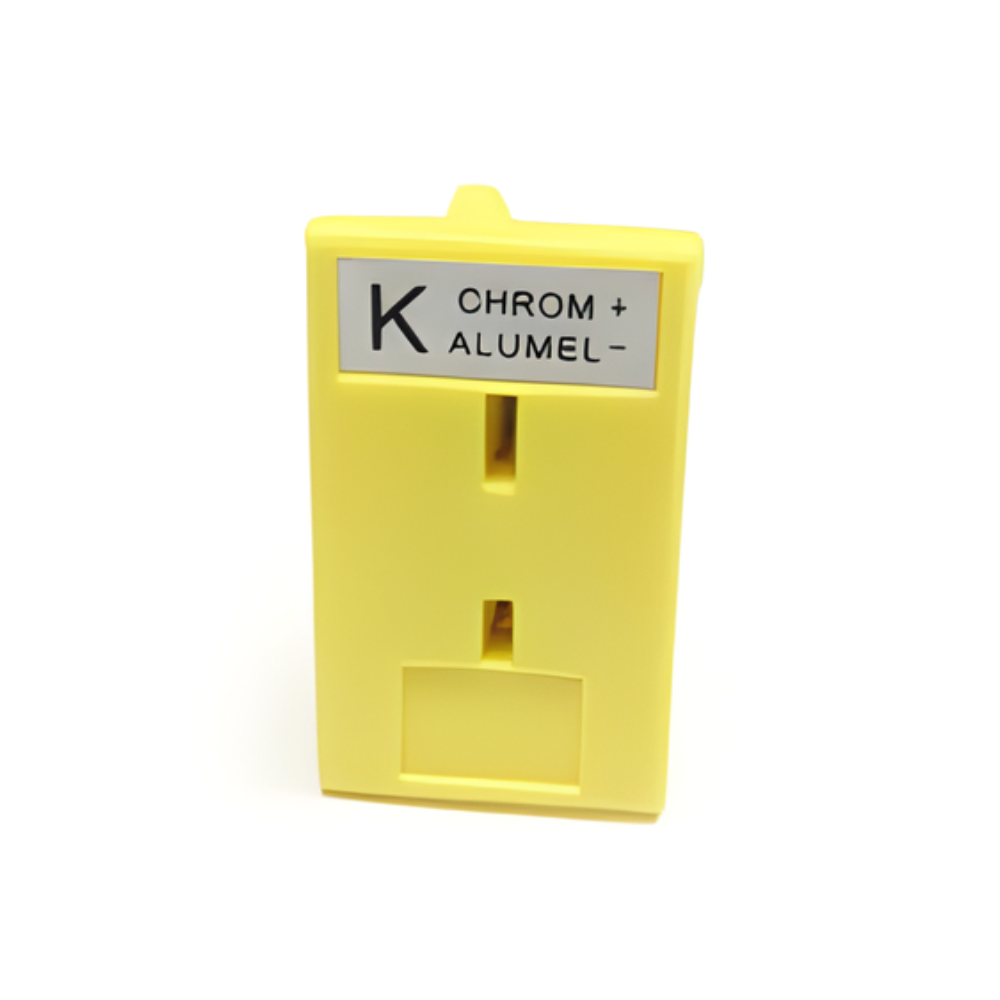

Miniature K-type Female Thermocouple Panel Mount Socket

Specifications:

Thermocouple Type: K-Type.
Function: Panel Mount Socket (Female Jack).
Size: Miniature (Mini) Connector Standard.
Polarity: Polarized contacts to ensure correct connection of positive and negative legs.
Mating Connector: Accepts miniature K-type male thermocouple plugs (flat pin style).

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹226.99 (Inc. GST)
₹192.37 (+18% GST Extra)

In stock

For bulk orders or B2B inquiries, please contact us at: [email protected]

Add to compare

Add to wishlist

14 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

A miniature K-type thermocouple panel mount socket is a crucial interface component designed to create a secure and thermally accurate connection point for K-type thermocouples on instrumentation panels, control cabinets, or process machinery. Its primary function is to allow quick and easy attachment and detachment of a portable or permanent thermocouple probe (which terminates in a miniature male plug) while maintaining the integrity of the temperature measurement. The “K-type” designation signifies that the internal contacts of the socket are made from the same specialized alloys—Chromel and Alumel—as the thermocouple itself, a feature essential for preventing the introduction of a Cold Junction Error that would corrupt the temperature reading.

These sockets are characterized by their compact size (“miniature” or “mini”), making them ideal for high-density panel applications where space is limited. The “panel mount” design includes features such as screw holes or a snap-in mechanism, allowing the connector body to be rigidly fixed to a bulkhead or enclosure face, providing a robust termination point. The female contacts are polarized with flat pins of different widths to ensure that the positive (Chromel, typically yellow) and negative (Alumel, typically red) wires of the thermocouple extension cable are connected correctly, which is vital because thermocouples generate a polarity-dependent voltage signal. Ultimately, the miniature K-type panel mount socket serves as a reliable and color-coded gateway for transmitting a highly accurate temperature signal from the process environment to the control or data acquisition system.

Package Includes:

1 x Miniature K-type thermocouple panel mount socket
