OV2640 Camera Module 160 Degree 2 Million Pixels DVP Interface ESP32 Single Chip Microcomputer Camera for ESP32-CAM

OV2640 Camera Module 160 Degree 2 Million Pixels DVP Interface ESP32 Single Chip Microcomputer Camera for ESP32-CAM

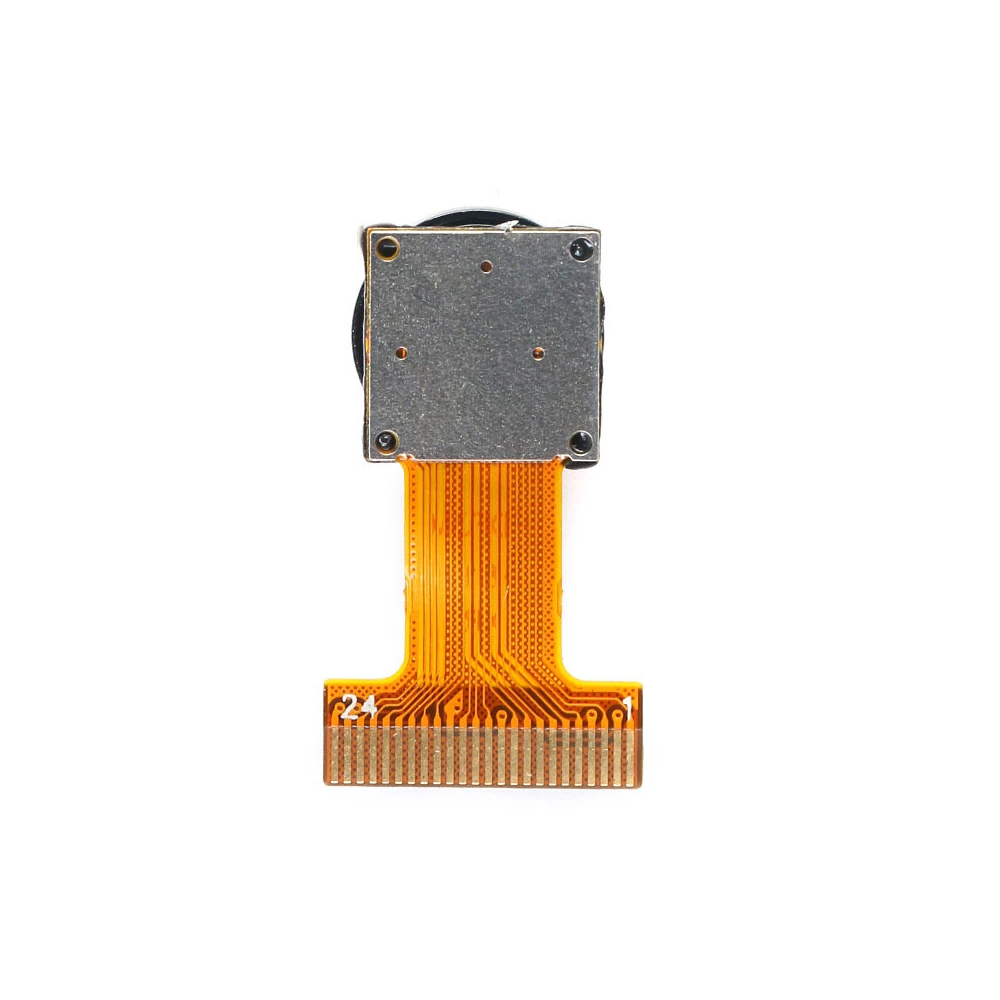

It is made of high-quality materials, durable and practical. Applicable to a variety of intelligent development boards. With its small size and low working voltage, it provides all the functions of a single-chip UXGA camera and image processor. Through SCCB bus control, it can output 10-bit sampling data of various resolutions in the form of the whole frame, sub-sampling, windowing, etc. The maximum UXGA image of this product is 15 frames per second.

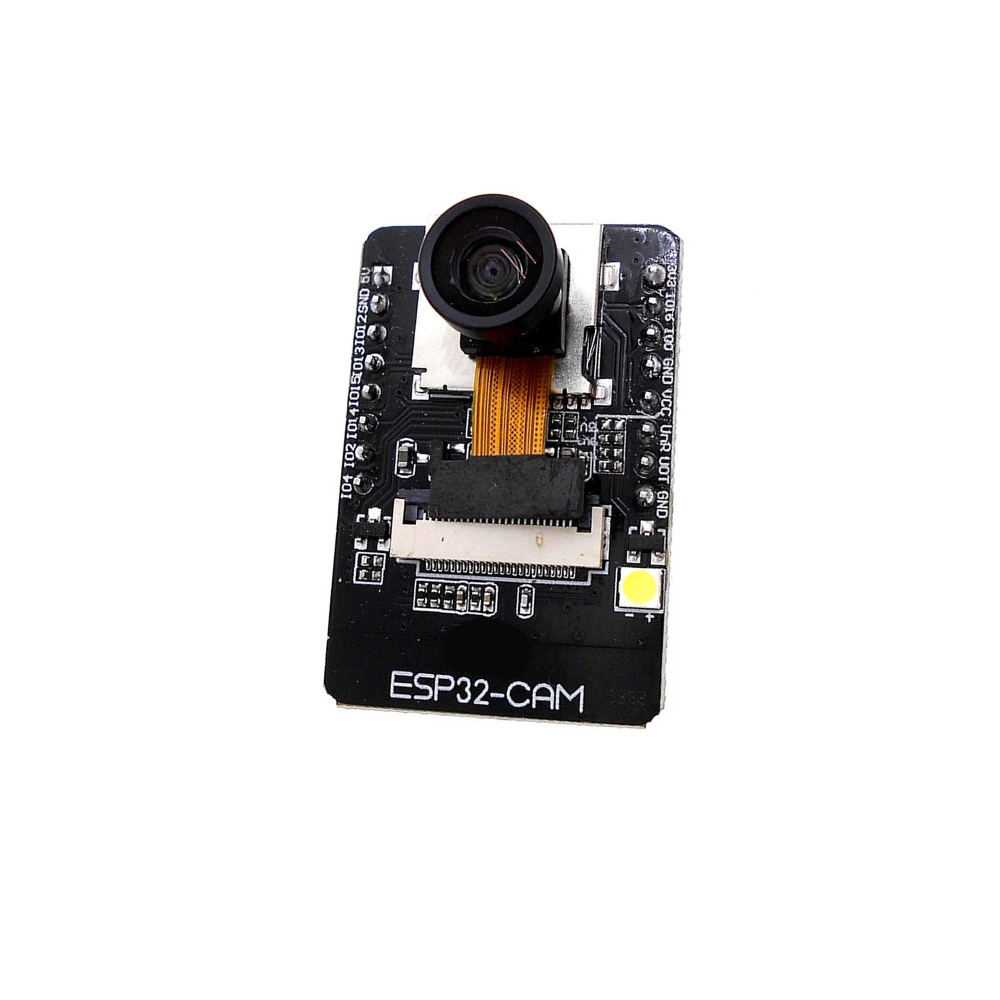

ESP32-Cam module is not coming with this product. Our this product is compatible with ESP32-Cam Module and can fit it it as shown in figure.

The user can fully control the image quality, data format, and transmission method. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface. The OmniVision image sensor uses unique sensor technology to improve image quality and obtain clear and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, floating, etc. It has high sensitivity is suitable for low illumination applications, and low voltage is suitable for embedded applications. It has a standard SCCB interface, compatible with I2C interface.

You may also like :

Raspberry PI

Packing List:

1 x OV2640 Camera Module 160 Degree 2 Million Pixels DVP Interface ESP32 Single Chip Microcomputer Camera for ESP32-CAM
