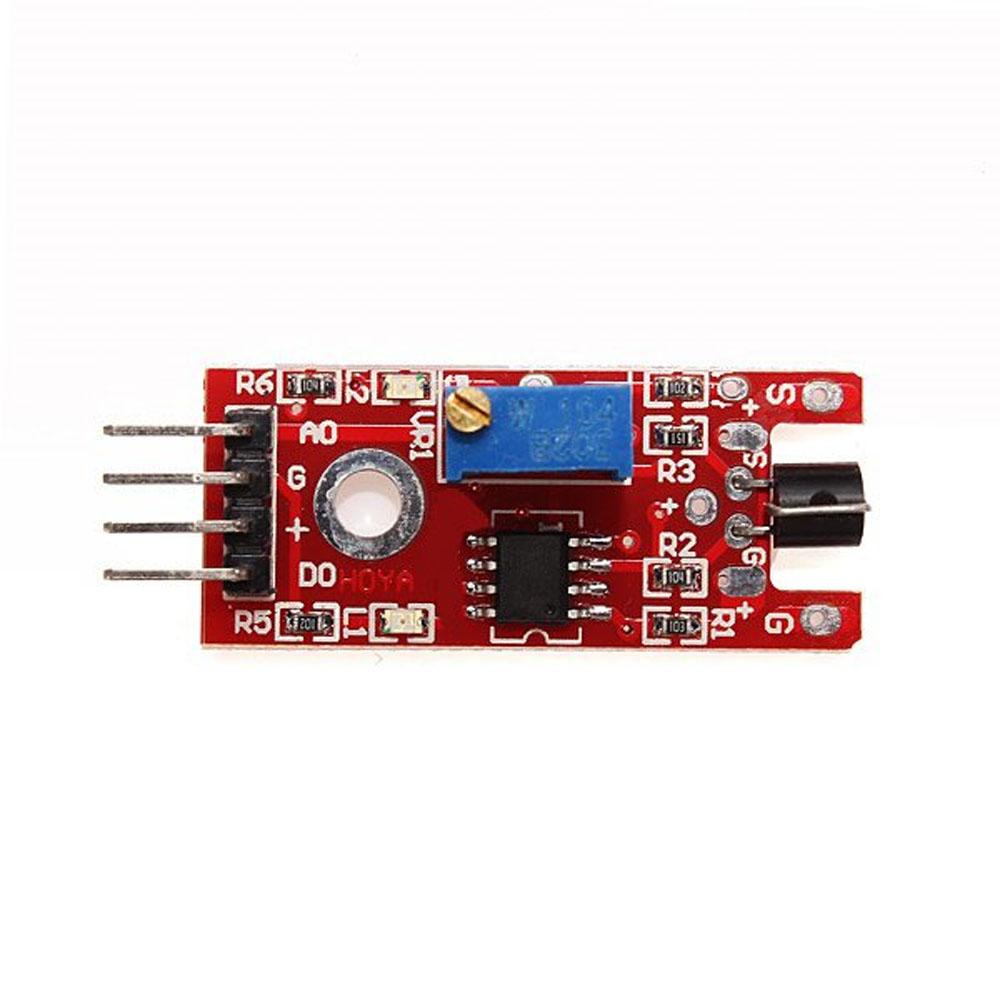

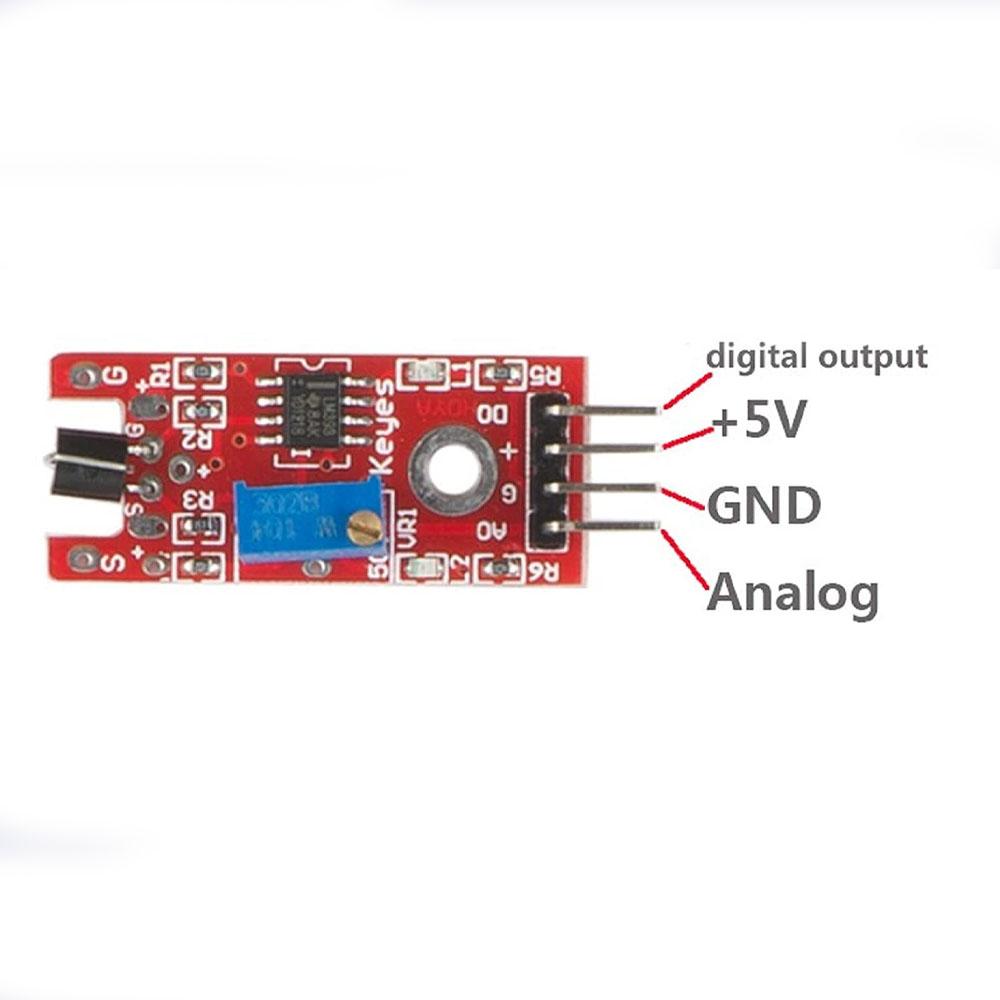

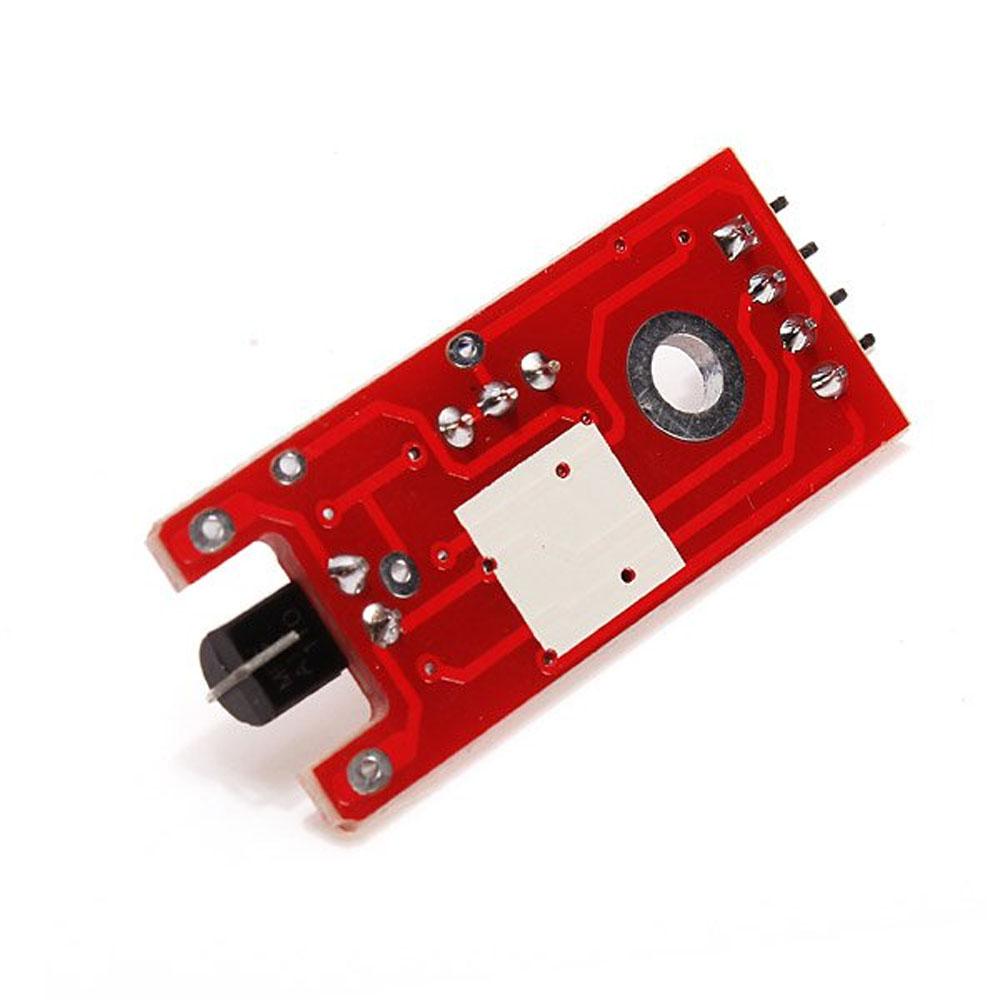

Metal Touch Sensor Module

Specifications:

Power supply: 3.3V or 5.5V
Sensitivity: adjustable
Sensor Type: analog and digital output
Low-level output signal used for human body touch sensor alarm
Low power consumption.
Can replace the traditional touch of a button.
Single-channel signal output
Four M2 screws positioning holes for easy installation.
Compatible with Arduino Board. As well as Raspberry pi

SKU: RDNA-S48

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹76.70 (Inc. GST)
₹65.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

15 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The module is based on a touch-sensing IC (TTP223B) capacitive touch switch module. In the normal state, the output of the module is low, lower power consumption; When a finger touches the corresponding position, the output of the module is high, if not touched for 12 seconds, it switches to low-power mode. Jog type: the initial state is lower, higher touch, do not touch is lower.

This Module can be installed in such as surface plastic, glass of non-metallic materials. In addition to the thin paper (non-metallic) covering the surface of the module, as long as the correct location of the touch, you can make it hidden in the walls, desktops, and other parts of buttons.

You Can also look for:

Refer to the Datasheet below for more detail.

Datasheet available here.

Package Includes:

1 X Metal Touch Sensor
