ME775 Magnet Encoder

Specifications:

Encoder type: magnetic,2 channels hall effect encoder
Operating temperature range: -40 °C～+100°C
Operating relative humidity: 20%～85%RH
13 PPR

SKU: RDNA-562.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹234.82 (Inc. GST)
₹199.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

DC motor encoders are used for speed control feedback in DC motors where an armature or rotor with wound wires rotates inside a magnetic field created by a stator. The DC motor encoder provides a mechanism to measure the speed of the rotor and provide closed-loop feedback to the drive for precise speed control.

By itself, a DC motor can’t be controlled like a servo motor or a stepper motor. But add an encoder, and you unlock the full potential of the DC motor. Using this approach, you can harness the simplicity, even torque, and lightweight profile of a DC motor for your controlled application.

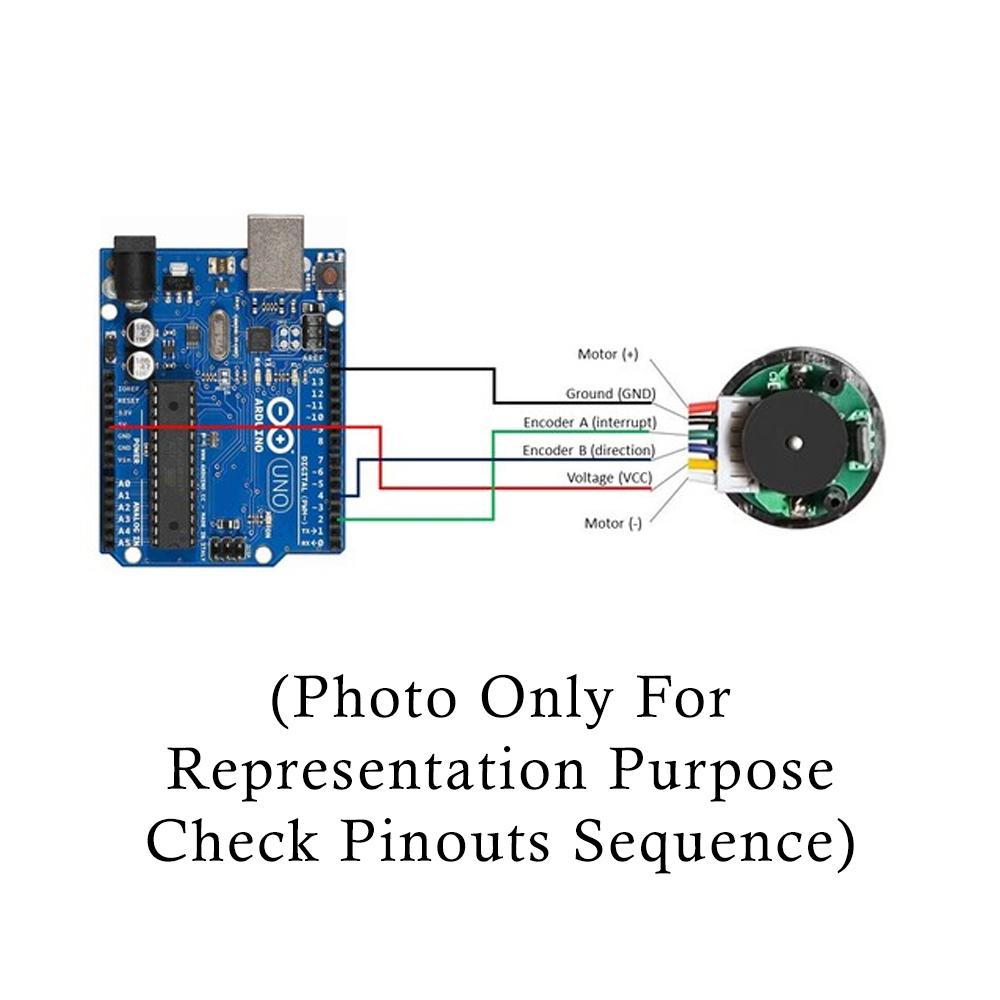

Wiring Diagram:
