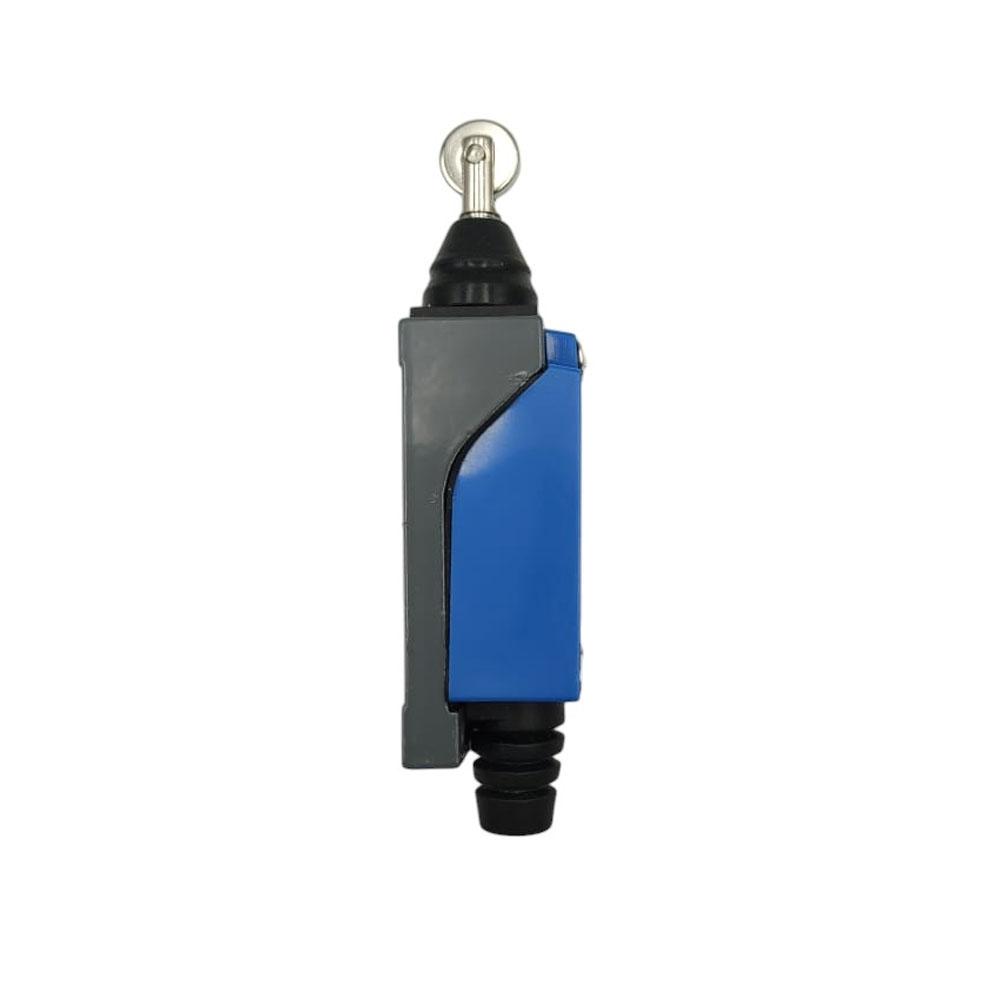

ME-8122 LIMIT SWITCH 5A 250V AC 0.4A 115V.DC

Specifications:

Model: ME-8122
Current Rating:
- 5A at 250V AC
- 0.4A at 115V DC
Type: Limit Switch
Voltage Rating:
- AC: 250V
- DC: 115V
Contact Configuration: Single Pole, Single Throw (SPST)
Operating Temperature: -25°C to +80°C
Mechanical Life: 1 million cycles
Electrical Life: 200,000 cycles
Protection: IP67 (Dust tight and protected against immersion in water up to 1 meter depth for 30 minutes)
Actuator Type: Roller Lever (other actuator options may be available)
Mounting: Panel Mount
Terminal Type: Screw Terminals
Compliance: CE, RoHS

SKU: RDNA-BS15.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹124.00 (Inc. GST)
₹105.08 (+18% GST Extra)

In stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The ME-8122 limit switch is a versatile component commonly used in industrial applications for sensing the presence or absence of an object, and for controlling machinery or equipment.

This switch can handle up to 5 amps of current at 250 volts AC, or 0.4 amps at 115 volts DC, making it suitable for various electrical and electronic circuits. It’s commonly employed to detect the presence or absence of an object at a specific point and can be integrated into machinery or equipment to control their operation based on the position of the object.

Package Include:

1 x ME-8122 LIMIT SWITCH 5A 250V AC 0.4A 115V.DC
