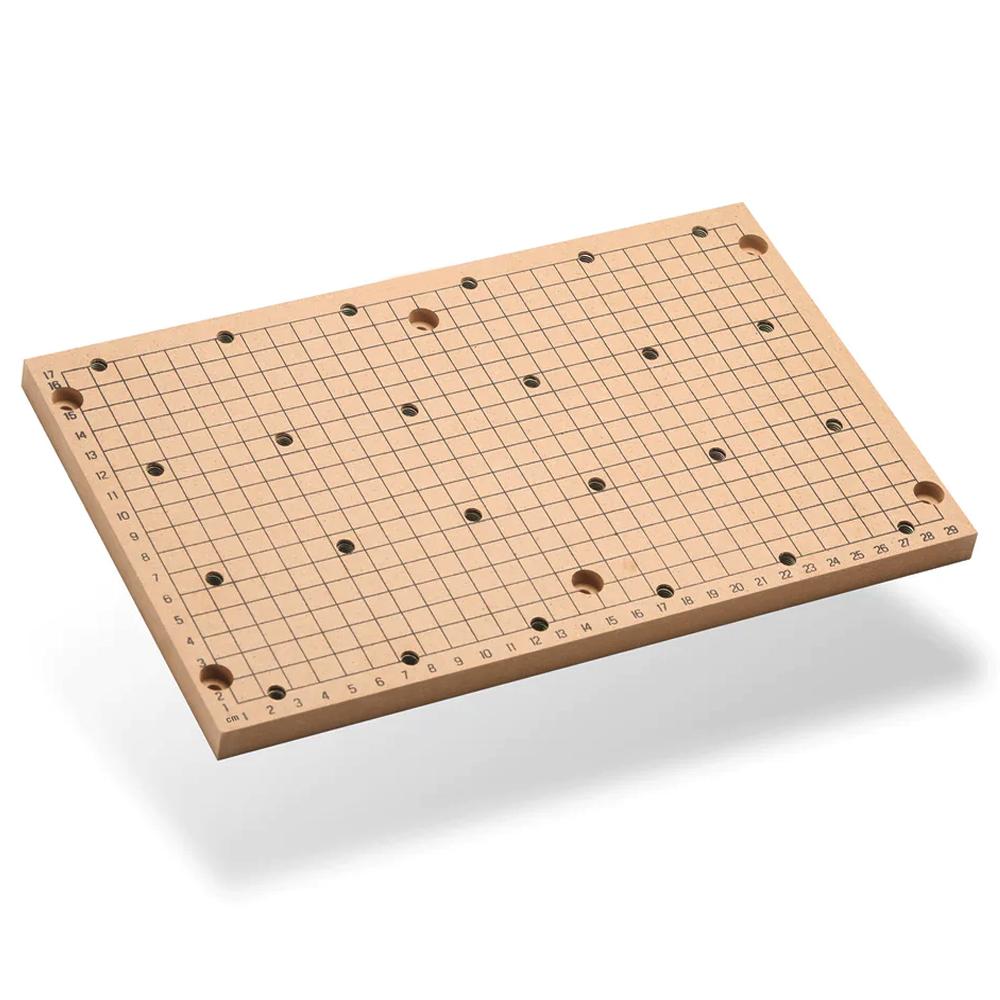

MDF Board – 3018 MDF Spoilboard Scale Grid for 3018 CNC Router

Specifications:

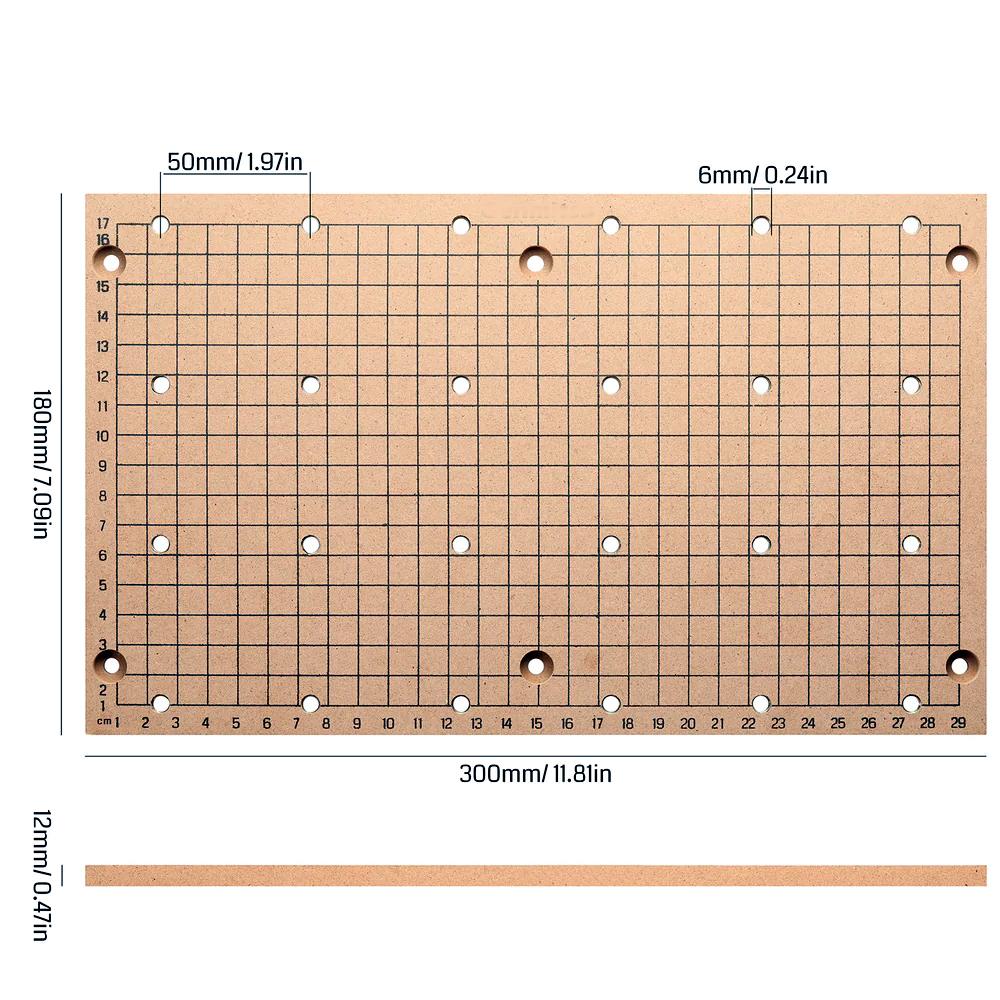

Spoil board Size: 30cm x 18cm x 1.2cm (11.8 x 7 x 0.5inches)
Hole Diameter: 6mm
Material: MDF

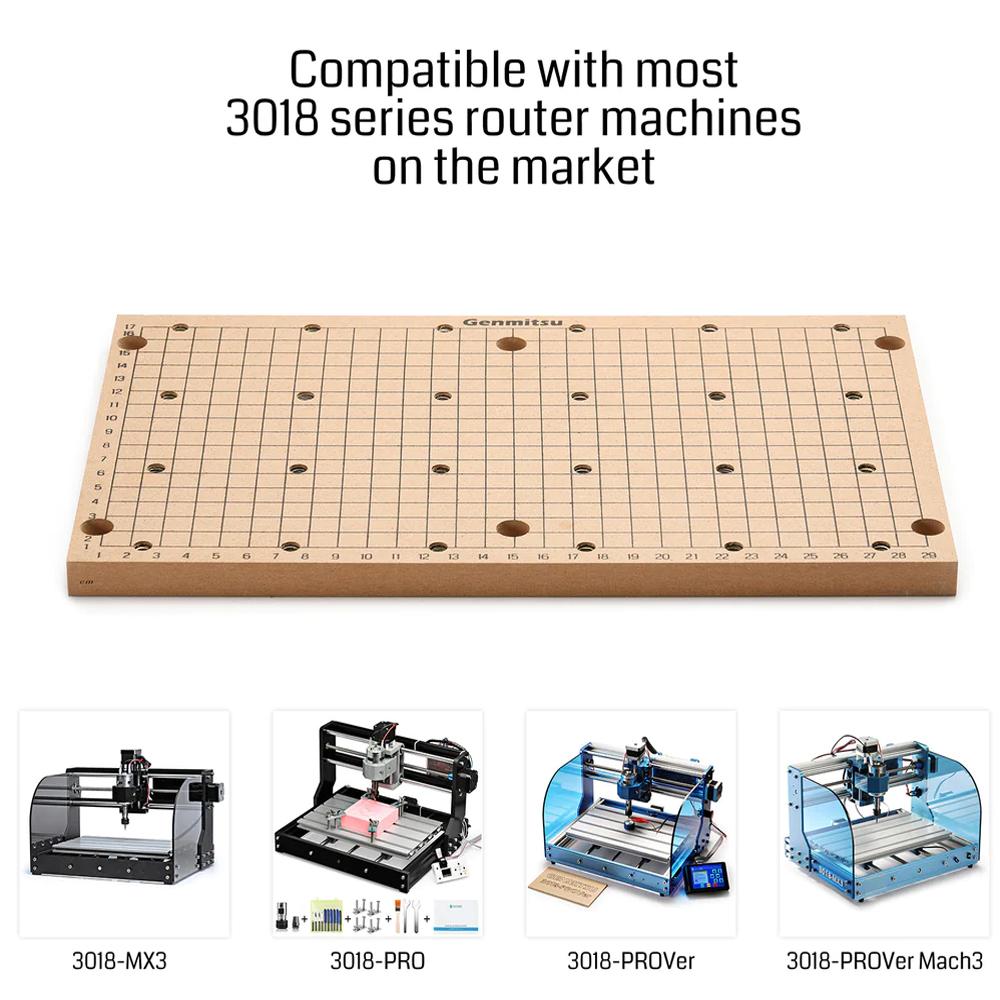

Compatible for: 3018 / 3018 Pro / 3018 Pro Max

SKU: RDNA-W5.24

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹314.26 (Inc. GST)
₹266.32 (+18% GST Extra)

In stock

Compare

Add to wishlist

13 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

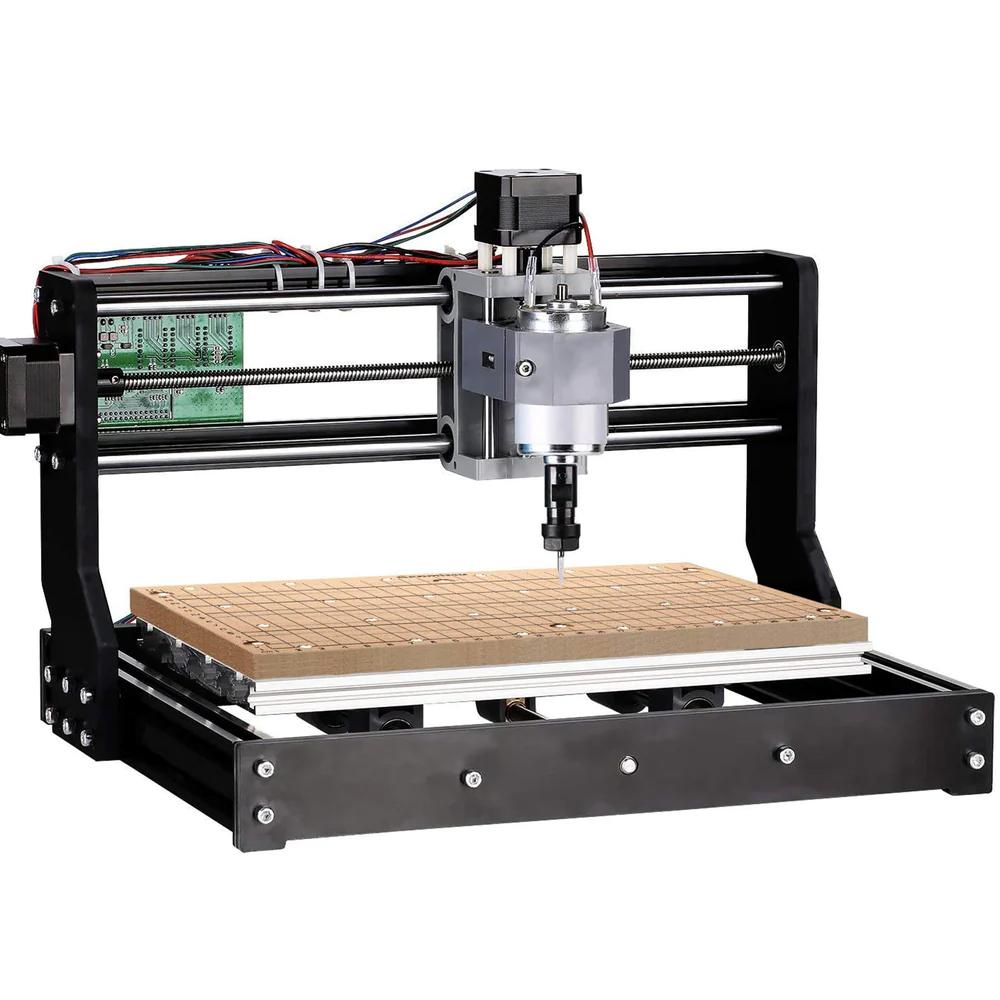

A spoil board is a disposable workbench mounted above the router’s table. It can protect the router table from damage as well as being an expendable surface that can participate in work holding. MDF is very dense translating into more weight with enhanced strength and durability. Perfectly compatible with ALL 3018 series CNC router kit.

Usually used when cutting or carving wooden materials. The MDF spoil board is used as a base to cut on so that your CNC table is not damaged by the cutting tools. It can ensure the stability of the cutting material, thereby achieving more precise cutting..

Compact Hole Distribution

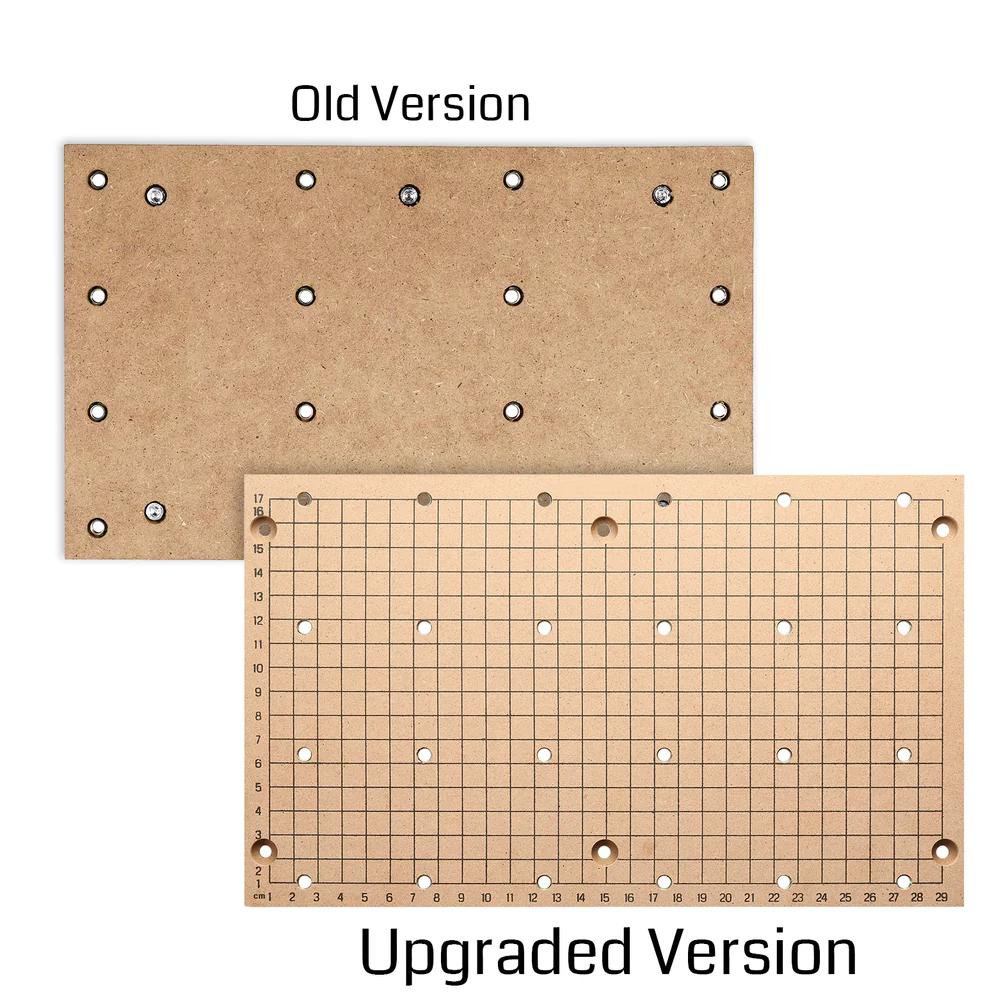

Compared with the original MDF spoilboard, the hole distribution on this upgraded spoilboard is more compact. This makes it easier to fix various sizes of material and hold down clamps.

Genmitsu CNC MDF Spoilboard with Scale Grid for 3018 CNC Router | SainSmart

MDF Spoilboard with Scale for 3018

Precautions

Make sure the MDF spoilboard is secured well to the machine bed.
Make sure the CNC material is clamped tight to the MDF spoilboard / machine bed, or you will get vibration, chatter, poor cut finish, and can possibly break your cutting bit.
Do not use any lubricant when you use an MDF spoilboard. It will swell and expand if it gets wet. So using spray or mist coolant or oils is not recommended.

Packing List:

1 x 3018 MDF Spoilboard Scale Grid for 3018 CNC Router
