MC-38 Wired Door Window Sensor Normally Open Magnetic Switch Home Alarm System

Specifications:

Model: MC38
Material: Plastic
Color: White
Contact Capacity: (Max. Switch Current)0.5A
Voltage: 100v
Rated Power (W): 10W
Actuation Distance (mm): 15 ~ 25
Connecting cable length (cm):30

SKU: RDNA-U4.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹37.00 (Inc. GST)
₹31.36 (+18% GST Extra)

In stock

Compare

Add to wishlist

14 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System can be used as a door or window security system. It produces the signal when moved away from each other which can be fed to the microcontroller to perform the desired action as per requirement.

This sensor suitable to use for trigger alarm or ON/OFF light inside a cupboard sliding door. This wired sensor is trigger by the magnet. When the magnet is open by, the circuit is closed or open if the magnet far from the sensor.

Note :

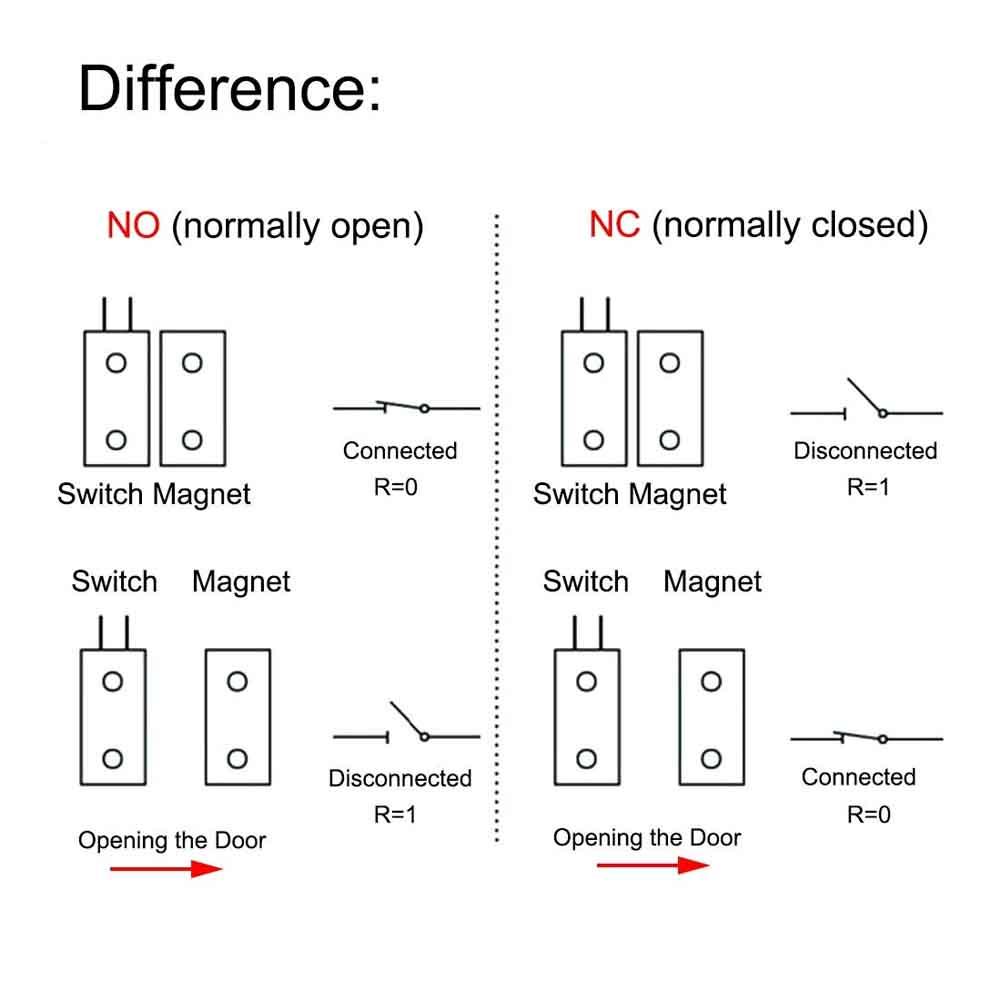

Normally open: When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).
For example: Install on the door, close door light on. open door light off.
