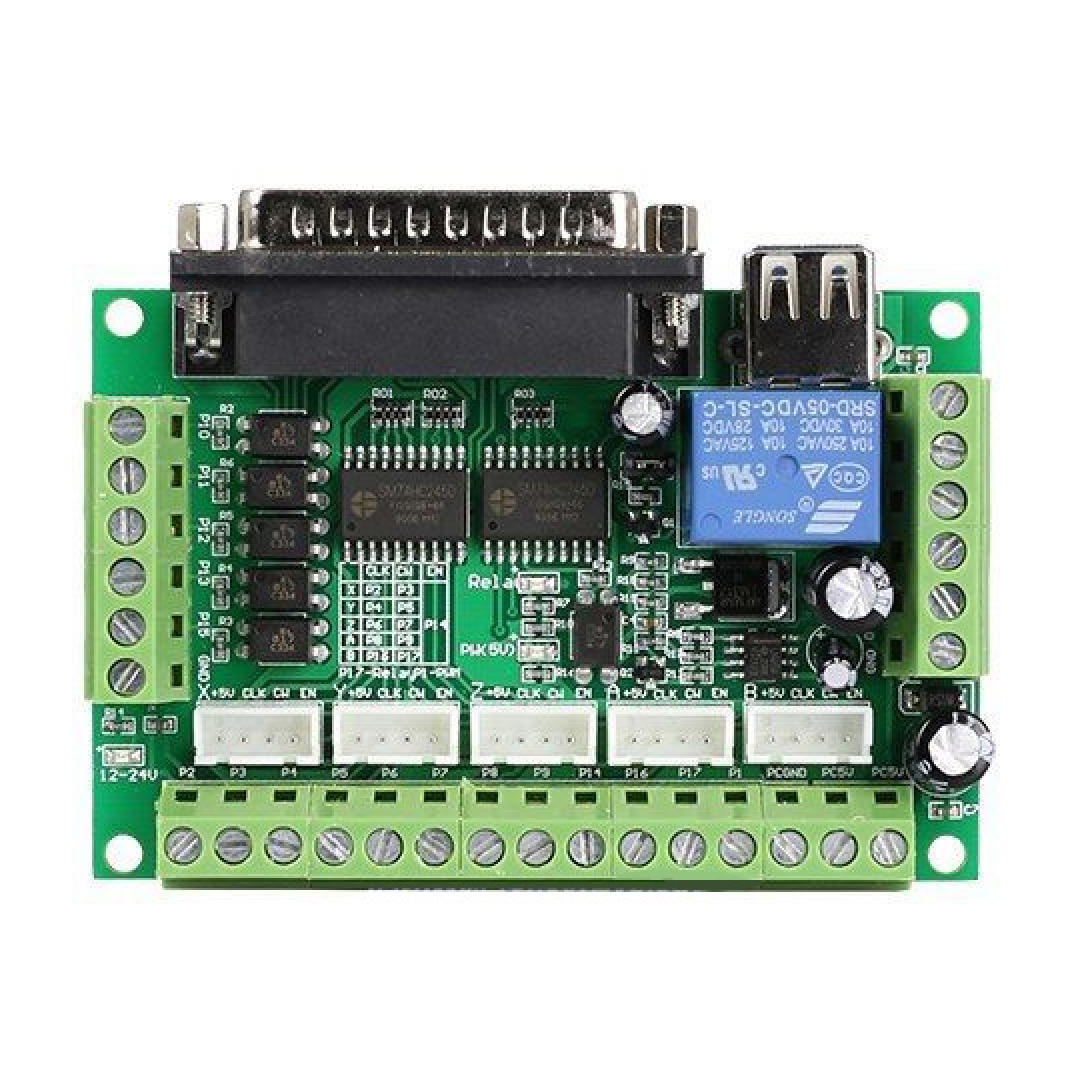

MACH3 Interface Board CNC 5 Axis with Optocoupler for Stepper Motor Driver

Specifications:

Input Power: Through PC USB port or 12-24V power supply
Compatible Stepper Motor Driver: Max 5, 2-phase Microstep controllers
Driver type: Pulse and Direction signal control
Weight (gm): 78

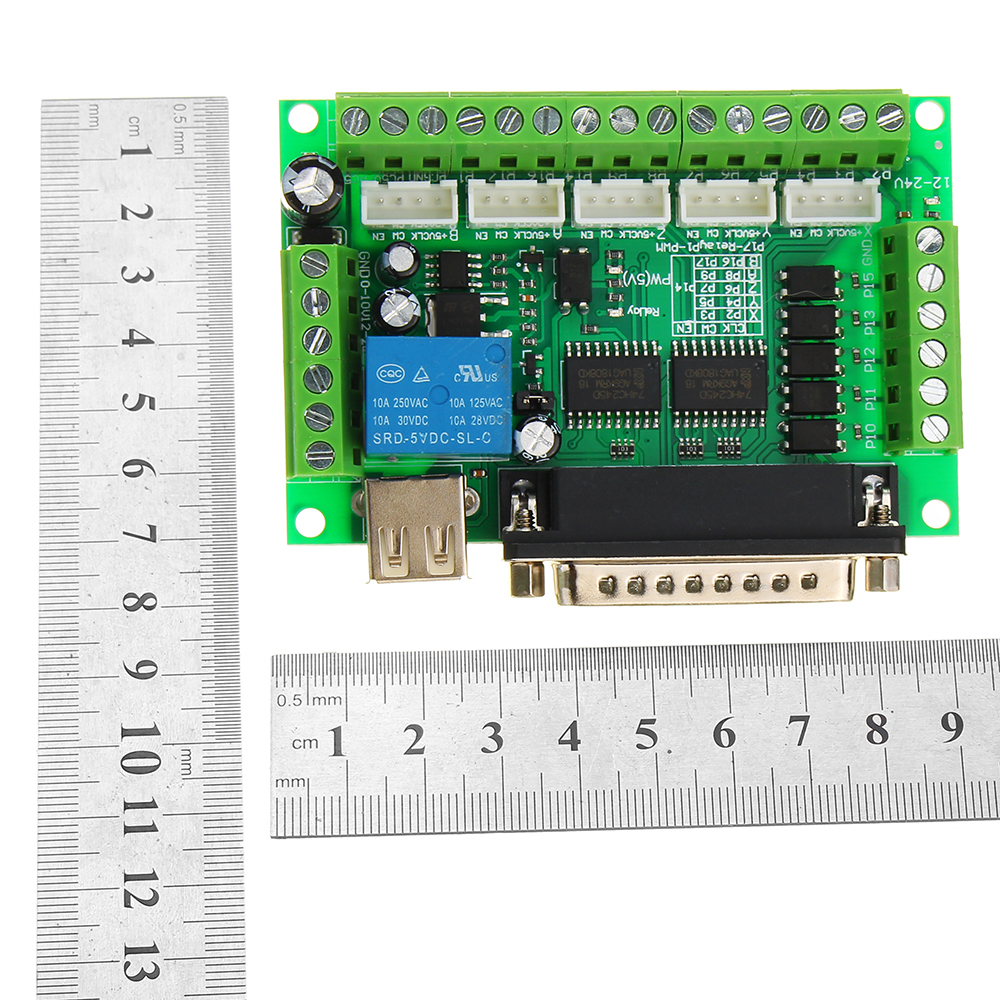

Dimensions (mm) LxWxH: 90 x 70 x 20
Cable Length: 1.4 meter

SKU: RDNA-Z3.1 | S65.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹368.99 (Inc. GST)
₹312.71 (+18% GST Extra)

In stock

Compare

Add to wishlist

15 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Fully support of MACH3 and other computer software support for parallel port control.
USB power supply and peripherals powered phase separation to protect computer security.
Peripheral wide voltage input,12-24V, and anti-reverse function.
All of the input signal, all the light lotus isolated, which can be accessed emergency stop on the knife, the limit to protect computer security.
All the way to the relay output port, control spindle switch. Output port P17 mouth.
All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.

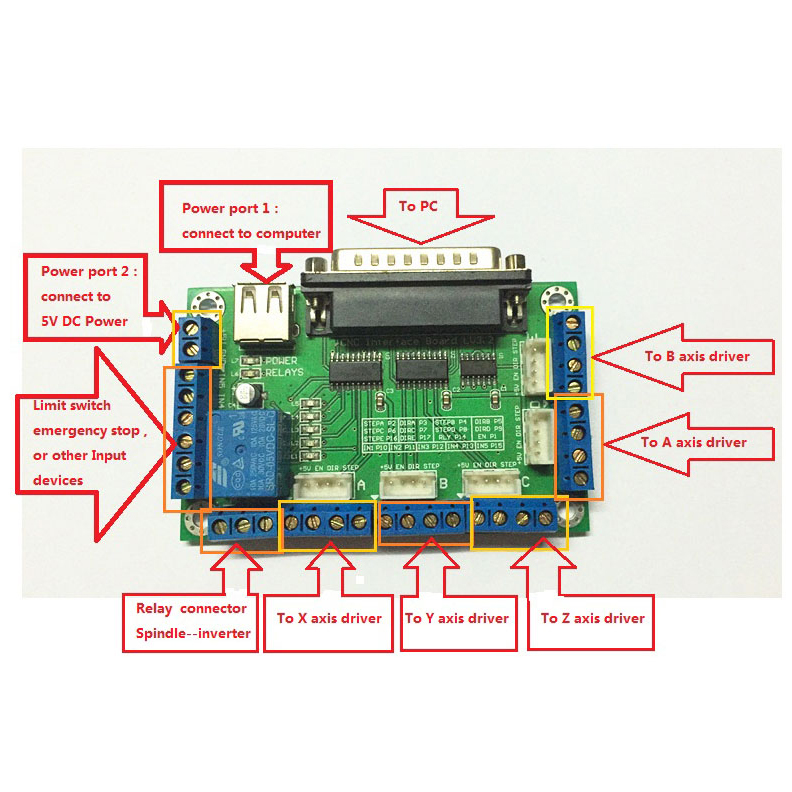

Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
P1 as PWM outputs can be controlled with optocoupler input spindle governor.
Can be accessed by a common cathode or common anode input level to 5V drive.

Click here for user manual

MECH3 SOFTWARE AND USER INSTALLATION GUIDE

Packager include:

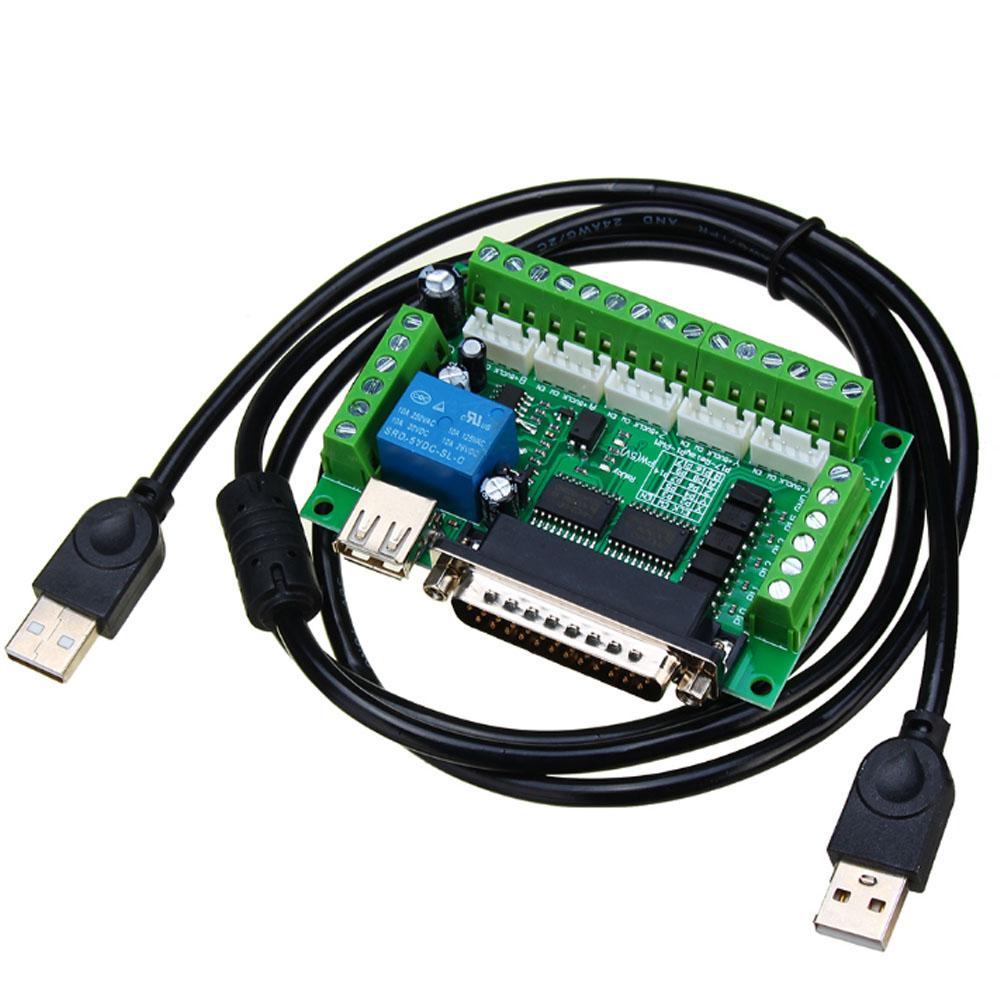

1 x MACH3 Interface Board CNC 5 Axis with Optocoupler for Stepper Motor Driver

1 x USB cable
