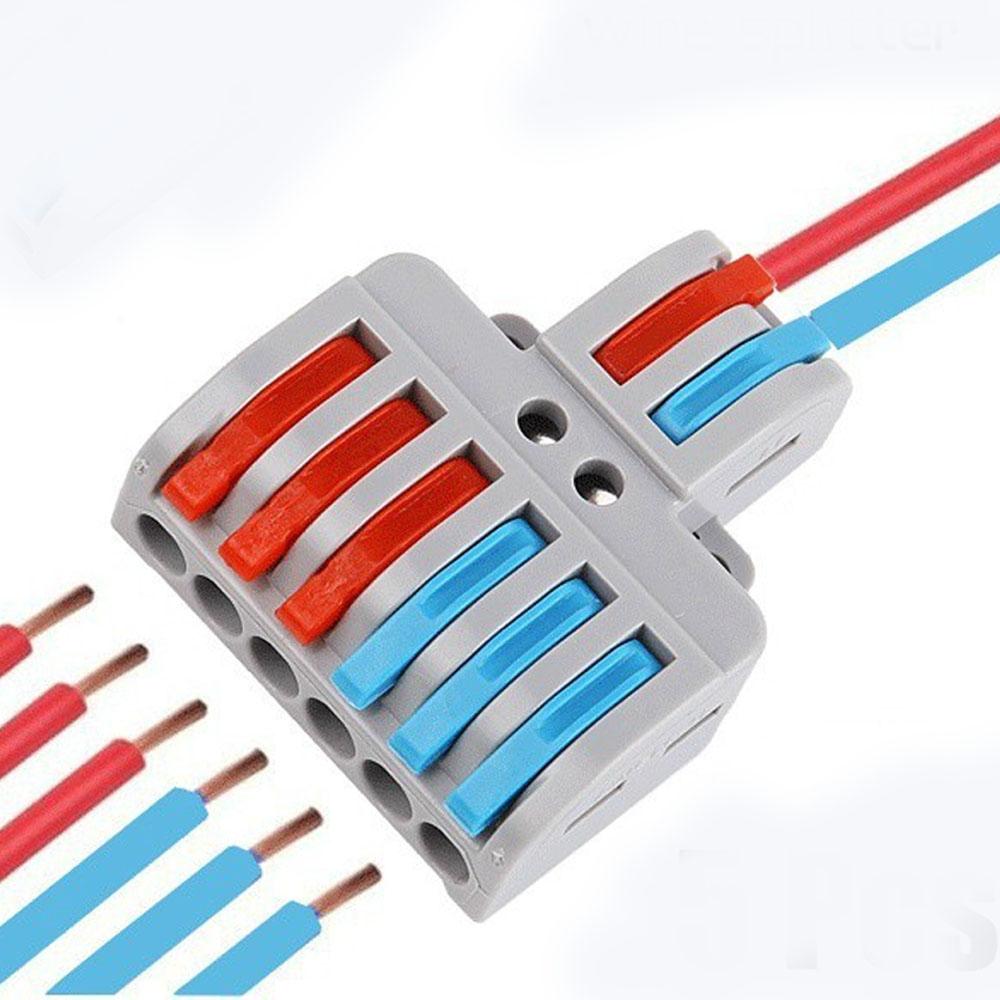

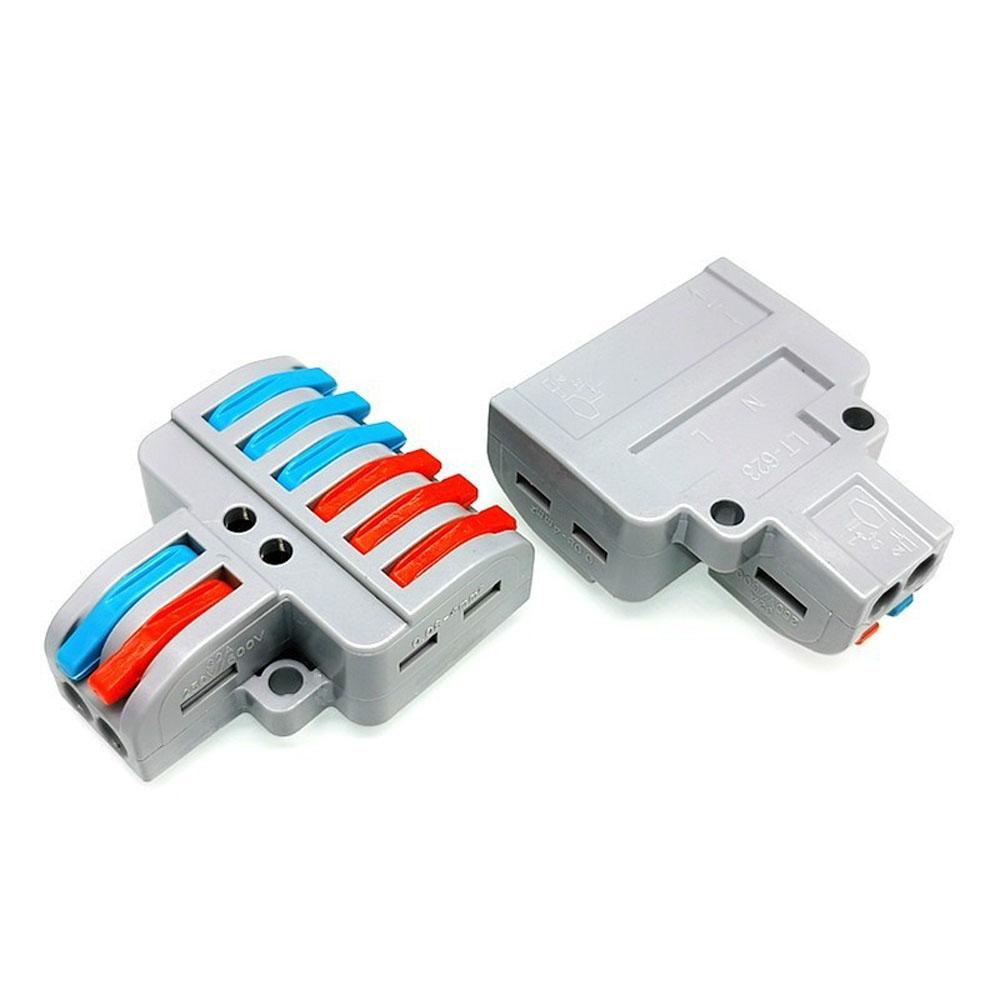

LT-623 wire connector 2 in 6 out wire splitter terminal electrico block compact wiring splicing connector

  1. High-grade Insulative Nylon Material
  2. Strong Spring Locking Lever
  3. Nickel Plated Metal Point Inside
  4. Good Temperature Resistance
  5. Compact Splicing Connector
  6. 6:2 -Conductor Terminal Block
SKU: RDNA-722

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

128.62 (Inc. GST)
109.00 (+18% GST Extra)

In stock

In stock

18 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

This is a PCT-SPL-62 0.08-2.5mm 6:2 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power.

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

Features:

  1. High-grade Insulative Nylon Material
  2. Strong Spring Locking Lever
  3. Nickel Plated Metal Point Inside
  4. Good Temperature Resistance
  5. Compact Splicing Connector
  6. 6:2 -Conductor Terminal Block
  7. With Operating Levers
  8. Max. Continuous Service Temperature 85°C

Package Includes:

1 x LT-623 wire connector 2 in 6 out wire splitter terminal electrico block compact wiring splicing connector

Specification

Overview

Weight 0.12 kg
Dimensions 7 × 5 × 7 cm

Processor

Weight 0.12 kg
Dimensions 7 × 5 × 7 cm

Display

Weight 0.12 kg
Dimensions 7 × 5 × 7 cm

RAM

Weight 0.12 kg
Dimensions 7 × 5 × 7 cm

Storage

Weight 0.12 kg
Dimensions 7 × 5 × 7 cm

Video Card

Weight 0.12 kg
Dimensions 7 × 5 × 7 cm

Connectivity

Weight 0.12 kg
Dimensions 7 × 5 × 7 cm

Features

Weight 0.12 kg
Dimensions 7 × 5 × 7 cm

Battery

Weight 0.12 kg
Dimensions 7 × 5 × 7 cm

General

Weight 0.12 kg
Dimensions 7 × 5 × 7 cm
