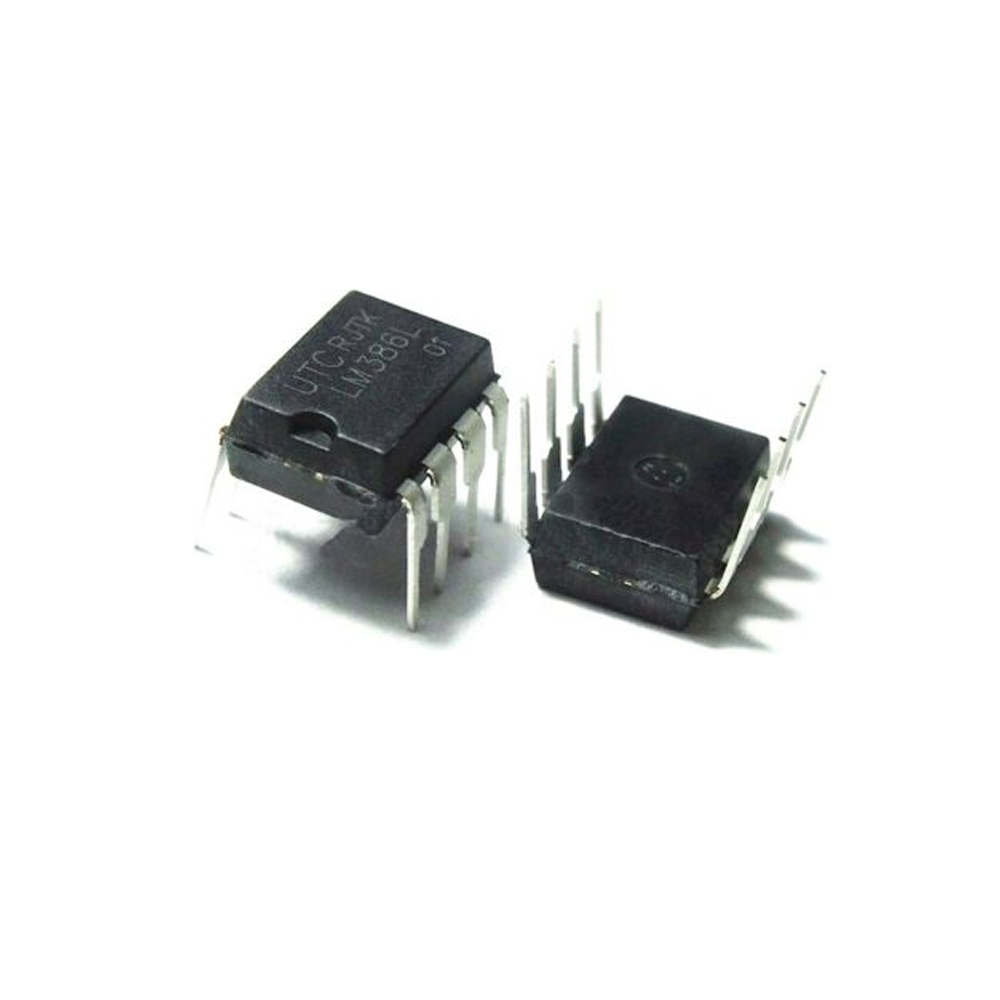

LM386 Low Voltage Audio Power Amplifier IC DIP-8 Pin

Specifications:

Part number: LM386
Audio input type: Analog Input
Architecture: Class-AB
Speaker channels (Max): Mono
Power stage supply (Min) : 4(V)
Power stage supply (Max) : 18(V)
Output power (W): 0.325
Load (Min)(ohms): 4
THD + N @ 1 kHz (%): 0.2
Analogue supply (Min) (V): 4
Analog supply (Max )(V): 18

SKU: RDNA-78.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹16.52 (Inc. GST)
₹14.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

18 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The LM386 is a power amplifier designed for use in low-voltage consumer applications. The gain is internally set to 20 to keep the external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200.

The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 mW when operating from a 6-V supply, making the LM386 ideal for battery operation.

Features:
