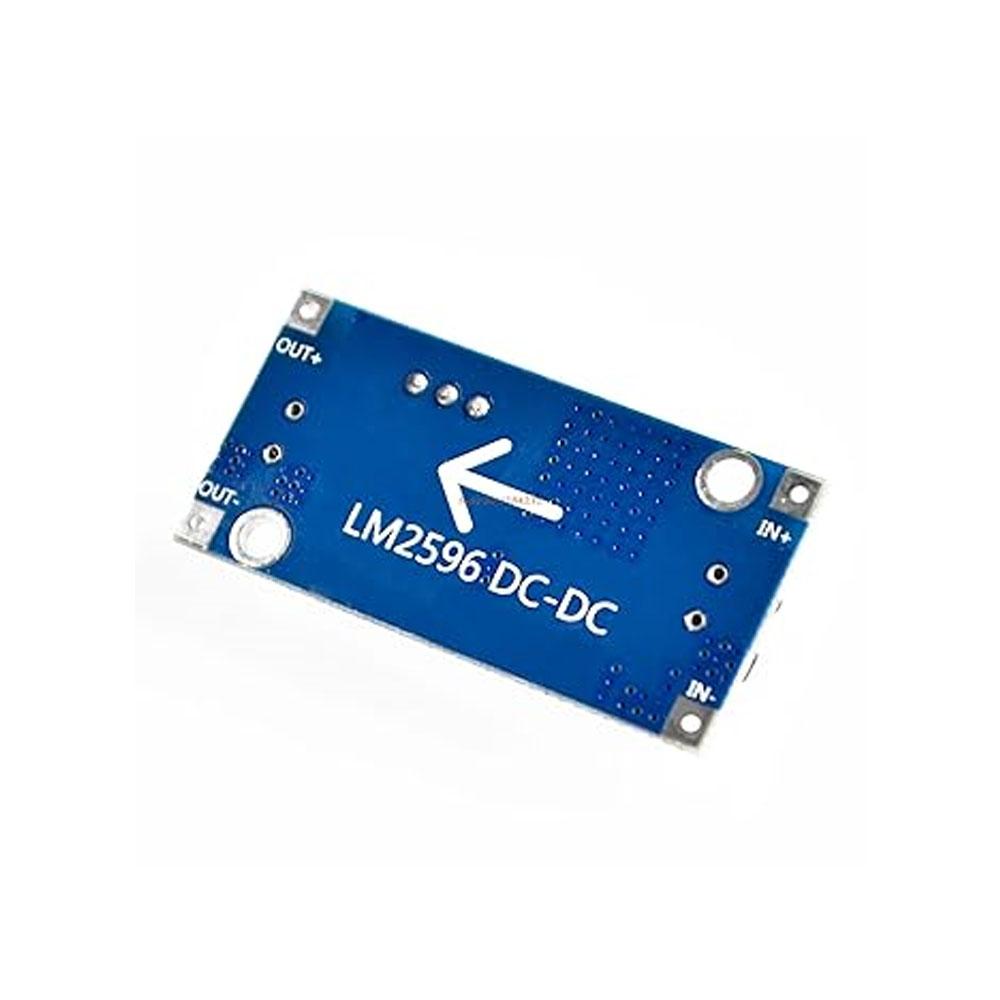

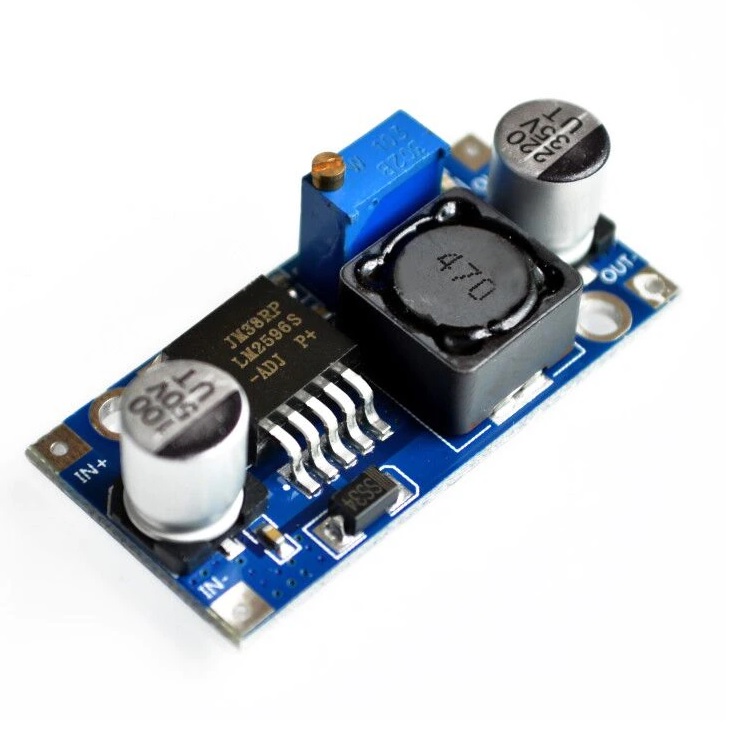

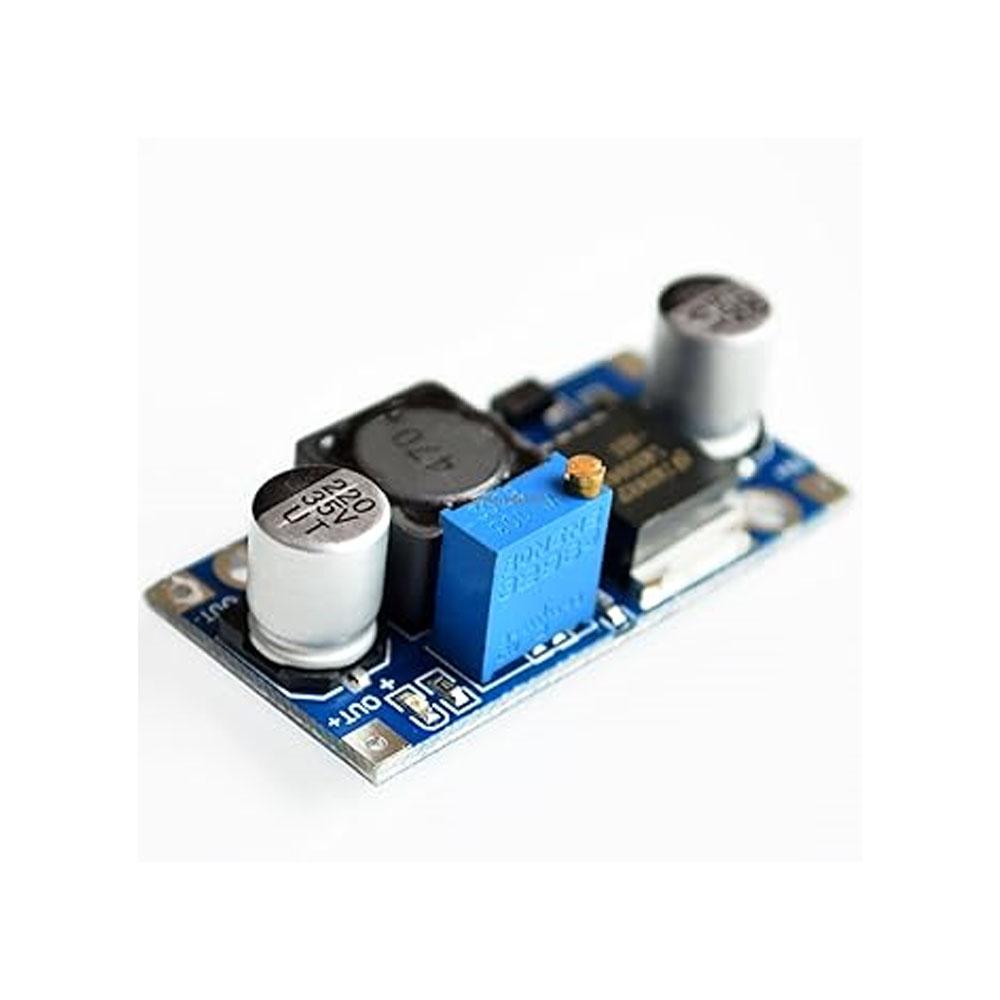

LM2596 with SMD LED DC-DC Step-Down Power Supply HW-411

Specifications:

Input voltage: 3-40V
Output voltage: 1.5-35V(Adjustable)
Output current: Rated current is 2A, maximum 3A
Switching Frequency: 150KHz
Operating temperature: Industrial grade (-40 to +85 )
Conversion efficiency: 92%(highest)

SKU: RDNA-D5.1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹47.20 (Inc. GST)
₹40.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

17 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

DC-DC Buck Converter Step Down Module LM2596 Power Supply is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.

The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.

This is an LM2596 DC-DC buck converter step-down power module with the high-precision potentiometer, capable of driving a load up to 3A with high efficiency, which can work with Freeduino UNO, other mainboards, and basic modules. When the output current keeps greater than 2.5A (or output power greater than 10W), please add a heat sink to it.

Features:

Input voltage:3-40V
Output voltage:1.5-35V(Adjustable)
Output current: Rated current is 2A, maximum 3A(Additional heatsink is required)
Module Properties: non-isolated constant voltage module
Rectification: non-synchronous rectification
Short circuit protection: current limiting, since the recovery

Package Includes:

1 x LM2596 with SMD LED DC-DC Step-Down Power Supply HW-411
