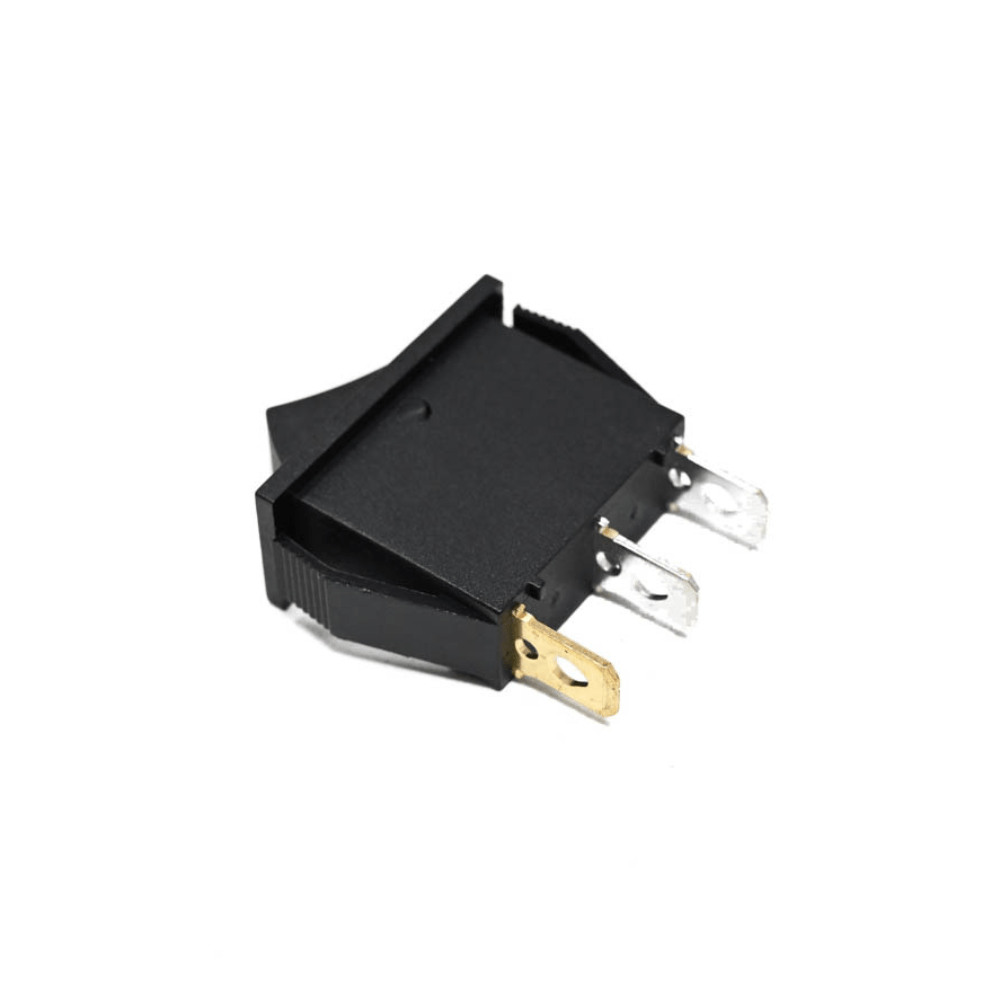

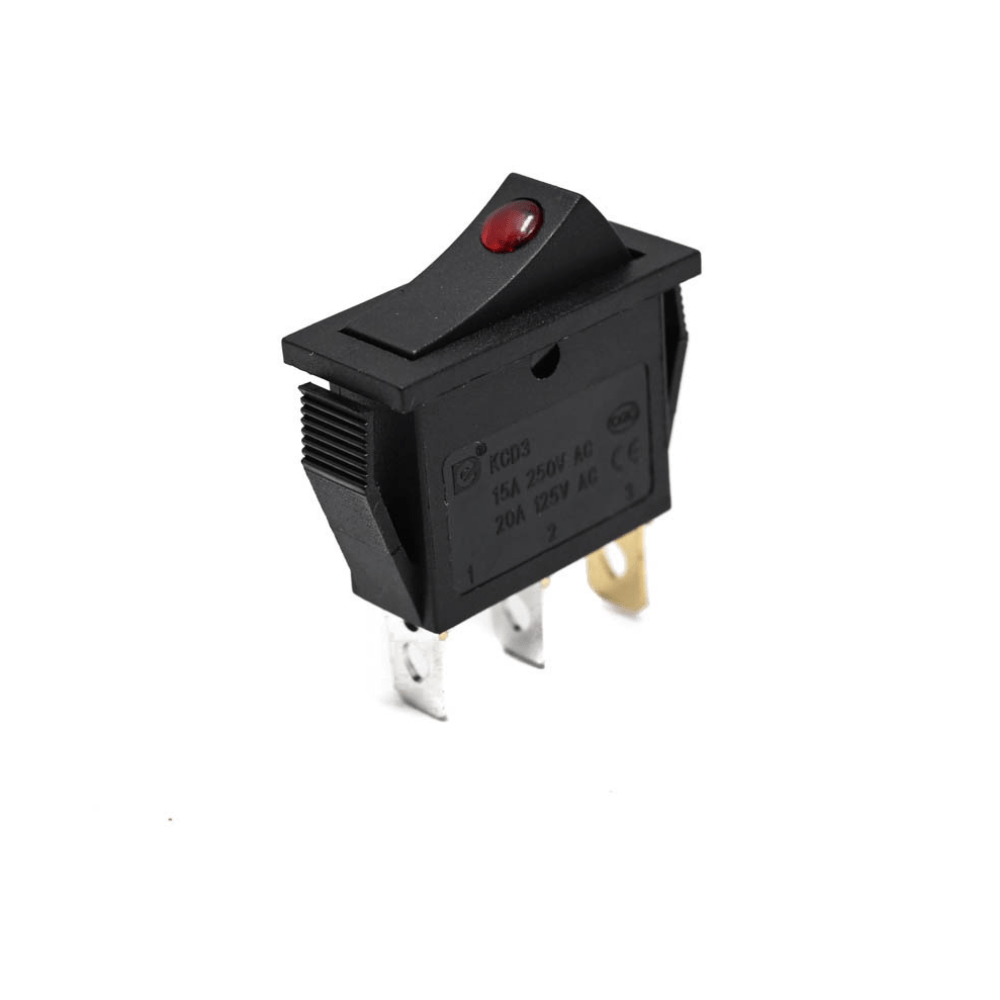

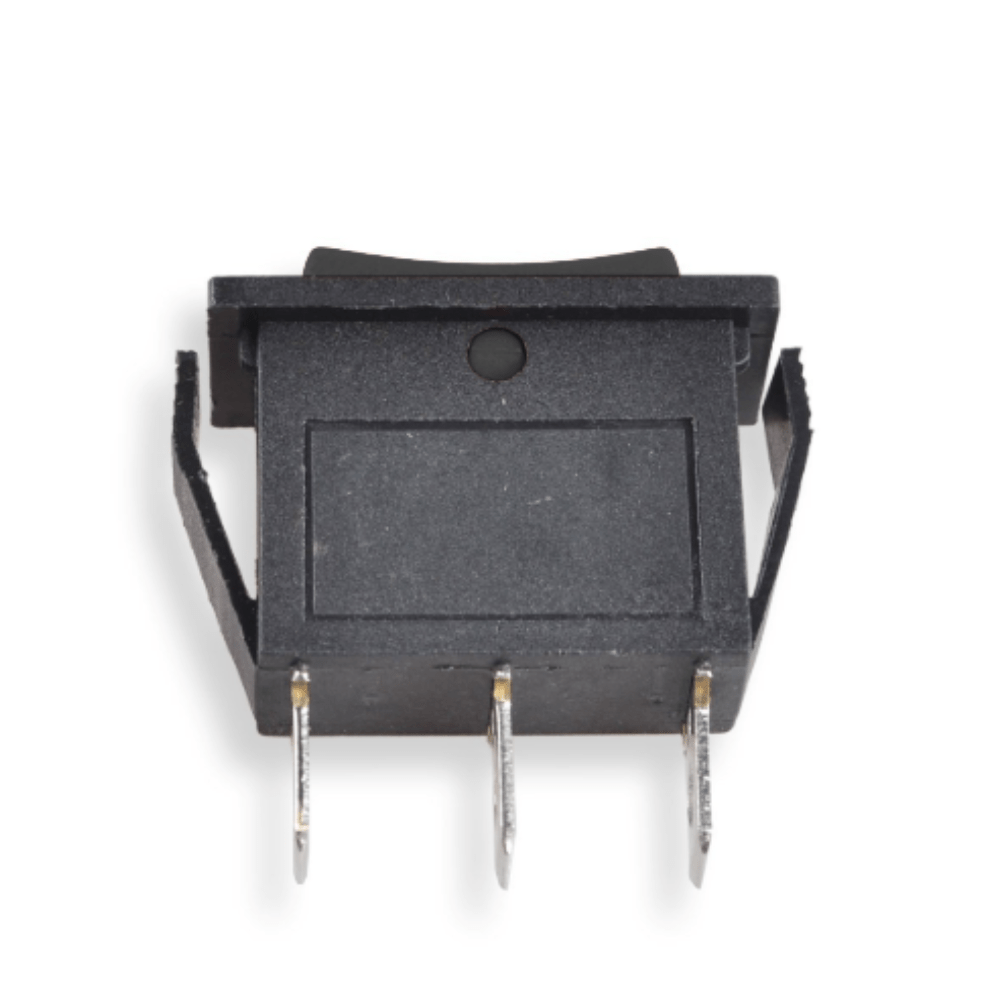

KCD3-101EN-Red-Illuminated Rocker Switch-3Pin(ON-OFF)
Specifications:
- Housing: Nylon 66
- Button: Nylon 66
- Terminal Brass with sliver plated
- Button color: Black and red
- Rating: 20A 125VAC/15A 250VAC
- Housing color: Standard black
- Contact Configuration: SPST
- Switch Operation: (ON-OFF)
- Contact Resistance: 50 mΩ max
- Operating Temperature: -25℃~+85℃
- Insulation Resistance: 100mΩ min (500VDC)
- Electrical Life: ≥ 10,000 Cycles
- Dielectric strength: 1500VAC 1 minute
- Mechanical Life: ≥ 100,000 Cycles
- Certification: CE, CQC, SGS
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
₹22.99 (Inc. GST)
₹19.49 (+18% GST Extra)
In stock
In stock
For bulk orders or B2B inquiries, please contact us at: [email protected]
20
People watching this product now!
-
Pick up from the RoboticsDNA Store in Pune / Dunzo
To pick up today
Free
-
Same Day Delivery in Pune
(Mon-Sat) (Please Place Order Before 1:30 PM)​
Rs. 99
-
via Delhivery.com (Express Mode)
Our courier will deliver to the specified address
3-5 Days
Rs. 149
-
via Delhivery.com (Surface Mode)
Our courier will deliver to the specified address
4-7 Days
Rs. 69
Payment Methods:
Description
The KCD3-101EN is a high-quality Appliance Rocker Switch with a LED indicator that is available in red, green, yellow, and blue colors. It has a single pole single throw SPST ON-OFF contact function and can handle a maximum rating of 20A 125VAC/15A 250VAC. This switch is made of nylon 66 housing and button with brass terminals and a silver plating. It has a contact resistance of 35mOhm max and an insulation resistance of 100mOhm min (500VDC). It can operate at a temperature range of -25C to +85C and has a dielectric strength of 1500VAC for 1 minute. The KCD3-101EN has a 10,000 cycle electrical life and a 100,000 cycle mechanical life. This switch is available in both standard black and white button colors and is suitable for a variety of applications.
Package Includes:Â
1 x KCD3-101EN-Illuminated Rocker Switch-3Pin(ON-OFF)
