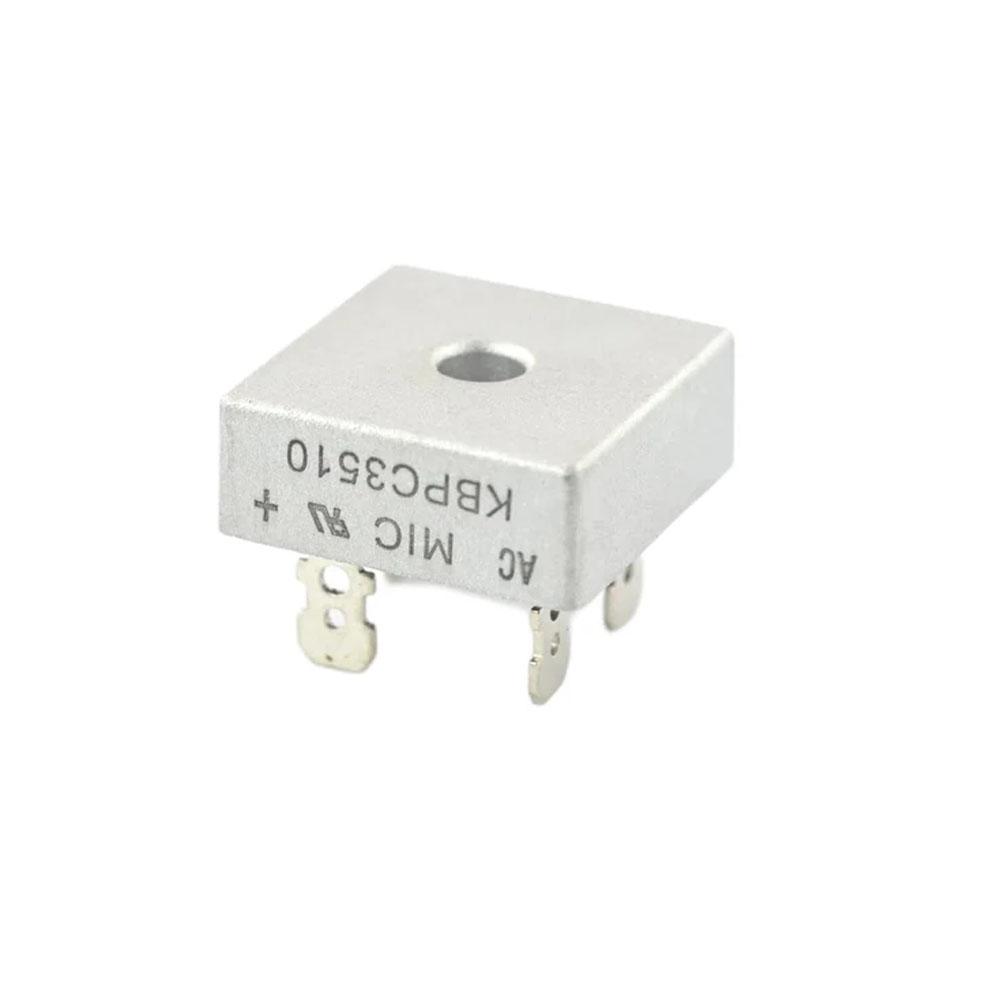

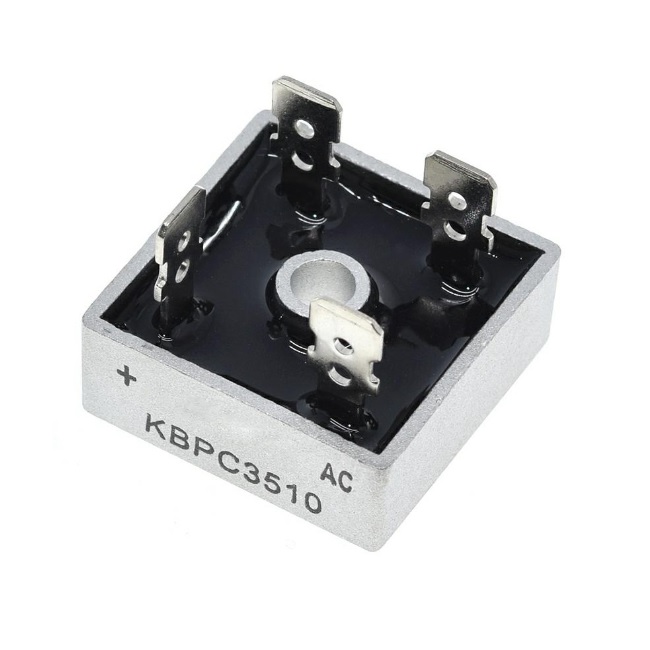

KBPC3510 Bridge Rectifier Metal Case Diode

Specifications:

Input Voltage : 50-1000V
Maximum RMS Bridge Input Voltage : 700V
Maximum DC Blocking Voltage : 1000V
Maximum Average Forward Output Current : 35A
Maximum Forward Voltage : 1.0V
Operating Temperature Range: -55 to + 150°C

SKU: RDNA-CD79

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹82.60 (Inc. GST)
₹70.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The KBPC3510 is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 35A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.0V. It has high efficiency and a high surge current capability of 400A. If you are looking for a compact IC for rectification application this can be a good choice

FEATURES
