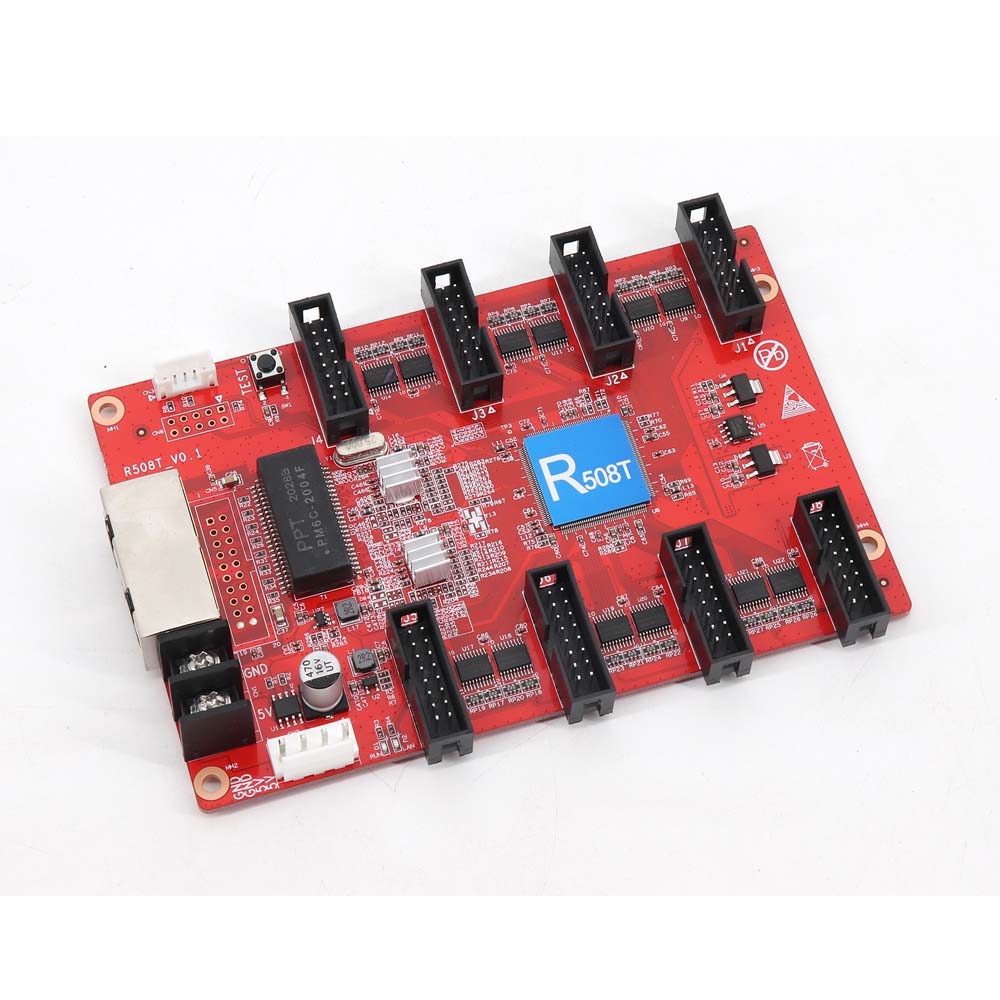

HUIDU HD-R508T Large Screen Conventional LED Panel Receiving Card

Specifications:

  • ·Integrated with 8 lines HUB75E port
  • ·Support regular chips and PWM chips
  • ·Support static module, any scan mode within 2~64 scan
  • ·Support data group exchange and data group offset setting
  • ·Smart settings, draw points, trace points, etc.
  • ·Support multi-card cascade, arbitrary order
  • ·Recommended loading range: 128*512
SKU: RDNA-121.3

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

2,301.00 (Inc. GST)
1,950.00 (+18% GST Extra)

Only 1 left in stock

Only 1 left in stock

10 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

HUIDU HD-R508T large screen conventional LED panel receiving card Parameter:

Function Parameters
With   sending card Dual-mode   sending box,Asynchronous sending card, Synchronous sending card, Video   processor of VP series.
Module type Compatible with all common IC module, supported most PWM IC module.
Scan mode Supports any scanning   method from static to 1/64 scan
Communication method Gigabit Ethernet
Control range Recommend:65,536 pixels (128*512)

Outdoor module width ≤256, Indoor module width ≤128

Multi-card connection Receiving card can be   put in any sequence
Gray scale 256~65536
Smart setting A few simple steps to complete the smart settings,   through the screen layout can be set to go with any alignment of the screen   unit board
Test functions Receiving card integrated screen test function,   Test display brightness uniformity and display module flatness.
Communication distance Super Cat5,Cat6 network cable within 80 meters
Port 5V DC Power*2,1Gbps Ethernet port*2, HUB75E*8
Input voltage 4V-6V
Power 5W

Download Specification

HUIDU HD-R508T large screen conventional LED panel receiving card Specification



Packing List:

1 x HUIDU HD-R508T Large Screen Conventional LED panel Receiving Card
