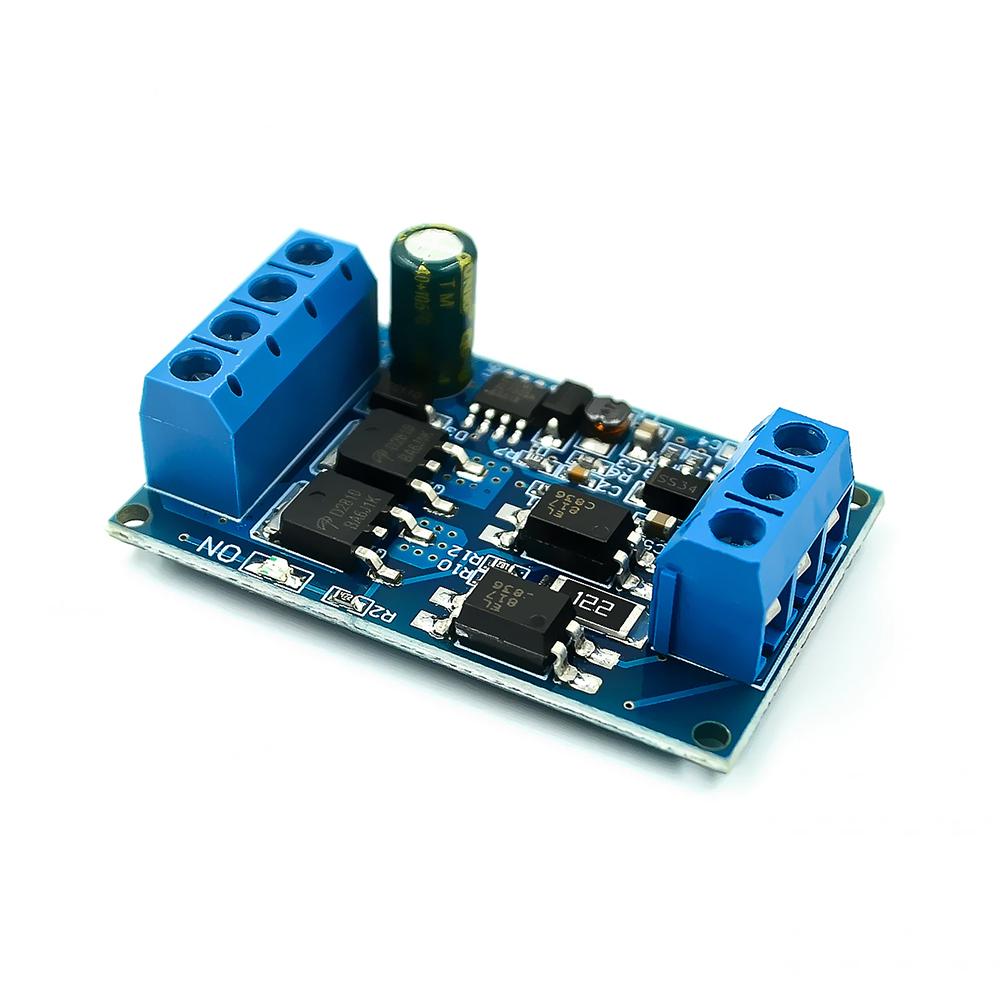

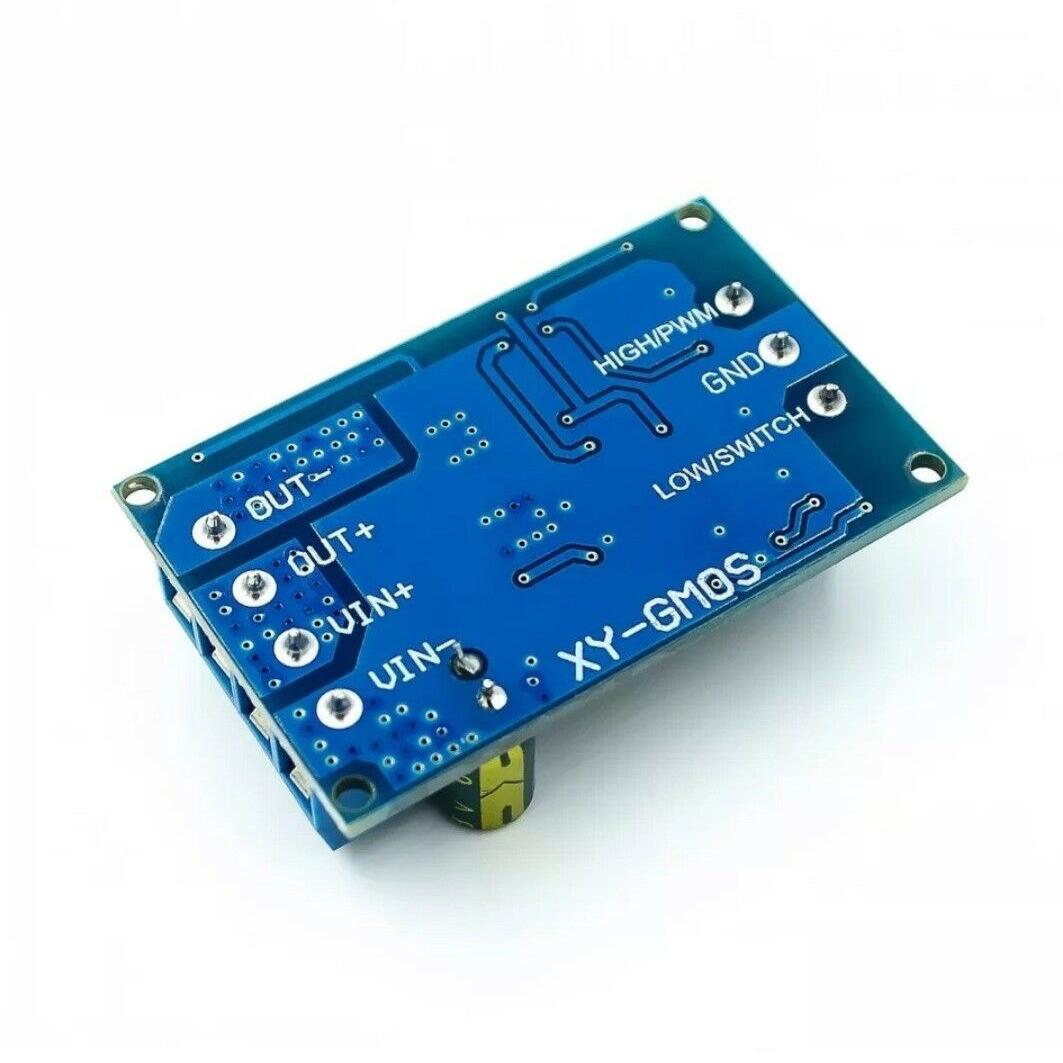

High-Power 600W 10A 4V-60V MOS Tube FET Trigger Drive Module PWM Control High / Low Level Trigger Switch DC

Specifications:

Operating voltage: DC 4V – 60V
Trigger source: high level trigger (DC3.0V – 24V), low level trigger (DC 0.0V ~ 0.6V), switch control, can connect MCU IO port, PLC interface, DC power supply, etc. PWM signal, support signal frequency range of 0 – 2.5KHZ
Output capacity: DC 4V – 60V, continuous current 10A at room temperature, power 600W! Auxiliary cooling conditions, the current up to 15A
Life: unlimited switch
Working temperature: -40-85 °

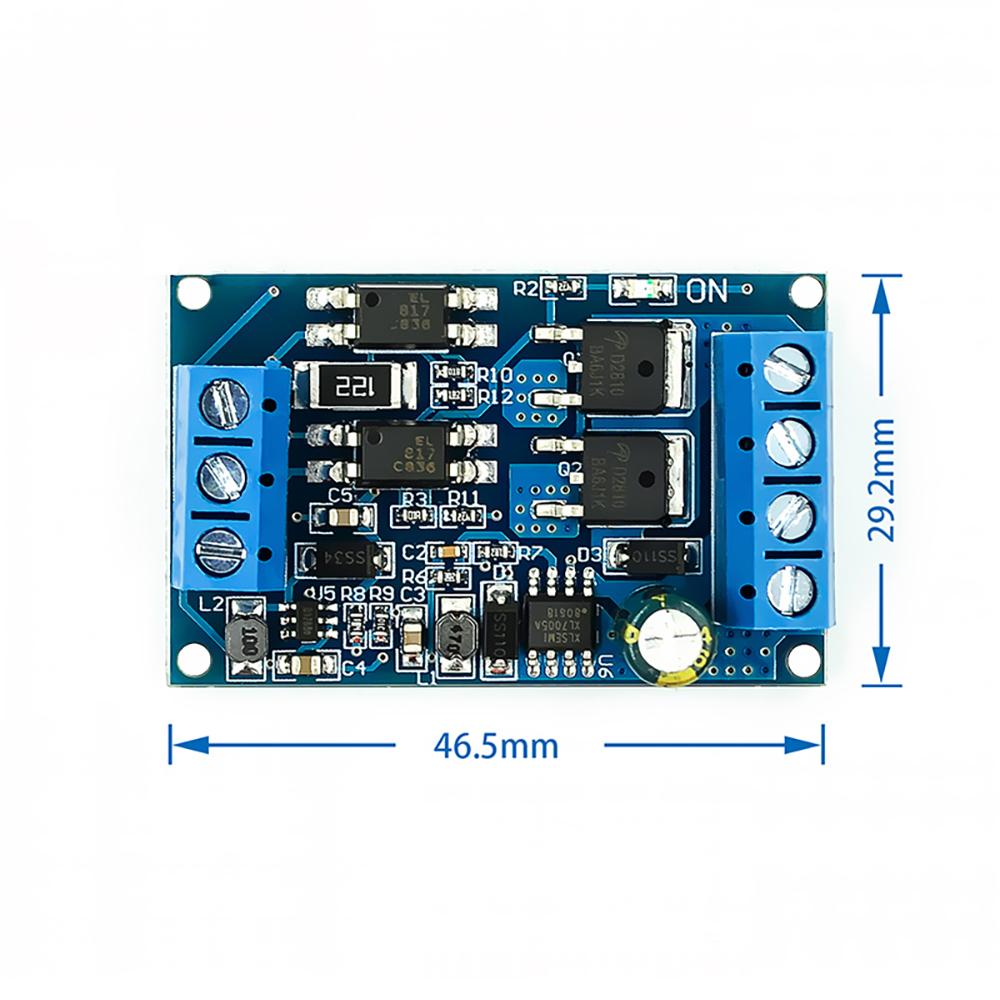

Size: 3.4 * 1.7 * 1.2cm

SKU: RDNA-UV52.2

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹472.00 (Inc. GST)
₹400.00 (+18% GST Extra)

Only 2 left in stock

Compare

Add to wishlist

15 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The module supports high-level trigger, low-level trigger, switch control, PWM control. The use of imported dual-MOS parallel active output, lower internal resistance, current, power strong, continuous current at room temperature is 10A, 600W, to meet most of the equipment used. Wide voltage input: DC 4V ~ 60V; Easy to control high-power equipment.

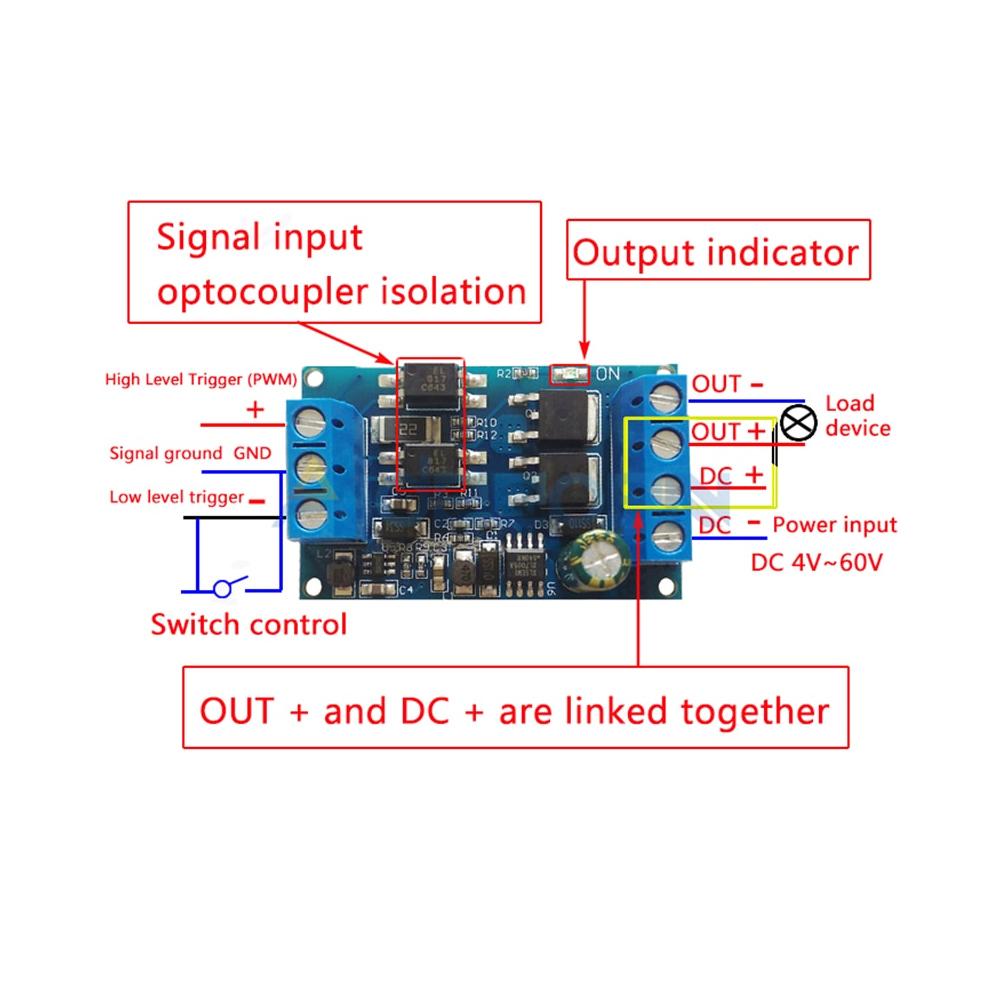

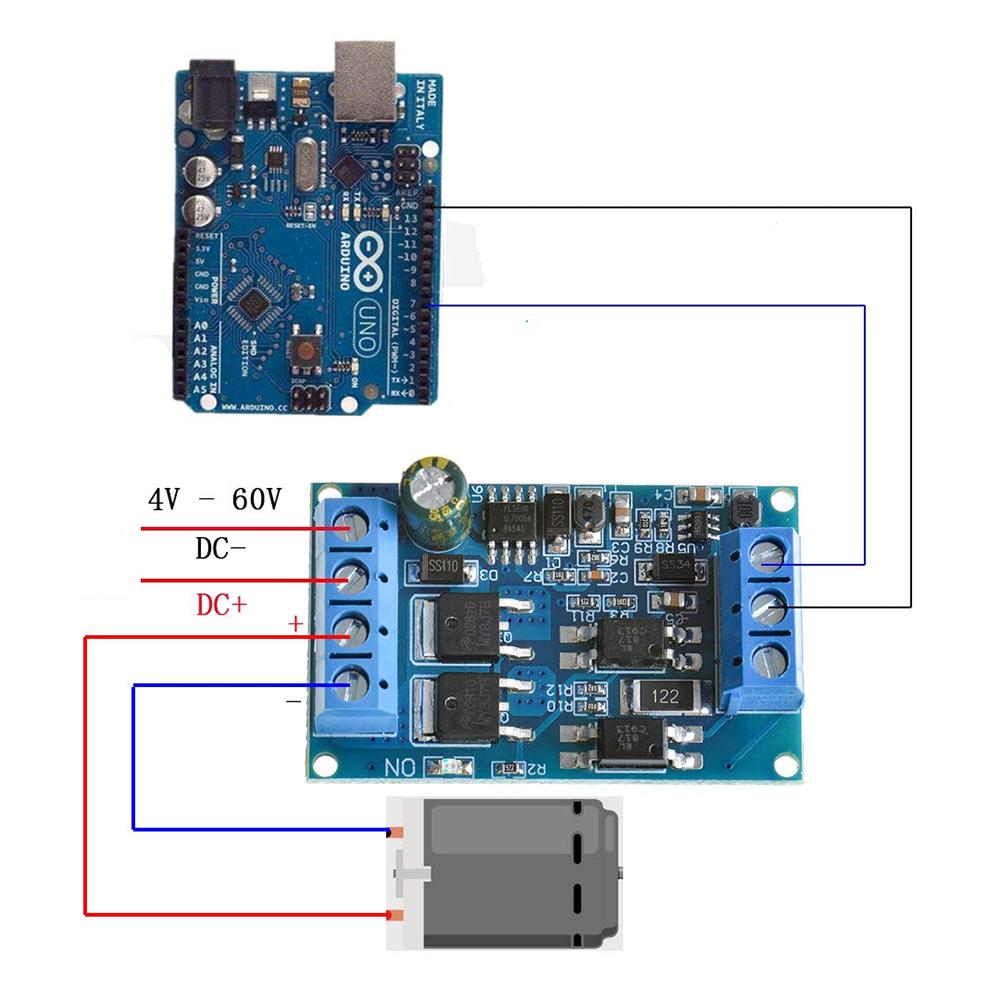

Circuit Diagram:

Note:

Only one signal can control the module at the same time, and two or more signals cannot be used to control the module at the same time.
High level trigger voltage range: DC3.0V~24V, that is, MOS tube conduction when the signal is 3.0V~24V, lower than 0.6V, that is, 0V~0.6V. MOS tube is turned off, and signal voltage must not be between 0.6V~3.0V.
Low level trigger voltage range: DC 0V~0.6V, that is, when the signal voltage is 0V~0.6V, the MOS tube is on, higher than 3.0V, the MOS tube is off, the signal voltage must not be between 0.6V~3.0V, in that case, MOS is not fully open, high-power MOS will be burned.

Application:

The output end can control high-power equipment, motor, bulb, LED belt, DC motor, micro pump, solenoid valve, etc., can input PWM, control motor speed, lamp brightness, etc.

Packing List:

1 x High-Power 600W MOS Tube FET Trigger Drive Module PWM Control High / Low Level Trigger Switch DC 4V-60V 5V 12V 24V
