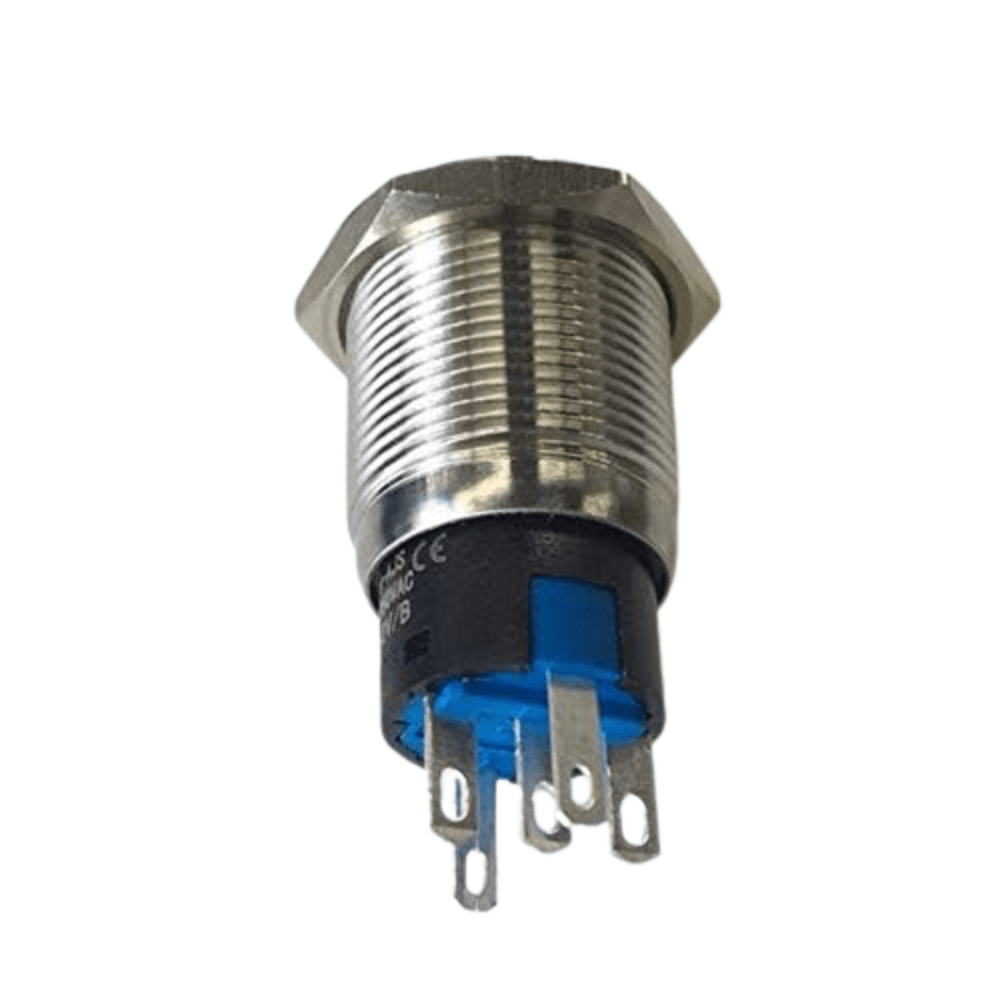

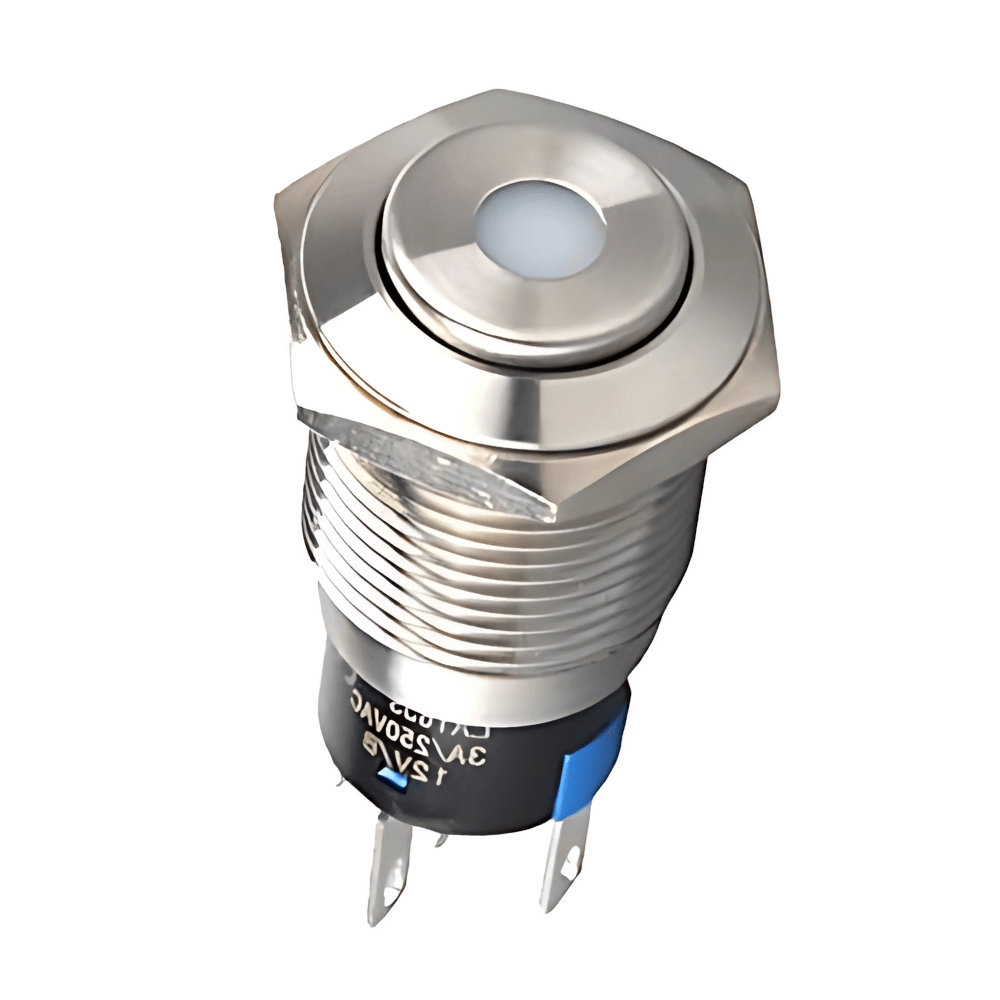

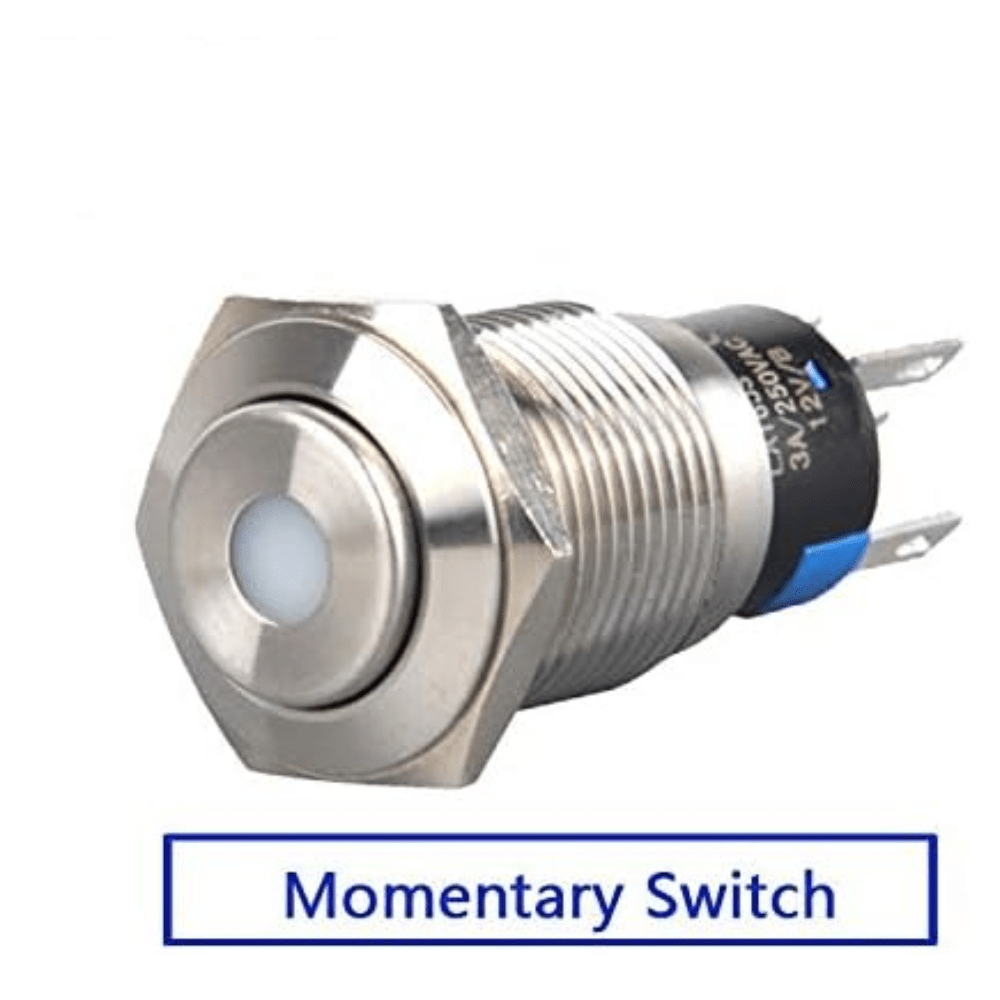

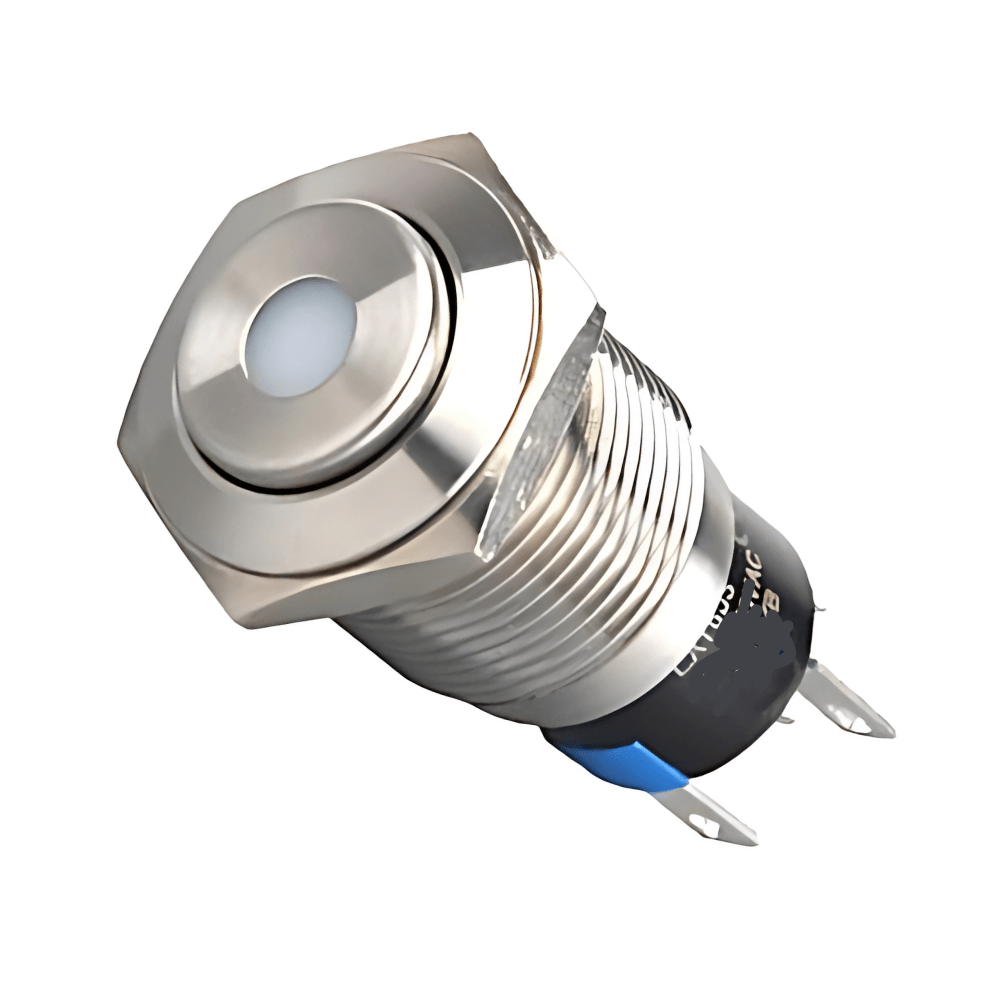

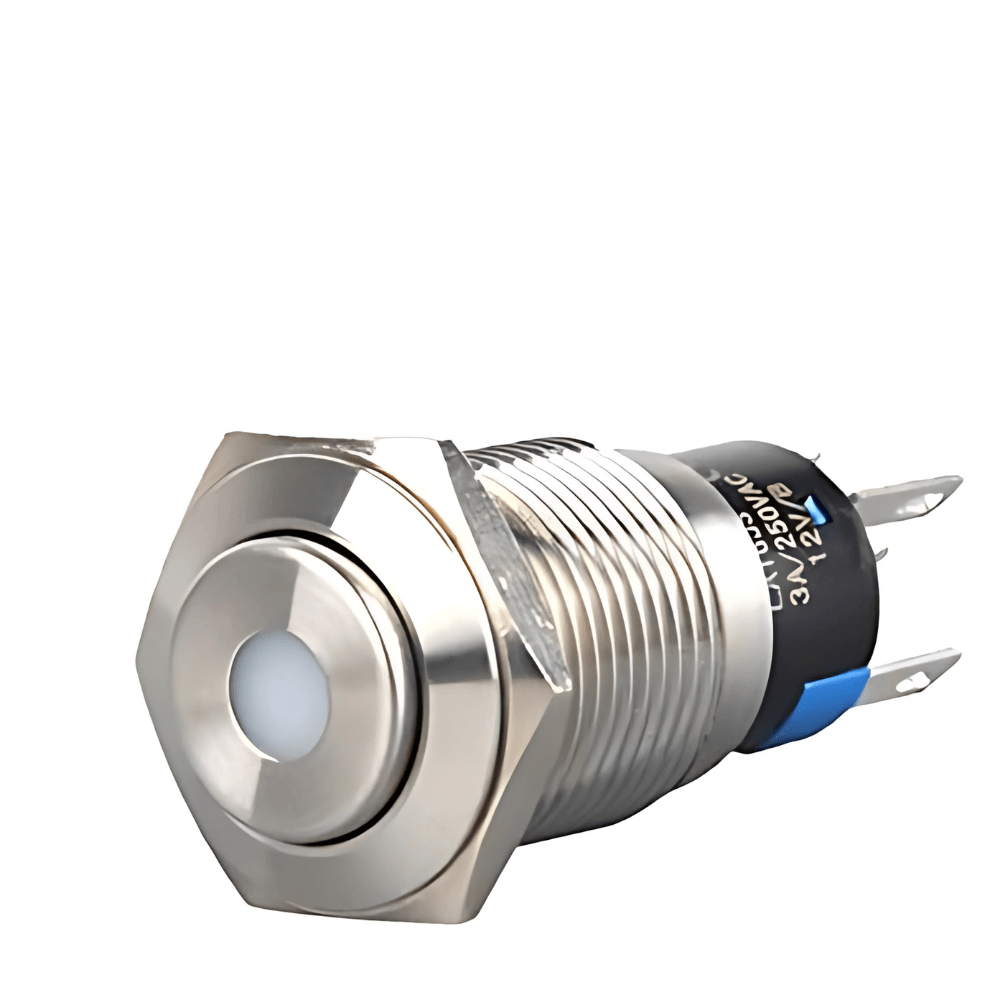

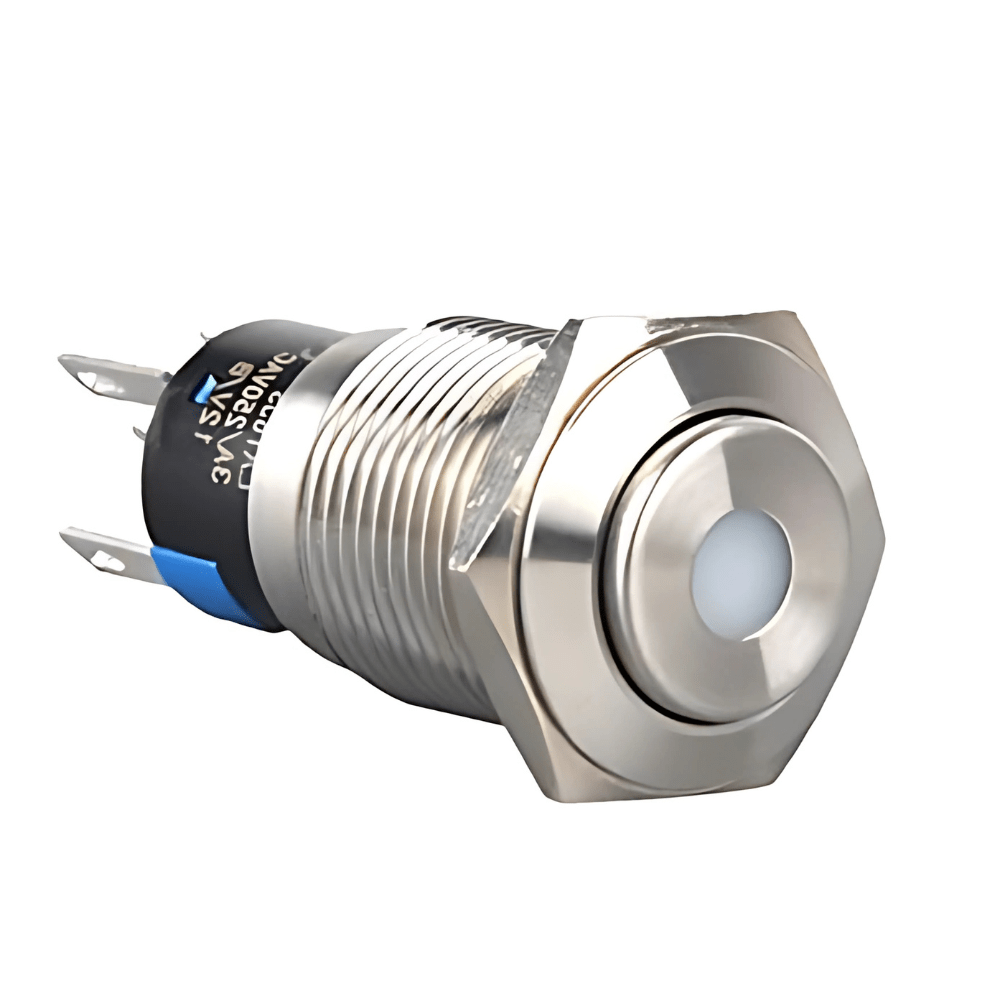

High Head 16mm 3-6V Non-Latching Green Dot Illuminated Silver Metal Switch

The High Head 16mm 3–6V Non-Latching Green Dot Illuminated Silver Metal Switch is a durable, momentary push-button switch designed for a wide range of industrial and DIY applications. Featuring a high-profile 16mm stainless steel body with a silver finish, this switch combines both functionality and style. The green LED dot illumination provides clear visual feedback and is powered by a low 3–6V DC input, making it ideal for low-voltage control systems.

The switch operates in a non-latching (momentary) mode — meaning it returns to its original position when released — perfect for tasks such as triggering, starting, or resetting circuits. Its IP65-rated metal construction ensures resistance to dust and water splashes, making it suitable for use in rugged environments like automotive dashboards, control panels, industrial machinery, or custom electronics projects.

Key Features

1. Mounting Hole Size: 16mm
2. Switch Type: Momentary (non-latching)
3. LED Illumination: Green dot, 3–6V DC
4. Material: Stainless steel or metal alloy with silver finish
5. Durability: Long life with up to 100,000 mechanical cycles
6. Protection: IP65-rated (dust and water-resistant)
7. Terminals: Solder or pin type (usually 5-pin for LED + switch)

Packing List:

1 x High Head 16mm 3-6V Non-Latching Dot Illuminated Silver Metal Switch
