GRBL 2-Axis CNC Controller Control Board For CNC Laser Engraving

Specifications:

  • Connection: USB (USB-CH340)
  • Software: GRBL controller, UniversalGcodeSender
  • Master chip: atmel 328P (arduino nano)
  • Stepper motor driver: A4988
  • Spindle drive chip: MOSFET, the highest 60V (recommendation within 48V, current :within 10A )
  • Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
  • Laser engraving: Support
SKU: RDNA-H2.12

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

2,655.00 (Inc. GST)
2,250.00 (+18% GST Extra)

In stock

In stock

11 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

2 Axis Offline Controller Board, GRBL USB Port CNC Engraving Machine Control Board For 1610, 2418, 3020, 4050, 6550, 4540 2 Axis Machine. The repeat positioning accuracy is within 0.1mm under no load, usually about 0.05mm. Laser is considered no-load. If used graver, the precision is depending on the hardness of the material. It can be used with CAM Design Software. It supports Windows XP SP3/7/8/10.

Packing List:

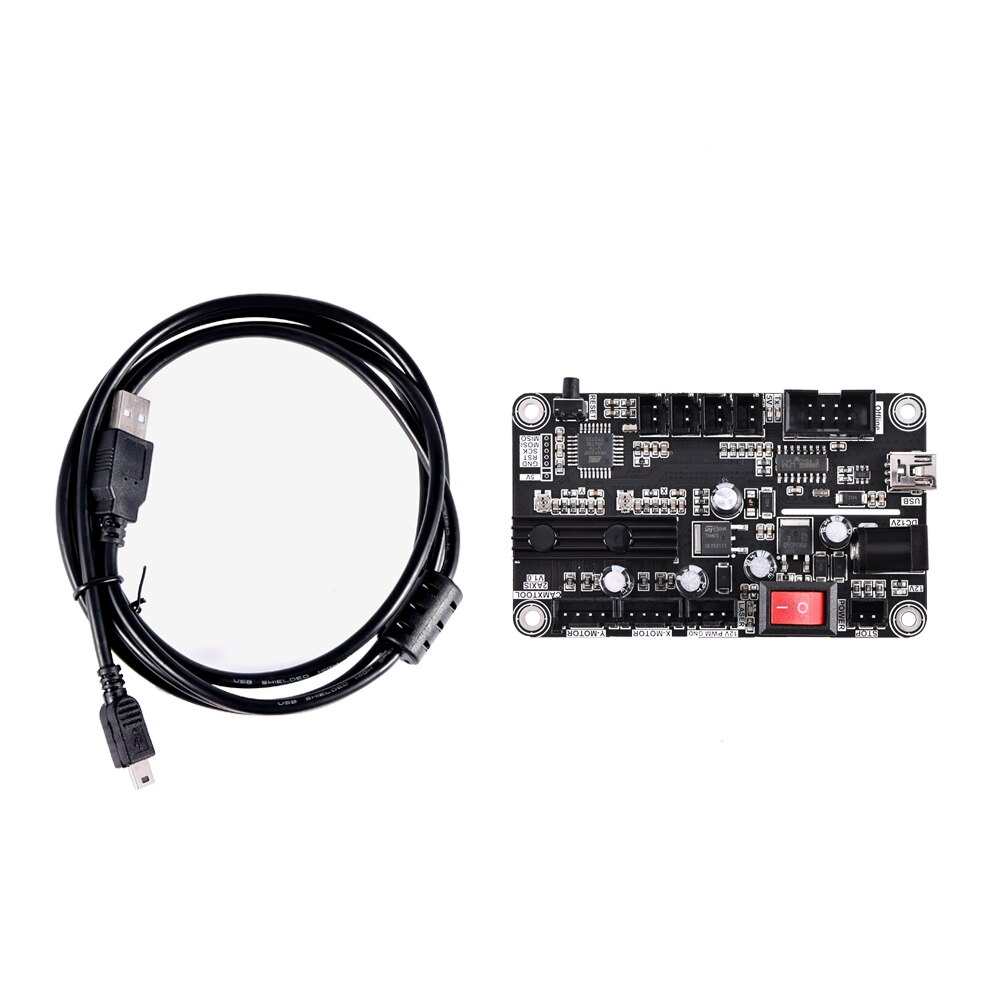

1 x GRBL 1.1 J 2-axis control board
1 x USB cable
