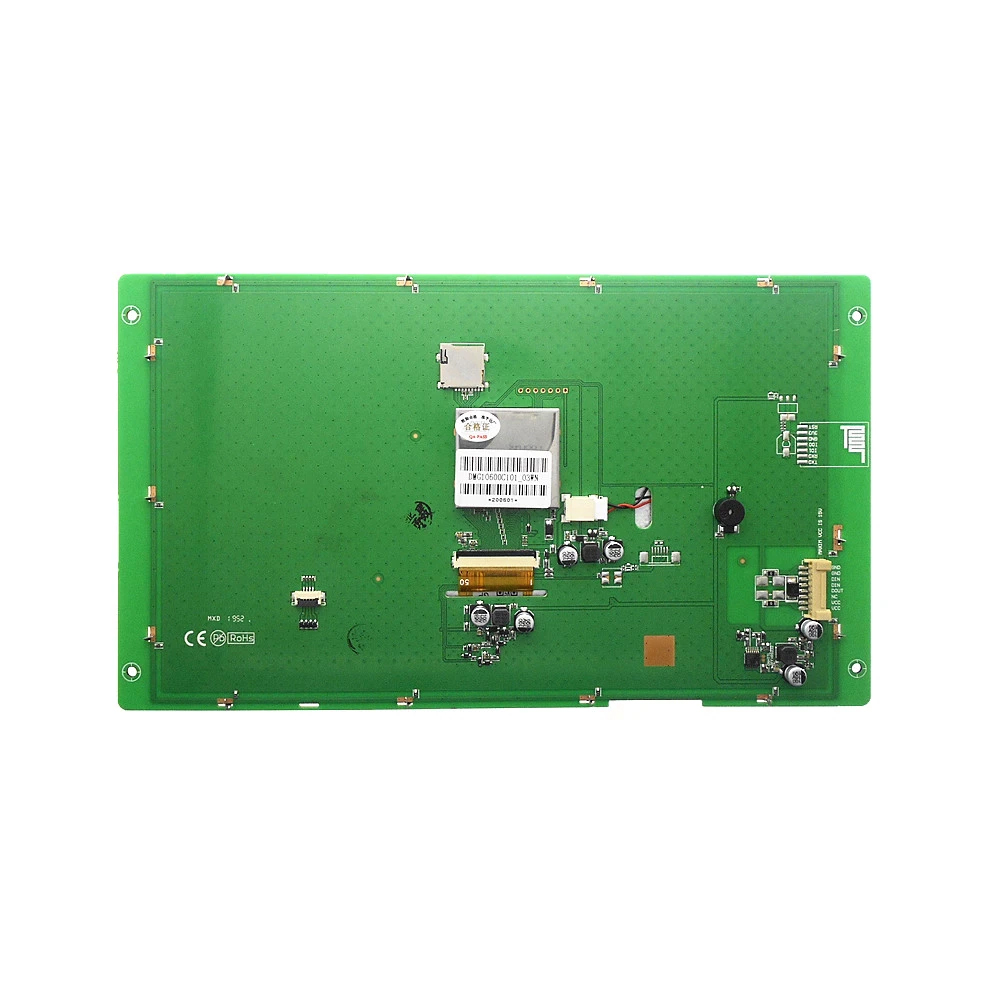

DWIN 10.1 inch 1024 × 600 Resolution HMI UART Serial, Capacitive Touch Smart Screen

This Dwin 10.1inch SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software pre-installed from the manufacturer which gives user great and useful tool to develop their own UI with great Feature. One can design UI Suh as a button, slider, Graph, Text Display, etc on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it supported with RGB color and 16.7M colors. It is also equipped with 250nitnit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.

Display:

• Size -10.1″
• Display Format -1024 × 600 Pixel Matrix
• Brightness -250nit
• Active Area – 222.7 mm (W) × 125.3 mm (H)
• Colour – 24-bit color 8R8G8B
• Backlight – LED

Interface:

• Mode is determined by Jumper: ON = 8N1, 3.3V & 5V TTL/CMOS; OFF = 8N1, RS232 FLASH Memory:16MB.

Datasheet available here.

Software Download

Guidance for development

Package List:

1 x DWIN 10.1 inch 1024 × 600 Resolution HMI UART Serial, Capacitive Touch Smart Screen
