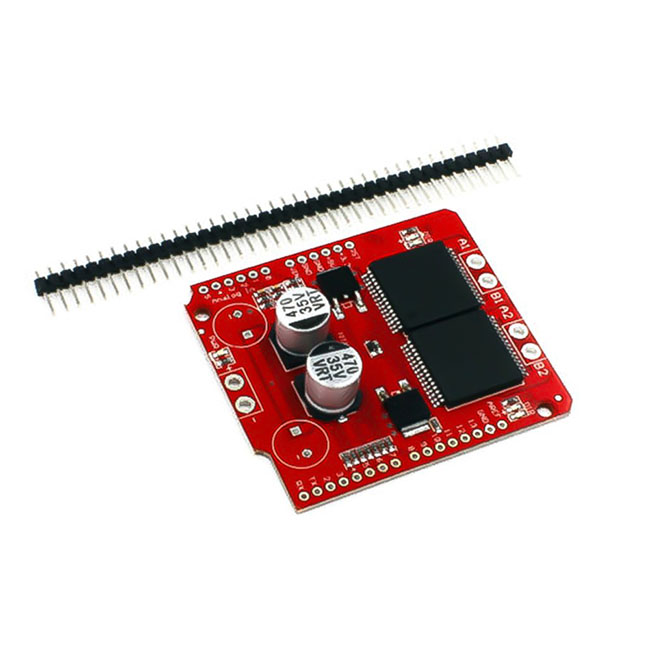

Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)

Specification:

Current sensing available to Arduino analog pin
MOSFET on-resistance: 19 m (per leg)
Maximum PWM frequency: 20 kHz
Thermal Shutdown
Undervoltage and Overvoltage shutdown.

SKU: RDNA-106.9

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹1,838.44 (Inc. GST)
₹1,558.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The Dual Monster Moto Shield VNH3ASP30 DC Motor Driver 2x14A (Peak 30A) is essentially a ramped up version of our Ardumoto motor driver shield. For this Monster Moto Shield, It is replaced the L298 H-bridge with a pair of VNH3ASP30 full-bridge motor drivers.

It is also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

The L298 H-bridge is no longer available in the Motor Driver Shield Monster Moto since it has been replaced for a pair of VNH2SP30 full-bridge motor drivers. The Motor Driver Shield Monster Moto has been enhanced to drive a pair of high-current motors while the VIN and motor have been adjusted for connecting larger wires more easily.

VNH3ASP30 is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual monolithic high side driver and two low side switches.

The high side driver switch is designed using the STMicroelectronics well known and proven proprietary VIPower M0 technology which permits efficient integration on the same die of a true Power MOSFET with an intelligent signal/protection circuitry. The VIN and motor out are pitched for 5mm screw terminals, making it easy to connect larger gauge wires. INA and INB control the direction of each motor, and the PWM pins turn the motors on or off.

For the VNH3ASP30, the current sense (CS) pins will output approximately 0.13 volts per amp of output current.
