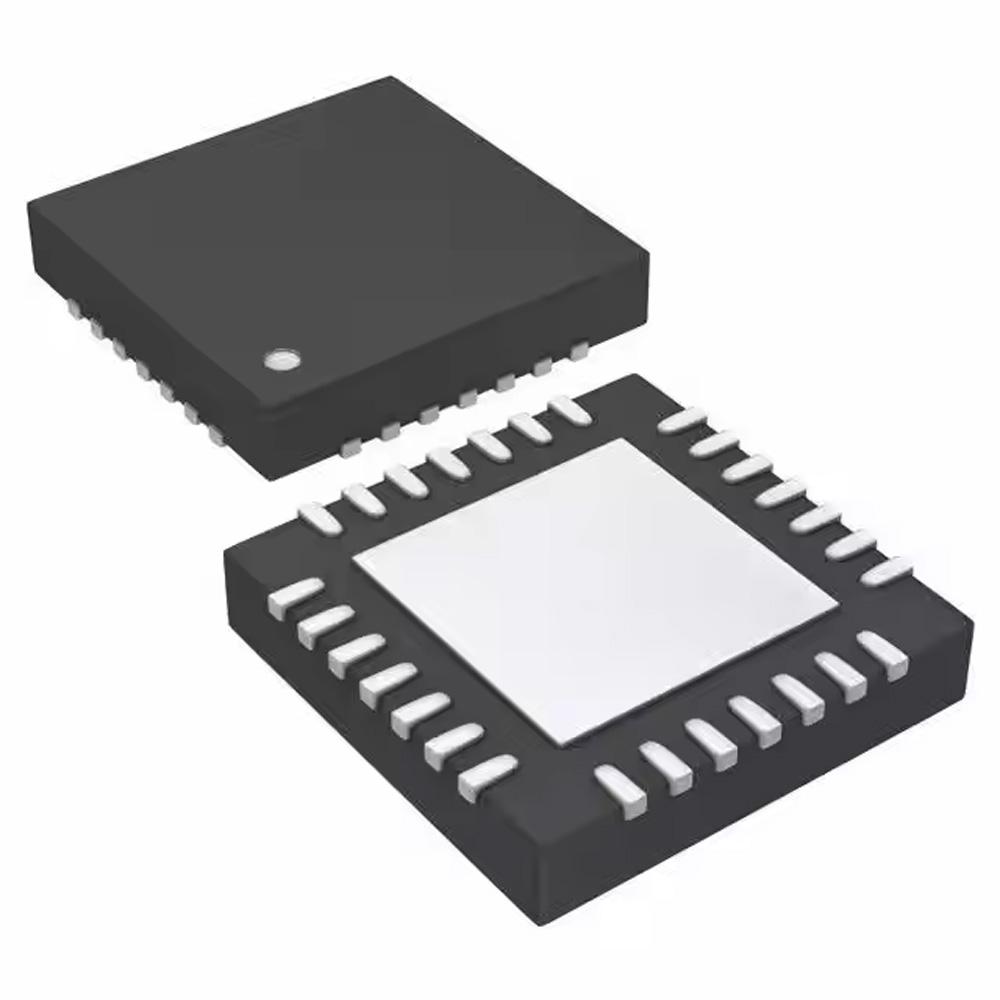

DRV8323RS IC

Specifications :

Power supply pin voltage (VM): –0.3V To 60 V
Operating junction temperature : –40°C To 150°C
sink peak gate drive current capability: 2-A
source gate drive current capability: Up to 1-A
Gate Drivers 65-V max 3-phase smart gate driver with buck regulator & current shunt amplifiers 48-VQFN -40 to 125

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹342.20 (Inc. GST)
₹290.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

12 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

The DRV832x family of devices are integrated gate drivers for three-phase applications. The devices provide three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. The DRV832x generates the proper gate drive voltages using an integrated charge pump for the high-side MOSFETs and a linear regulator for the low-side MOSFETs. The smart gate drive architecture supports up to 1-A source and 2-A sink peak gate drive current capability. The DRV832x can operate from a single power supply and supports a wide input supply range of 6 to 60-V for the gate driver and 4 to 60-V for the optional buck regulator.

Applications :

• BLDC Motor Modules
• CPAPs, Fans, and Pumps
• E-Bikes
• Power Tools and Lawn Appliances
• Drones, Robotics, and RC Toys
• ATM and Currency Countin

Datasheet of DRV8323RS IC

Packing List:

1 x DRV8323RS IC
