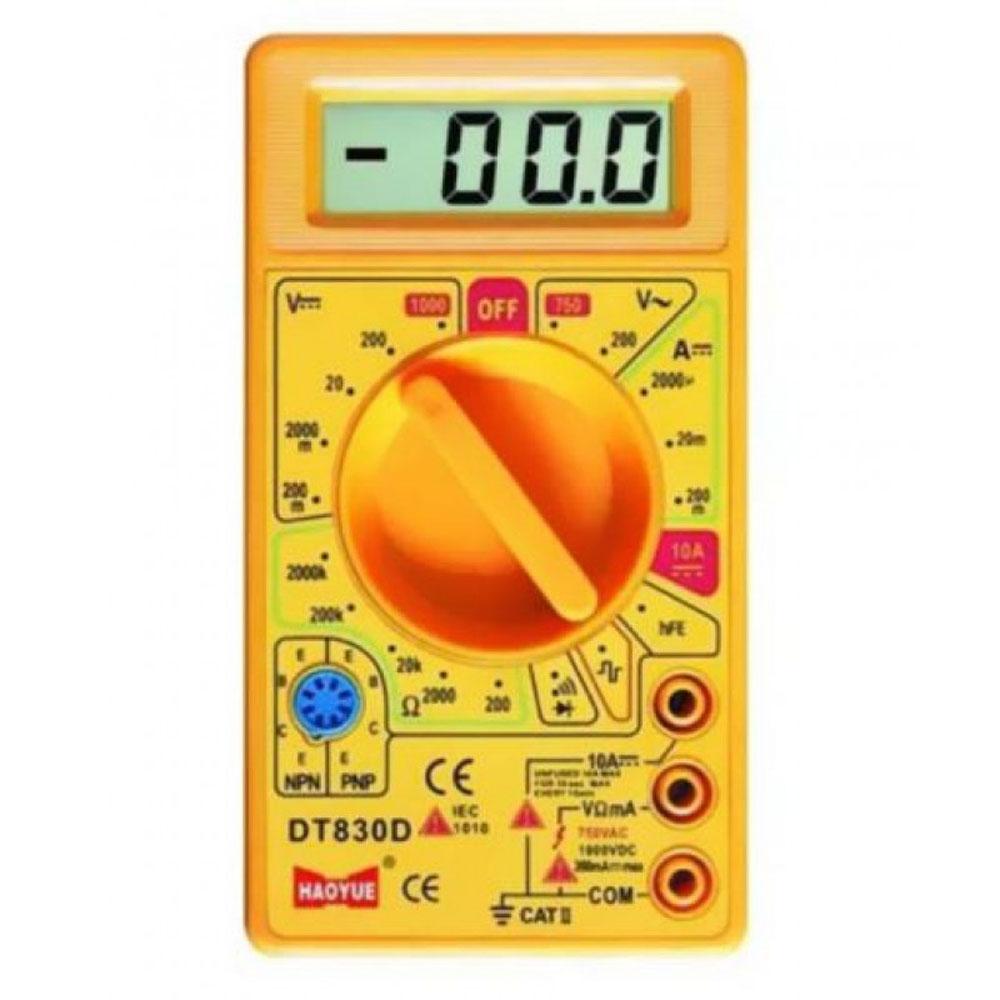

DT830D Digital Multimeter

Specifications:

Type: Digital
Size: 21X15X5cm
Voltage Rating: 1000Vdc/750Vac Rms
Impedance: 1MOhm
Requires a 9V Battery
Capacity:
200 mV, 2000mV, 20V, 200V and 1000V (DC Voltage),
200µA, 2000µA, 20mA, 200mA and 10A (DC Current),
200V and 750V (AC Voltage),
200, 2000 Ohms, 20, 200 and 2000KOhms (Resistance)

SKU: RDNA-E1.43

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹234.82 (Inc. GST)
₹199.00 (+18% GST Extra)

In stock

Compare

Add to wishlist

11 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

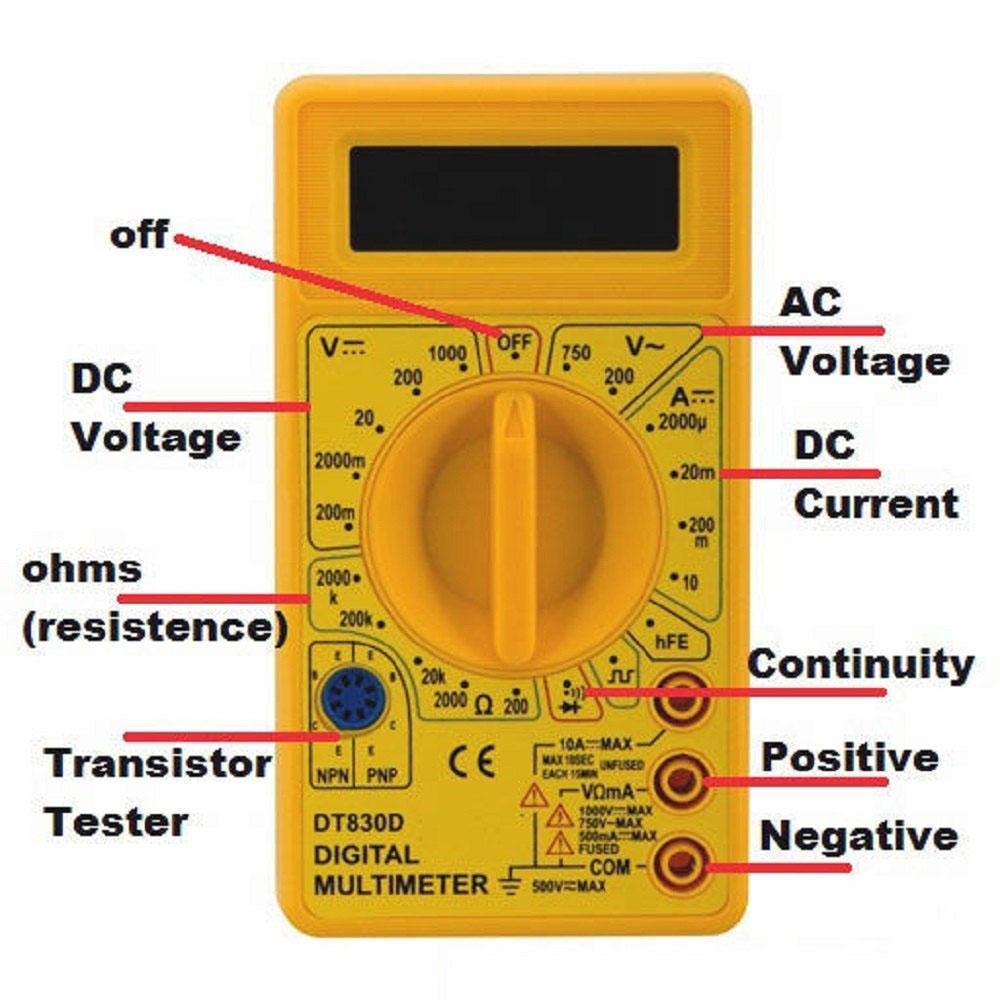

The DT830D Digital Multimeter is a basic tool, which anyone with an average intelligence would be capable of using. This is not an auto-ranging meter, and therefore you will have to select the correct ranges for voltage and current measurements.

This is one of those DMM where you will need to think first to determine what you are measuring. Are you measuring voltage, or current? Is it AC or DC? In which range do you expect this?

According to the manufacturer, this meter is also capable of measuring DC currents up to 10 amperes. For this measurement, you need to use the socket marked 10-A, however please note that there is no fuse protection, and if you pass more current through it, then damage will occur. Remember, that to measure current, you must also have an appropriate series load in the circuit. It is highly dangerous to measure the current without the series load.

You can also look for :

Multimeter

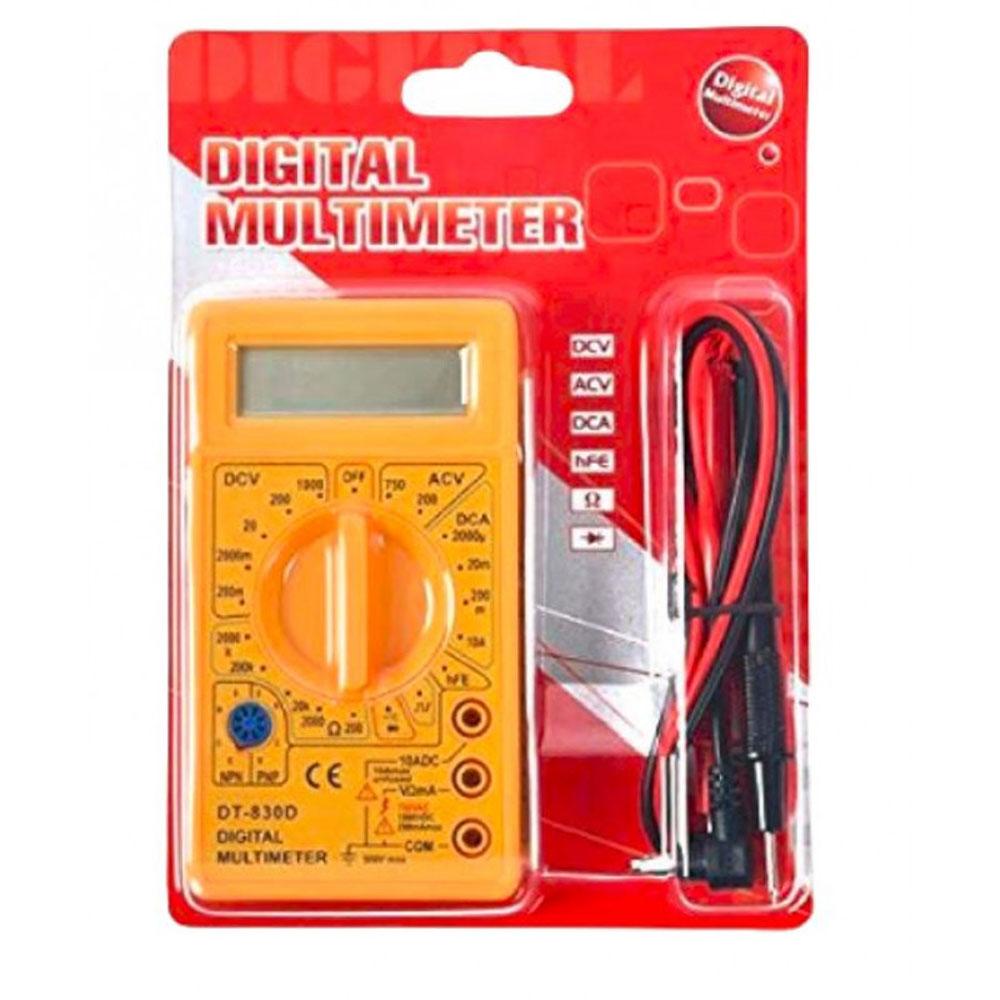

Package Include

1 x DT830D Digital Multimeter
