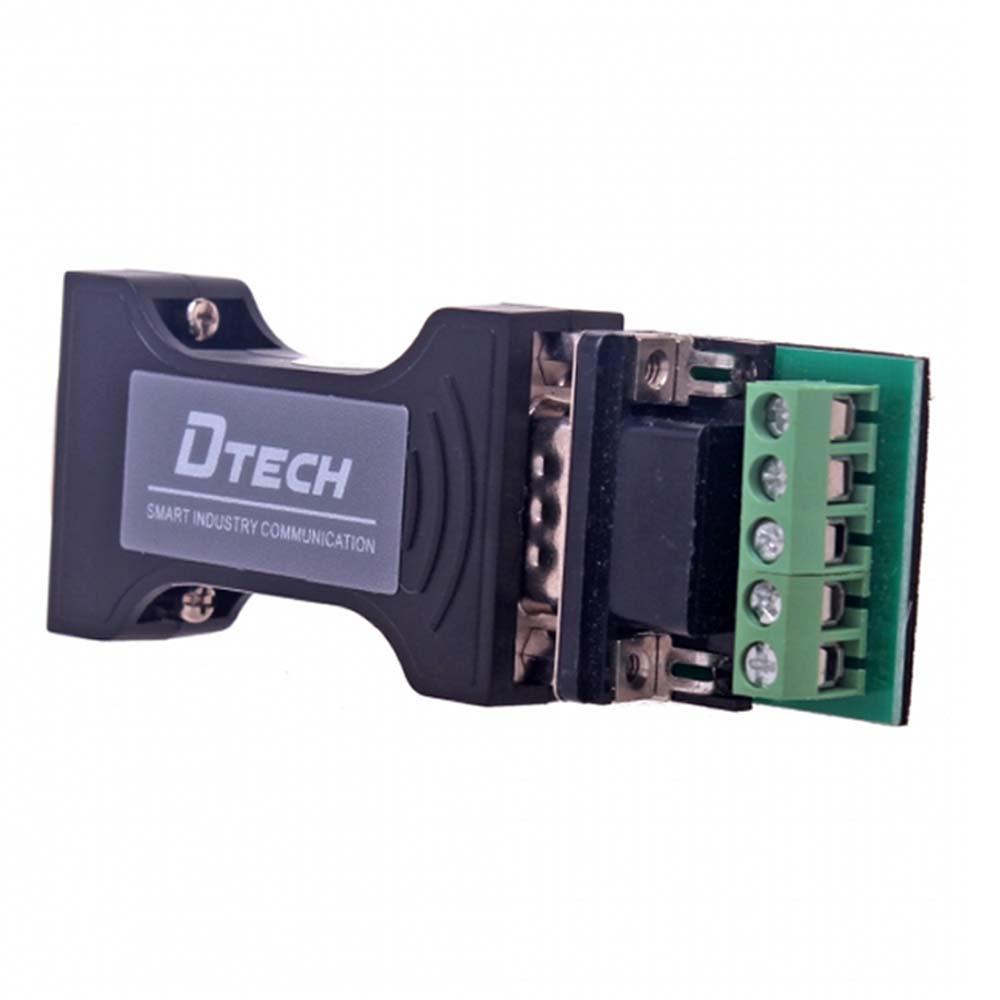

Digital DT-9003 Passive RS232 to RS485/RS422 converter

Specifications :

Interface characteristics: compatible with EIA/TIA RS-232C, RS-485/RS-422 standard
Electrical interface: DB9 female connector at RS-232 end, DB9 male connector at RS485/RS422 end, with 6 position terminal board
Working mode: Asynchronous Full Duplex, half duplex automatic selection of differential transmission, without jumper settings
Transmission medium: twisted pair wire or shielded wire
Transmission rate: 300BPS-115.2KBPS
Size: 64mmX33mmX17mm
Use of the environment: -20 degrees to 70 degrees, relative humidity of 5% to 95%
Transmission distance: 1200 meters (RS-485 end), 5 meters
(RS-232 end)

SKU: RDNA-G5.18

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹817.74 (Inc. GST)
₹693.00 (+18% GST Extra)

Out of stock

Compare

Add to wishlist

20 People watching this product now!

Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)

Rs. 99

via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Interface characteristics: interface compatible with EIA/TIA RS-232C, RS485 standard . Electrical interface: RS-232 end of the DB9F, RS-485 is DB9M connector. Work mode: asynchronous half duplex. The transmission medium: twisted pair (diameter greater than or equal to 0.5MM) or shielded wire. The transmission rate: 300-115.2KBPS.
