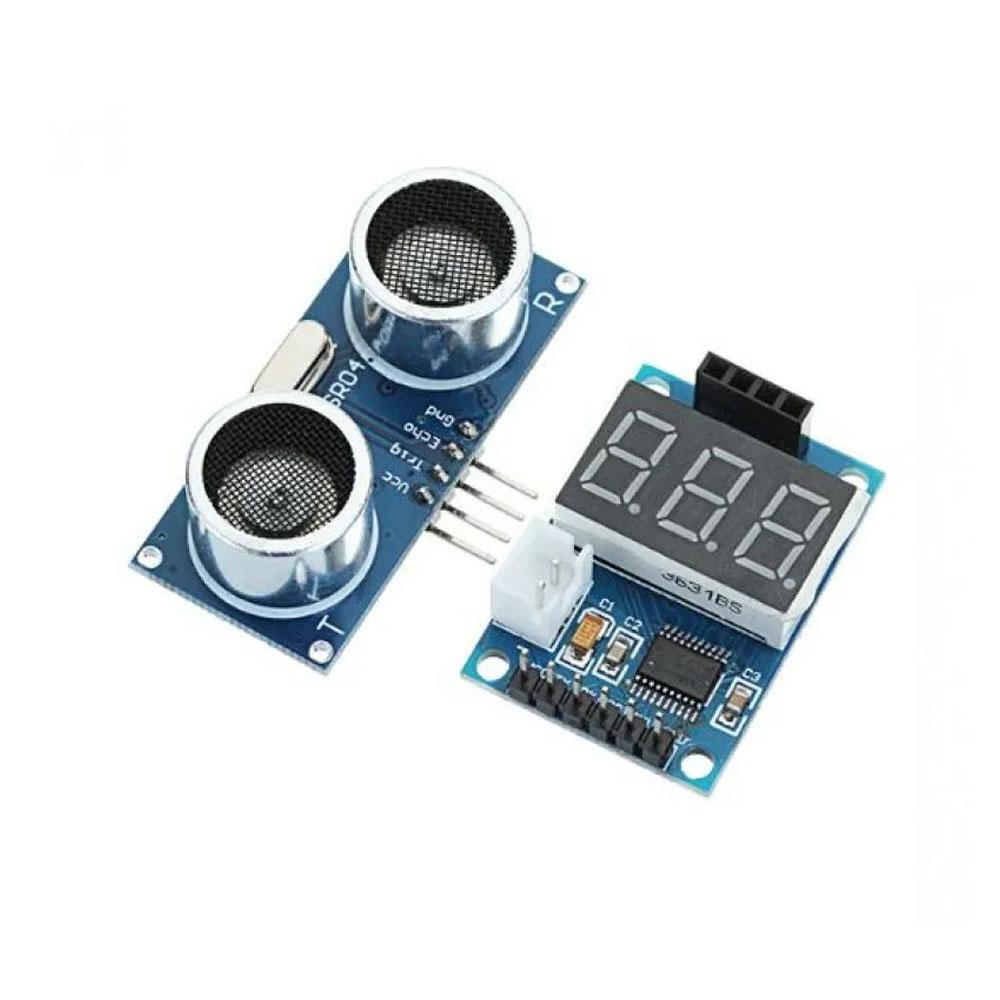

Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board

Specifications:

  • Onboard STM8S103 high-performance microprocessor
  • With digital tube display
  • Valid Measurement Distance: 3-400cm
  • Display Unit: cm
  • Maximum Input Voltage: 5VDC
  • 2.54mm White Socket: 5V power interface.
SKU: RDNA-54.9

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

449.00 (Inc. GST)
380.50 (+18% GST Extra)

Only 1 left in stock

Only 1 left in stock

19 People watching this product now!
  • Pick up from the RoboticsDNA Store in Pune / Dunzo

To pick up today

Free

  • Same Day Delivery in Pune

(Mon-Sat) (Please Place Order Before 1:30 PM)​

Rs. 99

  • via Delhivery.com (Express Mode)

Our courier will deliver to the specified address

3-5 Days

Rs. 149

  • via Delhivery.com (Surface Mode)

Our courier will deliver to the specified address

4-7 Days

Rs. 69

Payment Methods:

Description

Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board adopts 8 bit MCU as the main control chip; it can be applied in distance measurement, testing HC-SR04 ultrasonic module performance. And it supports serial port display and digital tube display.

Features :

  1. Onboard STM8S103 high-performance microprocessor.
  2. With digital tube display.
  3. Serial port data output.
  4. Valid Measurement Distance: 3-400cm.
  5. Display Unit: cm.
  6. Max Error: 5V.
  7. Board Size: 36 x 25 x 12 mm.
  8. VCC, GND: 5V power interface.
  9. 2.54mm White Socket: 5V power interface.
  10. TX: module serial port transmits pin.
  11. RX: module serial port receive pin.
  12. NRST, SWIN: preset STM8 program download port.

Using Introduction:

1. The measurement distance can be displayed via a digital tube and serial port.
Digital Tube Display: directly plug in the ultrasonic module, connect 5V power.
2. Serial Port: plug-in ultrasonic module, VCC, TX, RX, GND respectively connects 5V, RX, TX, GND of USB to TTL module; serial port communication baud rate 9600, output format “D:XXXrn”; XXX represents distance, unit is cm.

Notice:

1. When measuring the distance, the area of a measured object should be no less than 0.5 square meters, and it should be smooth and has strong reflectivity; otherwise, it will affect the test result.
2. Valid Measurement Distance: 3-400cm; if longer than this range, it will lead to incorrect data or 000 display.

Package Includes:

1 x Digital Display for HC-SR04 Ultrasonic Distance Measurement Control Board.
